User Manual
Installation
Industrial Ethernet Workgroup Switch
MACH104 Full Gigabit Family
MACH104-20TX-F
FAULT
USB
V.24
FAULT
RM
Sb
P
MACH104-20TX-F...
MACH104-20TX-FR
FAULT
USB
V.24
FAULT
RM
Sb
P
MACH104-20TX-FR...
MACH104-20TX-F-4PoE
FAULT
USB
V.24
FAULT
RM
Sb
P
MACH104-20TX-F-4PoE...
Installation MACH104
Release 07 07/2014
5
7
1
3
2
4
6
8
5
7
1
3
2
4
6
8
P
5
7
1
3
2
4
6
8
9
11
13
15
10
12
14
16
9
11
13
15
10
12
14
16
9
11
13
15
10
12
14
16
https://hirschmann-support.belden.eu.com
17
19
21
23
18
20
22
24
17
19
21
23
18
20
22
24
17
19
21
23
18
20
22
24
Technical support
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hirschmann MACH104-20TX-F
Summary of Contents for Hirschmann MACH104-20TX-F
-

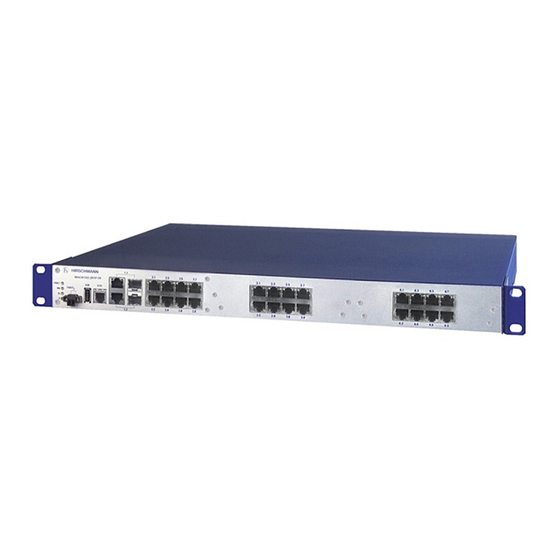

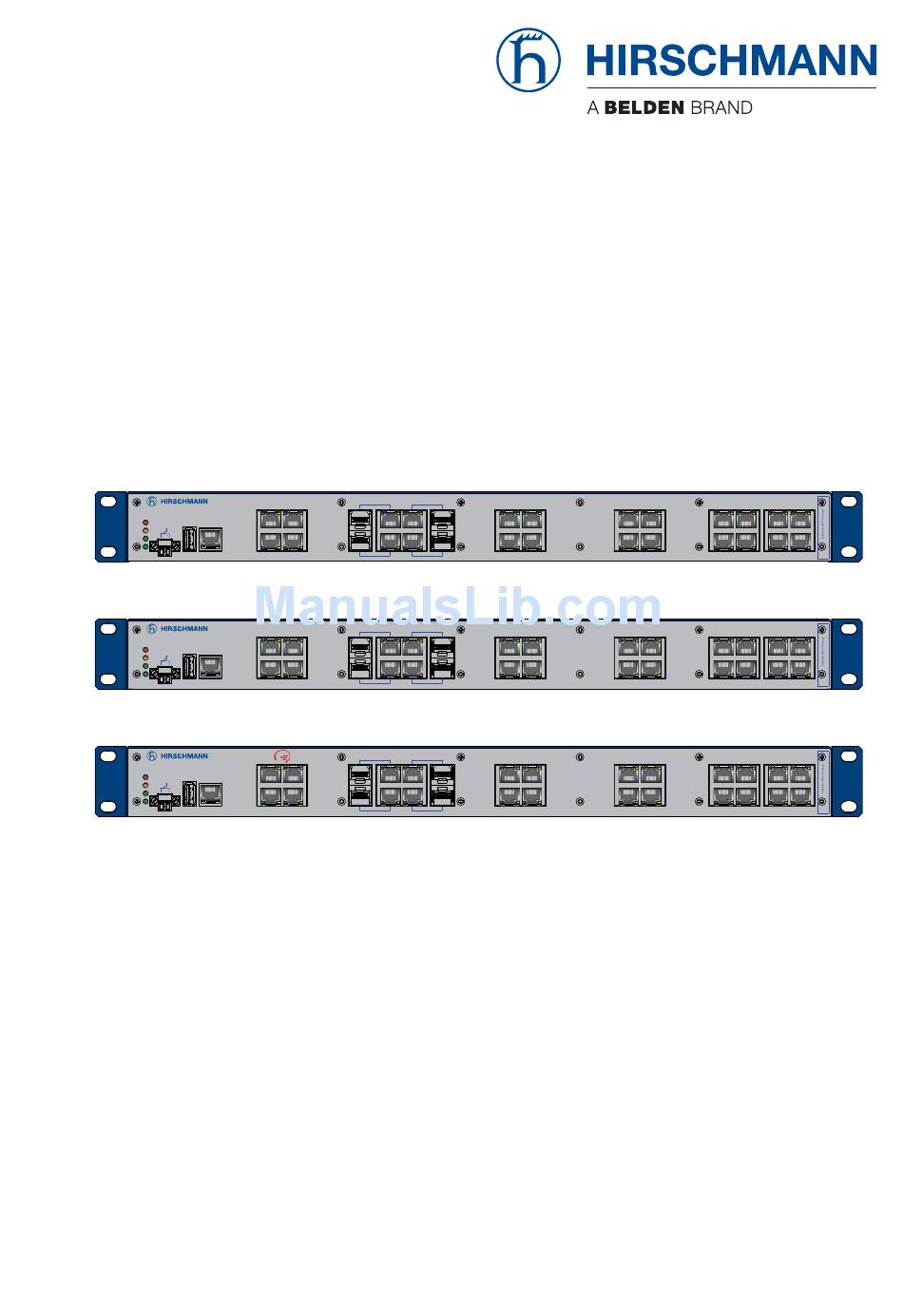

Page 1: User Manual
User Manual Installation Industrial Ethernet Workgroup Switch MACH104 Full Gigabit Family MACH104-20TX-F FAULT V.24 FAULT MACH104-20TX-F... MACH104-20TX-FR FAULT V.24 FAULT MACH104-20TX-FR... MACH104-20TX-F-4PoE FAULT V.24 FAULT MACH104-20TX-F-4PoE... Installation MACH104 Technical support Release 07 07/2014 https://hirschmann-support.belden.eu.com... - Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (www.hirschmann.com). Printed in Germany Hirschmann Automation and Control GmbH Stuttgarter Str.
-
Page 3: Table Of Contents
Legend Description General device description Description of the device variants 1.2.1 MACH104-20TX-F...: devices with 24 GB ports 1.2.2 MACH104-20TX-FR...: devices with 24 GB ports and redundant voltage supply 1.2.3 MACH104-20TX-F-4PoE...: devices with 24 GB ports, 4 of which are PoE ports Supply voltage 1.3.1 MACH104-20TX-F... - Page 4 2.4.3 Mounting in a switch cabinet 2.4.4 Mounting on the wall 2.4.5 Grounding the device Operating the device Connecting data cables Basic set-up Default settings Maintenance and service Deinstallation Removing the device Removing the SFP transceivers Technical data Further Support Installation MACH104 Release 07 07/2014...
-
Page 5: Safety Instructions
Never start operation with damaged components. The device does not contain any service components. If the device is not functioning correctly, or if it is damaged, switch off the voltage supply and return the device to Hirschmann for inspection. WARNING UNCONTROLLED MACHINE ACTIONS To avoid uncontrolled machine actions caused by data loss, configure all the data transmission devices individually. -
Page 6: Grounding The Device
National and international safety regulations Verify that the electrical installation meets local or nationally applicable safety regulations. Grounding the device The device is grounded via the operating voltage connections. Working voltage The operating voltage is electrically isolated from the housing. ... - Page 7 In accordance with the above-named EU directive(s), the EU conformity declaration will be at the disposal of the relevant authorities at the following address: Hirschmann Automation and Control GmbH Stuttgarter Str. 45-51 72654 Neckartenzlingen Germany Tel.: +49 1805 141538...
- Page 8 Appropriate testing has established that this device fulfills the require- ments of a class A digital device in line with part 15 of the FCC regula- tions. These requirements are designed to provide sufficient protection against interference when the device is being used in a business environment. The device creates and uses high frequencies and can also radiate high frequencies, and if it is not installed and used in accordance with this operating manual, it can cause radio transmission interference.
-
Page 9: About This Manual
About this manual The “Installation” user manual contains a device description, safety instruc- tions, a description of the display, and the other information that you need to install the device. The following manuals are available as PDF files on the CD/DVD supplied: ... -
Page 10: Description
You will find these manuals as PDF files on the enclosed CD/DVD, or you can download them from the Internet on the Hirschmann product pages (www.hirschmann.com). The Hirschmann network components help you ensure continuous commu- nication across all levels of the company. Installation MACH104... -
Page 11: Description Of The Device Variants
Description of the device variants 1.2.1 MACH104-20TX-F...: devices with 24 GB ports MACH104-20TX-F... 4 Gigabit Ethernet combo ports 20 Gigabit Ethernet ports 9 11 13 15 17 19 21 23 MACH104-20TX-F FAULT V.24 FAULT 10 12 14 16... -
Page 12: Mach104-20Tx-F-4Poe
10/100/1000 Mbit/s twisted 100/1000 Mbit/s F/O, SFP slots pair, RJ45 connections Alternative connections: 10/100/1000 Mbit/s twisted pair, RJ45 connections 1.2.3 MACH104-20TX-F-4PoE...: devices with 24 GB ports, 4 of which are PoE ports MACH104-20TX-F-4PoE... 4 Gigabit Ethernet combo ports ... -
Page 13: Supply Voltage
18 20 22 24 Figure 3: Overview of interfaces and display and control elements for the MACH104-20TX-F-4PoE... 1 - MACH104-20TX-F-4PoE... device 2 - LED display elements 3 - Signal contact 4 - USB interface 5 - V.24 access for external management... -
Page 14: Mach104-20Tx-Fr
Figure 4: Connections of the MACH104-20TX-F... on the back of the device 1 - Voltage supply 100 - 240 V AC 2 - MACH104-20TX-F... device 1.3.2 MACH104-20TX-FR... Supply voltage is connected via non-heating appliance sockets. The supply voltage can be connected redundantly. Both inputs are uncoupled. -
Page 15: Ethernet Ports
Ethernet ports You can connect terminal devices and other segments on the ports of the device via twisted pair cables or F/O cables. 1.4.1 10/100/1000 Mbit/s twisted pair port This port is an RJ45 socket. The 10/100/1000 Mbit/s twisted pair port offers you the ability to connect network components according to the IEEE 802.3 10BASE-T/100BASE- TX/1000BASE-T standard. -
Page 16: 1000 Mbit/S F/O Port
Autonegotiation Full duplex mode Delivery state: autonegotiation active. 1.4.4 PoE ports The MACH104-20TX-F-4PoE... device variants support Power over Ethernet (PoE) in accordance with IEEE 802.3af. Ports PoE support 1 to 4 5 to 20 Table 2: Twisted-pair ports and PoE support... -
Page 17: Display Elements
After the working voltage is set up, the software starts and initializes itself. Afterwards, the device performs a self-test. During this process, various LEDs light up. The process takes around 15 seconds. 9 11 13 15 17 19 21 23 MACH104-20TX-F FAULT V.24 FAULT 10 12 14 16 18 20 22 24... -
Page 18: Port State
The following table applies to all device variants: Display Color Activity Meaning Stand-by None Stand-by mode not enabled Green Lights up Standby mode enabled FAULT Signal None The signal contact is closed - it is not contact reporting any detected errors. Lights up The signal contact is open - it is reporting a detected error. -
Page 19: Management Interfaces
Display Color Activity Meaning Link status None Device detects an invalid or missing link Green Lights up Device detects a valid link Flashes 1 time a period Port is switched to stand-by Flashes 3 times a period Port is switched off Data traffic Yellow Flashing... -
Page 20: Usb Interface
VCC (VBus) − Data + Data Ground (GND) Table 3: Pin assignment of the USB interface Signal contact MACH104-20TX-F FAULT V.24 FAULT Figure 9: MACH104 device, front view 1 - Signal contact The signal contact is a potential-free relay contact. -
Page 21: Installation
Installation On delivery, the device is ready for operation. The following procedure has been proven to be successful for the assembly of the device: Unpacking and checking the content of the package Installing an SFP transceiver (optional) Wiring and assembling the signal contact ... -
Page 22: Installing An Sfp Transceiver (Optional)
2 - Ports 7 + 8: Two SFP slots that are used as alternatives to the RJ45 ports Note: Only use SFP transceivers Hirschmann which are suitable for this device. See “Accessories” on page 34. Before installing an SFP transceiver or XFP transceiver, first remove the protection cap of the transceiver. -
Page 23: Installing The Device And Grounding
WARNING ELECTRIC SHOCK Never insert sharp objects (small screwdrivers, wires, etc.) into the connec- tion terminals for the signal lines, and do not touch the terminals! Non-adherence to these instructions can lead to death, serious physical injury or material damage. For the signal contact to be connected, make sure the following requirements are met: ... -
Page 24: Mounting On A Flat Surface
2.4.2 Mounting on a flat surface Before operating the device on a flat surface, such as a table, fasten the housing feet supplied at a distance of 2 cm from the corners of the bottom of the device. If necessary, remove any dirt from the adhesive surfaces on the bottom of the device. -
Page 25: Mounting On The Wall
MACH104-20TX-F FAULT V.24 FAULT Figure 14: Mounting the MACH104 in the 19" cabinet Fasten the device by screwing the brackets to the switch cabinet. Note: When operating the device in an environment with strong vibrations, you have the option to additionally fasten the back of the device to the switch cabinet using two brackets. -
Page 26: Grounding The Device
2.4.5 Grounding the device The device is grounded via the operating voltage connections. Operating the device WARNING ELECTRIC SHOCK Connect solely an working voltage that corresponds to the type plate of your device. Failure to follow these instructions can result in death, serious injury, or equipment damage. -
Page 27: Basic Set-Up
Basic set-up Note: Two or more devices configured with the same IP address can cause unpredictable operation of your network. Install and maintain a process that assigns a unique IP address to every device in the network. When you install the device for the first time enter the IP parameters. The device provides the following options for entering the IP parameters during the first installation: ... -
Page 28: Maintenance And Service
Maintenance and service When designing this device, Hirschmann largely avoided using wear parts. The parts subject to wear and tear are dimensioned to last longer than the lifetime of the product when it is operated normally. Operate this device according to the specifications (see on page 30 “Technical... -
Page 29: Deinstallation
Disconnect the operating voltage. Remove the power connector from the device. To detach the device from the switch cabinet or the wall, remove the screws from the brackets on the device. MACH104-20TX-F FAULT V.24 FAULT Figure 16: Disassembling the device Removing the SFP transceivers ... -
Page 30: Technical Data
Technical data General technical data Dimensions See “Dimension drawings” on page 31. Weight MACH104-20TX-F... 4.2 kg MACH104-20TX-FR... 4.4 kg MACH104-20TX-F-4PoE... 4.6 kg Operating voltage Rated voltage range AC 100 V ... 240 V, 50 Hz ... 60 Hz Voltage range AC incl. -
Page 31: Dimension Drawings
Dimension drawings 462,6 0.13 18.21 0.13 inch 19,3 19,3 0.76 17.48 0.76 EMC and immunity EMC interference immunity IEC/EN 61000-4-2 Electrostatic discharge Contact discharge 6 kV Air discharge 8 kV IEC/EN 61000-4-3 Electromagnetic field 80 MHz ... 3000 MHz 20 V/m IEC/EN 61000-4-4 Fast transients (burst) - Page 32 EMC interference immunity IEC/EN 61000-4-6 Conducted disturbances 150 kHz ... 80 MHz 10 V EN 61000-4-9 Pulse magnetic fields 300 A/m EMC interference emission EN 55022 Class A FCC 47 CFR Part 15 Class A Network range Note: The line lengths specified for the transceivers apply for the respec- tive fiber data (fiber attenuation and BLP/dispersion).
-
Page 33: Order Numbers
3 dB system reserve when compliance with the fiber data is observed MM = Multimode, SM = Singlemode, LH = Singlemode Longhaul Order numbers MACH104device Order number MACH104-20TX-F-L2P 942 003-001 MACH104-20TX-FR-L2P 942 003-101 MACH104-20TX-F-4PoE-L2P 942 003-201 MACH104-20TX-F-L3P... -
Page 34: Scope Of Delivery
Maximum power consumption power output MACH104-20TX-F... 35 W 119 Btu (IT)/h MACH104-20TX-FR... 35 W 119 Btu (IT)/h MACH104-20TX-F-4PoE..., when 4 x 110 W 170 Btu (IT)/h Class 0 Powered Device connected Scope of delivery Number Article 1 × Device 1 ×... - Page 35 Gigabit Ethernet SFP transceiver Order number M-SFP-TX/RJ45 943 977-001 Note the following for the M-SFP-TX/RJ45 transceiver: Can be used with: - HiOS from software version 03.0.00 - Classic Switch Software from software version 04.1.00 - HiSecOS from software version 01.2.00 Not for use with the following devices: - SPIDER II - MSP/MSM...
- Page 36 If your device has a shipping approval according to Germanischer Lloyd, you find the approval mark printed on the device label. You will find out whether your device has other shipping approvals on the Hirschmann website under www.hirschmann.com in the product information.
-
Page 37: A Further Support
Further Support Technical Questions For technical questions, please contact any Hirschmann dealer in your area or Hirschmann directly. You will find the addresses of our partners on the Internet at http://www.hirschmann.com Contact our support at https://hirschmann-support.belden.eu.com You can contact us in the EMEA region at ...
