Summary of Contents for Hirschmann OS20
-

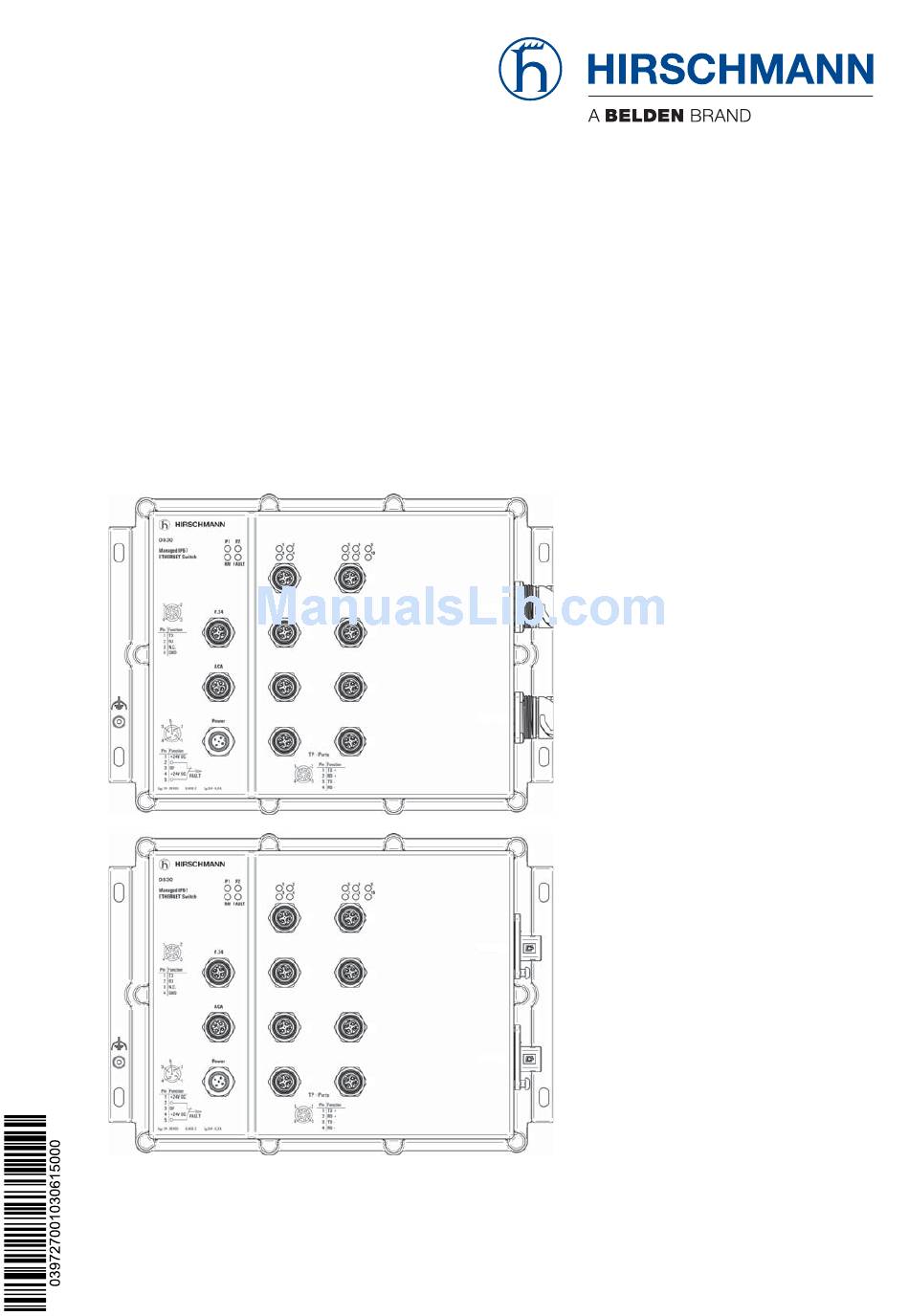

Page 1: User Manual
User Manual Installation IP67 Switch OS20 / OS30 Installation OS20/OS30 Technical Support Release 03 06/2015 https://hirschmann-support.belden.eu.com... - Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (www.hirschmann.com). Hirschmann Automation and Control GmbH Stuttgarter Str.
-
Page 3: Table Of Contents
2.2.1 Mounting on a flat surface 2.2.2 Grounding the device Wiring the connectors for supply voltage and signal contact Operating the device Connecting data cables 2.5.1 Twisted Pair ports 2.5.2 Optical fiber ports Making basic settings Installation OS20/OS30 Release 03 06/2015... - Page 4 Monitoring the ambient air temperature Maintenance and service Disassembly Removing the device Technical data Further Support Installation OS20/OS30 Release 03 06/2015...
-
Page 5: Safety Instructions
Certified usage Use the product only for the application cases described in the Hirschmann product information, including this manual. Operate the product only according to the technical specifications. See “Technical data” on page 30. Connect to the product only components suitable for the requirements of the specific application case. - Page 6 The supply voltage is electrically isolated from the housing. Use a power supply cable which is suitable for the voltage, the current and the physical load. Hirschmann recommends a wire diameter of 0.5 mm² to 0.75 mm² (AWG20 to AWG18). Installation OS20/OS30...
- Page 7 In accordance with the above-named EU directive(s), the EU conformity declaration will be at the disposal of the relevant authorities at the following address: Hirschmann Automation and Control GmbH Stuttgarter Str. 45-51 72654 Neckartenzlingen Germany Tel.: +49 1805 141538 The device can be used in the industrial sector.
- Page 8 Recycling note After usage, this device must be disposed of properly as electronic waste, in accordance with the current disposal regulations of your county, state, and country. Installation OS20/OS30 Release 03 06/2015...
-
Page 9: About This Manual
Event log Simultaneous configuration of multiple devices Graphical user interface with network layout SNMP/OPC gateway Legend The symbols used in this manual have the following meanings: Listing Work step Subheading Installation OS20/OS30 Release 03 06/2015... -
Page 10: Description

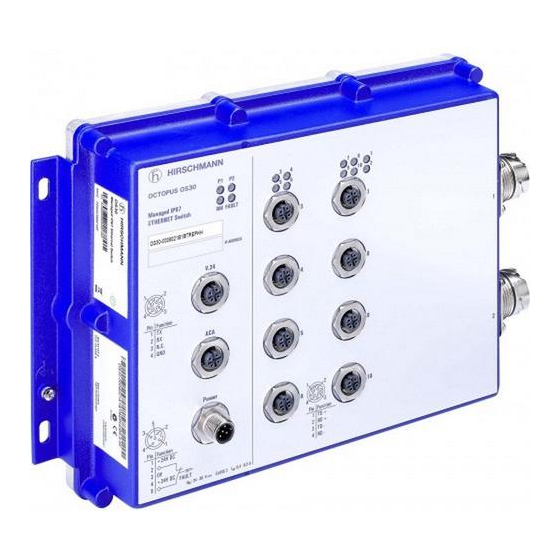

Supply voltage range Certifications The OS20-... device variants are IP67 Switches without gigabit Ethernet ports and with ten 10/100 Mbit/s Ethernet ports. The OS30-... device variants are IP67 Switches with two gigabit Ethernet ports (1000 Mbit/s) and eight 10/100 Mbit/s Ethernet ports. -
Page 11: Device Name And Product Code
PDF files on the enclosed CD/DVD, or you can download them from the Internet on the Hirschmann product pages (www.hirschmann.com). The Hirschmann network components help you ensure continuous communication across all levels of the company. Device name and product code The device name corresponds to the product code. - Page 12 −40 °F ... +158 °F (−40 °C ... +70 °C ) Voltage range incl. 16.8 VDC ... 45.0 VDC max. tolerances Approvals CE, C-Trick, E1, EN 50155, EN 50121-4 (railway, trackside), FCC Software variant Professional Table 1: Combination options for the device variants of OS20/OS30 Installation OS20/OS30 Release 03 06/2015...
-
Page 13: Device Views
Device views 1.3.1 Front view Figure 1: OS20/OS30 with uplink ports, variant 1 (left) and variant 4 (right) 1.3.2 Interfaces Figure 2: F/O ports on the OS20/OS30 1 - Variant 1 4 - Variant 4 Installation OS20/OS30 Release 03 06/2015... -
Page 14: Power Supply
4 - LED display elements for the port status of the ports 1 to 2) 5 - Port 1: F/O port (SFP) for 100 Mbit/s (OS20) / 1000 Mbit/s (OS30) 6 - Port 2: F/O port (SFP) for 100 Mbit/s (OS20) / 1000 Mbit/s (OS30) -
Page 15: Ethernet Ports
You can connect end devices and other segments to the device ports using twisted pair cables or optical fibers (F/O). The OS20 devices have eight 10BASE-T/100BASE-TX ports (M12 sockets) and two 100 Mbit/s FX ports for connecting network segments or terminal... -
Page 16: 1000 Mbit/S F/O Port
Negative V M12 8-pin (X-coded) 10/100 Mbit/s 1000 Mbit/s BI_DB+ Negative V RX− BI_DB− Negative V BI_DA+ Positive V TX− BI_DA− Positive V — BI_DC+ — — BI_DC− — — BI_DD− — — BI_DD+ — Installation OS20/OS30 Release 03 06/2015... -
Page 17: Display Elements
Afterwards, the device performs a self-test. During this process, various LEDs light up. The process takes around 50 seconds. Figure 4: Display elements 1 - Port status LEDs (here: for ports 3 to 6) 2 - Device status LEDs Installation OS20/OS30 Release 03 06/2015... -
Page 18: Device State
LS - data, link status (one green/yellow LED per port) Not glowing No valid connection. Glowing green Valid connection. Flashing green (1 time a period) Port is switched to stand-by. Flashing green (3 times a Port is switched off. period) Flashing yellow Data reception. Installation OS20/OS30 Release 03 06/2015... -
Page 19: Management Interfaces
Figure 5: Terminal cable for connecting an external Management Station The terminal cable is available as an accessory. See “Accessories” on page 35. You will find a description of the V.24 interface in the “User Manual Basic Configuration” document on the CD/DVD supplied. Installation OS20/OS30 Release 03 06/2015... -
Page 20: Aca Interface (Aca21-M12)
This interface is a 5-pin, A-coded M12 socket with shielding. Note: The AutoConfiguration adapter ACA11-M12 available for certain Hirschmann devices is incompatible with OS20/OS30 devices. Function N.C. Not used... -
Page 21: Fault" Signal Contact
The following condition is also reported in RM mode: Ring redundancy reserve is available. On delivery, there is no ring redundancy monitoring. You can also use the Management to set the signal contact manually and thus control external devices. Installation OS20/OS30 Release 03 06/2015... -
Page 22: Installation
All the connectors and cables connected also fulfill protection class IP65/67. Checking the package contents Check whether the package includes all items named in the section “Scope of delivery” on page Check the individual parts for transport damage. Installation OS20/OS30 Release 03 06/2015... -
Page 23: Installing And Grounding The Device
The overall shield of a connected shielded twisted-pair cable is connected to the metal housing as a conductor. Connect the grounding conductor to the grounding screw at the device housing. Use toothed washers to ensure good electrical conductivity at the connection. Installation OS20/OS30 Release 03 06/2015... -
Page 24: Wiring The Connectors For Supply Voltage And Signal Contact
Use a power supply cable which is suitable for the voltage, the current and the physical load. Hirschmann recommends a wire diameter of 0.5 mm² to 0.75 mm² (AWG20 to AWG18). Use a back-up fuse suitable for the supply network. -
Page 25: Operating The Device
Verify that you connect LH ports only with LH ports, SX ports only with SX ports, and LX ports only with LX ports. Connect the data cables according to your requirements. Seal all unused ports with the protection caps attached to the device. Installation OS20/OS30 Release 03 06/2015... -
Page 26: Making Basic Settings
Ring redundancy: deactivated Ethernet ports: link status is not evaluated (signal contact) Optical 100 Mbit/s ports: 100 Mbit/s, full duplex All other ports: autonegotiation Ring manager disabled RSTP (Rapid Spanning Tree) activated Installation OS20/OS30 Release 03 06/2015... -
Page 27: Monitoring The Ambient Air Temperature
It is higher than the ambient air temperature. The maximum internal temperature of the device named in the technical data is a guideline that indicates to you that the maximum ambient air temperature has possibly been exceeded. Installation OS20/OS30 Release 03 06/2015... -
Page 28: Maintenance And Service
Check regularly whether there is an updated version of the software that provides you with additional benefits. You find information and software downloads on the Hirschmann product pages on the Internet (www.hirschmann.com). Note: You will find information about the complaints and returns procedures on the Internet under http://www.beldensolutions.com/en/Service/Repairs/index.phtml... -
Page 29: Disassembly
Disassembly Removing the device Proceed as follows: Disconnect the data cables. Disable the supply voltage. Disconnect the power supply cables and signal lines. Disconnect the grounding. Unmount the device. Installation OS20/OS30 Release 03 06/2015... -
Page 30: Technical Data
Up to 2000 m (795 hPa), higher altitudes on request Protection classes Laser protection Class 1 in compliance with IEC 60825-1 Degree of protection IP67 a. Temperature of the ambient air at a distance of 2 inches (5 cm) from the device Installation OS20/OS30 Release 03 06/2015... -
Page 31: Dimension Drawings
Dimension drawings Figure 6: Dimensions of OS20/OS30 Installation OS20/OS30 Release 03 06/2015... - Page 32 IEC 60068-2-27 Test Ea test level according to IEC 61131-2 Yes IEC 870-2-2 table 3 normal installation according to EN 61850-3 EN 61373, Category 1, Class A (broadband noise), installation in acc. with EN 50155 Installation OS20/OS30 Release 03 06/2015...
- Page 33 3 dB system reserve when compliance with the fiber data is observed b. Using the bandwidth length product is inappropriate for expansion calculations. MM = Multimode, SM = Singlemode, LH = Singlemode Longhaul Installation OS20/OS30 Release 03 06/2015...
-
Page 34: Scope Of Delivery
You can obtain special connectors with protection class IP67 and an extended temperature range on request. Device Scope of delivery OS20/OS30 Device Connector ELWIKA 5012 PG7 for supply voltage and signal contact Installation user manual and CD/DVD Order numbers/product description ... - Page 35 Transition M12 D-coded to RJ45 934 498-001 Network management software Industrial HiVision 943 156-xxx HiVision Network Management software 943 471-100 OPC Server software HiOPC 943 055-001 Protection screw for M12 socket, metal, IP67 (25 pieces) 942 057-001 Installation OS20/OS30 Release 03 06/2015...
- Page 36 If your device has a shipping approval according to Germanischer Lloyd, you find the approval mark printed on the device label. You will find out whether your device has other shipping approvals on the Hirschmann website under www.hirschmann.com in the product information.
-
Page 37: A Further Support
Further Support Technical Questions For technical questions, please contact any Hirschmann dealer in your area or Hirschmann directly. You will find the addresses of our partners on the Internet at http://www.hirschmann.com Contact our support at https://hirschmann-support.belden.eu.com You can contact us in the EMEA region at ...
