Hirschmann RS20-0800B User Manual

Industrial ethernet rail switch rs20 basic family
Hide thumbs
Table of Contents

Advertisement

Quick Links

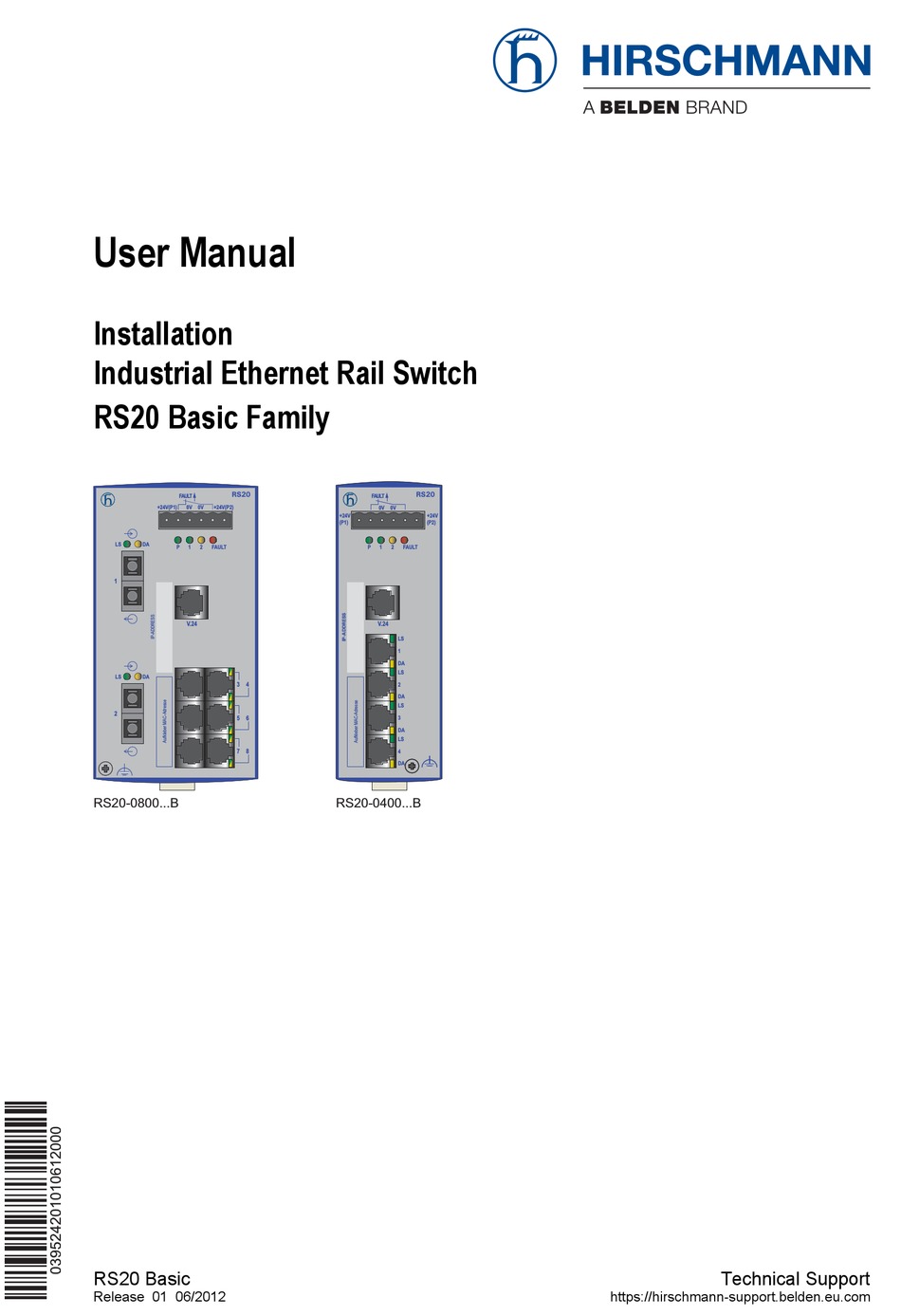

User Manual

Installation
Industrial Ethernet Rail Switch
RS20 Basic Family

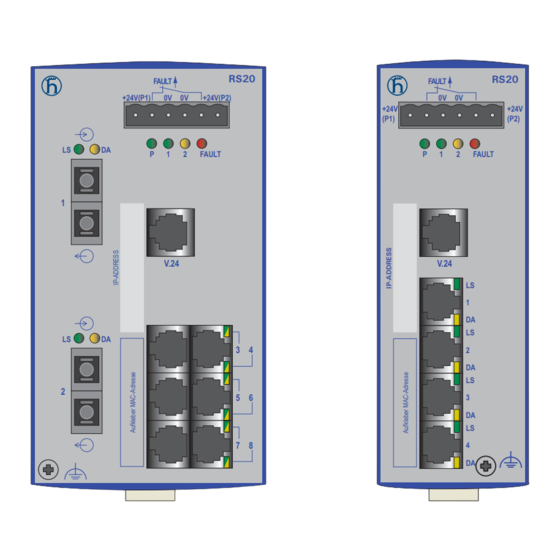

RS20
FAULT
+24V(P1)
0V 0V
+24V(P2)
LS
DA
P
1
2
FAULT
1
V.24
LS
DA
3
4
2
5
6
7
8
RS20-0800...B
RS20 Basic
Release 01 06/2012
RS20
FAULT
0V 0V
+24V
+24V
(P1)
(P2)
P
1
2
FAULT
V.24
LS
1
DA
LS
2
DA
LS
3
DA
LS
4
DA
RS20-0400...B
Technical Support
https://hirschmann-support.belden.eu.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS20-0800B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hirschmann RS20-0800B

Summary of Contents for Hirschmann RS20-0800B

  • Page 1: User Manual

    User Manual Installation Industrial Ethernet Rail Switch RS20 Basic Family RS20 RS20 FAULT FAULT +24V(P1) 0V 0V +24V(P2) 0V 0V +24V +24V (P1) (P2) FAULT FAULT V.24 V.24 RS20-0800...B RS20-0400...B RS20 Basic Technical Support Release 01 06/2012 https://hirschmann-support.belden.eu.com...
  • Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (www.hirschmann.com). Printed in Germany Hirschmann Automation and Control GmbH Stuttgarter Str.

  • Page 3: Table Of Contents

    Contents Safety instructions About this Manual Device description Description of the device variants 1.1.1 Combination options for RS20-...B 1.1.2 Number of ports and media for RS20-...B Assembly and start-up Installing the device 2.1.1 Unpacking and checking 2.1.2 Insert data in label area 2.1.3 Connecting the terminal blocks for supply voltage and signal contact 2.1.4 Installing the device on the DIN rail, grounding...

  • Page 4: Safety Instructions

    Safety instructions Important Information Notice: Read these instructions carefully, and look at the equipment to become familiar with the device before trying to install, operate, or maintain it. The following special messages may appear throughout this documentation or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure.
  • Page 5 Certified usage  Please observe the following: The device may only be employed for the purposes described in the catalog and technical description, and only in conjunction with external devices and components recommended or approved by the manufacturer. The product can only be operated correctly and safely if it is transported, stored, installed and assembled properly and correctly.
  • Page 6 Shielding ground  Note: The shield ground wire of the twisted pair lines is connected to the front panel as a conductor.  Beware of possible short circuits when connecting a cable section with conductive shielding braiding. Hazardous Locations  Relevant for North America for devices certified for Hazardous Locations:...
  • Page 7 CONTROL DRAWING: Hazardous Locations Class I Division 2 Groups A, B ,C ,D NON HAZARDOUS LOCATION HAZARDOUS LOCATION Power supply: USB Port for Auto Configuration (Redundant: P1 P2) Adapter. Type “D”: 9,6Vdc – 60Vdc For maintenance only )DXOW FRQWDFWV (TXLSPHQW ZLWK QRQLQFHQGLYH ILHOG ZLULQJ SDUDPHWHUV V<30V I<90mA L <1,0µH C <2,5nF...
  • Page 8 ATEX Directive 94/9 EC – Special conditions for safe use   Relevant for RS20 Basic family devices when operating in explosive gas atmospheres according to ATEX Directive 94/9 EC, the following applies:  List of Standards:  EN 60079-0:2009 EN 60079-15:2010...
  • Page 9 Housing  WARNING ELECTRIC SHOCK Never insert any pointed objects (small screwdrivers, wires, etc.) into the product! Never insert sharp objects (small screwdrivers, wires, etc.) into the connection terminals for the supply voltage or the signal contact, and do not touch the terminals! Failure to follow these instructions can result in death, serious injury, or equipment damage.

  • Page 10: General Safety Instructions

    For the ground conductor, use a cable with a cross section of at least 1.0 mm².  The clearance between the ventilation slots of the housing and other objects must be at least 10 cm (3.94 in).  The device must be installed in the vertical position. ...
  • Page 11 In accordance with the above-named EU directive(s), the EU conformity declaration will be at the disposal of the relevant authorities at the following address: Hirschmann Automation and Control GmbH Stuttgarter Str. 45-51 72654 Neckartenzlingen Tel.: +49 1805 141538 RS20 Basic...
  • Page 12 The product can be used in the industrial sector.  Interference immunity: EN 61000-6-2:2005  Emitted interference: EN 55022:2010 Warning! This is a class A device. This device can cause interference in living areas, and in this case the operator may be required to take appropriate measures.

  • Page 13: About This Manual

    About this Manual The “Installation” user manual contains a device description, safety instructions, a description of the display, and the other information that you need to install the device. The following manuals are available as PDF files on the CD-ROM supplied: ...

  • Page 14: Device Description

    These manuals are available as PDF files on the CD ROM provided, or you can download them from the Internet on the Hirschmann product pages (www.hirschmann.com). The Hirschmann network components help you ensure continuous communication across all levels of the company network.

  • Page 15: Description Of The Device Variants

    Description of the device variants The devices differ with regard to the number of interfaces and the media type for connecting segments. There is a variant of the device with 4 ports available, and a variant with 8 ports. The table below shows the number and type of the ports you can choose.

  • Page 16: Number Of Ports And Media For Rs20

    Examples for product name  RS20- Rail Switch without gigabit ports 8 * 100 Mbit/s Ethernet ports 0 * 1000 Mbit/s Ethernet ports Port 1 = Multimode FX, DSC, 100 Mbit/s Port 2 = Multimode FX, DSC, 100 Mbit/s Temperature range standard: 0 °C to +60 °C Voltage range: 9.6 V DC to 60 V DC or 18 V AC to 30 V AC Certifications: CE, UL 508, ISA 12.12.01 (UL 1604) Software variant: Basic...
  • Page 17 RS20 FAULT +24V(P1) 0V 0V +24V(P2) FAULT RS20 FAULT +24V(P1) 0V 0V +24V(P2) V.24 FAULT V.24 RS20-0800M2M2SDAB RS20-0800T1T1SDAB  Figure 2: Device variants with 8 * 10/100 Mbit/s ports (RS20-0800...B) 1 to 7 – see fig. 1 RS20 Basic Release 01 06/2012...

  • Page 18: Assembly And Start-Up

    Assembly and start-up The devices have been developed for practical application in a harsh industrial environment. On delivery, the device is ready for operation. The following steps should be performed to install and configure a switch:  Unpacking and checking ...

  • Page 19: Connecting The Terminal Blocks For Supply Voltage And Signal Contact

    RS20 FAULT +24V(P1) 0V 0V +24V(P2) FAULT V.24  Figure 3: Label area for IP address of device  1 – IP address of device (label area) 2 – MAC address of device (label) 2.1.3 Connecting the terminal blocks for supply voltage and signal contact The supply voltage and the signal contact are connected via a 6-pin terminal block with a snap lock.

  • Page 20: Installing The Device On The Din Rail, Grounding

    FAULT FAULT +24V(P1) 0V 0V +24V(P2) +24V(P1) 0V 0V +24V(P2)  Figure 4: Connecting the supply voltage at the 6-pin terminal block  1 – DC voltage, voltage range: 9.6 V DC to 60 V DC 2 – AC voltage, voltage range: 18 V AC to 30 V AC Note: With non-redundant supply of the main voltage, the device reports a loss of power.

  • Page 21: Dimension Drawings

    Note: The shield ground wire of the twisted pair lines is connected to the front panel as a conductor. Figure 5: Mounting on the DIN rail Grounding  The device is grounded by the separate ground screw on the front panel. 2.1.5 Dimension drawings 13,73...

  • Page 22: Installing The Terminal Block, Start-Up Procedure

    105,3 13,73 Figure 7: Dimensions of device variants RS20-08...B 2.1.6 Installing the terminal block, start-up procedure  Mount the terminal block for the voltage supply and signal contact on the front of the device by snapping the lock into place. Connecting the voltage supply via the terminal block starts the operation of the device.

  • Page 23: Display Elements

    Figure Function Receive Data + Receive Data - Transmit Data + Transmit Data - 4,5,7,8 Not used Table 4: Pin assignment of a TP/TX interface in MDI-X mode, RJ45 socket 100 Mbit/s F/O connection  These connections are DSC connectors. 100 MBit/s F/O ports enable the connection of terminal devices or independent network segments in compliance with the IEEE 802.3 100BASE-FX standard.

  • Page 24: Port State

    FAULT Figure 8: Device status LEDs P - Power (green/yellow LED) Glowing green Both supply voltages are on Glowing yellow There is only one supply voltage (P1 or P2) on Not glowing Supply voltages P1 and P2 are too low FAULT - detected error, signal contact (red LED) Glowing red The signal contact is open, i.e.

  • Page 25: Basic Set-Up

     Figure 9: Port status LEDs  1 – Port status LEDs for RJ45 2 – Port status LEDs for DSC LS - link status (green LED) Not glowing No valid connection. Glowing green Valid connection. Flashing green (1 time a period) Port is switched to stand-by. Flashing green (3 times a Port is switched off.

  • Page 26: Maintenance

    User Manual” on the CD-ROM. Maintenance  When designing this device, Hirschmann was largely able to forego using parts that are subject to waer and tear. The parts subject to wear are designed to last longer than the lifetime of the product when it is operated properly.

  • Page 27: Disassembling The Device

     Hirschmann is continually working to improve and develop our software. You should regularly check whether there is a new version of the software that provides you with additional benefits. You will find software information and downloads on the product pages of the Hirschmann website.

  • Page 28: Technical Data

    Technical data General technical data  Dimensions  RS20-0400... 47 mm x 131 mm x 111 mm W x D x H RS20-0800... 74 mm x 131 mm x 111 mm Weight RS20-0400... 400 g RS20-0800... 410 g Power supply Operating voltage Rated voltage range DC 12 to 48 V DC...
  • Page 29 EMC compliance – IEC/EN 61000-6-2:2005 EMI TYPE tests, test acc. to: IEC/EN 61000-4-4 Fast transients (burst) Power line 2 kV Data line 1 kV IEC/EN 61000-4-5 Voltage surges Power line, line / line 0.5 kV Power line, line / earth 1 kV Data line 1 kV...

  • Page 30: Scope Of Delivery

    Scope of delivery  Device Scope of delivery RS20-...SDAB Device Terminal block for supply voltage and signal contact Installation user manual and CD-ROM Order numbers/product description  See table on page 15 “Combination options for the device variants of the RS20-...B”.
  • Page 31 The device has a certification based on a specific standard only if the certification indicator appears on the housing. However, with the exception of Germanischer Lloyd, ship certifications are only included in the product information under www.hirschmann.com. RS20 Basic Release 01 06/2012...
  • Page 32 RS20 Basic Release 01 06/2012...

  • Page 33: A Further Support

    Further Support Technical Questions  For technical questions, please contact any Hirschmann dealer in your area or Hirschmann directly. You will find the addresses of our partners on the Internet at http://www.hirschmann.com Contact our support at https://hirschmann-support.belden.eu.com You can contact us in the EMEA region at ...
