FINE (Analog input only)
Improves focus, clarity and image stability by increasing or decreasing this setting.
If the "AUTO ADJUST" and "H.SIZE" functions do not give you a satisfactory picture setting, fine tuning can be
performed by using the "FINE" function.
A Moiré test pattern can be used for this. If the FINE value is incorrectly calibrated, the result would look like the left
drawing. The image should be homogeneous.
EXPANSION
Sets the zoom method.
FULL: The image is expanded to full screen, regardless of the resolution.
ASPECT: The image is expanded without changing the aspect ratio.
OFF: The image is not expanded.
NOTE: When image is rotated, depending on the signal resolution, characters and lines may be blurred.
SHARPNESS
Adjusts the crispness of the image.
AUTO ADJUST (Analog input only)
Automatically adjusts the Image Position, H. SIZE and FINE settings.
When using AUTO ADJUST, we recommend displaying a white image that fills the screen.
Color Control Systems
PICTURE MODE
Choose a Picture mode that is most suitable for the type of content that is shown. Five picture modes are available and
can be customized to suit the image content. See the Advanced menu Tag1 PICTURE MODE (page 18) and "Using
the PICTURE MODE function" (page 17) for more information.
WHITE
Adjusts the white temperature to NATIVE or a specific color temperature. A lower color temperature will make the
screen reddish and a higher color temperature will make the screen bluish. NATIVE is the default color temperature of
LCD panel. 6500K is recommended for general graphic design and 5000K is recommended for print matching.
NOTE: When LOW BLUE is enabled, the maximum WHITE adjustment is 5000K.
ADJUST
HUE: Adjusts the hue of each color*
the amount of adjustment.
OFFSET: Adjusts the color brightness of each color*
SATURATION: Adjusts the color depth of each color*
WHITE (White Balance): If TEMPERATURE needs further adjustment, the individual R/G/B levels of the white point
can be adjusted. To adjust the R/G/B levels, CUSTOM must be showing as the TEMPERATURE selection.
* : RED, YELLOW, GREEN, CYAN, BLUE and MAGENTA.
1
ADVANCED SETTING
Opens the Advanced menu (see page 18).

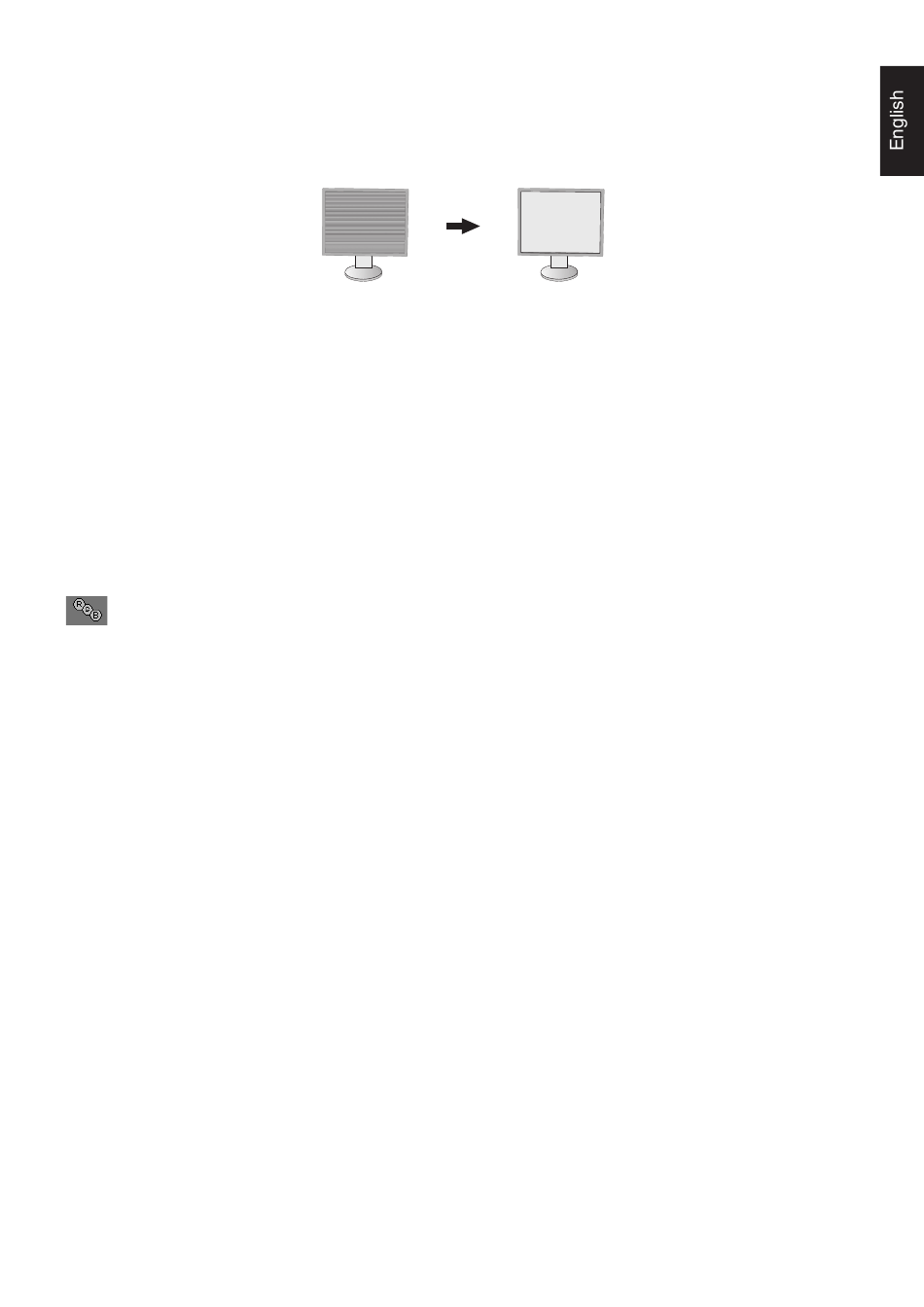

When FINE value is
wrong.
. The change in color will appear on screen and the menu color bars will show
1
. Press "RIGHT" button and the color brightness increases.
1
1 . Press the "RIGHT" button and the color vividness increases.
English-13
When FINE value is
correct.
