Viega Eco Plus 1F Installation Manual

Installation Guide for Viega Eco Plus 1F
Concealed Cistern for Wall Mount Pan
(747268)
Cistern Model 8108.10

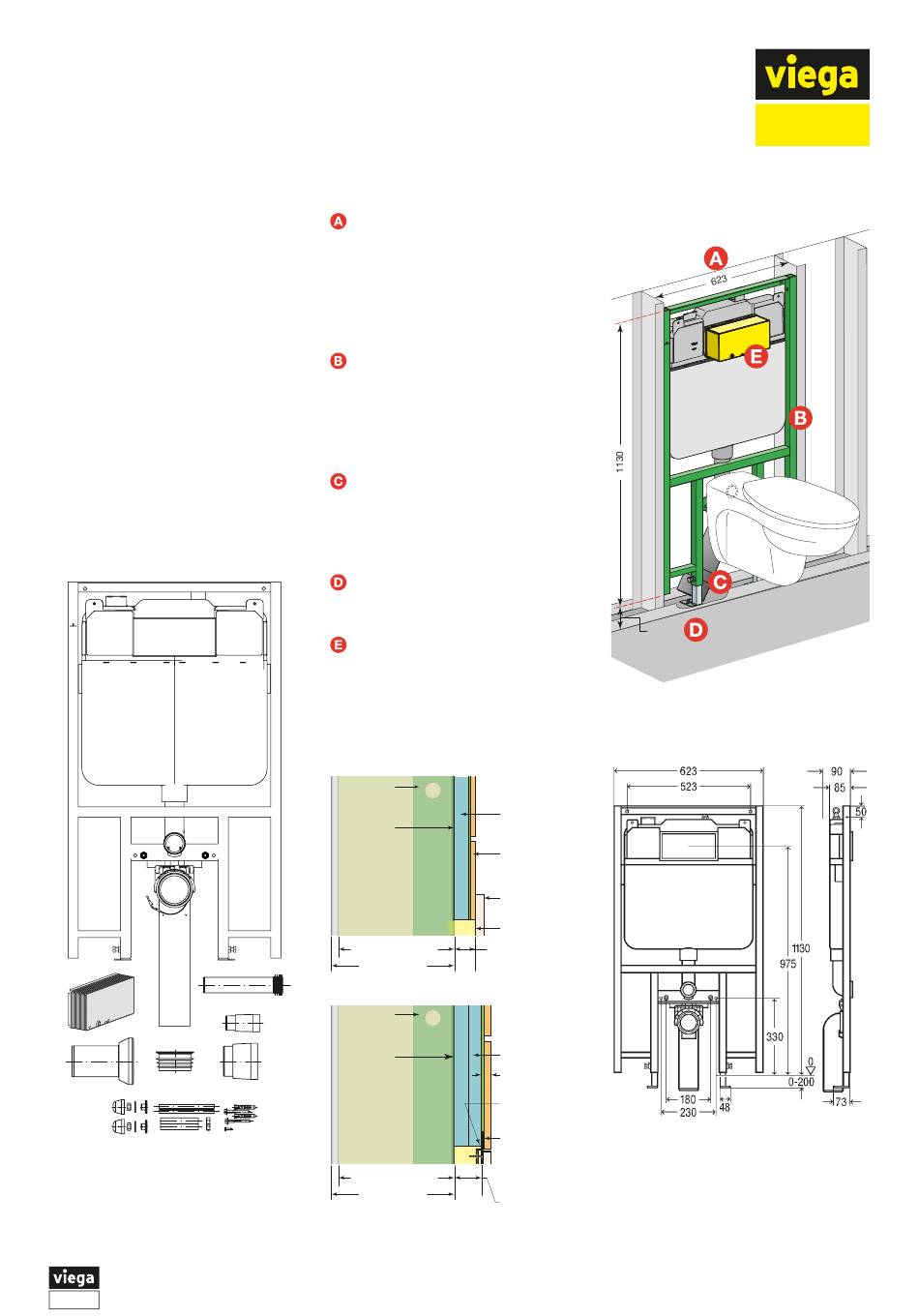

Components

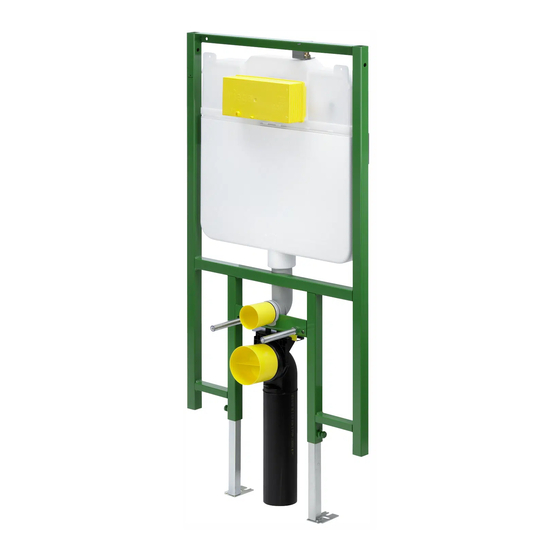

A Viega Eco Plus 1F assembly.
B Cistern access duct.
C Flushing pipe with bend.
D Flushing pipe – (horizontal adaptor).
E Dust cover for flushing pipe.
F Sewer outlet pipe (90x400mm).
G Pan adaptor pipe
H Dust cover for sewer outlet pipe.
I 90 to 100mm sewer adaptor ring.
J Floor mounting hardware and pan
mounting hardware.
Optional hardware not shown here.
Mounting hardware for face fixing
to masonry. Fixing set 8173 or
8180.73.
A
C
F
B
I
G
J
VGA1279AU.170403 • www.viega.com.au
Notes on Eco Plus 1F Installation
Cistern may be installed in stud
framing or face mounted to
masonry. Minimum spacing of
623mm between studs. Studs
must be able to support the
applied loads. Refer to project
engineer/details.
The waste outlet pipe is 90mm
OD, therefore in 90mm cavity
installations, accurate alignment
of the front face of the mounting
bracket with the front face of the
studs is critical.
Where the waste pipe is to
penetrate a concrete slab floor, it
is suggested that core drilling be
carried out where a high degree of
alignment accuracy is required.
Allow for screed and tile thickness
where applicable in all height
calculations.
For the correct mounting of
flushing plates, the total thickness
of wall linings (i.e. total of lining +
tiles + adhesive) must be within
a specified range. Refer to the
following details.
Cistern
Mounting
Bracket
Cistern
Mounting
Bracket
aligned
with face
of frame
Cistern
tank
85mm cistern
90mm min.
D
framing
E
Cistern
Mounting
Bracket
H
Cistern
Mounting
Bracket
aligned
with face
of frame
Cistern
tank
85mm cistern
90mm min.
framing
0-200
Face Mount
Flushing Plate
Wall Lining
Tiles + Glue
Face Mount
Flushing Plate
Duct to tile face
17-100mm
cistern face
to tile face
Recessed
Mount
Flushing Plate
Wall Lining
Tiles + Glue
5-18mm
Duct to wall
lining face
Recessed
Mounting Plate
fixed to wall
lining face
before tiling
25-100mm wall
lining thickness
Pan not
included
1
