DynaPro/DynaPro v3 Overview

DynaPro and DynaPro v3 are secure cryptographic devices for PIN and data entry. They protect cardholder data whether it is read
using the MagneSafe® Secure Card Reader Authenticator (SCRA), contact, or contactless chip card reader. The DynaPro family of
products is one of the most comprehensive, end-to-end security solutions available.
MagneSafe Secure Card Reader Authenticator
Stylus (Signature Capture Devices Only)
LCD Display / Contactless Landing Zone
ADA Visually Impaired Reference Bump
Cancel Button
Privacy Shield Clip Holes
Chip Card Insertion Slot

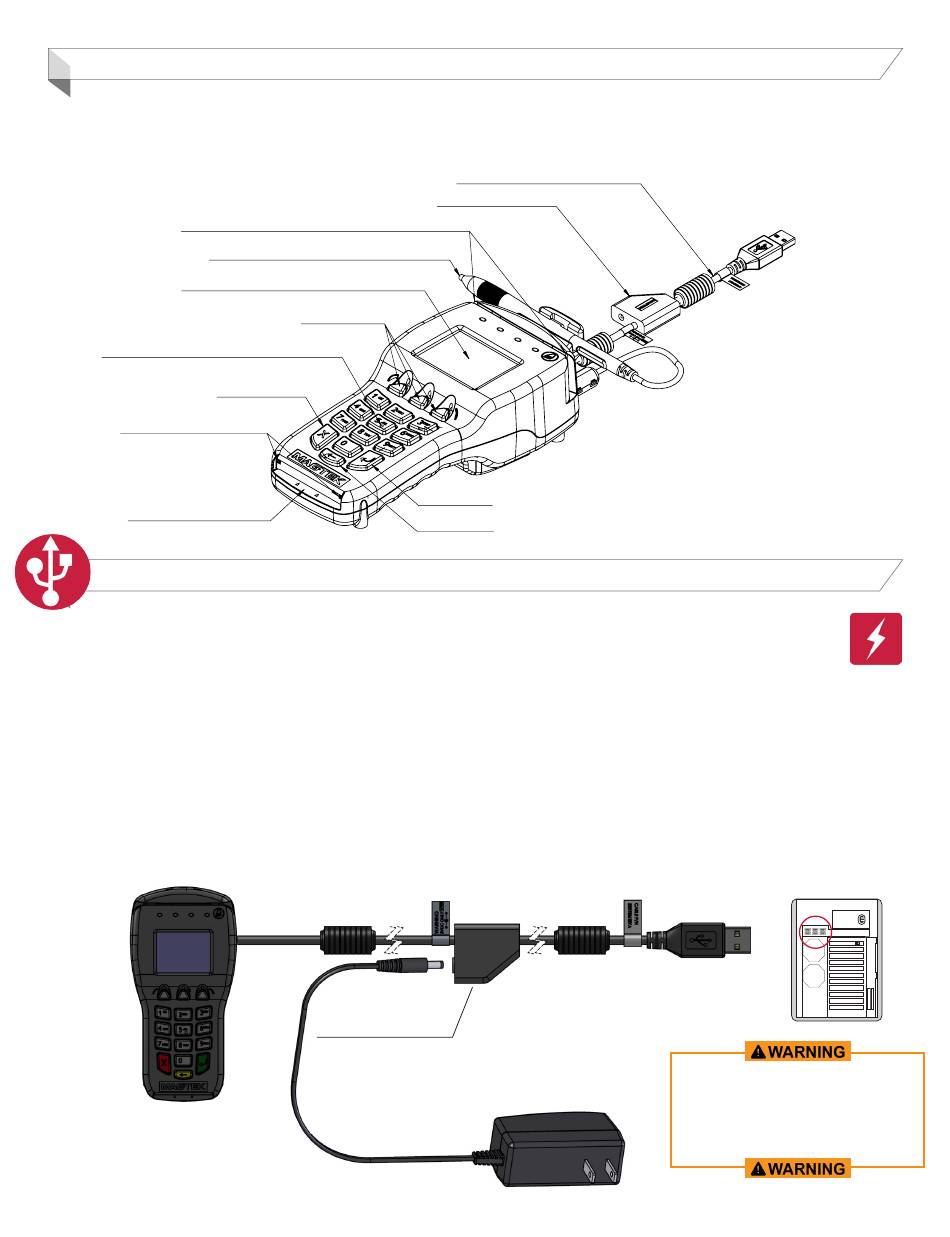

DynaPro/DynaPro v3 with USB Connection

DynaPro/DynaPro v3 USB Power
DynaPro with USB connection requires an external power supply when NFC capabilities are present.
Connecting the MagTek DynaPro/DynaPro v3
DynaPro/DynaPro v3 USB devices need to be connected to the USB port of the PMS/POS terminal being used. The
USB cable included with the device has a junction box approximately two feet from the end for an AC adapter. Plug
the AC adapter cable into the junction box. Plug the other end of the AC adapter into the nearest available power
outlet. Plug the USB end of the cable into an available USB port of the associated PMS/POS terminal being used.

Verify Connection and Power

After the AC adapter is plugged in, DynaPro/DynaPro v3 powers on. Initialization takes approximately 30 seconds.
"Welcome" appears on the display screen when ready. Contact MagTek support if the "Welcome" screen does not
appear. The PMS/POS host software automatically detects the device.
USB Cable (Ethernet Optional)
Power Junction Box
Function Keys
Enter Button
Clear Button
Junction box
NOTE: Power Supply
(required for most models )
USB only cable
(Cables and devices not shown at actual size or to scale)
Connecting or disconnecting the
USB cable from the back side of the
DynaPro when the PMS/POS terminal
is ON may clear the encryption keys.
PC
