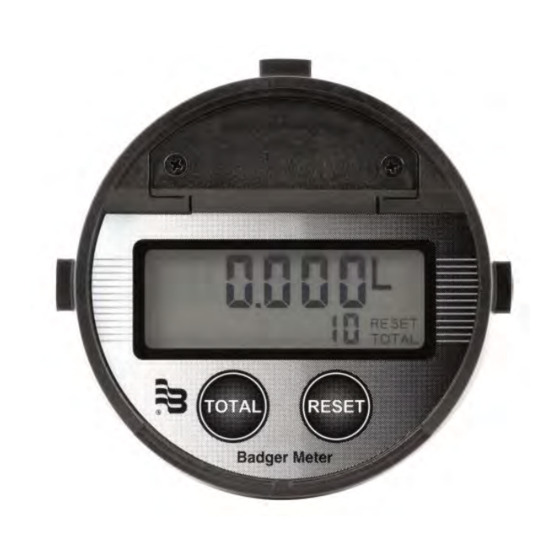

Badger Meter ILR710 Installation And Operation Manual
Ilr7 series; ilr7t series
Hide thumbs
Also See for ILR710:
- User manual (24 pages) ,
- Installation and operation manual (24 pages)
Subscribe to Our Youtube Channel
Related Manuals for Badger Meter ILR710
Summary of Contents for Badger Meter ILR710

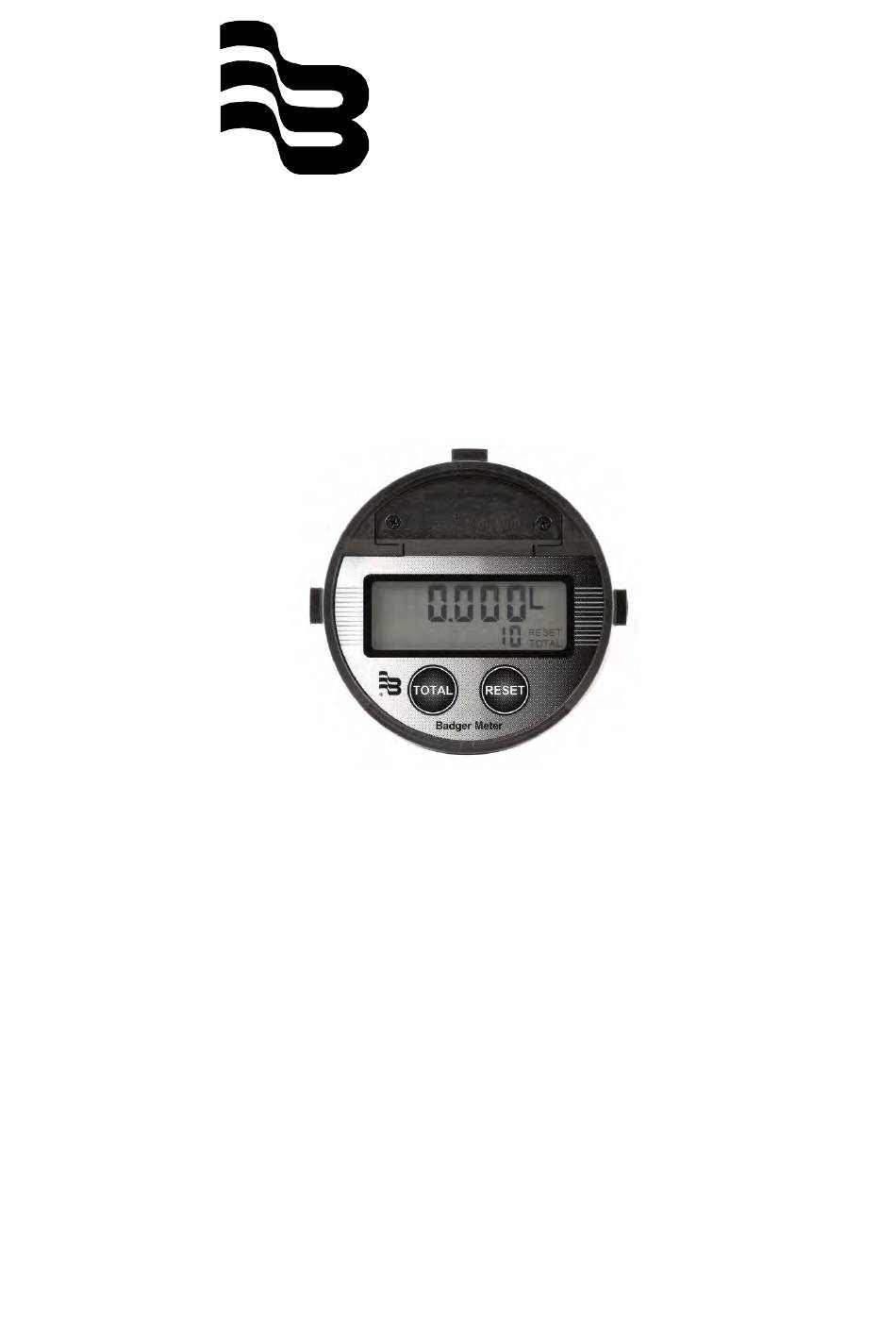

- Page 1 Badger Meter Europa GmbH ® Registers type ILR7XX and ILR7XXT INSTALLATION AND OPERATION MANUAL May 2018 AC_ILR_BA_02_1805...
-
Page 2: Table Of Contents
Contents Page Basic safety recommendations ................... 1 Register operation ......................3 2.1. Normal operation ....................3 2.2. Status........................3 2.3. Totalizers ......................3 2.4. Flow rate ......................4 2.5. Battery ......................... 4 2.6. Checksum ......................4 2.7. Display scale factor ....................4 Register programming .................... -
Page 3: Basic Safety Recommendations
Basic safety recommendations Page 1/15 1. Basic safety recommendations Before installing or using this product, please read this instruction manual thoroughly. Only qualified personnel should install and/or repair this product. If a fault appears, contact your distributor. Before the first installation Please flush the meter with fresh water or the medium to measure before the first installation. - Page 4 Basic safety recommendations Page 2/15 RoHs Our products are RoHs compliant. Battery disposal The batteries contained in our products need to be disposed of as per your local legislation acc. to EU directive 2006/66/EG. AC_ILR_BA_02_1805...
-
Page 5: Register Operation
Register operation Page 3/15 2. Register operation The following describes register operation and program settings for the industrial oval gear series registers: Industrial Standard (ILR 700 / 701 / 701T), Industrial Pulse (ILR 710 / 750 / 750T), Industrial Quadrature/Dual Pulse (ILR 720) and the Industrial Analog (ILR 750 / 750T). -
Page 6: Flow Rate
Register operation Page 4/15 To reset the resettable totalizer, press and hold the TOTAL button and then press and release the RESET button. To display 11-digit non-resettable totalizer, while the non-resettable total is displayed, press and hold the TOTAL button for seconds. The top row displays the 6 most significant digits;... -
Page 7: Register Programming
2. Press RESET to change the selected digit. The scale factor must fall between the values of 0.5000 and 2.0000. The Badger Meter factory preset is set between those values at 1.0000. 3. When finished adjusting the unit of measure and scale factor, press and hold the TOTAL button for one second to advance to the Pulse Rate section. -
Page 8: Changing The Meter Pulse Rate (For All Ilr Models With Display)
Register programming Page 6/15 3.3. Changing the meter pulse rate (for all ILR models with display) The meter pulse rate (screen is indicated by the “I” on the top row, on the left side) is the number of pulses per unit of measure as detected by the register. The pulse rate varies according to the type of attached meter. -
Page 9: Changing The Display Mode (For All Ilr Models With Display)
Register programming Page 7/15 3.5. Changing the display mode (for all ILR models with display) The display mode screen (indicated by a “d” on the top row, on the left side) determines the information displayed on the top line of the register during normal operation. -
Page 10: Additional Programming: Industrial Analog And Industrial Pulse (Ilr 710 & Ilr750, Ilr750T, Ilr701, Ilr701T)
Additional programming: Industrial analog and industrial pulse Page 8/15 4. Additional programming: Industrial analog and industrial pulse (ILR 710 & ILR750, ILR750T, ILR701, ILR701T) Output pulse lenght (for models ILR 710, ILR750 and ILR750T) Indicated by a “P” on the left hand side of the display, this screen allows the selection of the low duration of the output pulse. -
Page 11: Analog Minimum Flow Rate
Additional programming: Industrial analog and industrial pulse Page 9/15 4.2. Analog minimum flow rate (for models ILR750 and ILR750T) Indicated by a “L” on the left hand side of the display, this screen allows the setting of the flow rate that corresponds to the 4mA output: NOTE: The minimum flow rate value must be less that the maximum flow rate value. -
Page 12: Linearisation
Additional programming: Industrial analog and industrial pulse Page 10/15 4.4. Linearisation (for models ILR701, ILR701T, ILR750 and ILR750T) Indicated by 1 – 9 on the left hand side of the display, followed by a hyphen (-), this screen allows the setting of the linearisation (in total 9 points). Figure 13: Linearisation point 1 (of 9) Press the TOTAL button to select a digit (selected digits flash). -
Page 13: Register Output Specifications & Wiring
Register output specifications & wiring Page 11/15 5. Register output specifications & wiring 5.1. Pulse (model ILR 710) Register wiring External DC+: Yellow External ground: Brown Pulse output: White DC Input: 8 to 24 VDC; 20 to 40mA Outputs: Pulse output with internal pull-up resistor; optional open collector output with output jumper removal;... -
Page 14: Dual Pulse (Model Ilr 720)
Register output specifications & wiring Page 12/15 5.2. Dual pulse (model ILR 720) Register wiring External DC+: Yellow External ground: Brown Pulse output 1: White Pulse output 2: Green External reset: Grey DC input: 8 to 24 VDC; 20 to 40mA Outputs: Dual-pulse output with internal pull-up resistor;... -
Page 15: Pulse Transmitter (Model Ilr 740)
Register output specifications & wiring Page 13/15 5.3. Pulse transmitter (model ILR 740) Figure 16: Pulse transmitter Orientation: The register must be mounted as delivered. The transmitter will not function if mounted differently. Transmitter wiring Reed switch outputs: Green and white. Ratings: Max power: 10W (not to exceed!);... -
Page 16: Pulse And Analog Output (Model Ilr750 And 750T)
Register output specifications & wiring Page 14/15 5.5. Pulse and analog output (model ILR750 and 750T) Register wiring External DC+ Yellow External ground Brown Pulse output White Analog output Green DC input 8 to 24 VDC; 20 to 40mA Outputs: - Analog 4 to 20mA output in loop powered configuration;... -
Page 17: Return Of Goods For Repair / Harmlessness Declaration
Return of goods for repair / Harmlessness declaration Page 15/15 6. Return of goods for repair / Harmlessness declaration Please refer to our claims return form/harmlessness declaration under www.badgermeter.de/service/return of goods. AC_ILR_BA_02_1805... - Page 18 Hotline Phone +49-7025-9208-0 or -46 +49-7025-9208-15 Badger Meter Europa GmbH ® Subsidiary of Badger Meter, Inc., USA Nürtinger Strasse 76 72639 Neuffen (Germany) E-mail: badger@badgermeter.de www.badgermeter.de...
