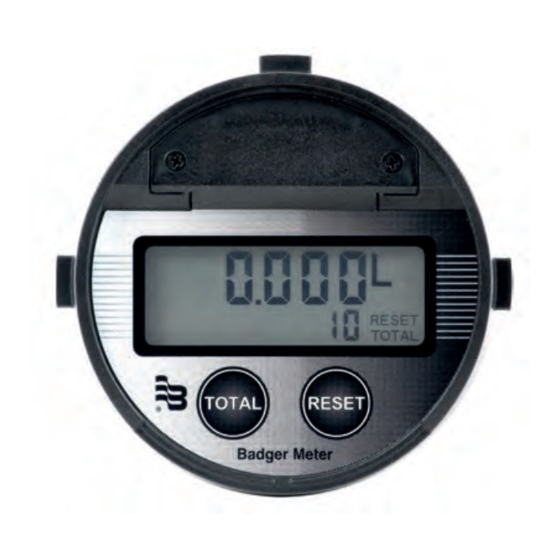

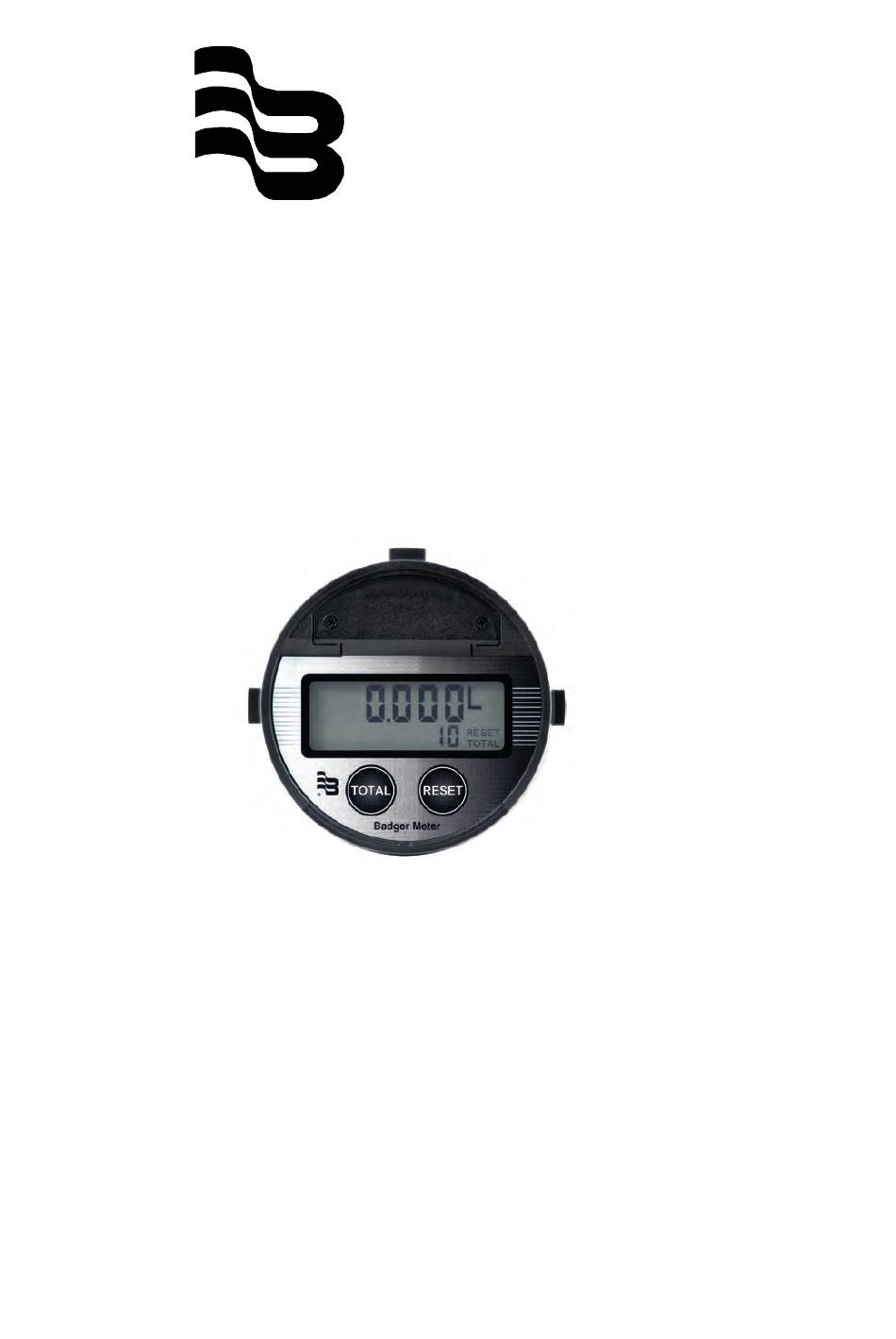

- Page 1 Badger Meter Europa GmbH ® Register ILR 750 PROGRAMMING MANUAL October 2018 AC_ILR750_PA_02_1810...
-
Page 2: Programming The Electronic Ilr750 Register
Programming Page 1/4 Programming the electronic ILR750 register To reach menu item 1 in the programming mode, press the following key combination: then 3x (Keys must be pressed quickly one behind the other!) Note: You can leave the programming mode any time by pressing the keys „TOTAL“ + „RESET“... - Page 3 Programming Page 2/4 Menu 4: Change display mode Programming line 1 on the display: C = Totalizer (L, Gal, Qt, Pt) Press „RESET“ to F = Flow indicator (e.g. L/min) change the flashing digit Note: A totalizer without decimal places is always in the second line.
- Page 4 Programming Page 3/4 Menu 8: Pulse frequency Press „RESET“ to How many pulse/liter should be change the flashing digit delivered? Pulse output freely scalable from Press „TOTAL“ to 0,01 – 999,99 L/min jump to the next digit Programmed pulse frequency on figure: 10,00 ppl press for 2-3 seconds Menu 9: Signal inversion from the pulse output IO logical signal sequence...
- Page 8 Hotline Tel. +49-7025-9208-0 or -46 Fax +49-7025-9208-15 Badger Meter Europa GmbH ® Subsidiary of Badger Meter, Inc., USA Nürtinger Strasse 76 72639 Neuffen (Germany) E-mail: badger@badgermeter.de www.badgermeter.de...
