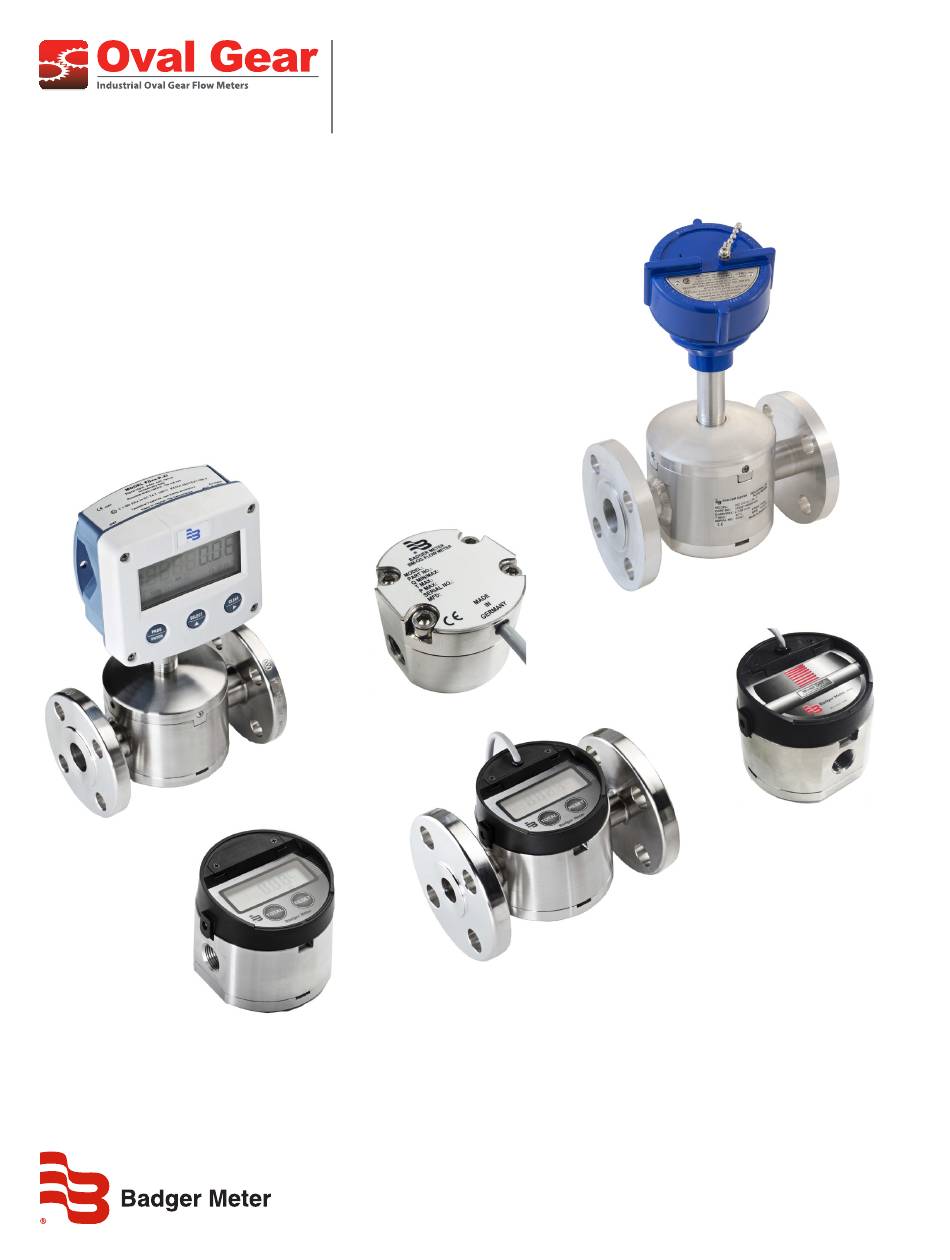

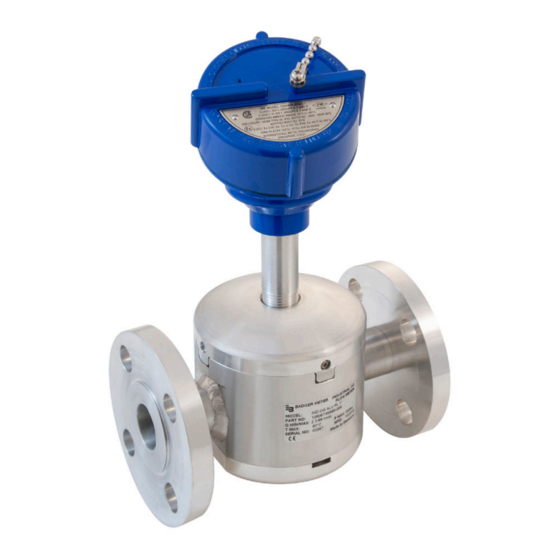

- Page 1 Industrial Oval Gear Meters and Registers User Manual IOG-UM-00046-EN-09 (February 2015)
- Page 2 Industrial Oval Gear, Meters and Registers Page ii IOG-UM-00046-EN-09 February 2015...
-
Page 3: Table Of Contents
User Manual CONTENTS Scope of this Manual Product Unpacking and Inspection Product Identification Disclaimer Questions or Service Assistance Safety Explosion and Fire Hazards Meter Hazards Meter Installation Meter Operation Pressure Drop vs Flow Rate Register Operation Normal Operation Status Totalizers Flow Rate Battery Checksum... - Page 4 Industrial Oval Gear, Meters and Registers Page iv IOG-UM-00046-EN-09 February 2015...
-
Page 5: Scope Of This Manual
Scope of this Manual SCOPE OF THIS MANUAL This manual contains installation and operation instructions for the Badger Meter Industrial Line of Oval Gear Meters and Registers Proper performance and reliability of these meters and registers depends upon installation in accordance with... -
Page 6: Safety
Safety SAFETY Explosion and Fire Hazards • Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and result in an explosion or fire and cause serious injury • Be sure the fluid system is properly grounded See your pump instruction manual for details •... -
Page 7: Meter Installation
Meter Installation METER INSTALLATION READ THE FOLLOWING INFORMATION AND HAVE A THOROUGH UNDERSTANDING BEFORE PROCEEDING WITH METER INSTALLATION. ONLY QUALIFIED PERSONNEL SHOULD PERFORM METER INSTALLATION. • Install a type 60 mesh strainer or Y or basket as close to the inlet side of the meter as possible Strainers prevent dirt and other fluid contaminants from impeding meter performance Strainers require periodic cleaning, as clogged strainers also impede meter performance Contact your local representative for specific information, per your specific application... -
Page 8: Pressure Drop Vs Flow Rate
Meter Operation Pressure Drop vs Flow Rate Page 8 IOG-UM-00046-EN-09 February 2015... - Page 9 Meter Operation February 2015 IOG-UM-00046-EN-09 Page 9...
-
Page 10: Register Operation
Register Operation REGISTER OPERATION The following describes register operation and program settings for all four Industrial Oval Gear (IOG) Series registers: Industrial Standard (ILR 700), Industrial Pulse (ILR 710), Industrial Quadrature/Dual Pulse (ILR 720) and Industrial Analog (ILR 730) See "Additional Programming: Industrial Analog and Industrial Pulse (ILR 710 &... -
Page 11: Checksum
Register Operation OTEE: A 2/3AA, 3 6 VDC battery may also be used as a replacement Figure 4: Low battery indicator Checksum To display the firmware checksum: 1 Press and hold RESET for three seconds 2 To return to normal display, release RESET Display Scale Factor To display the Scale Factor: 1 At the same time, press and hold TOTAL and RESET for two seconds to display the programmed... -
Page 12: Register Programming
2 Press RESET to change the selected digit The scale factor must fall between the values of 0 5000 and 2 0000 The Badger Meter factory preset is set between those values at 1 0000 3 When you are finished adjusting the unit of measure and scale factor, press and hold TOTAL for one second to advance to... -
Page 13: Changing The Meter Pulse Rate
Register Programming Changing the Meter Pulse Rate (For models ILR 700, 710, 720 and 730) The Meter Pulse Rate (indicated by the “I” on the top row, on the left side) is the number of pulses per unit of measure as detected by the register The pulse rate varies according to the type of meter attached The bottom row shows the 5-digit integer value of the meter pulse rate The top row shows the 2-digit decimal value of the meter pulse rate The meter pulse rate is entered in pulses-per-liter if the selected unit of measure is liters or pulses-per-gallon if the selected... -
Page 14: Changing The Display Mode
Register Programming Changing the Display Mode (For models ILR 700, 710, 720 and 730) The Display Mode screen (indicated by a “d” on the top row, on the left side) determines the information displayed on the top line of the register during normal operation The display mode may be either the Totalizer screen or the Flow Rate screen “C, ”... -
Page 15: Additional Programming: Industrial Analog And Industrial Pulse (Ilr 710 & Ilr 730)
Register Programming Additional ProgrammingE: Industrial Analog and Industrial Pulse (ILR 710 & ILR 730) Output Pulse Length (For model ILR 710 only) Indicated by a “P” on the leftside of the display, use this screen to select the low duration of the output pulse •... - Page 16 Register Programming Pulse Rate Out (For model ILR 710 only) Indicated by an “O” on the left side of the display, this screen allows selection of the of pulses output per liter or per US gallon depending on unit of measure (0 01 ppl/ppg to 100 ppl/ppg) The meter pulse rate is entered in pulses-per-liter if the selected unit of measure is liters or pulses-per-gallon if the selected unit of measure is US gallons, quarts or pints To advance to the next programming screen, hold TOTAL...
- Page 17 Register Programming Analog Maximum Flow Rate (For model ILR 730 only) Analog Maximum Flow Rate is indicated by an “H” on the left side of the display Use this screen to set the flow rate that corresponds to the 20 mA output: OTEE: The maximum flow rate value must be greater than the minimum flow rate value •...
-
Page 18: Register Output Specifications & Wiring
Register Programming Register Output Specifications & Wiring Pulse (Model ILR 710) Register Wiring External DC+: Yellow External Ground: Brown Pulse Output: White DC Input: 6…24V DC; 10…20 mA Outputs: Pulse Output with internal pull-up resistor; optional open collector output with output jumper removal; pulse output is scalable in pulses per liter or pulses per gallon ILR 710 6-24V DC Input... - Page 19 Register Programming Dual Pulse (Model ILR 720) Register Wiring External DC+: Yellow External Ground: Brown Pulse Output 1: White Pulse Output 2: Green External Reset: Grey DC Input: 6…24V DC; 10…20 mA Outputs: Dual-pulse output with internal pull-up resistor; optional open collector output with output jumper removed; dual pulse output forms a quadrature signal for direction of flow Inputs: External reset pulled low to reset the batch totalizer ILR 720...
- Page 20 Register Programming Analog (Model ILR 730) Register Wiring External DC+: Yellow External Ground: Brown Analog Output: White DC Input: 6…24V DC; 10…20 mA Outputs: Analog 4…20 mA output in loop powered configuration; 6…12V DC external load of 50…250 ohms, 12…24V DC external load of 50…500 ohms;...
-
Page 21: Pulse Transmitter (Model Ilr 740)
Register Programming Pulse Transmitter (Model ILR 740) Flow direction Figure 16: ILR 740 pulse transmitter OrientationE: The transmitter register must be mounted as shown above, perpendicular to the flow The transmitter will not function properly if mounted inline to the flow Transmitter Wiring Reed switch outputs: Green and white Ratings:... -
Page 22: Pulse Transmitter (Model Ilr 741)
Register Programming Pulse Transmitter (Model ILR 741) The meter size selector switch must be set to correspond to the size of the meter to properly detect fluid flow: • Position 1 (top): 1/2", 3/4", 1" • Position 2 (center): 1-1/2" •... -
Page 23: Pulse Transmitter (For 1/4")
Register Programming Pulse Transmitter (for 1/4") Figure 20: 1/4" wiring Hall Effect Switch Rating: Power Supply: Supply Input Range: 5…24V DC Supply Current: 3 5 mA Pulse Output Output Current: 30 mA, max Wiring: Yellow: Hall Effect DC+ Brown: Hall Effect Ground Green: Hall Effect Pulse Output Reed Switch Rating:... -
Page 24: Pulse Chart Of Approximate Values
The Americas | Badger Meter | 4545 West Brown Deer Rd | PO Box 245036 | Milwaukee, WI 53224-9536 | 800-876-3837 | 414-355-0400 México | Badger Meter de las Americas, S.A. de C.V. | Pedro Luis Ogazón N°32 | Esq. Angelina N°24 | Colonia Guadalupe Inn | CP 01050 | México, DF | México | +52-55-5662-0882...
