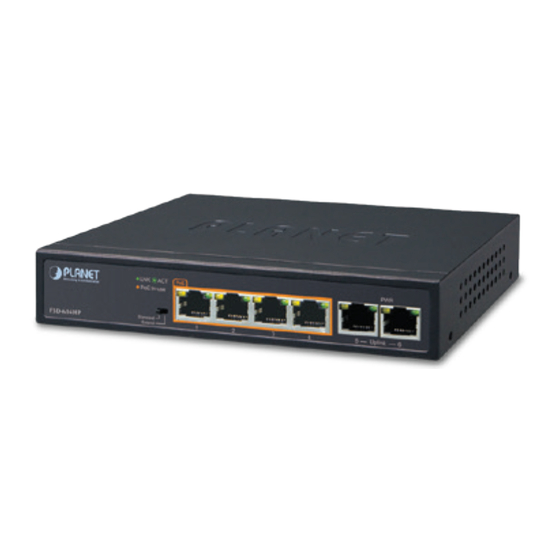

Planet FSD-504HP User Manual

4-port 10/100tx 802.3af/at poe + 2-port 10/100tx desktop switch
Hide thumbs Also See for FSD-504HP:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Planet FSD-504HP

Summary of Contents for Planet FSD-504HP

  • Page 2: Package Contents

    1. Package Contents Check the following contents of your package: FSD-604HP User’s Manual Foot Pad Power Cord If any of these are missing or damaged, please contact your dealer immediately; if possible, retain the carton including the original packing material, and use them again to repack the product in case there is a need to return it to us for repair.

  • Page 3: Product Features

    2. Product Features  RJ45 Interface  6-port 10/100TX Ethernet RJ45 copper  4-port IEEE 802.3at/af PoE Injector (Port-1 to Port-4)  Power over Ethernet  Complies with IEEE 802.3af/at Power over Ethernet end-span PSE  Up to 4 IEEE 802.3af/2 IEEE 802.3at devices powered ...
  • Page 4  Switching  Hardware-based 10/100Mbps auto-negotiation and auto MDI/MDI-X  Flow control for full duplex operation and back pressure for half duplex operation  1536bytes packet size  Integrates address look-up engine, supporting 2K absolute MAC addresses  Automatic address learning and address aging ...

  • Page 5: Switch Front Panel

    3. Switch Front Panel Figure 3-1 shows the front panel of the FSD-604HP. PoE In-use FSD-604HP Standard Uplink Extend Figure 3-1: FSD-604HP Front Panel The front panel of the FSD-604HP provides one DIP switch for “Standard” and “Extend” mode selections. The detailed descriptions are shown in the following table.
  • Page 6 Standard PoE Mode PoE IP Camera Standard Extend FSD-604HP Power 100 meters (328 feet) Extend PoE Mode PoE IP Camera Standard Extend FSD-604HP Power 250 meters (820 feet) 100BASE-TX UTP with PoE 10BASE-T UTP with PoE After changing the mode, you need to manually restart the FSD-604HP to make the corresponding configuration take effect.

  • Page 7: Led Indicators

    4. LED Indicators System Color Function Lights to indicate the Switch has Orange power. Per 10/100Mbps Port Color Function Lights to indicate the port is Orange providing 52V DC in-line power to remote PoE PD. Lights to indicate the link through that port is successfully established at 10/100Mbps.

  • Page 8: Switch Rear Panel

    5. Switch Rear Panel Figure 5-1 shows the rear panel of the FSD-604HP. 100~240V AC 50/60Hz Figure 5-1: FSD-604HP Rear Panel 1. The device is a power-required device, meaning it will not work till it is pow- ered. If your networks should be active all the time, please consider using UPS (Uninterrupted Power Supply) for your device.

  • Page 9: Installing The Switch

    Chapter 7 -- Product Specifica- Note tions. Step 3: Connect your FSD-504HP to network devices. A. Connect one end of a standard network cable to the Port-5~6 of the FSD-604HP that marks with “Uplink”.
  • Page 10 B. Connect the other end of the cable to the network devices such as routers, Ethernet switches or NVRs (network video recorders). Step 4: Connect your FSD-604HP to PoE PDs. A. Connect one end of a standard network cable to one of the four 10/100Mbps RJ45 PoE+ ports of the FSD-604HP.
  • Page 11 Cable distance for Switch  If the “DIP Switch Mode” is set to “Standard”, then the distance between the FSD-604HP and PC/PD should not ex- ceed 100 meters for UTP/STP cable. Note  If the “DIP Switch Mode” is set to “Ex- tend”, then the distance between the FSD-604HP and PC/PD should not exceed 250 meters.

  • Page 12: Wall Mount Installation

    Wall-mount Installation Step 1: Please find the wall that can mount the FSD-604HP. Step 2: Please refer to the picture below and screw the two screws on the wall. 122mm Step 3: Hang the FSD-604HP on the screws from the wall.

  • Page 13: Product Specifications

    7. Product Specifications FSD-604HP Model 4-Port 10/100Mbps 802.3af/at PoE + 2-Port 10/100Mbps Desktop Switch Hardware Specifications 6-Port RJ45 for 10/100BASE-TX, auto Network Connector MDI/MDIX 4-Port with 802.3af/at PoE injector PoE Inject Port function (Port 1 to port 4) System: Power (Orange) Per PoE port: PoE (Orange, port 1 to LED Display port 4)
  • Page 14 Power over Ethernet IEEE 802.3af Power over Ethernet/PSE PoE Standard IEEE 802.3at Power over Ethernet Plus/ PoE Power Supply Type End-span Power Pin Assignment 1/2 (+), 3/6(-) Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af) PoE Power Output Per Port 52V DC, 600mA.

  • Page 15: Customer Support

    Switch support team mail address: support_switch@planet.com.tw Copyright © PLANET Technology Corp. 2017. Contents are subject to revision without prior notice. PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners. - 14 -...
