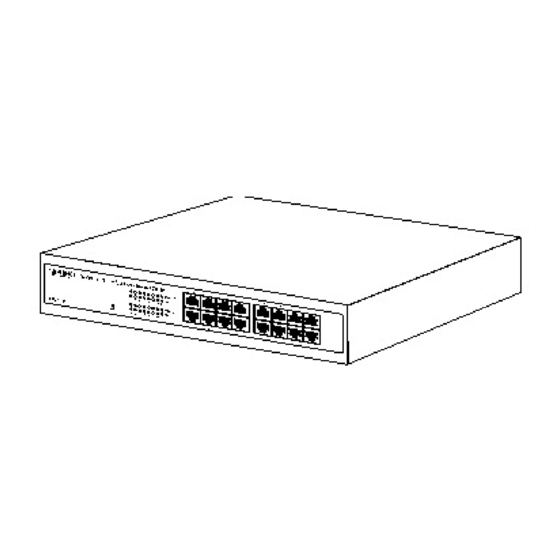

Planet FSD-1605 User Manual
  1. Manuals
  2. Brands
  3. Planet Manuals
  4. Switch
  5. FSD-1605
  6. User manual

Planet FSD-1605 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

This page is intentionally left blank

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FSD-1605 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planet FSD-1605

Summary of Contents for Planet FSD-1605

  • Page 1 This page is intentionally left blank...

  • Page 2: Fcc Warning

    PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred.

  • Page 3: Ce Mark Warning

    Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision PLANET Fast Ethernet Switch User’s Manual FOR MODELS: FSD-1605 / FSD-2405 Rev: 1.0(July.2007) Part No.: EM-FSD1624V1.0 (2081-A31013-000)

  • Page 4: How To Use This Manual

    1.INTRODUCTION 1.1 Package Contents Check the contents of your package for following parts: Fast Ethernet Switch x 1 User’s manual x 1 Power cord x 1 Rack ear x 2 Rubber feet x 4 If any of these are missing or damaged, please contact your dealer immediately, if possible, retain the carton including the original packing material, and use them against to repack the product in case there is a need to return it to us for repair.

  • Page 5: Product Features

    1.3 Product Features Complies with IEEE 802.3, 10Base-T, and IEEE 802.3u 100Base-TX 16/24-Port 10/100Mbps TX Auto-Negotiation Ethernet Switch Features Store-and-Forward mode with wire-speed filtering and forward- ing rates IEEE 802.3x flow control for full duplex operation and Backpressure for half duplex operation Support 8K absolute MAC addresses Supports to handle up to 1552 bytes packet Automatic address learning and address aging...

  • Page 6: Standard Conformance

    1.�� �������� ��������������� �� �������� ��������������� Model FSD-1605 FSD-2405 H���w��� �������������� 10/100Base-TX Ports 16 RJ-45 MDI/MDI-X 24 RJ-45 MDI/MDI-X Dimensions (W x H x D) 280 x 170 x 44 mm Weight (KG) 1.60 KG Power Consumption 13.6 watts / 46.4BTU watts / 46.4BTU...

  • Page 7: Product Description

    Please read this chapter completely before continuing. 2.1 Product Description The PLANET Fast Ethernet Switch is 10/100Mbps Fast Ethernet Switch with 16/24 ports respectively, cost-effective; the Fast Ethernet Switch can handle extremely large amounts of data in a secure topology linking to a backbone or high capacity servers.
  • Page 8 2.1.2 Switch Front Panel Figure 2-1 & 2-2 shows a front panel of Fast Ethernet Switch. Figure 2-1 FSD-1605 front panel Figure 2-2 FSD-2405 front panel 2.1.3 LED Indicators Color Function Green Lights to indicate that the Switch is powered on.

  • Page 9: Installing The Switch

    Power Notice: 1. The device is a power-required device, it means, it will not work till it is powered. If your networks should active all the time, please consider using UPS (Uninterrupted Power Supply) for your device. It will prevent you from network data loss or network downtime.

  • Page 10: Rack Mounting

    Step4: Connect your Fast Ethernet Switch to network devices. A. Connect one end of a standard network cable to the 10/100 RJ-45 ports on the front of the Fast Ethernet Switch. B. Connect the other end of the cable to the network devices such as printer servers, workstations or routers…etc.
  • Page 11 Step5: After the brackets are attached to the Fast Ethernet Switch, use suitable screws to securely attach the brackets to the rack, as shown in Figure 2-6. Figure 2-6 Mounting the Switch in a Rack Step6: Proceeds with the steps 4 and steps 5 of session 2.2.1 Desktop Installation to connect the network cabling and supply power to your Fast Ethernet Switch.

  • Page 12: Switch Operation

    3. SWITCH OPERATION 3.1 Address Table The Switch is implemented with an address table. This address table composed of many entries. Each entry is used to store the address information of some node in network, including MAC address, port no, etc. This information comes from the learning process of Ethernet Switch.

  • Page 13: Auto-Negotiation

    Due to the learning function of the Ethernet switching, the source address and corresponding port number of each incoming and outgoing packet are stored in a routing table. This information is subsequently used to filter packets whose destination address is on the same segment as the source address.

  • Page 14: Troubleshooting

    4. TROUBLESHOOTING This chapter contains information to help you solve issues. If Fast Ethernet Switch is not functioning properly, make sure the Ethernet Switch was set up according to instructions in this manual. Some stations cannot talk to other stations located on the other port Solution: The address table may contain older information than of the address table of that node.

  • Page 15: Appendix A Switch's Rj-45 Pin Assignments

    Appendix A Switch’s RJ-45 Pin Assignments A.1 10/100Mbps, 10/100Base-TX When connecting your 10/100Mbps Ethernet Switch to another switch, a bridge or a hub, a straight or crossover cable is necessary. Each port of the Switch supports auto-MDI/MDI-X detection. That means you can directly connect the Switch to any Ethernet devices without making a crossover cable.
  • Page 16 Figure A-1: Straight-Through and Crossover Cable Please make sure your connected cables are with same pin assignment and color as above picture before deploying the cables into your network.
  • Page 17 This page is intentionally left blank...
  • Page 18 This page is intentionally left blank...
  • Page 19 Part No.: 2081-A31013-000...
