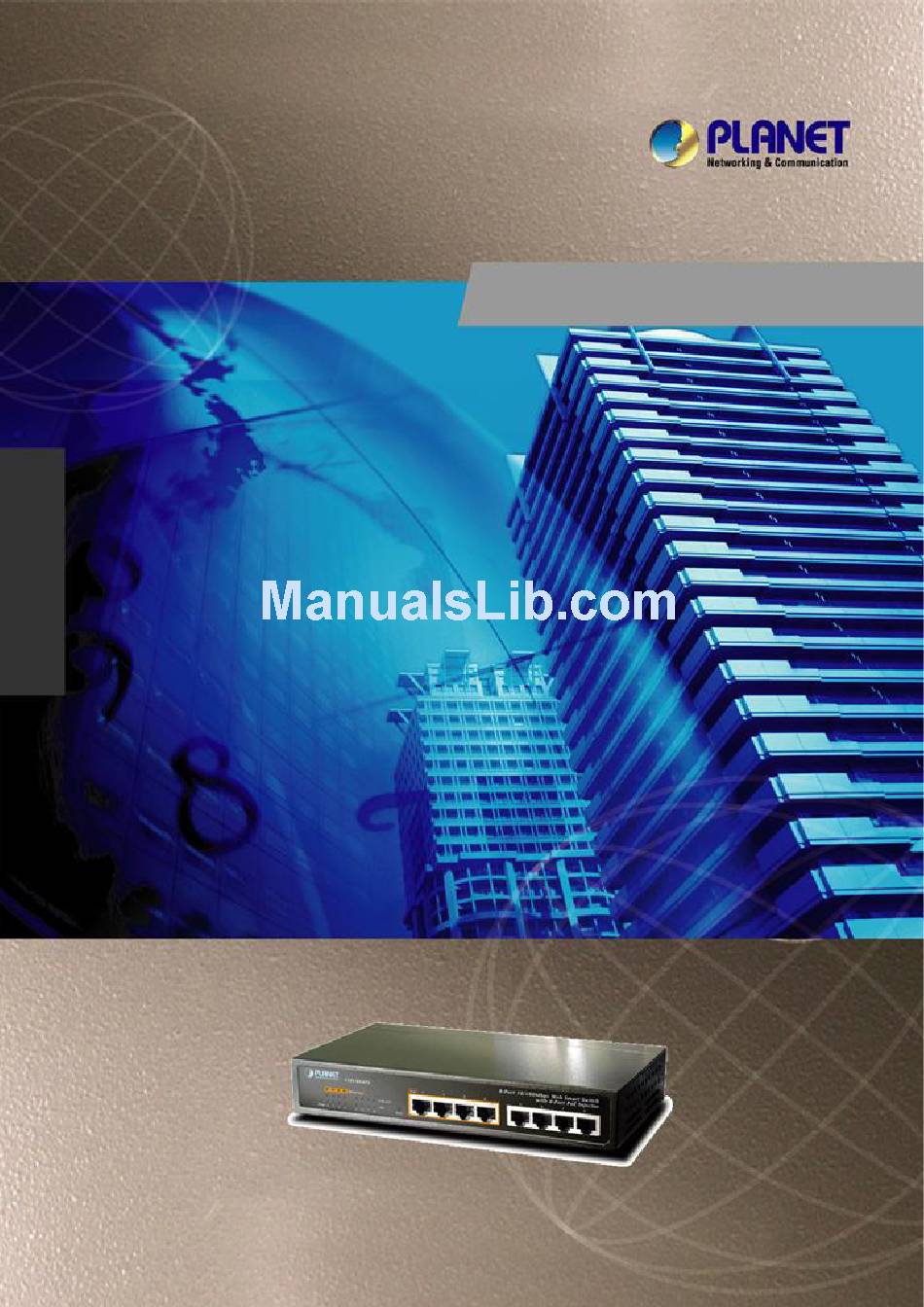

- Page 1 User's Manual FSD-804PS 8-Port 10/100Mbps with 4-Port PoE Web Smart Ethernet Switch - 1 -...
-
Page 2: Fcc Warning
PLANET has made every effort to ensure that this User’s Manual is accurate; PLANET disclaims liability for any inaccuracies or omissions that may have occurred. -
Page 3: Table Of Contents
User’s Manual of FSD-804PS TABLE OF CONTENTS 1. INTRODUCTION ................................4 1.1 C ................................. 4 HECKLIST 1.2 A ..............................4 BOUT THE WITCH 1.3 F .................................. 4 EATURES 1.4 S ................................6 PECIFICATION 2. HARDWARE DESCRIPTION ............................7 2.1 F ................................ -
Page 4: Introduction
With 4 PoE interfaces, the FSD-804PS is ideal for small business and workgroups requiring to deploy the PoE for the wireless access points, IP-based surveillance camera or IP phones in any places easily, efficiently and cost effective. - Page 5 ◆ Per port High/Low transmission priority configuration ◆ PoE power Disable/Enable by management interface ◆ PoE power consumption monitoring ◆ Supports PLANET Smart-DISCOVERY Utility for deploy management ◆ EMI standards comply with FCC, CE class A ◆ - 5 -...
-
Page 6: Specification
User’s Manual of FSD-804PS 1.4 Specification Model FSD-804PS Hardware Specification Network Connector 8-Port RJ-45 for 10/100TX PoE Inject Port 4-Port with PoE injector function, Port-1 to Port-4 PoE Output power budget 55 Watts One power, LED Display 1-4 port PoE in-use, LNK/ACT, 100,... -
Page 7: Hardware Description
Front panel illustrations in this chapter display the unit LED indicators. Before connecting any network device to the FSD-804PS, read this chapter carefully. In the following section, the term “Switch” means the Switch device, ie. FSD-804PS; term of “switch” can be any third switches. -
Page 8: Rear Panel
User’s Manual of FSD-804PS 2.2 Rear Panel The rear panel of the FSD-804PS indicates an AC inlet power socket, which accepts input power from 100 to 240VAC, 50-60Hz, 1A max. And have a fan hole on the rear panel. Figure 2-2: FSD-804PS Switch rear panel The device is a power-required device, it means, it will not work till it is powered. -
Page 9: Desktop Installation
User’s Manual of FSD-804PS 2.4 Desktop Installation To install the Switch on desktop, simply follow the next steps: Step1: Attach the rubber feet to the recessed areas on the bottom of the Switch, as shown in Figure 2-3. Figure 2-3 Attaching the rubber feet to the Switch Step2: Place the Switch on desktop near an AC power source. -
Page 10: Rack Mounting (Optional Rack Kits)
User’s Manual of FSD-804PS 2.5 Rack Mounting (Optional Rack Kits) To install the Switch in a 10-inch or 19-inch standard rack, PLANET provides the optional rack mount kits RKE-10A / RKE-10B for different need. Follow the instructions described below. Step1: Place your Switch on a hard flat surface, with the front panel positioned towards your front side. -
Page 11: Product Application
19” rack. Connect the power cord to the power inlet socket of FSD-804PS and the other end into the local power source outlet. When the Switch receives power, the Power LED should remain solid Green. - Page 12 User’s Manual of FSD-804PS 2.6.2 As a department / workgroup PoE Switch Providing up to 4 PoE, in-line power interface, the Switch can easily build a power central-controlled IP phone system, IP Camera system, AP group for the enterprise. For instance, 4 camera / AP can be easily installed around the corner in the company for surveillance demands or build a wireless roaming environment in the office.
-
Page 13: Web Management
User’s Manual of FSD-804PS 3. WEB MANAGEMENT To modify your PC’s IP domain to the same with FSD-804PS then use the default IP address (192.168.0.100) to remote configure FSD-804PS through the Web interface. 3.1 Login in to the Switch To access the Web-browser interface you must first enter the user name and password, the default user name and password is "admin". -
Page 14: Port Status
User’s Manual of FSD-804PS 3-2 Port Status This section provides current status of each port from FSD-804PS, the screen in Figure 3-3 appears and Table 3-1 de- scribes the port status object of Switch. Figure 3-3 Port Status Web Page screen... -
Page 15: Port Setup
User’s Manual of FSD-804PS 3-3 Port Setup This section introduces detail settings of per port of FSD-804PS, the screen in Figure 3-4 appears and table 3-2 descrip- tions the Port Setup objects of Switch. Figure 3-4 Port Setup Web Page screen... -
Page 16: Port Status Counters
User’s Manual of FSD-804PS 3-4 Port Status Counters For those selected port, this function could provide you with an individual statistical counter, it is a useful page for ad- ministrator to monitor each port’s usage condition. Also, it is helpful to troubleshooting network problems. The screen in Figure 3-5 appears and table 3-3 descriptions the Port Status Counters objects of Switch. -
Page 17: Vlan Setup
User’s Manual of FSD-804PS 3-5 VLAN Setup A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain. It allows you to isolate network traffic so only members of the VLAN receive traffic from the same VLAN members. Basically, creating a VLAN from a switch is logically equivalent of reconnecting a group of network devices to another Layer 2 switch. -
Page 18: Port-Based Vlan Setting
User’s Manual of FSD-804PS Figure 3-6 VLAN Setup Web Page screen 3.5.1 Port-based VLAN setting: Select “Port-based” to enable the port-based VLAN function then continue configure eight port-based VLAN groups as your request. After setup completed, please press “Apply” to take affect. The screen in Figure 3-7 appears. -
Page 19: Port-Based Vlan Setting Example
User’s Manual of FSD-804PS 3.5.2 Port-based VLAN setting example: VLAN scenario 1. Port 8 is the file server port for all the workstations 2. Port 1 to port 7 is different devices that do not need to see each other Setup steps 1. -
Page 20: 802.1Q Vlan Setting
User’s Manual of FSD-804PS 3.5.3 802.1Q VLAN setting: Select “802.1Q VLAN” and press “Apply” button, to enable the IEEE 802.1Q VLAN function then continue configure eight 802.1Q VLAN groups as your request. After setup completed, please press “Apply” to take affect. The screen in Figure 3-8 appears and table 3-4 descriptions the 802.1Q VLAN Setup object of Switch. -
Page 21: 802.1Q Vlan Setting Example
User’s Manual of FSD-804PS 3.5.4 802.1Q VLAN setting example: VLAN scenario 1. Port 5 to port 8 is the same groups. 2. Port 1 to port 2 is the same groups that do not need to see others Port. 3. Port 3 to port 4 is the same groups that do not need to see others Port. -
Page 22: Port Trunk Setup
Figure 3-10 Port Trunk Setup Web Page screen After turn on the port trunk feature, port 7 and port 8 should connect to another switch, such as another FSD-804PS, that also supports port trunk feature to double the bandwidth in between. Otherwise, if the connected switch do not support port trunk, it will cause network loop and hangs the whole network. -
Page 23: Misc Configuration
User’s Manual of FSD-804PS 3-7 Misc Configuration This section provides Misc Configuration of FSD-804PS, the screen in Figure 3-11 appears and table 3-5 descriptions the Misc Configuration objects of FSD-804PS. Figure 3-11 FSD-804PS Misc Configuration Web Page screen Object Description System Info Allow user to configure the system configuration, please refer to chapter 3.7.1... -
Page 24: System Information
User’s Manual of FSD-804PS 3.7.1 System Information This section provides System Configuration of FSD-804PS; the screen in Figure 3-12 appears and table 3-6 descriptions the System Configuration objects of FSD-804PS. Figure 3-12 FSD-804PS System Configuration Web Page screen Object Description Mac address Display Mac address of FSD-804PS. - Page 25 User’s Manual of FSD-804PS Figure 3-13 Management VLAN options Web Page screen Figure 3-14 Broadcast Storm Control options Web Page screen - 25 -...
-
Page 26: Password / Access Setting
3.7.2 Password / Access Setting This section provides password change Configuration of FSD-804PS, please input the old password in “Password” space and input the new password in “New Password” space then input the new password in “Confirm”. After setup com- pleted, please press “Apply”... -
Page 27: Restore System Default
3.7.3 Restore System Default This section provides reset FSD-804PS to factory default mode, after choose this function and the following screen ap- pears in Figure 3-17. Please press “OK” button to take effect and the switch will reboot automatically and ask you to re-login web interface with default username and password “admin”, the screen in Figure 3-17 &... -
Page 28: Reboot System
3.7.4 Reboot System This section provides reboot FSD-804PS, after choose this function and the following screen appears in Figure 3-20. Please press “OK” button to take effect and the Switch will reboot and ask you to re-login web interface with correct username “admin”... - Page 29 User’s Manual of FSD-804PS Figure 3-21 rebooting Web Page screen Figure 3-22 login Web Page screen - 29 -...
-
Page 30: Firmware Upgrade
User’s Manual of FSD-804PS 3.7.5 Firmware Upgrade This section provides firmware upgrade of FSD-804PS, after choose this function and the following screen appears in Figure 3-23. Please press “Update” button to continue following firmware upgrade process. Figure 3-23 firmware upgrade Web Page screen Please wait for two seconds and the page will show to next firmware upgrade web page, the screen in Figure 3-24 appears. - Page 31 User’s Manual of FSD-804PS Figure 3-25 firmware upgrade Web Page screen Then the re-login screen appears in Figure 3-26, please press “Re login” button to re-login web interface of FSD-804PS with latest firmware version, the screen in Figure 3-27 appears.
-
Page 32: Poe
User’s Manual of FSD-804PS 3-8 POE This section provides POE configuration of FSD-804PS, the POE screen in Figure 3-28 appears and Table 3-7 describes the POE object of FSD-804PS. Figure 3-28 POE Web Page screen Object Description Port Indicate port 1 to port 4. -
Page 33: Logout
User’s Manual of FSD-804PS 3-9 Logout This section allows to logout the FSD-804PS, the screen in Figure 3-29 & 3-30 appears. Figure 3-29 Logout Web Page screen Figure 3-30 login Web Page screen - 33 -... -
Page 34: Switch Operation
No packet loss will occur. 4.5 Auto-Negotiation The STP ports on the FSD-804PS switch have built-in "Auto-negotiation". This technology automatically sets the best possible bandwidth when a connection is established with another network device (usually at Power On or Reset). -
Page 35: Troubleshooting
Check the LNK/ACT LED on the switch Try another port on the Switch Make sure the cable is installed properly Make sure the cable is the right type Turn off the power. After a while, turn on power again. Why I connect my PoE device to FSD-804PS and it cannot power on? Solution: 1. -
Page 36: Appendix A Networking Connection
User’s Manual of FSD-804PS APPENDIX A NETWORKING CONNECTION A.1 Switch‘s RJ-45 Pin Assignments Contact MDI-X 1 (TX +) 2 (TX -) 3 (RX +) 6 (RX -) 4, 5, 7, 8 Not used Not used A.2 RJ-45 cable pin assignment There are 8 wires on a standard UTP/STP cable and each wire is color-coded.
