Summary of Contents for Planet FSD-808HP
- Page 1 8-Port 10/100Mbps 802.3at PoE Desktop Switch FSD-808HP User's Manual...
- Page 2 Disclaimer PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.
- Page 3 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision PLANET 8-Port 10/100Mbps 802.3at PoE Desktop Switch User's Manual For Model: FSD-808HP Revision: 1.0 (December 2012) Part No.: 2351-AK3130-000...
-
Page 4: Table Of Contents
Table Of Contents 1. Introduction ....................5 1.1 Checklist ..................... 5 1.2 Product Description ................5 1.3 Features ..................... 6 1.4 Specification..................7 2. Hardware Description .................. 8 2.1 Front Panel ..................8 2.1.1 LED Indicators ................8 2.2 Rear Panel ..................9 3. -
Page 5: Introduction
To facilitate power management, the FSD-808HP equips two orange LEDs hardware designed that located on left side of FSD-808HP front panel, it call “PoE Power Usage”. 1-4 is meaning that counting from port 1 to 4 of PoE output and 5-8 is meaning that counting from port 5 to 8 of PoE output. -
Page 6: Features
It helps to lower the installation costs and simplify the installation effort. Besides, the first important key feature is energy saving. With more efficient switching power supply, the efficiency of the FSD-808HP would be much better than eight linear power adapters in the long run. Furthermore, it is the ideal device for bridging among Fast Ethernet and Gigabit Ethernet workgroups and networks. -
Page 7: Specification
1.4 Specification FSD-808HP Model 8-Port 10/100Mbps 802.3at PoE Desktop Switch Hardware Specification Network Connector 8-Port RJ-45 for 10/100Base-TX PoE Inject Port 8-Port with 802.3af / 802.3at PoE injector function System: Power (Green) PoE Usage Alarm: 1-4 (Orange) LED Display 5-8 (Orange) -
Page 8: Hardware Description

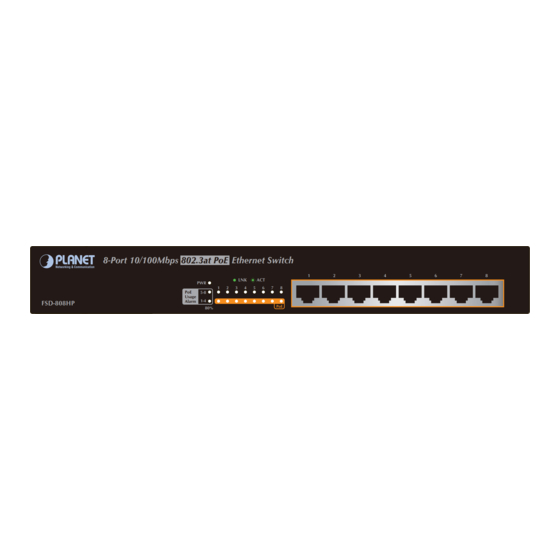

Before connecting any network device to the FSD-808HP, please read this chapter carefully. 2.1 Front Panel The Front Panel of the FSD-808HP PoE Ethernet Switch consists of 8x Auto-Sensing 10/100Mbps Ethernet RJ-45 Ports. The LED Indicators are also located on the front panel of the FSD-808HP. -
Page 9: Rear Panel
Orange Blink: Indicate the PoE Usage is 100% 2.2 Rear Panel The rear panel of the FSD-808HP indicates an AC inlet power socket, which accepts input power from 100 to 240V AC, 50-60Hz. 100~240V AC 50 / 60Hz, 2A max. -
Page 10: Hardware Installation
100Base-TX and 10Base-T networks. Users only need to plug a working network device into one of the 10/100Base-TX ports, and then turn on the FSD-808HP. The port will automatically runs in 10Mbps, 20Mbps, 100Mbps or 200Mbps after the negotiation with the connected device. - Page 11 Step2: Place the Switch on desktop near an AC power source. Step3: Keep enough ventilation space between the Switch and the surrounding objects. When choosing a location, please keep in mind the environmental restrictions discussed in Chapter 1, Section 4, in Specification. Note Step4: Connect your Switch to 802.3af / 802.3at complied Power Devices (PD)
-
Page 12: Rack Mounting
3.2 Rack Mounting To install the Switch in a 19-inch standard rack, follow the instructions described below. Step1: Place your POE Fast Ethernet Switch on a hard flat surface, with the front panel positioned towards your front side. Step2: Attach a rack-mount bracket to each side of the Switch with supplied screws attached to the package. - Page 13 Step5: After the brackets are attached to the Switch, use suitable screws to securely attach the brackets to the rack, as shown in Figure 3-3. Figure 3-3: Mounting the Switch in a Rack Step6: Proceeds with the steps 4 and steps 5 of session 3.1 Desktop Installation to connect the network cabling and supply power to your Switch.
-
Page 14: Product Application
Product Application 3.3.1 Supports IEEE 802.3af and IEEE 802.3at Standard FSD-808HP is an ideal solution for IEEE 802.3af and High Power IEEE 802.3at Power over Ethernet (PoE) application. It combines up to 140 Watts power output budget and data transfer over one Cat. 5E / 6 Ethernet cable. With totally 140... -
Page 15: Ip Office Department / Workgroup Poe Switch
Cable distance for Switch The cable distance between the FSD-808HP and PC should not exceed 100 meter for UTP/STP cable. Make sure the wiring is correct It can be used Category 3/4/5 cable in 10 Mbps operation. To reliably operate your network at 100Mbps, you must use an... -
Page 16: Power Over Ethernet Powered Device
AC sockets. 30 Watts Since the FSD-808HP per PoE port supports 52V DC PoE power output, please check and assure the Powered Device (PD) accept- able DC power range is from 52V DC. Otherwise, it will damage the Note Powered Device (PD). -
Page 17: Power Over Ethernet Overview
4. Power Over Ethernet Overview What is PoE? The PoE is an abbreviation of Power over Ethernet; the PoE technology means a system to pass electrical power safely, along with data on Ethernet UTP cable. The IEEE standard for PoE technology requires Category 5 cable or higher for high power PoE levels, but can operate with category 3 cable for low power levels. - Page 18 offers 25.50 W. When the device is a switch, it is commonly called an End-span (although IEEE 802.3af refers to it as endpoint). Otherwise, if it's an intermediary device between a non PoE capable switch and a PoE device, it's called a Mid-span. An external PoE injector is a Mid-span device.
- Page 19 The data pairs are used. Since Ethernet pairs are transformer coupled at each end, it is possible to apply DC power to the center tap of the isolation transformer without upsetting the data transfer. In this mode of operation the pair on pins 3 and 6 and the pair on pins 1 and 2 can be of either polarity.
-
Page 20: Troubleshooting
Why connects PoE device to FSD-808HP and it cannot power on? Solution: Please check the cable type of the connection from FSD-808HP (port 1 to port 8) to the other end. The cable should be an 8-wire UTP, Category 5 or above, EIA568 cable within 100 meters. -
Page 21: Appendix A Networking Connection
Appendix A Networking Connection A.1 PoE Switch RJ-45 Port Pin Assignments PIN NO RJ-45 SIGNAL ASSIGNMENT l Negative Power + 1 2 3 4 5 6 7 8 l Negative Power + l Positive Power – l Positive Power – A.2 10/100Mbps, 10/100Base-TX When connecting Switch to another Fast Ethernet switch, a straight or crossover cable might necessary. - Page 22 The standard cable, RJ-45 pin assignment The standard RJ-45 receptacle/connector There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation and color of straight cable and crossover cable connection: Straight Cable SIDE 1 SIDE 2 1 = White/Orange...
-
Page 23: Ec Declaration Of Conformity
: 8-Port 10/100Mbps 802.3at PoE Desktop Switch (150 Watts) *Model Number : FSD-808HP * Produced by: : Planet Technology Corp. Manufacturer‘s Name Manufacturer‘s Address : 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.). is herewith confirmed to comply with the requirements set out in the Council Directive on the... - Page 24 This page is intentionally left blank...
