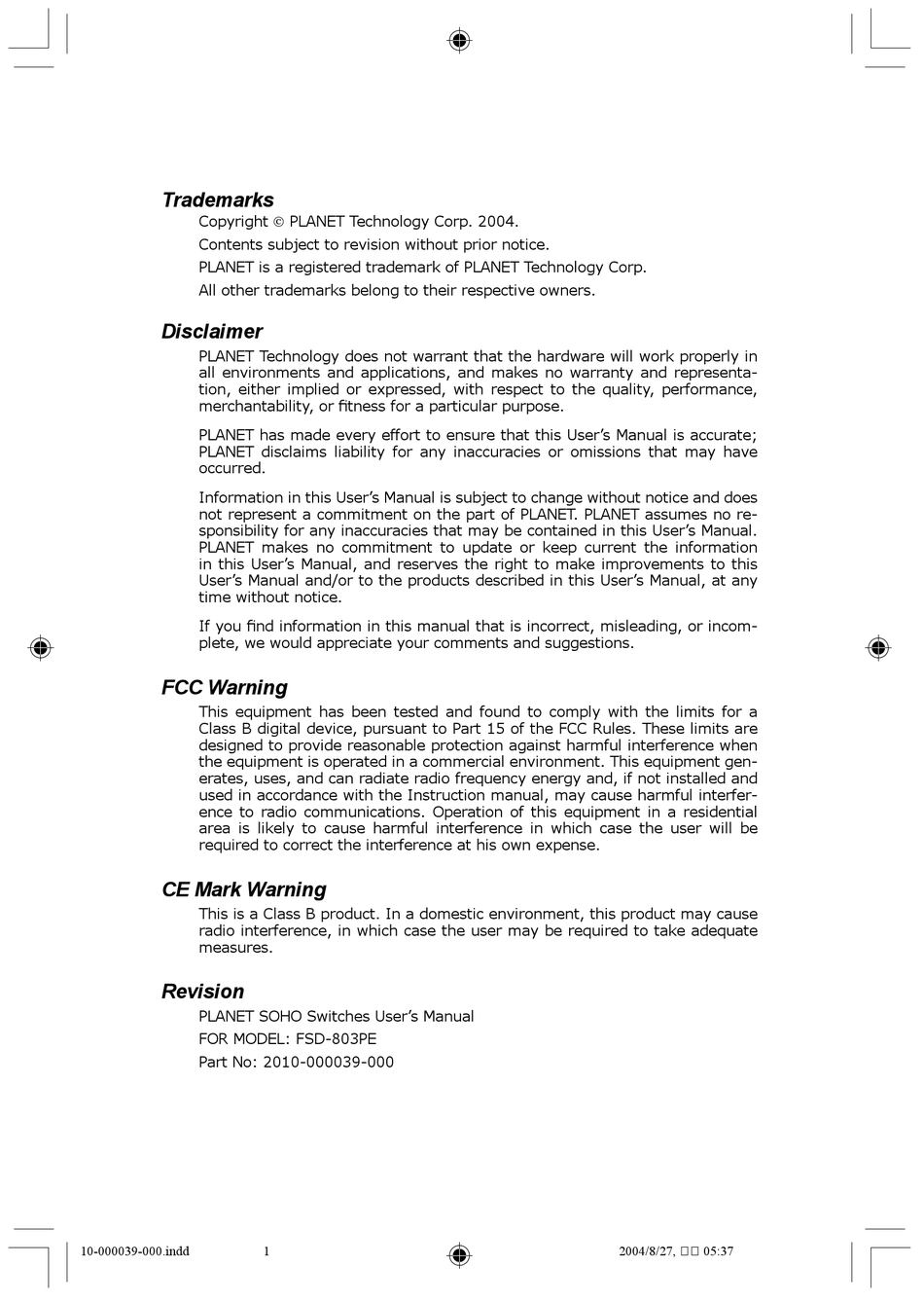

Trademarks
Copyright PLANET Technology Corp. 2004.
Contents subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp.
All other trademarks belong to their respective owners.
Disclaimer
PLANET Technology does not warrant that the hardware will work properly in
all environments and applications, and makes no warranty and representa-
tion, either implied or expressed, with respect to the quality, performance,
merchantability, or fitness for a particular purpose.
PLANET has made every effort to ensure that this User's Manual is accurate;
PLANET disclaims liability for any inaccuracies or omissions that may have
occurred.
Information in this User's Manual is subject to change without notice and does
not represent a commitment on the part of PLANET. PLANET assumes no re-
sponsibility for any inaccuracies that may be contained in this User's Manual.
PLANET makes no commitment to update or keep current the information
in this User's Manual, and reserves the right to make improvements to this
User's Manual and/or to the products described in this User's Manual, at any
time without notice.
If you find information in this manual that is incorrect, misleading, or incom-
plete, we would appreciate your comments and suggestions.
FCC Warning
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment gen-
erates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the Instruction manual, may cause harmful interfer-
ence to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause
radio interference, in which case the user may be required to take adequate
measures.
Revision
PLANET SOHO Switches User's Manual
FOR MODEL: FSD-803PE
Part No: 2010-000039-000
10-000039-000.indd
1
2004/8/27,
05:37
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Planet FSD-803PE
Summary of Contents for Planet FSD-803PE
-
Page 1: Fcc Warning
All other trademarks belong to their respective owners. Disclaimer PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representa- tion, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose. -
Page 2: Table Of Contents
Table of Contents About This Guide Chapter 1 Introduction Chapter 2 Unpacking and Setup Chapter 3 Identifying External Components Chapter 4 Connecting the Switch Chapter 5 Technical Specifications Appendix A RJ-45 PIN Specification Appendix B Switch Operation Appendix C Troubleshooting 10-000039-000.indd 2004/8/27, 05:37... -
Page 3: About This Guide
Ethernet network capabilities in a highly flexible desktop package and also offers dual power system, DC power and IEEE802.3af in-line power over Ethernet. Purpose This manual discusses how to install your FSD-803PE. 8-port 10/100Mbps Fast Ethernet Switch w/802.3af splitter built-in. Terms/Usage IIn this manual, the term "Switch"... - Page 4 This page is intentionally left blank 10-000039-000.indd 2004/8/27, 05:37...
-
Page 5: Chapter 1 Introduction
Chapter 1 INTRODUCTION This chapter describes the features of the Switch and some background information about Fast Ethernet switching technology. Fast Ethernet Technology The growing importance of LANs and the increasing complexity of desktop computing applications are fueling the need for high performance networks. A number of high-speed LAN technologies have been proposed to provide greater bandwidth and improve client/server response times. - Page 6 used to segment local area networks, but the cost of a router, the setup and maintenance required make routers relatively impractical. Today switches are an ideal solution to most kinds of local area network congestion problems. Power over Ethernet Technology The Switch also supports IEEE802.3af in-line power technology.
- Page 7 place where AC adapter is not required. Through the UTP wire, the power of the Switch can be managed from the central/backbone and also without fear of power shutdown. • The Switch combine dynamic memory allocation with store-and- forward switching to ensure that the buffer is effectively allocated for each port, while controlling the data flow between the transmit and receive nodes to guarantee against all possible packet loss.
- Page 8 This page is intentionally left blank 10-000039-000.indd 2004/8/27, 05:37...
-
Page 9: Chapter 2 Unpacking And Setup
Chapter 2 UNPACKING AND SETUP This chapter provides unpacking and setup information for the Switch. Unpacking Open the shipping cartons of the Switch and carefully unpacks its contents. The carton should contain the following items: • One 8-port 10/100Mbps Ethernet Switch •... - Page 10 This page is intentionally left blank 10-000039-000.indd 2004/8/27, 05:37...
-
Page 11: Chapter 3 Identifying External Components
Front Panel The figure below shows the front panels of the switches. Front Panel of FSD-803PE Please refer to the LED panel section for detailed information about each of the switch's LED indicators. -
Page 12: Led Indicators
1.The Switch is a power-required device, it means, the Switch will not work until it is powered. If your networked PCs will need to transmit data all the time, please consider use an UPS (Uninterrupted Power Supply) for your Switch either through POE port or DC 12V. -
Page 13: Chapter 4 Connecting The Switch
Chapter 4 CONNECTING THE SWITCH TThis chapter describes how to connect the Switch to your Fast Ethernet network. PC to Switch A PC can be connected to the Switch via a two-pair Category 3, 4, 5 UTP/STP straight cable. The PC (equipped with a RJ-45 10/100Mbps phone jack) should be connected to any of the 8 numbered port. - Page 14 Switch to the 802.3af in-line power devices like 802.3af POE hub, Ethernet Switches that with 802.3af POE Ethernet port. A Category 5 UTP cable with 4-pair wire is required from POE hub to your FSD-803PE. Once the Switch connect with POE device like PLANET POE-150, 1-port 802.3af injector or POE hub, the POE indicator of the Switch will turns on to indicate it get the power from the remote POE injector.
- Page 15 powered from POE port will require four-pair Cat 5/5e UTP/STP cable. When using straight or crossover cable, this is done from the any (MDI/MDIX) port of the Switch (Switch A) to any of the 10Mbps or 100Mbps (MDI-X) port of the other switch (switch B) or other devices.
- Page 16 This page is intentionally left blank 10-000039-000.indd 2004/8/27, 05:37...
-
Page 17: Chapter 5 Technical Specifications
Chapter 5 TECHNICAL SPECIFICATIONS Model FSD-803PE Standards IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-TX Fast Ethernet IEEE802.3af Power over Ethernet Protocol CSMA/CD Data Transfer Rate Ethernet: 10Mbps (half duplex), 20Mbps (full duplex); Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Topology Star Network Cables EIA/TIA- 568 100-ohm STP (max. - Page 18 Performance Transmit Method: Store-and-forward RAM Buffer: Filtering Address Table: 2K entries per device Packet Filtering/ 10Mbps Ethernet: 14,880/pps Forwarding Rate: 100Mbps Fast Ethernet: 148,800/pps MAC Address Learning: Automatic update 10-000039-000.indd 2004/8/27, 05:37...
-
Page 19: Appendix A Rj-45 Pin Specification
APPENDIX A RJ-45 PIN SPECIFICATION When connecting your FSD-series 10/100Mbps Ethernet Switch to another switch, a bridge or a hub, a straight or crossover cable is necessary. Each port of the Switch supports auto-MDI/MDI-X detection. That means you can directly connect the Switch to any Ethernet devices without making a crossover cable. - Page 20 There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation and color of straight cable and crossover cable connection: Figure A-1: Straight-Through and Crossover Cable Please make sure your connected cable are with same pin assignment and color as above picture before deploying the cables into your network.
-
Page 21: Appendix Bswitch Operation
APPENDIX B SWITCH OPERATION Address Table The Switch is implemented with an address table. This address table composed of many entries. Each entry is used to store the address information of some node in network, including MAC address, port no, etc. The information comes from the learning process of Ethernet Switch. - Page 22 The Switch performs “Store-and-forward” therefore, no error packets occur. More reliably, it reduces the re-transmission rate. No packet loss will occur. Auto-Negotiation The STP ports on the Switch have built-in “Auto-Negotiation.” This technology automatically sets the best possible bandwidth when a connection is established with another network device (usually at Power On or Reset).
-
Page 23: Appendix C Troubleshooting
Powered from POE: please check with network administrator if the POE injec- tor device is complied with 802.3af standard and well connected to port#1 of the Switch with 4-pair UTP cable within 100 meters. FSD-803PE will detect the signal from 802.3af POE device and response to get the 48VDC power. Con- nect with non-802.3af complied injector to port#1 could damage the Switch... - Page 24 Please also check the PCs in the network, for some times, if one of the PCs send- ing abnormal broadcast to the network it will also affect the overall network per- formance. You can check the LED of the switch to diagnose the symptom. Remove all the connection and plug-in one by one, if the LNK/ACT LED is blinking all the time (never stop), please isolate this PC and see if the performance will goes back to normal if the reset PCs are connected back to the switch.
