Page 1: User Manual
User Manual 4x2 HDMI™ v1.3 Switcher AT-HDMI-V42 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
5.1 RS-232 TRANSMISSION FORMAT ..........4 5.2 RS-232 COMMAND ..........4 6. SPECIFICATIONS ..........4 7. CONNECTION AND INSTALLATION ..........5 8. SAFETY INFORMATION ..........6 9. WARRANTY ..........7 10. ATLONA PRODUCT REGISTRATION ..........8 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction

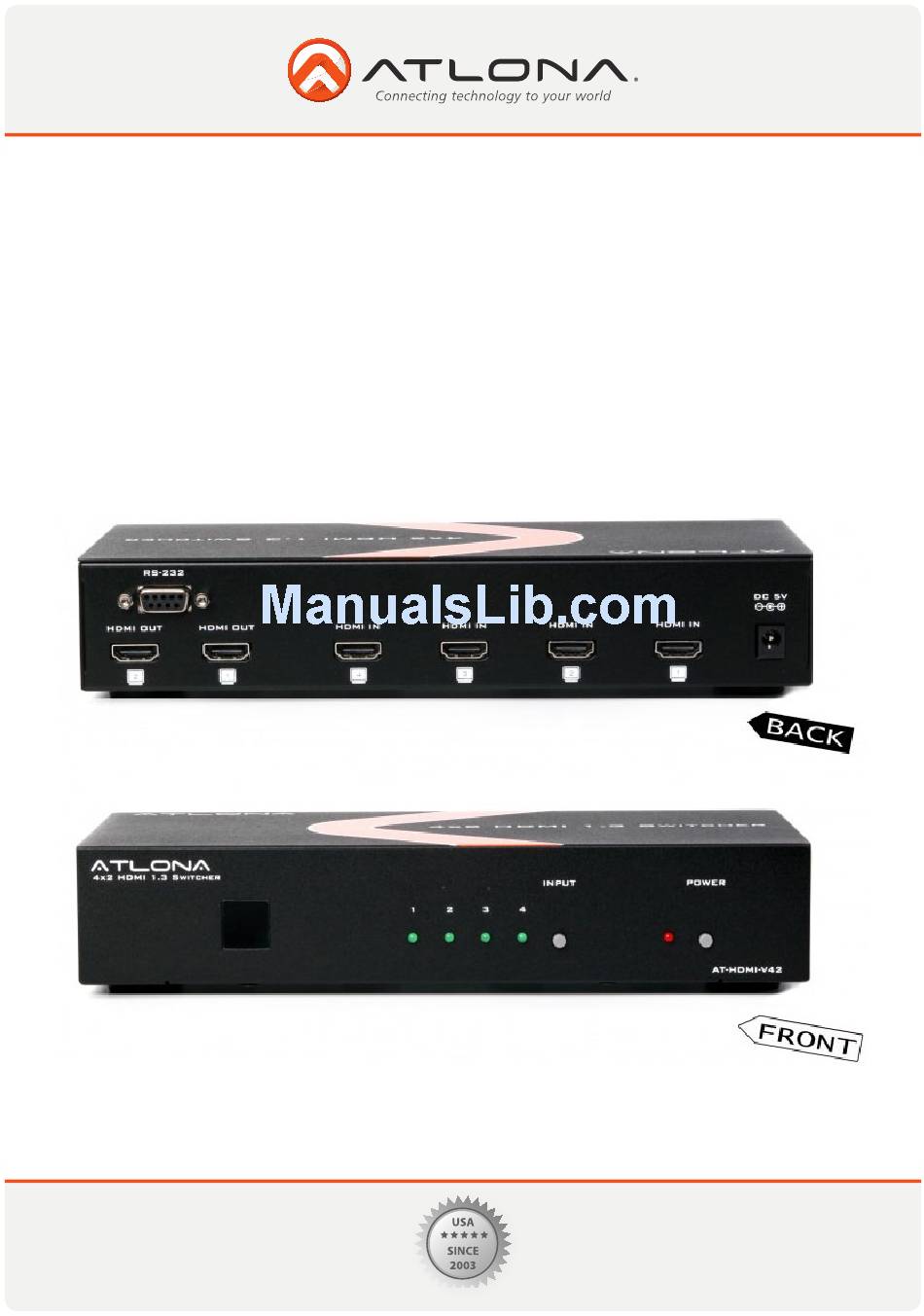

3. POWER Switch/Indicator: Press the “POWER” button to turn on/off the power, the power LED illuminate in red color means the power is turned on, when the LED not illuminate power is turned off. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 4: Rear Panel
Press 1, 2, 3 or 4 to select the desired input source. RS-232 REMOTE CONTROL PROTOCOL The connection between splitter and remote controller with RS-232 modem cable. ns definition of modem cable Splitter Remote Controller Definition Definition Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 5: Rs-232 Transmission Format
5VDC/2.6A (US/EU standards, CE/FCC/UL certified) Remote Control Discrete IR remote Dimensions (mm) 240(W) x 104(D) x 44(H) Weight(g) 0.8 kgs Chassis Material Metal Silk Skin Color Black Operating Temperature Operating from 0°C ~ 48°C Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Connection And Installation
CONNECTION AND INSTALLATION HDTV 1 HDTV 3 HDTV 1 HDTV 2 HDTV 2 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 7: Safety Information
It may also cause damage to your AT-HDMI-V42. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 8: Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 9: 10. Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
