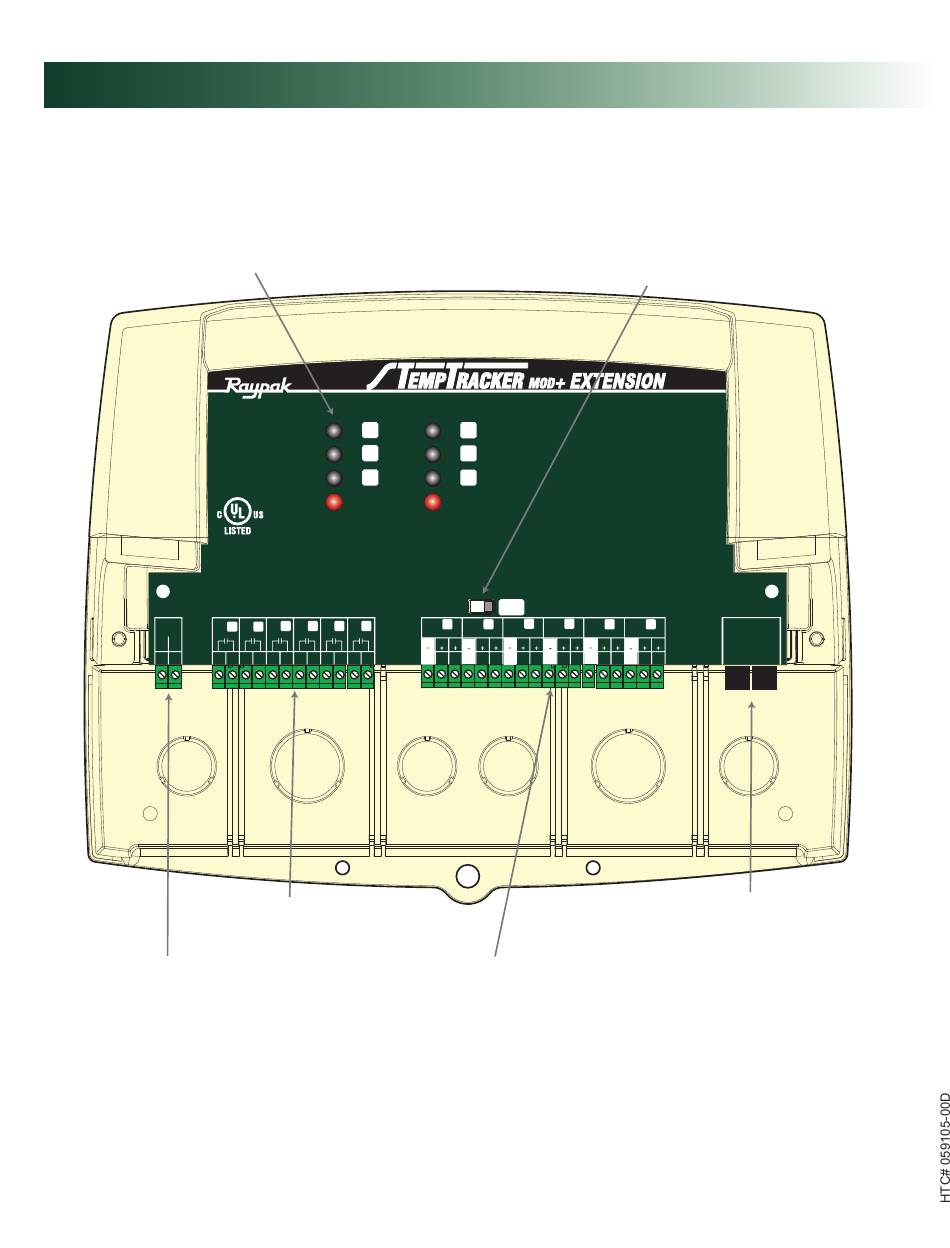

teMptracker Mod+ extensIon laYout

LED indicates the
associated relay status.
MANAGEMENT
PWR E
L N
1 2 3 4
Six N.O. Boiler startup relay
outputs. Each is wired in series
with the boiler's limit circuit.
120VAC Power
Complete TempTracker mod+ Extension Part Number
TempTracker mod+ Hybrid Installation and Operation Manual
K
E
M
G
I O
Comm
HYBRID
ENCLOSED
ENERGY
EQUIPMENT
99RA
K F L G M H N I O J P
5 6 7 8 9 10 11 12 11 12
Six modulating outputs can be 4-20mA or voltage.
Go to TempTracker mod+ Hybrid Startup Menu to
determine the type of output for each stage.
Extension Selection Switch to determine
Stage letters and LED colors.
Ext-A Stages E - J and all LEDs are Green
Ext-B Stages K - P and all LEDs are Red
This switch is covered with the Wiring Enclosure.
L
F OUTPUT RATINGS:
120VAC, 6A RESISTIVE
1A PILOT DUTY, 15A TOTAL
N
H
FOR ALL CIRCUITS
INPUT RATINGS:
J P
115VAC 60Hz, 12VA MAX
Use Copper Conductors Only.
Power
CAUTION:
Risk of Electric Shock.
More than one disconnect switch may be required
to de-energize the equipment before servicing.
Ext A Ext B
E K F L G M H N I
CUR / VLT CUR / VLT CUR / VLT CUR / VLT CUR / VLT
GND
GND mA VLT GND GND mA VLT GND mA VLT GND GND mA VLT GND mA
13 14 15 16 17 18 19 19 20 21 22 23 24 25 26
16 22
O J P
EXTENSION
MODULE
CUR / VLT
VLT GND GND mA VLT
RS-485
27 16 29 30
28
Connect to any TempTracker mod+ or Hybrid
and additional Extension panels to add
additional stages using a RJ11 cable only
(cable provided with TempTracker mod+ Ext).
013179F
