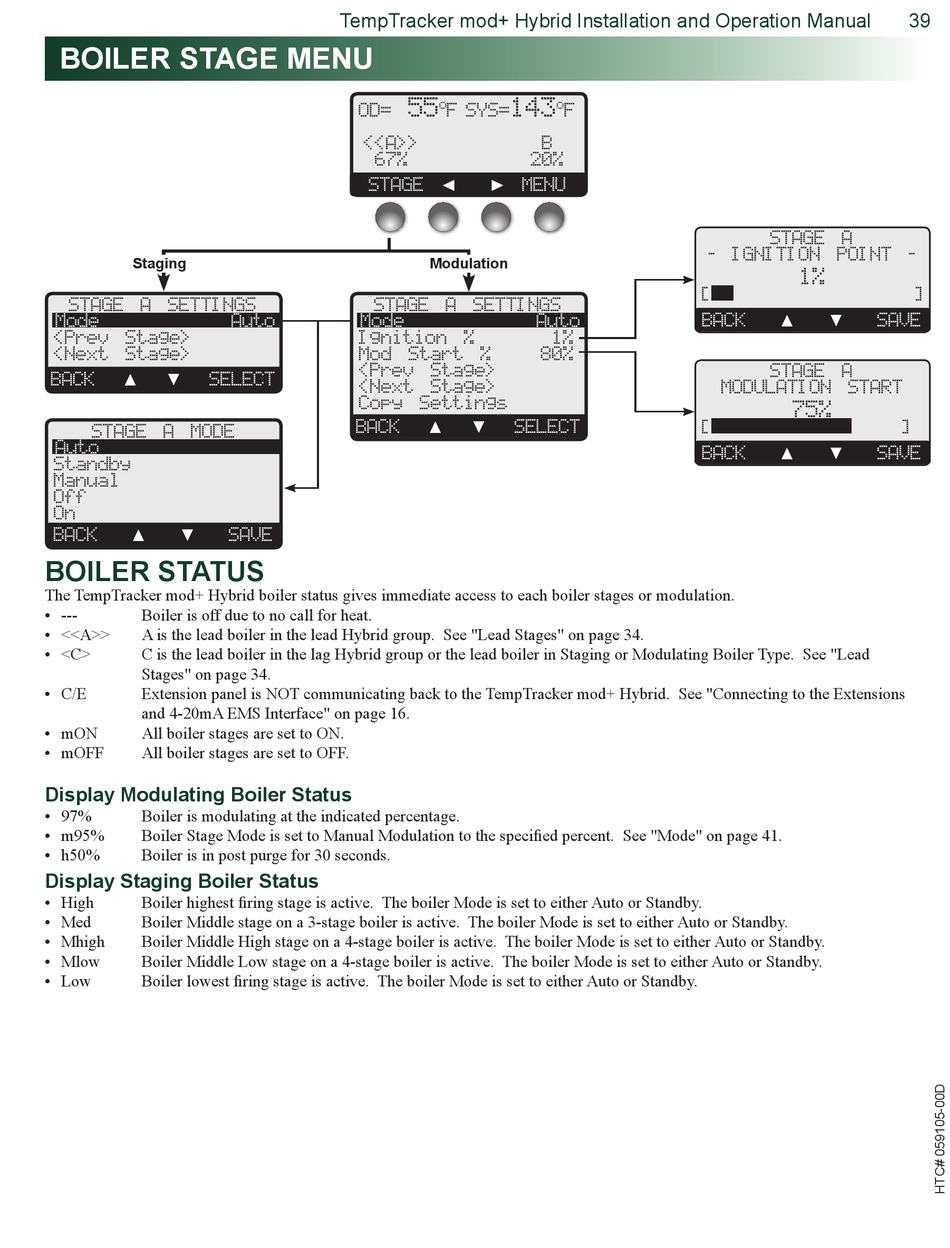

BoIler staGe Menu

staging
STAGE A SETTINGS
Mode
<Prev Stage>
<Next Stage>
BACK ▲ ▼ SELECT
STAGE A MODE
Auto
Standby
Manual
Off
On
BACK ▲ ▼ SAVE

BoIler status

The TempTracker mod+ Hybrid boiler status gives immediate access to each boiler stages or modulation.
• --- Boiler is off due to no call for heat.
• <<A>> A is the lead boiler in the lead Hybrid group. See "Lead Stages" on page 34.
• <C> C is the lead boiler in the lag Hybrid group or the lead boiler in Staging or Modulating Boiler Type. See "Lead
Stages" on page 34.
• C/E Extension panel is NOT communicating back to the TempTracker mod+ Hybrid. See "Connecting to the Extensions
and 4-20mA EMS Interface" on page 16.
• mON All boiler stages are set to ON.
• mOFF All boiler stages are set to OFF.

display Modulating Boiler status

• 97% Boiler is modulating at the indicated percentage.
• m95% Boiler Stage Mode is set to Manual Modulation to the specified percent. See "Mode" on page 41.
• h50% Boiler is in post purge for 30 seconds.

display staging Boiler status

• High Boiler highest firing stage is active. The boiler Mode is set to either Auto or Standby.
• Med Boiler Middle stage on a 3-stage boiler is active. The boiler Mode is set to either Auto or Standby.
• Mhigh Boiler Middle High stage on a 4-stage boiler is active. The boiler Mode is set to either Auto or Standby.
• Mlow Boiler Middle Low stage on a 4-stage boiler is active. The boiler Mode is set to either Auto or Standby.
• Low Boiler lowest firing stage is active. The boiler Mode is set to either Auto or Standby.
