54
Raypak, Inc.

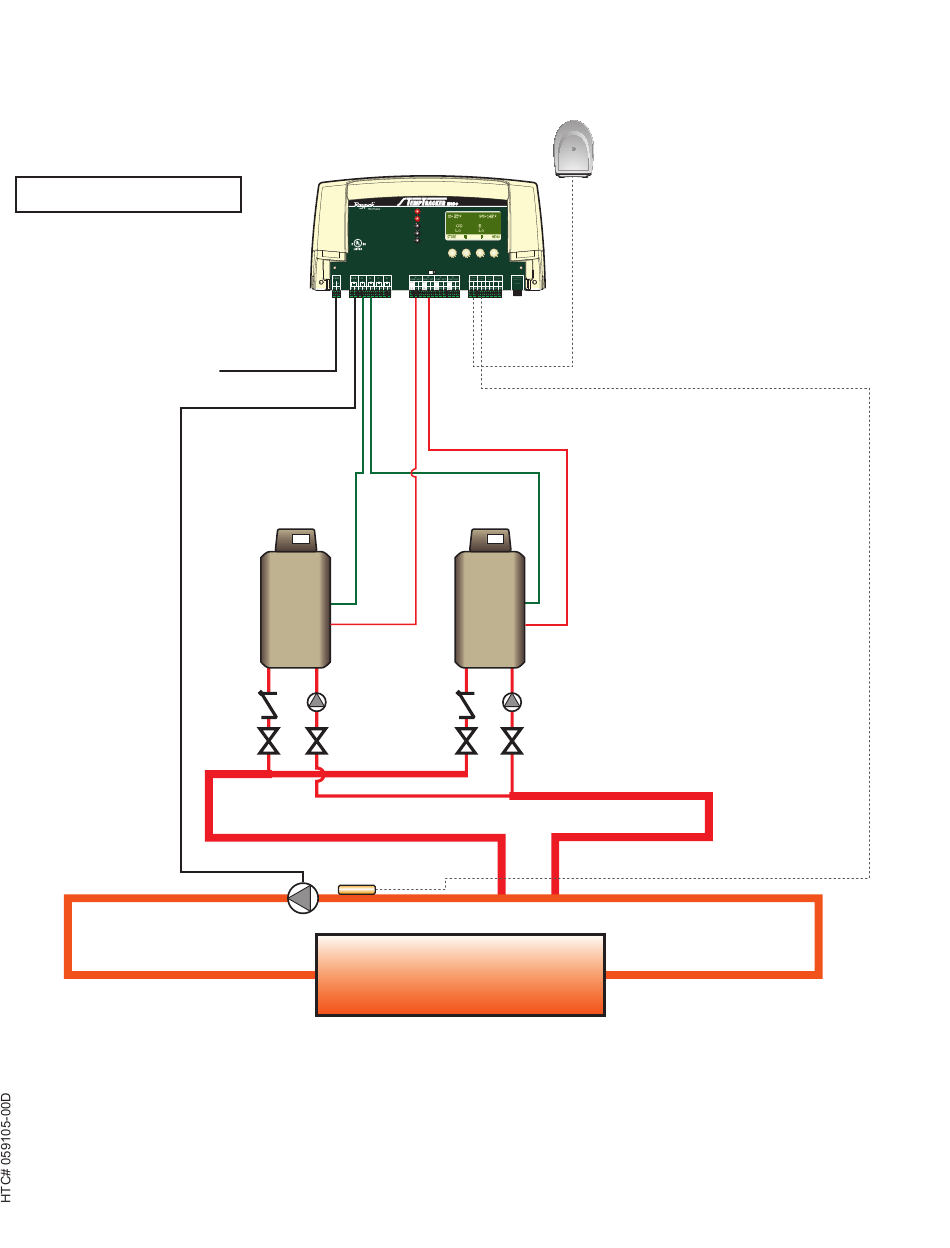

staGInG pIpInG dIaGraM

two 2-stage Boilers
120VAC
system:
The TempTracker mod+ Hybrid operates two 2-stage Boilers. The boilers are piped in Reverse Return on the primary
loop. The System output is controlling the System Pump.
Raypak, Inc. is aware that each installation is unique. Thus, Raypak, Inc. is not responsible for any installation related
to any electrical or plumbing diagram generated by Raypak, Inc. . The provided illustrations are to demonstrate
Raypak, Inc. 's control operating concept only.
SYSTEM
OUTPUT RATINGS:
120VAC, 6A RESISTIVE
A
1A PILOT DUTY, 15A TOTAL
FOR ALL CIRCUITS
B
INPUT RATINGS:
115VAC 60Hz , 30VA MAX
USE COPPER WIRE,
C
CLASS 1 WIRE ONLY.
D
ENCLOSED
ENERGY
CAUTION
: RISK OF ELECTRIC SHOCK
MANAGEMENT
EQUIPMENT
More than one disconnect switch may be required
99RA
to de-energize the equipment before servicing.
PROGRAM
RUN
Boiler 1
2-Stage
System
Sensor
Building Heating Loop
Outdoor
Sensor
HYBRID
DO NOT APPLY ANY VOLTAGE
TO INPUT TERMINALS
Boiler 2
2-Stage
startup settInGs
Boiler Type = Staging
Boiler Number = 2
Output Type = 2-Stage
