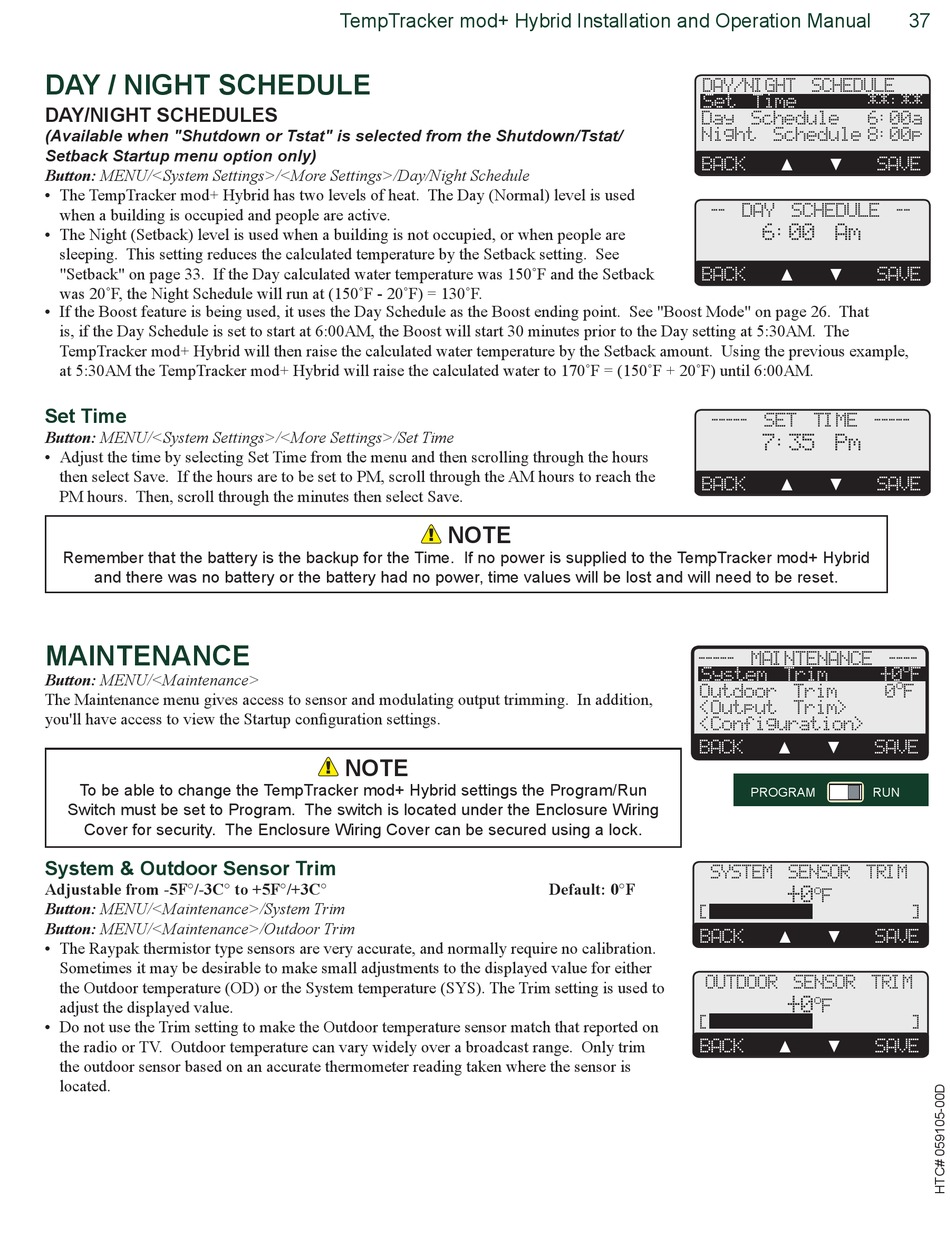

daY / nIGHt scHedule

daY/nIGHt scHedules
(Available when "Shutdown or Tstat" is selected from the Shutdown/Tstat/
Setback Startup menu option only)
Button: MENU/<System Settings>/<More Settings>/Day/Night Schedule
• The TempTracker mod+ Hybrid has two levels of heat. The Day (Normal) level is used
when a building is occupied and people are active.
• The Night (Setback) level is used when a building is not occupied, or when people are
sleeping. This setting reduces the calculated temperature by the Setback setting. See
"Setback" on page 33. If the Day calculated water temperature was 150˚F and the Setback
was 20˚F, the Night Schedule will run at (150˚F - 20˚F) = 130˚F.
• If the Boost feature is being used, it uses the Day Schedule as the Boost ending point. See "Boost Mode" on page 26. That
is, if the Day Schedule is set to start at 6:00AM, the Boost will start 30 minutes prior to the Day setting at 5:30AM. The
TempTracker mod+ Hybrid will then raise the calculated water temperature by the Setback amount. Using the previous example,
at 5:30AM the TempTracker mod+ Hybrid will raise the calculated water to 170˚F = (150˚F + 20˚F) until 6:00AM.

set time

Button: MENU/<System Settings>/<More Settings>/Set Time
• Adjust the time by selecting Set Time from the menu and then scrolling through the hours
then select Save. If the hours are to be set to PM, scroll through the AM hours to reach the
PM hours. Then, scroll through the minutes then select Save.
Remember that the battery is the backup for the Time. If no power is supplied to the TempTracker mod+ Hybrid
and there was no battery or the battery had no power, time values will be lost and will need to be reset.

MaIntenance

Button: MENU/<Maintenance>
The Maintenance menu gives access to sensor and modulating output trimming. In addition,
you'll have access to view the Startup configuration settings.
To be able to change the TempTracker mod+ Hybrid settings the Program/Run
Switch must be set to Program. The switch is located under the Enclosure Wiring
Cover for security. The Enclosure Wiring Cover can be secured using a lock.
system & outdoor sensor trim
Adjustable from -5F°/-3C° to +5F°/+3C°
Button: MENU/<Maintenance>/System Trim
Button: MENU/<Maintenance>/Outdoor Trim
• The Raypak thermistor type sensors are very accurate, and normally require no calibration.
Sometimes it may be desirable to make small adjustments to the displayed value for either
the Outdoor temperature (OD) or the System temperature (SYS). The Trim setting is used to
adjust the displayed value.
• Do not use the Trim setting to make the Outdoor temperature sensor match that reported on
the radio or TV. Outdoor temperature can vary widely over a broadcast range. Only trim
the outdoor sensor based on an accurate thermometer reading taken where the sensor is
located.
TempTracker mod+ Hybrid Installation and Operation Manual
OUTPUT RATINGS:
note
120VAC, 6A RESISTIVE
1A PILOT DUTY, 15A TOTAL
FOR ALL CIRCUITS
INPUT RATINGS:
115VAC 60Hz , 30VA MAX
USE COPPER WIRE,
CLASS 1 WIRE ONLY.
ENCLOSED
ENERGY
MANAGEMENT
EQUIPMENT
99RA
note
DAY/NIGHT SCHEDULE
Set Time
Day Schedule 6:00a
Night Schedule 8:00p
BACK ▲ ▼ SAVE
-- DAY SCHEDULE --
BACK ▲ ▼ SAVE
----- SET TIME -----
BACK ▲ ▼ SAVE
----- MAINTENANCE ----
System Trim
Outdoor Trim
<Output Trim>
CAUTION
: RISK OF ELECTRIC SHOCK
More than one disconnect switch may be required
<Configuration>
to de-energize the equipment before servicing.
BACK ▲ ▼ SAVE
SYSTEM SENSOR TRIM
Default: 0°F
[
BACK ▲ ▼ SAVE
OUTDOOR SENSOR TRIM
[
BACK ▲ ▼ SAVE
37
**:**
6:00 Am
7:35 Pm
SYSTEM
A
B
C
D
o
+0 F
o
0 F
PROGRAM RUN
o
+0
F
]
o
+0
F
]
