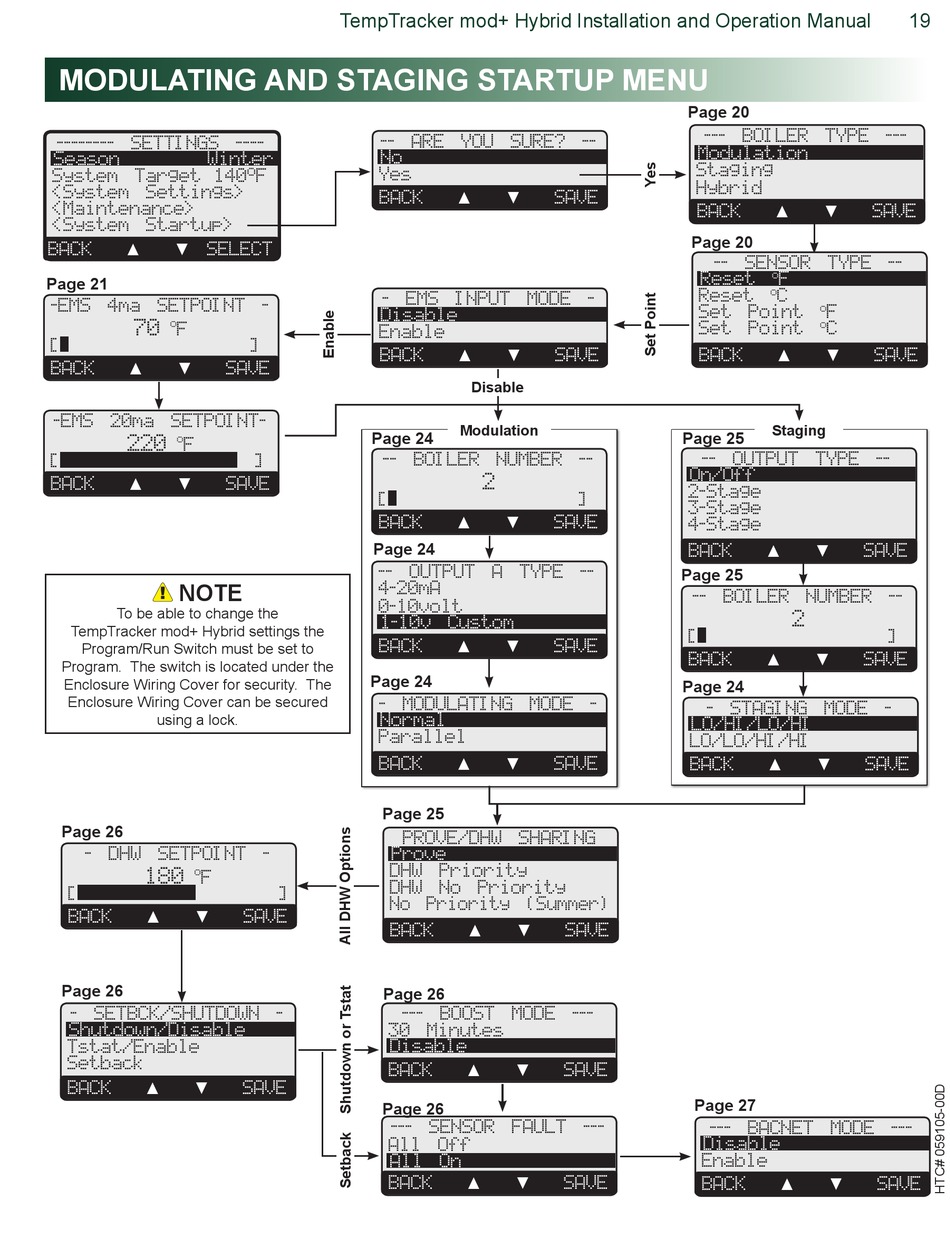

ModulatInG and staGInG startup Menu

-------- SETTINGS ----
Season Winter
System Target 140
<System Settings>
<Maintenance>
<System Startup>
BACK ▲ ▼ SELECT
page 21
-EMS 4ma SETPOINT -
70 o
F
[ ]
BACK ▲ ▼ SAVE
-EMS 20ma SETPOINT-
220 o
F
[
BACK ▲ ▼ SAVE
note
To be able to change the
TempTracker mod+ Hybrid settings the
Program/Run Switch must be set to
Program. The switch is located under the
Enclosure Wiring Cover for security. The
Enclosure Wiring Cover can be secured
using a lock.
page 26
- DHW SETPOINT -
180 o
F
[ ]
BACK ▲ ▼ SAVE
page 26
- SETBCK/SHUTDOWN -
Shutdown/Disable
Tstat/Enable
Setback
BACK ▲ ▼ SAVE
TempTracker mod+ Hybrid Installation and Operation Manual
-- ARE YOU SURE? --
No
o
Yes
F
BACK ▲ ▼ SAVE
- EMS INPUT MODE -
Disable
Enable
BACK ▲ ▼ SAVE
page 24
-- BOILER NUMBER --
]
[ ]
BACK ▲ ▼ SAVE
page 24
-- OUTPUT A TYPE --
4-20mA
0-10volt
1-10v Custom
BACK ▲ ▼ SAVE
page 24
- MODULATING MODE -
Normal
Parallel
BACK ▲ ▼ SAVE
page 25
PROVE/DHW SHARING
Prove
DHW Priority
DHW No Priority
No Priority (Summer)
BACK ▲ ▼ SAVE
page 26
--- BOOST MODE ---
30 Minutes
Disable
BACK ▲ ▼ SAVE
page 26
--- SENSOR FAULT ---
All Off
All On
BACK ▲ ▼ SAVE
disable
Modulation
2
page 20
--- BOILER TYPE ---
Modulation
Staging
Hybrid
BACK ▲ ▼ SAVE
page 20
-- SENSOR TYPE --
o
Reset F
o
Reset C
o
Set Point F
o
Set Point C
BACK ▲ ▼ SAVE
staging
page 25
-- OUTPUT TYPE --
On/Off
2-Stage
3-Stage
4-Stage
BACK ▲ ▼ SAVE
page 25
-- BOILER NUMBER --
2
[ ]
BACK ▲ ▼ SAVE
page 24
- STAGING MODE -
LO/HI/LO/HI
LO/LO/HI/HI
BACK ▲ ▼ SAVE
page 27
--- BACNET MODE ---
Disable
Enable
BACK ▲ ▼ SAVE
19
