ModulatInG WIrInG dIaGraM

OUTPUT RATINGS:
120VAC, 6A RESISTIVE
1A PILOT DUTY, 15A TOTAL
FOR ALL CIRCUITS
INPUT RATINGS:
115VAC 60Hz , 30VA MAX
USE COPPER WIRE,
CLASS 1 WIRE ONLY.
ENCLOSED
ENERGY
MANAGEMENT
EQUIPMENT
99RA
L
N
L
N
System Pump
OUTPUT RATINGS:
120VAC, 6A RESISTIVE
1A PILOT DUTY, 15A TOTAL
FOR ALL CIRCUITS
INPUT RATINGS:
115VAC 60Hz , 30VA MAX
USE COPPER WIRE,
CLASS 1 WIRE ONLY.
ENCLOSED
ENERGY
MANAGEMENT
EQUIPMENT
99RA
L
N
L
N
System Pump
TempTracker mod+ Hybrid Installation and Operation Manual
SYSTEM
A
B
C
D
CAUTION : RISK OF ELECTRIC SHOCK
More than one disconnect switch may be required
to de-energize the equipment before servicing.
PROGRAM RUN
4 - 20 mA
Modulating
Signal Outputs
SYSTEM
A
B
C
D
CAUTION : RISK OF ELECTRIC SHOCK
More than one disconnect switch may be required
to de-energize the equipment before servicing.
PROGRAM RUN
Voltage
Modulating
Signal Outputs
HYBRID
DO NOT APPLY ANY VOLTAGE
TO INPUT TERMINALS
HYBRID
DO NOT APPLY ANY VOLTAGE
TO INPUT TERMINALS

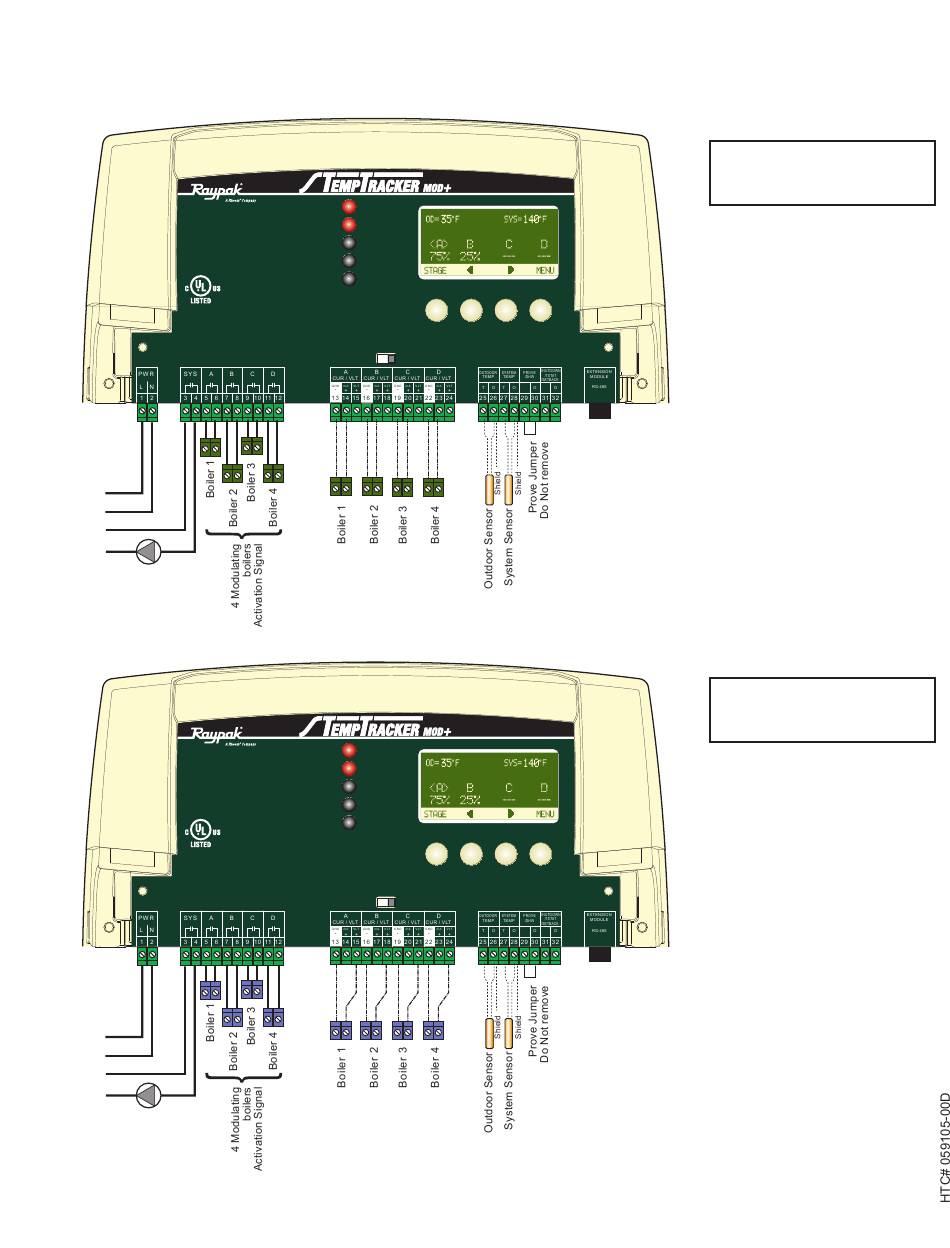

Four 4-20ma
Modulating Boilers
startup settInGs
Boiler Type = Modulation
Output Type = 4-20ma
Boiler Number = 4
Four Voltage
Modulating Boilers
startup settInGs
Boiler Type = Modulation
Output Type = Any Voltage
Option
Boiler Number = 4
53
