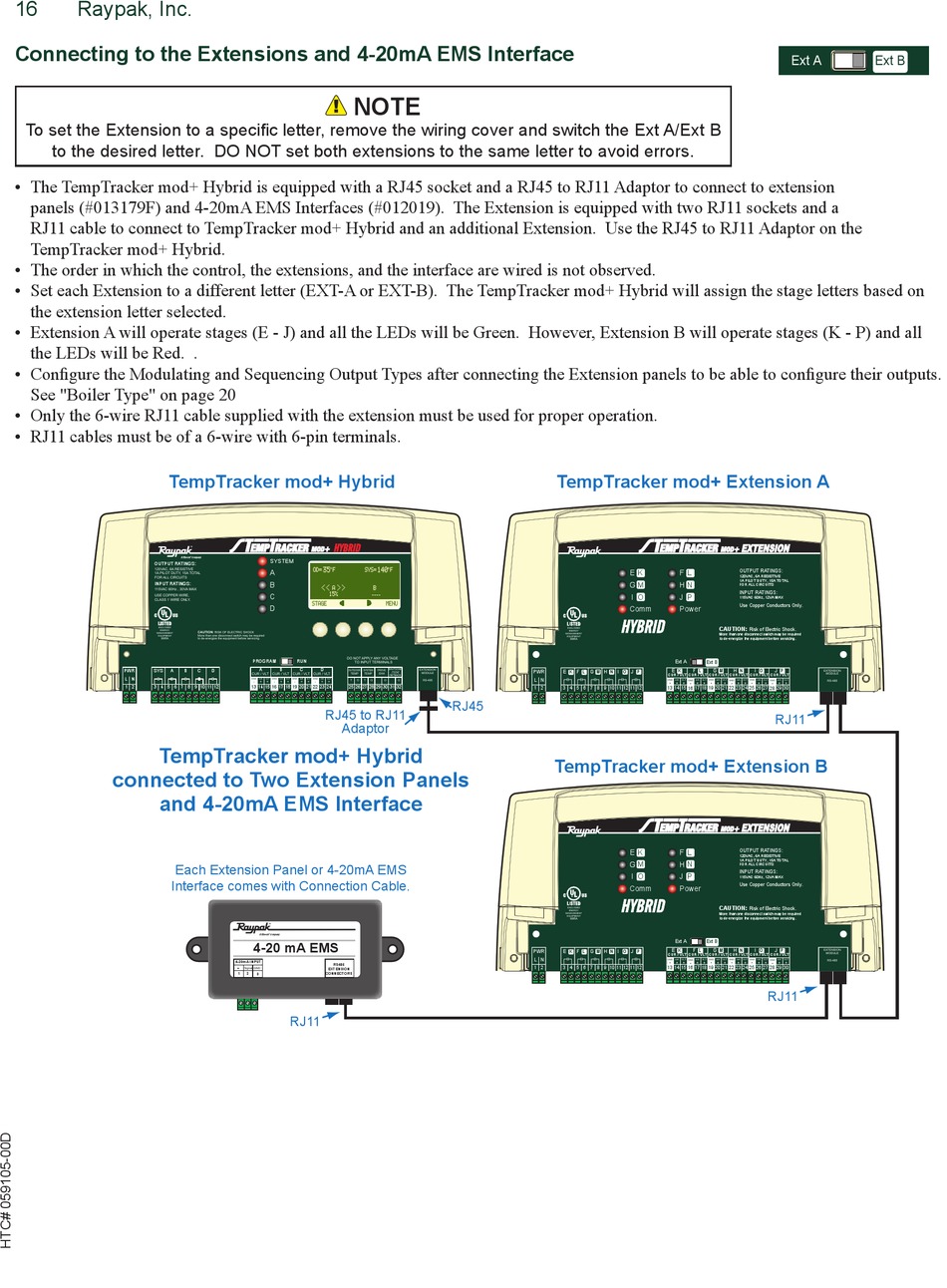

connecting to the extensions and 4-20ma eMs Interface

To set the Extension to a specific letter, remove the wiring cover and switch the Ext A/Ext B
to the desired letter. DO NOT set both extensions to the same letter to avoid errors.
• The TempTracker mod+ Hybrid is equipped with a RJ45 socket and a RJ45 to RJ11 Adaptor to connect to extension
panels (#013179F) and 4-20mA EMS Interfaces (#012019). The Extension is equipped with two RJ11 sockets and a
RJ11 cable to connect to TempTracker mod+ Hybrid and an additional Extension. Use the RJ45 to RJ11 Adaptor on the
TempTracker mod+ Hybrid.
• The order in which the control, the extensions, and the interface are wired is not observed.
• Set each Extension to a different letter (EXT-A or EXT-B). The TempTracker mod+ Hybrid will assign the stage letters based on
the extension letter selected.
• Extension A will operate stages (E - J) and all the LEDs will be Green. However, Extension B will operate stages (K - P) and all
the LEDs will be Red. .
• Configure the Modulating and Sequencing Output Types after connecting the Extension panels to be able to configure their outputs.
See "Boiler Type" on page 20
• Only the 6-wire RJ11 cable supplied with the extension must be used for proper operation.
• RJ11 cables must be of a 6-wire with 6-pin terminals.
