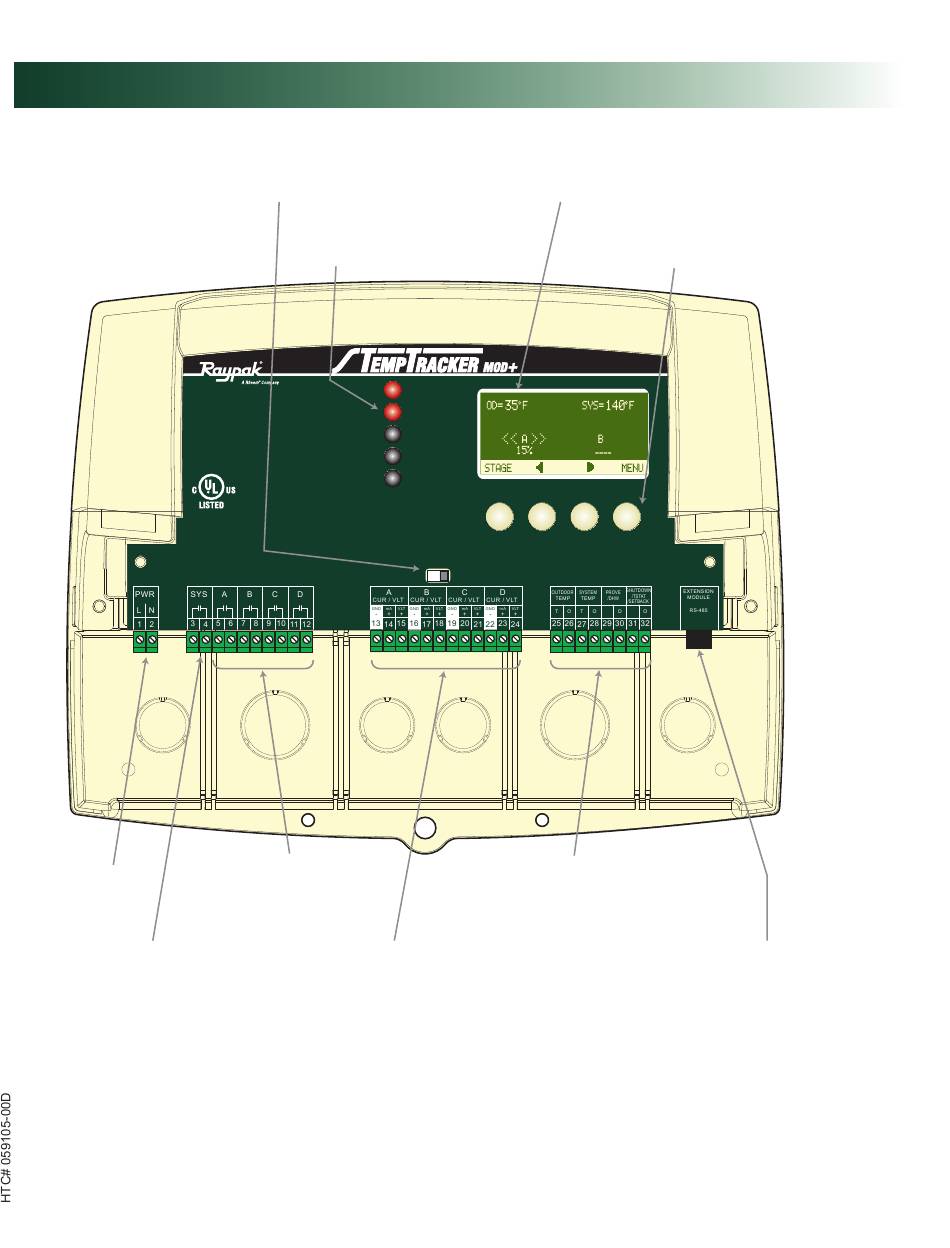

teMptracker Mod+ HYBrId laYout

Program Switch to restrict access to
function changes. This switch is
covered with Wiring Enclosure.
OUTPUT RATINGS:
120VAC, 6A RESISTIVE
1A PILOT DUTY, 15A TOTAL
FOR ALL CIRCUITS
INPUT RATINGS:
115VAC 60Hz , 30VA MAX
USE COPPER WIRE,
CLASS 1 WIRE ONLY.
120VAC Power
System Output controls
pumps, valves, or other
system components.
Complete TempTracker mod+ Hybrid Part Number 011922
LED indicates the
associated relay status.
ENCLOSED
ENERGY
CAUTION : RISK OF ELECTRIC SHOCK
MANAGEMENT
More than one disconnect switch may be required
EQUIPMENT
99RA to de-energize the equipment before servicing.
PROGRAM
Four N.O. Boiler startup relay
outputs. Each is wired in series
with each boiler's limit circuit.
Four modulation/staging outputs can be
4-20mA or Voltage. Go to Startup Menu
to determine the type of output for each stage.
The digital display shows the system status, set point,
lead stage <in brackets>, and status of each stage.
To view and adjust settings, press the appropriate buttons.
HYBRID
SYSTEM
A
B
C
D
DO NOT APPLY ANY VOLTAGE
RUN
TO INPUT TERMINALS
When connecting the control Outdoor Air
Sensor (#013398F) and System Sensor (#012187F), no
Polarity is observed. Prove terminals must be connected
for TempTracker mod+ Hybrid to operate boilers.
Buttons function is presented on
Bottom Row of display.
Connect Extension panels to add
additional stages using a RJ11 cable(cable
provided with Extension) and RJ45-RJ11
Adaptor (Supplied with control) only or add
BACnet Interface Module using RJ45
(cable provided with BACnet
Interface Module)
