FORM 145.18-IOM1
ISSUE DATE: 8/30/2018
1/2-INCH OR 3/4-INCH MALE NPSH BALL VALVE

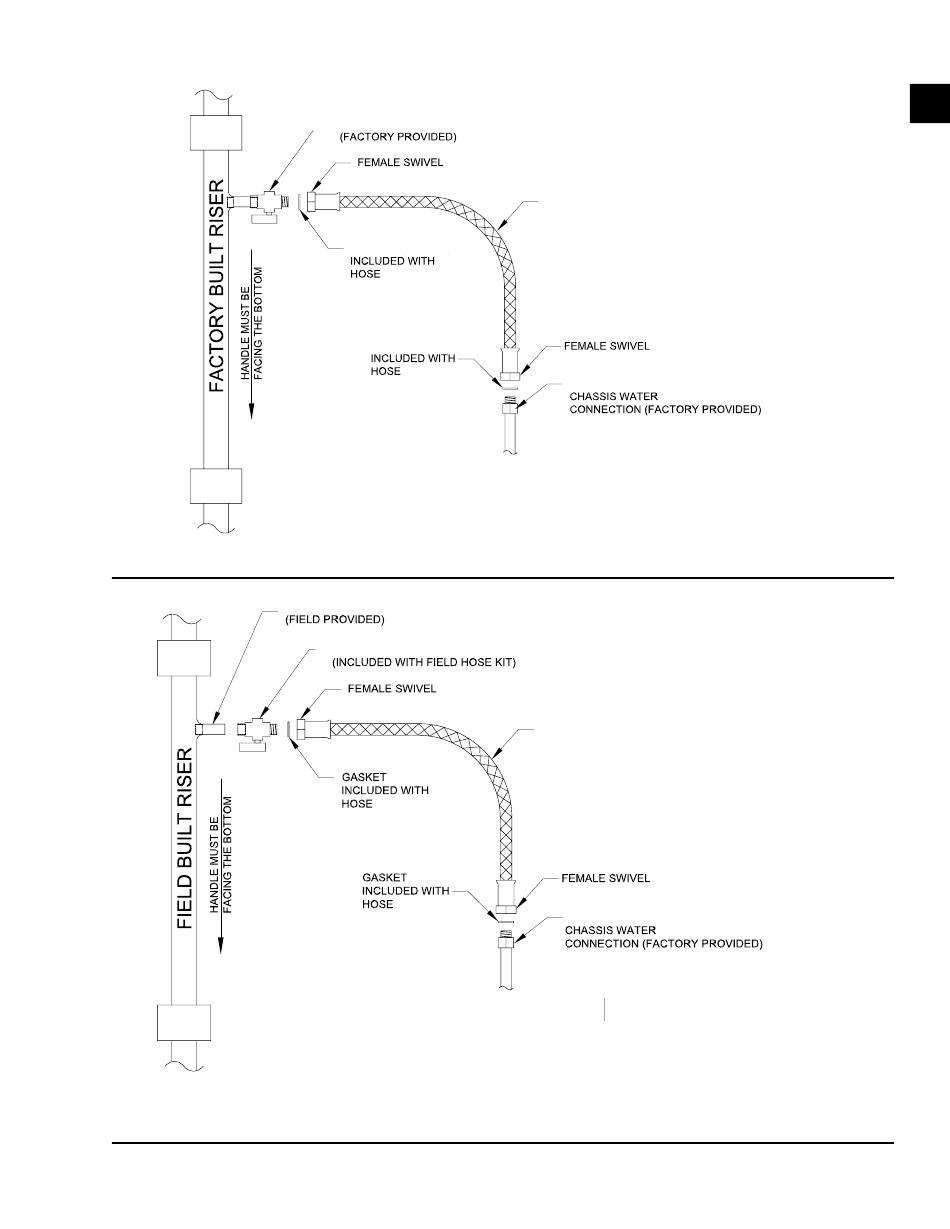

FIGURE 5 - STANDARD FACTORY SUPPLIED NPSH HOSE KITS AND RISERS

1/2-INCH OR 3/4-INCH WATER PIPE STUB-OUT
FIGURE 6 - OPTIONAL FIELD SUPPLIED RISERS WITH FACTORY SUPPLIED NPSH HOSE KITS AND SHUT-
OFF VALVES
1/2-INCH OR 3/4-INCH NPSH THREADS
GASKET
GASKET
1/2-INCH OR 3/4-INCH SWEAT TO MALE NPSH BALL VALVE
1/2-INCH OR 3/4-INCH NPSH THREADS
1/2-INCH OR 3/4-INCH FLEXIBLE CONNECTOR HOSE
(24 INCHES LONG)
1/2-INCH OR 3/4-INCH NPSH THREADS
1/2-INCH OR 3/4-INCH MALE NPSH
NOTE
National Pipe Straight Hose (NPSH) connection
1/2-INCH OR 3/4-INCH FLEXIBLE CONNECTOR HOSE
(24 INCHES LONG)
1/2-INCH OR 3/4-INCH NPSH THREADS
1/2-INCH OR 3/4-INCH MALE NPSH
NOTE
National Pipe Straight Hose (NPSH) connection
SECTION 1 - INSTALLATION
LD18126
LD18126
LD18127
LD18127
