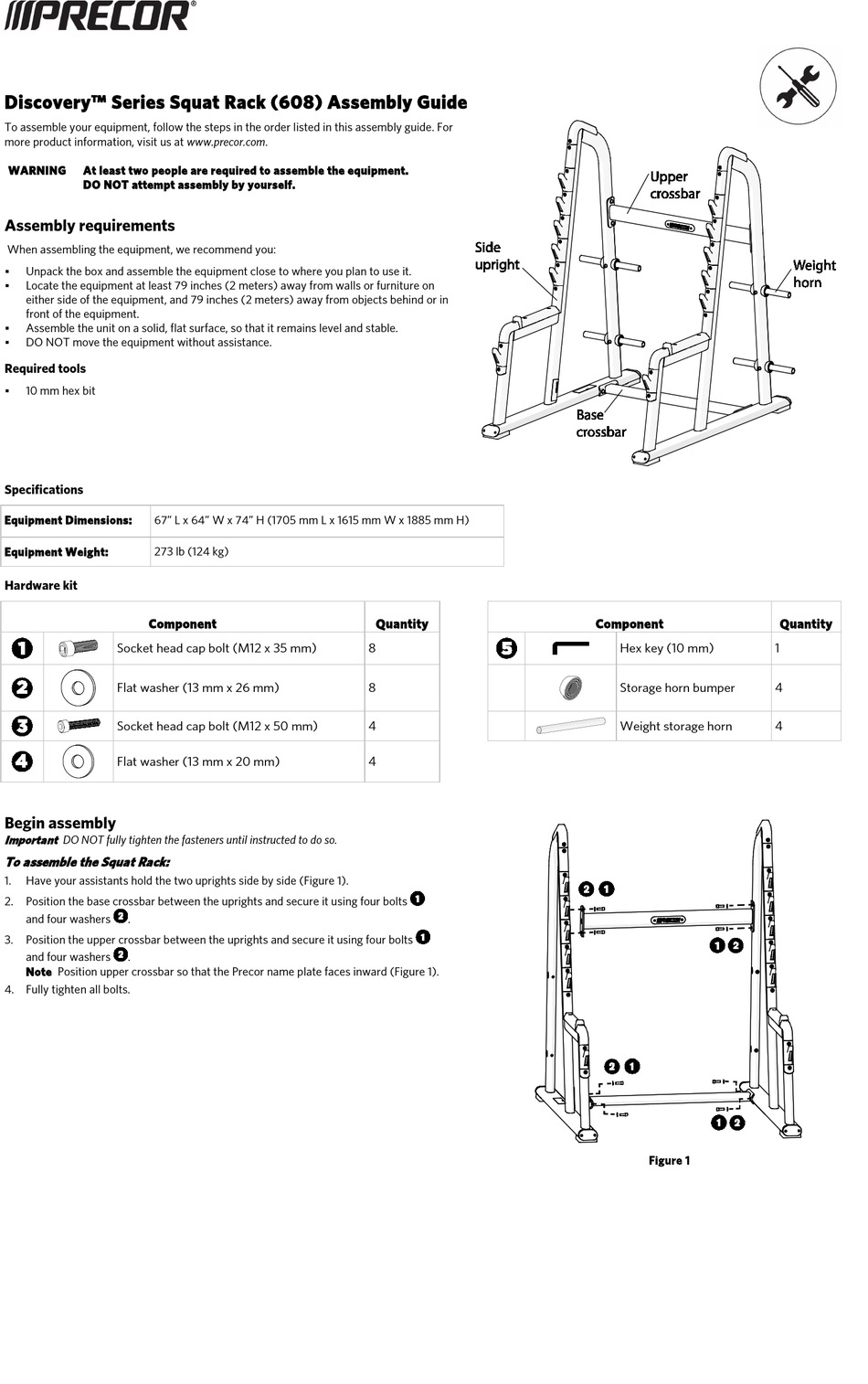

Discovery™ Series Squat Rack (608) Assembly Guide
To assemble your equipment, follow the steps in the order listed in this assembly guide. For
more product information, visit us at www.precor.com.
WARNING At least two people are required to assemble the equipment.
DO NOT attempt assembly by yourself.

Assembly requirements

When assembling the equipment, we recommend you:
Unpack the box and assemble the equipment close to where you plan to use it.

Locate the equipment at least 79 inches (2 meters) away from walls or furniture on

either side of the equipment, and 79 inches (2 meters) away from objects behind or in
front of the equipment.
Assemble the unit on a solid, flat surface, so that it remains level and stable.

DO NOT move the equipment without assistance.


Required tools

10 mm hex bit


Specifications

Equipment Dimensions: 67" L x 64" W x 74" H (1705 mm L x 1615 mm W x 1885 mm H)
Equipment Weight: 273 lb (124 kg)

Hardware kit

Component
Socket head cap bolt (M12 x 35 mm)
Flat washer (13 mm x 26 mm)
Socket head cap bolt (M12 x 50 mm)
Flat washer (13 mm x 20 mm)

Begin assembly

Important DO NOT fully tighten the fasteners until instructed to do so.
To assemble the Squat Rack:
1. Have your assistants hold the two uprights side by side (Figure 1).
2. Position the base crossbar between the uprights and secure it using four bolts
and four washers .
3. Position the upper crossbar between the uprights and secure it using four bolts
and four washers .
Note Position upper crossbar so that the Precor name plate faces inward (Figure 1).
4. Fully tighten all bolts.
Quantity
8
8
4
4
Component
Hex key (10 mm)
Storage horn bumper
Weight storage horn
Figure 1
Quantity
1
4
4
