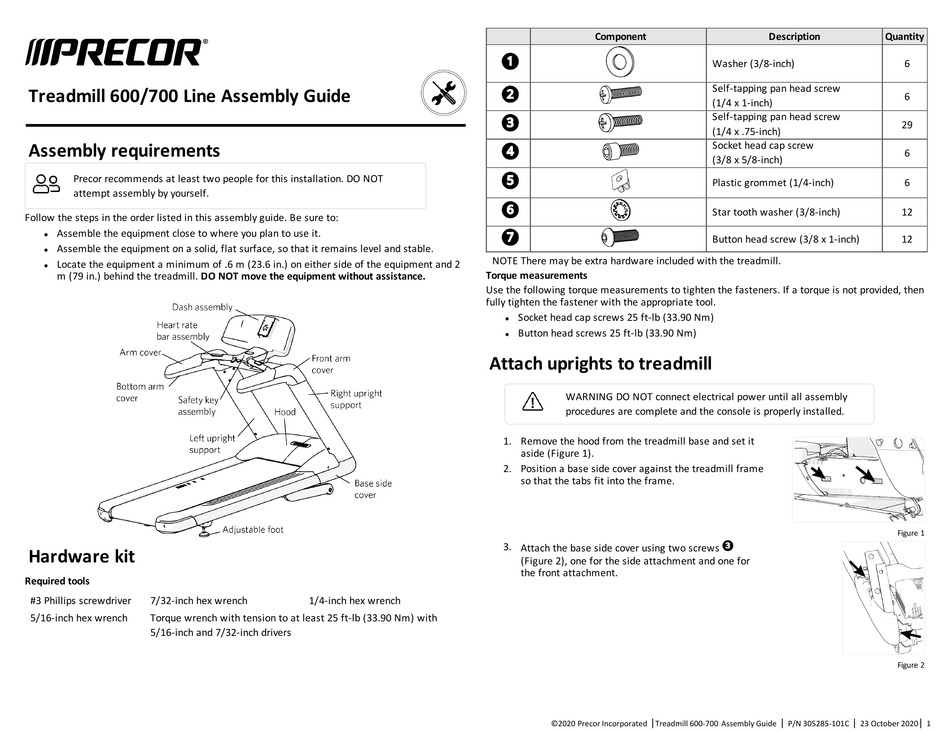

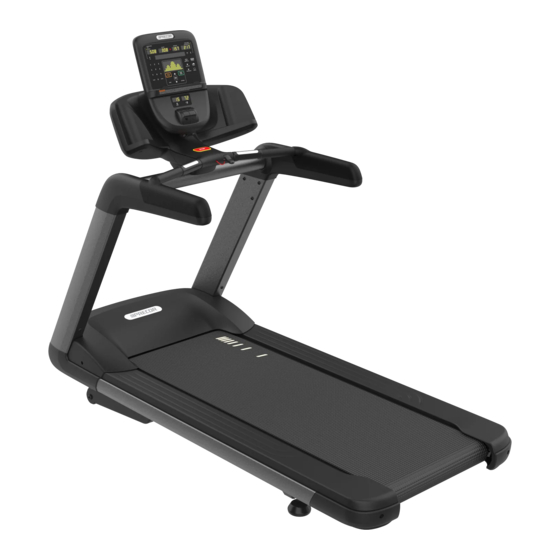

Treadmill 600/700 Line Assembly Guide
Assembly requirements
Precor recommends at least two people for this installation. DO NOT
attempt assembly by yourself.
Follow the steps in the order listed in this assembly guide. Be sure to:
Assemble the equipment close to where you plan to use it.
l
Assemble the equipment on a solid, flat surface, so that it remains level and stable.
l
Locate the equipment a minimum of .6 m (23.6 in.) on either side of the equipment and 2
l
m (79 in.) behind the treadmill. DO NOT move the equipment without assistance.
Hardware kit
Required tools
#3 Phillips screwdriver 7/32-inch hex wrench
5/16-inch hex wrench Torque wrench with tension to at least 25 ft-lb (33.90 Nm) with
5/16-inch and 7/32-inch drivers
Torque measurements
Use the following torque measurements to tighten the fasteners. If a torque is not provided, then
fully tighten the fastener with the appropriate tool.
1/4-inch hex wrench
Component
NOTE There may be extra hardware included with the treadmill.
Socket head cap screws 25 ft-lb (33.90 Nm)
l
Button head screws 25 ft-lb (33.90 Nm)
l
Attach uprights to treadmill
WARNING DO NOT connect electrical power until all assembly
procedures are complete and the console is properly installed.
1. Remove the hood from the treadmill base and set it
aside (Figure 1).
2. Position a base side cover against the treadmill frame
so that the tabs fit into the frame.
3. Attach the base side cover using two screws
(Figure 2), one for the side attachment and one for
the front attachment.
|
©2020 Precor Incorporated Treadmill 600-700 Assembly Guide
Description Quantity
Washer (3/8-inch)
Self-tapping pan head screw
(1/4 x 1-inch)
Self-tapping pan head screw
(1/4 x .75-inch)
Socket head cap screw
(3/8 x 5/8-inch)
Plastic grommet (1/4-inch)
Star tooth washer (3/8-inch)
Button head screw (3/8 x 1-inch)
| |
P/N 305285-101C 23 October 2020
6
6
29
6
6
12
12
Figure 1
Figure 2
|
