Uplift Desk CPU128 Instructions

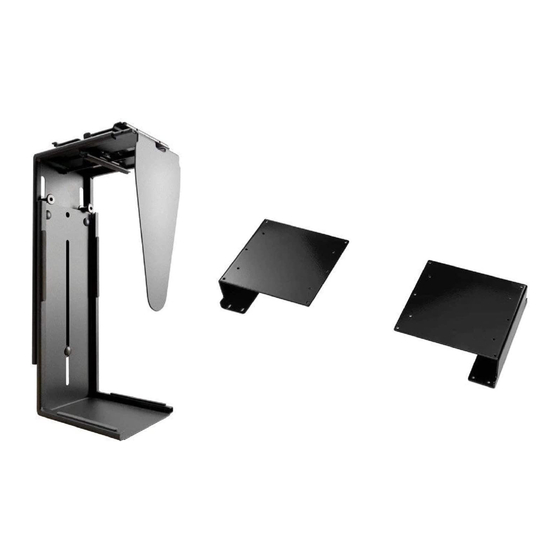

Package contents

Track
UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com
®
CPU Holder
CPU128
5/8'' Wood screws Allen wrench
(qty 12)
Back bumper Track guard
*A note before you begin:
Determine where to mount the CPU Holder. If you need to mount it
over the Crossbars of your desk, open the box containing the Track
Spacer Kit and follow the instructions inside.
Step 1
Hold the Track under your desk to see where it will fit. Mark the location
of the screw holes with a pencil.
Step 2
Use a drill with a 1/8" bit and drill your pilot holes where your two pencil
marks are located. Drill no deeper than 1/2''.
CAUTION: Do not drill through the desktop surface.
Step 3
Make sure screws aren't too long for your desktop thickness by holding
the screw up to the desktop side. Attach the track to the underside of
the desk by using eight (8) Wood screws and a Phillips head screw-
driver.
Step 4
Using one (1) Wood screw, attach the rubber Back bumper to the rear
side of the track.
Step 5
Use the Allen wrench and loosen the three (3) bolts on the side of the
CPU holder. This will loosen the lower half of the vertical clamp, and
allow you to slide it to its full height.
UPLIFT
CPU Holder
Track Spacer Kit
(optional)
CPU128/R01
