Axxera AVM82NAV Installation & Owner's Manual

Axxera AVM82NAV Installation & Owner's Manual

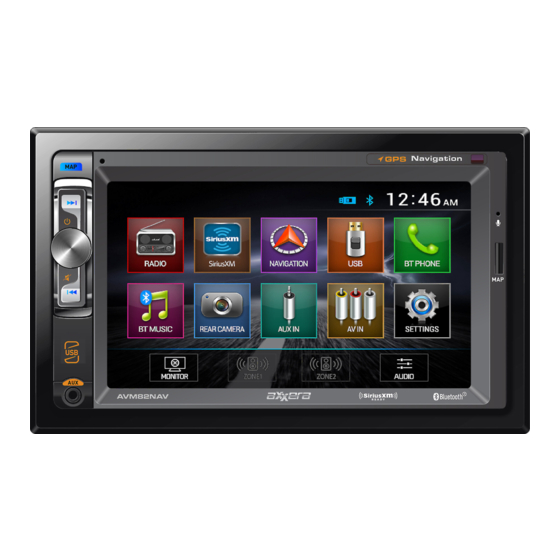

Multimedia receiver with bluetooth, navigation featuring a 6.2" touch screen display

Advertisement

AVM82NAV
INSTALLATION/OWNER'S MANUAL
Multimedia Receiver with Bluetooth, Navigation
featuring a
6.2"
Touch Screen Display

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVM82NAV and is the answer not in the manual?

Questions and answers

EDDIE L. RIDDLE
June 7, 2025

I opened up the manual for the AVM211NAV and it opened up as the AVM82NAV manual. All I need are the pinouts, are they tte same?

Jeff Todd Pitzer
April 13, 2025

lost power to radio. All fuses are good and did a reset still no power

Summary of Contents for Axxera AVM82NAV

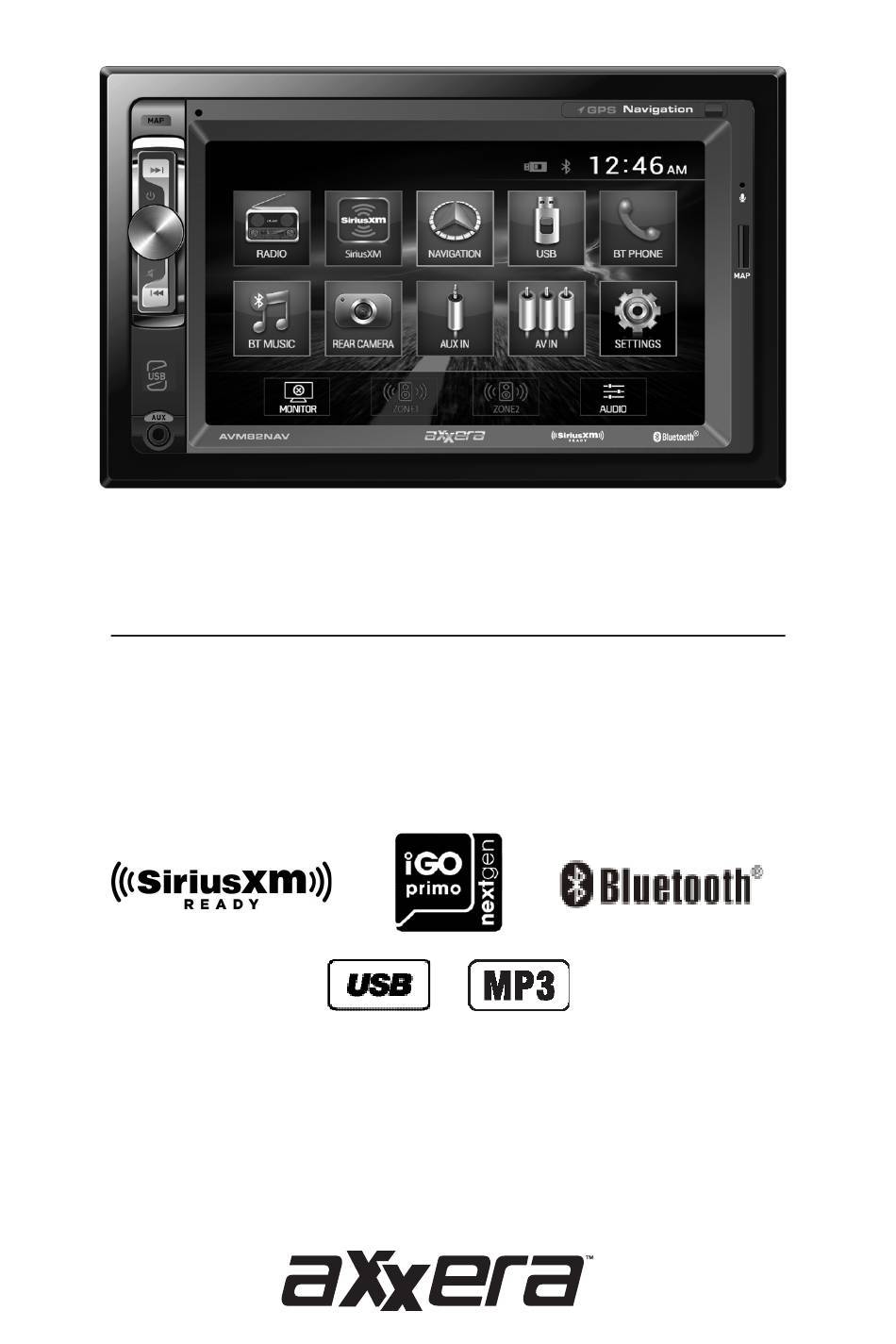

  • Page 1 AVM82NAV INSTALLATION/OWNER’S MANUAL Multimedia Receiver with Bluetooth, Navigation featuring a 6.2" Touch Screen Display...
  • Page 2 AVM82NAV OPERATION Copyright Notes Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio, Inc. All rights reserved. MicroSD logo is a trademark of SD-3C, LLC. To see if your receiver has the latest firmware, contact customer service at 1-866-382-5476 to see if your radio needs an update.
  • Page 3: Table Of Contents

    AVM82NAV OPERATION Table of Contents Page Safety Information/Precautions ........3 Preparation/Mounting .
  • Page 4: Safety Information/Precautions

    Please read all instructions carefully before attempting to install or operate. Due to its technical nature, it is highly recommended that your Axxera AVM82NAV is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only.
  • Page 5: Preparation/Mounting

    AVM82NAV OPERATION Preparation Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
  • Page 6: Wiring Diagram

    AVM82NAV OPERATION Wiring Diagram - Inputs/Outputs GPS Antenna SXM IN SiriusXM Tuner Connection (SiriusXM Connect Tuner and subscriptions sold separately) CAMERA AUDIO INPUT BT ANTENNA PARKING BRAKE (-) USB CH ARGE SW C-IR Note: When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage.
  • Page 7: Control Locations

    AVM82NAV OPERATION Control Locations MicroSD Card (map only) Tune/Track Up Microphone Power / Volume / Mute IR Sensor Tune / Track Down Reset USB Port Auxiliary Input Loudness Power Number Keys Mode Play / Pause Root Mute OSD (On Screen Display)
  • Page 8: Remote Preparation

    AVM82NAV OPERATION Remote Control Preparation Remove battery insulation tape . Notes: • The remote control uses one 3 volt Lithium CR2025 battery. Remove the battery if the remote will not be used for a month or longer. • Remove and dispose of battery properly.
  • Page 9: General Operation

    AVM82NAV OPERATION General Operation Power On/Off Press to turn the unit on. Press and hold to turn the unit off. Mode Press MODE to access available input modes: Radio, SiriusXM, Navigation, USB, Bluetooth Phone, Bluetooth Music, Rear Camera, Auxiliary Input, AV In and Settings. Modes of operation are indicated on the display and/or the monitor.
  • Page 10 AVM82NAV OPERATION General Operation From the Main Menu screen, press Settings in the bottom right corner to Setup Menu access the Setup Menu and select from the following categories: General, Audio, Video and Bluetooth. General: • OSD Language - Select English as the language for the on-screen display.
  • Page 11: Am/Fm Tuner Operation

    AVM82NAV OPERATION AM/FM Tuner Operation Radio Operation Select the Radio icon from the Main Menu screen. Main Menu Press to return to Main Menu screen. Current Mode Indicator Displays current mode of operation. Tune Frequency Down Press momentarily to tune the unit down one step at a time. Press and hold to tune down by seeking the next strong station.
  • Page 12: Am/Fm Tuner Operation

    AVM82NAV OPERATION AM/FM Tuner Operation Press and hold to automatically store the six strongest stations in the AS/PS current band as presets. Press briefly for a preset scan, which will scan all preset stations and play 10 seconds of each. Press again to cancel the scan and continue playing the current station.
  • Page 13: Usb Operation

    AVM82NAV OPERATION USB Operation To play MP3 files from a USB device, insert device and playback will or JPG Operation begin automatically. To return to USB playback from another mode of operation, select the corresponding icon from the Main Menu.
  • Page 14 AVM82NAV OPERATION USB Operation 9 10 Folder Search Press to access the directory of folders and files. Use the up/down arrows to scroll through the folder list, then press on the name of the desired folder to access it. Use the up/down arrows to scroll through the file list, then press on the name of the desired file to access it.
  • Page 15: Bluetooth Operation

    The unit broadcasts the pairing signal constantly when no devices are currently connected. Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "Axxera AVM82NAV". The Bluetooth passcode "0000".
  • Page 16: Bluetooth Operation

    AVM82NAV OPERATION Bluetooth Operation Screen Press to adjust screen brightness or put the monitor into standby mode. Audio Press to access audio setting such as EQ, Surround Sound Settings and Field Settings (Balance). Settings Press to access the Settings Menu.
  • Page 17: Siriusxm Satellite Radio Operation

    AVM82NAV OPERATION SiriusXM® Satellite Radio Operation SiriusXM® Radio Only SiriusXM® Satellite Radio brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment.
  • Page 18 AVM82NAV OPERATION SiriusXM® Satellite Radio Operation Main Menu Press to return to the Main Menu screen. Band Touch to select a band of preset channels. Three bands are available: SXM1, SXM2, and SXM3. Each band can store up to six preset channels.
  • Page 19 AVM82NAV OPERATION SiriusXM® Satellite Radio Operation Additional Options Additional Options Press to display/adjust the options Mode, Tune Scan and Go to Live: Mode - Press to access and adjust the following options: • Parental Code - When enabled, the Parental Control feature requires you to enter a passcode to tune to the locked channels.
  • Page 20: Siriusxm Satellite Radio Operation

    AVM82NAV OPERATION SiriusXM® Satellite Radio Operation Preset Buttons Press and hold any preset button (1-6) to save the current station as a preset. Press the desired preset button to begin playback of the corresponding preset channel. Direct Press to display screen for direct channel access. Press the desired channel number, then press Enter.
  • Page 21: Navigation Operation

    AVM82NAV OPERATION Navigation Operation Navigation Operation To access navigation functions, select Navigation from the Main Menu. For questions regarding navigation operation, refer to the Navigation manual available online at www.axxeraaudio.com/support/manuals.php. Front 3.5mm Aux Input & Rear RCA A/V Input Auxiliary Input Connect an optional audio source into the 3.5mm (front panel) input.
  • Page 22: Troubleshooting

    Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your Axxera product. Dealer Name...
  • Page 23: Notes

    AVM82NAV OPERATION Notes Recommendation SiriusXM Advisory Message 1. The radio has detected a fault with the SiriusXM antenna. The antenna cable may be either disconnected or damaged. 2. Verify that the antenna cable is connected to the SiriusXM Connect Vehicle Tuner.
  • Page 24: Limited One Year Warranty

    AVM82NAV OPERATION Limited One Year Warranty This warranty gives you specific legal rights. You What to do? may also have other rights which vary from state to 1. Before you call for service, check the state. troubleshooting guide in your owner’s manual. A slight adjustment of any custom controls may save Dual Electronics Corp.
  • Page 25: Specifications

    AVM82NAV OPERATION Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 20dBf Stereo separation @ 1kHz: 38dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 24uV Frequency response: 30Hz-2.3kHz Front USB Compatibility: High Speed USB 2.0...
  • Page 27 Dual Electronics Corp. Toll Free: 1-866-382-5476 Monday-Friday, 9AM-5PM EST www.axxeraaudio.com ©2018 Dual Electronics Corp. All rights reserved. NSA0718-V02 Printed in China...
