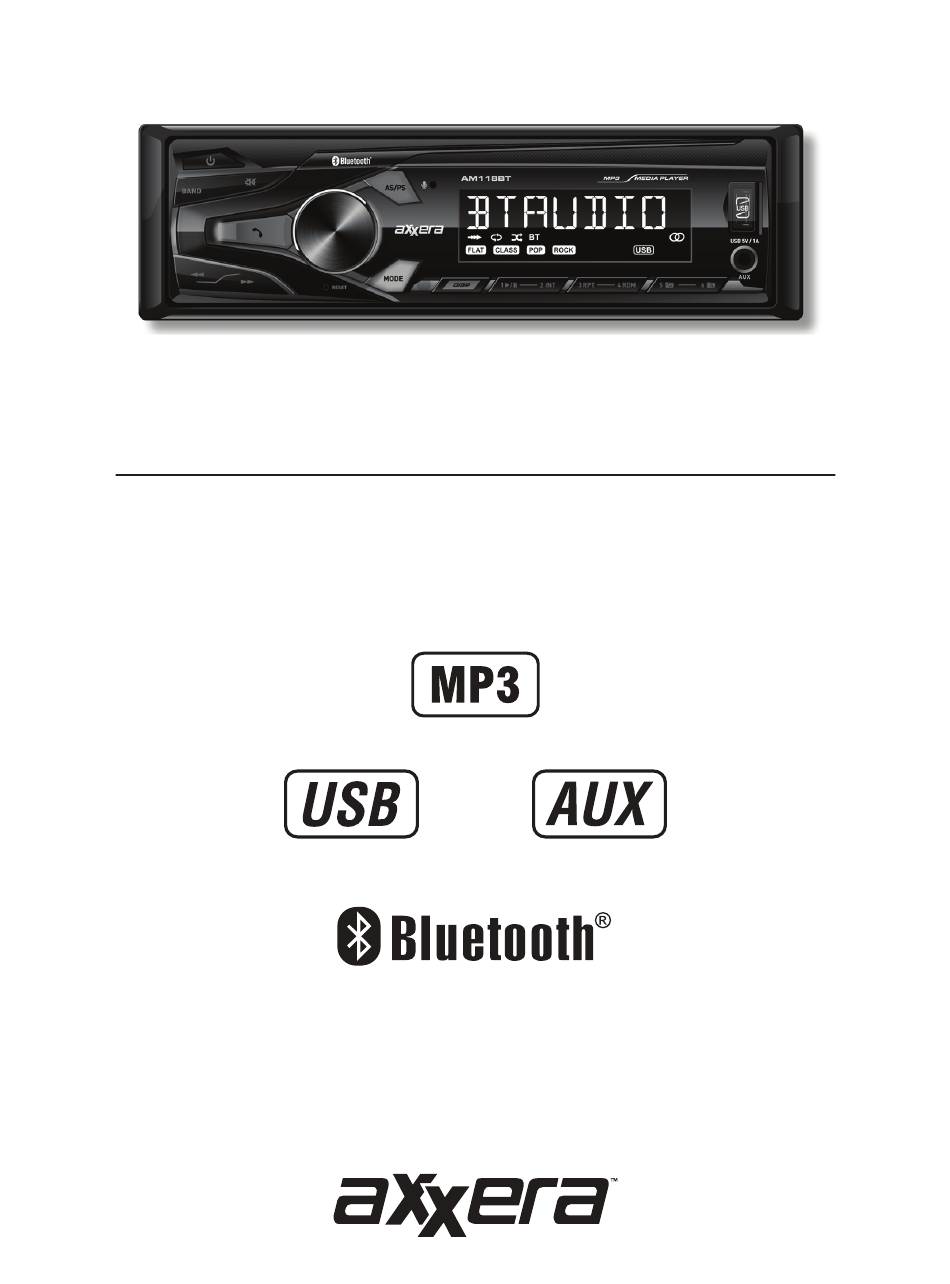

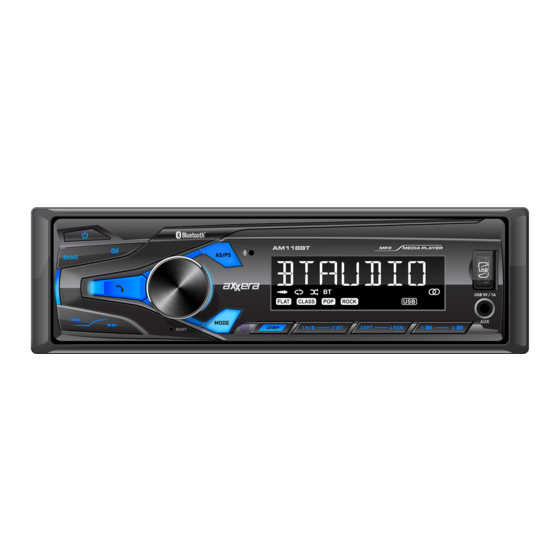

- Page 1 AM118BT INSTALLATION/OWNER'S MANUAL AM/FM Receiver with Bluetooth and Fixed Face...
- Page 2 AM118BT Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
- Page 3 AM118BT Wiring Diagram FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The unit uses one 10 amp ATM fuse located beside the Heat Sink...
-
Page 4: Control Locations
AM118BT Control Locations Power Auxiliary Input Preset 1 / Play/Pause Band Preset 6 / Folder Up Display Preset 5 / Folder Down Mute Mode Volume Knob Preset 4 / Random Reset Automatically Store Preset 3 / Repeat Tune Up USB Port... -
Page 5: General Operation
AM118BT General Operation Press the button to turn the unit on. Press again to Power On/Off turn the unit off. Changing Modes Press MODE to select between Radio, USB, Auxiliary Input and Bluetooth. Modes of operation are shown in the display. - Page 6 AM118BT AM/FM Tuner Operation Seek Tuning Press TUNE or TUNE to seek to the previous or next strong station. Manual Tuning Press and hold TUNE or TUNE to enter manual tuning mode, then press TUNE or TUNE momentarily to change radio frequency up or down one step at a time.
-
Page 7: Usb Operation
AM118BT USB Operation Playing MP3 Files To play MP3 files, insert a USB device containing MP3 files. Track Select Press TUNE to skip to the beginning of the next track. Press TUNE to skip to the beginning of the previous track. -
Page 8: Bluetooth Operation
Complete the pairing sequence from your Bluetooth device. Refer to the owner’s manual for your device for more details. The device name is “Axxera Media Player”. The Bluetooth passcode is "1234”. Note: The head unit can be in any mode of operation when pairing is performed. -
Page 9: Troubleshooting
AM118BT Troubleshooting Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on voltage (11~16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground... -
Page 10: Limited One Year Warranty
AM118BT Limited One Year Warranty This warranty gives you specific legal rights. What to do? You may also have other rights which vary 1. Before you call for service, check the from state to state. troubleshooting guide in your owner’s manual. -
Page 11: Fcc Compliance
AM118BT FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 12: Specifications
AM118BT Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: >30dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: <42dBu Frequency response: 30Hz-2.2kHz Speaker output impedance: 4~8 ohms General Line output voltage:... - Page 13 AM118BT Notes...
