This Quick Start Guide gives you the basics to start using your AXV820.
Please visit www.axxera.dualav.com/downloads/manuals/axv820.pdf to download
a complete Owner's Manual or call customer service at 1-866-382-5476.
Copyright and Trademark Notes
This product incorporates copyright protection technology that is protected by method claims of
certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology must be authorized by Macrovision
Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized
by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Manufactured under
license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
DVD Logo is a trademark of DVD Format/Logo Licensing Corporation registered in the U.S., Japan
and other countries. SD Logo is a trademark of SD-3C, LLC. iPod and iPhone are trademarks of Apple
Inc., registered in the U.S. and other countries. Other trademarks and trade names are those of their
respective owners.
Safety Notes:
The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety
feature to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in
Park and the parking brake is engaged. It is illegal in most states for the driver to view video while
the vehicle is in motion.

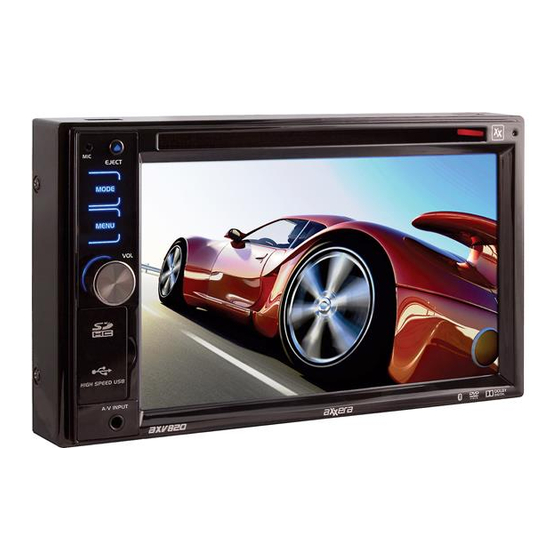

Multimedia Receiver
AXV820
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXV820 and is the answer not in the manual?

Questions and answers

Related Manuals for Axxera AXV820

Summary of Contents for Axxera AXV820

  • Page 1 Multimedia Receiver AXV820 Quick Start Guide This Quick Start Guide gives you the basics to start using your AXV820. Please visit www.axxera.dualav.com/downloads/manuals/axv820.pdf to download a complete Owner's Manual or call customer service at 1-866-382-5476. Copyright and Trademark Notes This product incorporates copyright protection technology that is protected by method claims of certain U.S.

  • Page 2: Before You Start

    AXV820 Preparation Before You Start • D isconnect negative battery terminal. Consult a qualified technician for instructions. • A void installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. Getting Started • Insert the supplied keys into the slots as shown, and slide unit out of the mounting sleeve. • Install mounting sleeve into opening, bending tabs to secure. • C onnect wiring harness as shown on page 3. Consult a qualified technician if you are unsure. • Certain vehicles may require an installation kit and/or wiring harness adapter (sold separately). • Reconnect negative battery terminal, and test for correct operation. • Snap trim ring into place (if required). • Slide unit into mounting sleeve to secure. Mounting sleeve opening dimensions 7. 1 6” x 4.40” (182 mm x 112 mm)
  • Page 3 To play music from an iPod/iPhone device using the direct USB interface, connect the USB cable (included with your iPod/iPhone device) to one of the AXV820's USB port (front or rear). To view video and photos from an iPod/iPhone device, the iPod video cable (included) is required.

  • Page 4: Control Locations

    AXV820 Control Locations Control Function Control Function Eject SD Card Slot Mode Front USB Port Menu Auxiliary A/V Input Power / Volume / Mute Reset Control Function Control Function Power Subtitle Mute Zoom Eject Audio Chapter / Track / Seek...

  • Page 5: General Operation

    AXV820 General Operation Power On/Off Momentarily press the volume knob to turn the unit on. Hold for 2 seconds to turn the unit off. Mode Press MODE to step through all available input modes: Tuner, Disc (which includes DVD and CD playback), SD, USB, operation of iPod, AV1, AV2, Camera and Bluetooth.

  • Page 6: Dvd Operation

    Insert disc with label facing up, and playback will begin automatically. MP3/WMA/JPG The AXV820 can play MP3, WMA and JPG files from a disc, USB Playback from Disc, USB device or SD card. Insert disc, connect USB device or insert SD card, Device or SD Card and choose the desired source to begin playback.

  • Page 7: Ipod Operation

    AXV820 iPod Operation Use the included video cable to connect an iPod to the AXV820 and iPod Operation enable audio and video playback from your iPod device. Play / Pause Press to pause playback. Press again to resume. Next Song Press to advance to the next song.

  • Page 8: Limited One Year Warranty

    Limited One Year Warranty This warranty gives you specific legal rights. You What to do? may also have other rights which vary from state to 1. Before you call for service, check the state. troubleshooting guide in your owner’s manual. A slight adjustment of any custom controls may save Dual Electronics Corp.
