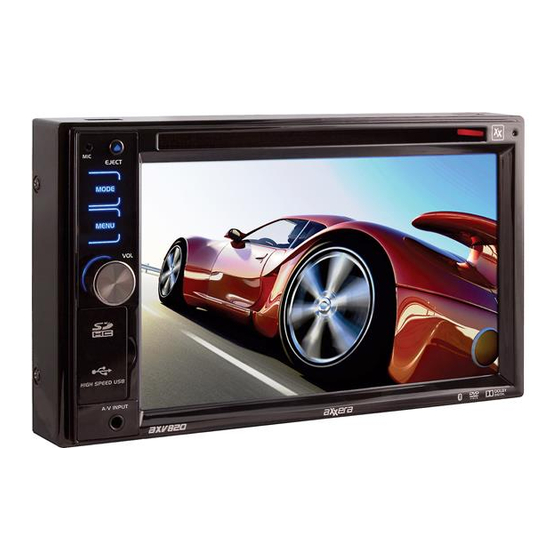

Multimedia Receiver
USB Port
iPod®/iPhone®/Flash Drive
SDHC Supported
MP3/WMA
AXV820
Playback
HFP/A2DP/AVRCP
CD
Aux
CD-R/RW Compatible
3.5mm Input
Safety Notes:
The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety
feature to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in
Park and the parking brake is engaged. It is illegal in most states for the driver to view video while
the vehicle is in motion.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AXV820 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axxera AXV820

Summary of Contents for Axxera AXV820

  • Page 1 Multimedia Receiver USB Port iPod®/iPhone®/Flash Drive SDHC Supported MP3/WMA AXV820 Playback HFP/A2DP/AVRCP CD-R/RW Compatible 3.5mm Input Safety Notes: The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in Park and the parking brake is engaged.
  • Page 2 Copyright Notes This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.

  • Page 3: Table Of Contents

    AXV820 Table of Contents Page Warning Statement ..........

  • Page 4: Warning Statement

    AXV820 WARNING Upon installation of this Monitor/DVD player (“unit”) into a vehicle, the driver of the vehicle must not operate this unit by watching videos or playing video games while driving. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle’s occupants or persons outside...

  • Page 5: Safety Information/Precautions

    Please read all instructions carefully before attempting to install or operate. Due to its technical nature, it is highly recommended that your AXXERA AXV820 is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only.

  • Page 6: Preparation/Mounting

    AXV820 Preparation Before You Start 'LVFRQQHFW QHJDWLYH EDWWHU\ WHUPLQDO &RQVXOW D TXDOLILHG WHFKQLFLDQ IRU LQVWUXFWLRQV $YRLG LQVWDOOLQJ WKH XQLW ZKHUH LW ZRXOG EH VXEMHFW WR KLJK WHPSHUDWXUHV VXFK DV IURP GLUHFW VXQOLJKW RU ZKHUH LW ZRXOG EH VXEMHFW WR GXVW GLUW RU H[FHVVLYH YLEUDWLRQ...

  • Page 7: Wiring Diagram

    AXV820 Wiring Diagram - Inputs/Outputs Note: When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could damage WKH XQLW 7KH $;9 XVHV   DPS ATM mini style fuse located on the back of the unit.

  • Page 8: Control Locations

    AXV820 Control Locations Control Function Control Function (MHFW SD Card Slot Mode Front USB Port Menu Auxiliary A/V Input Power / Volume / Mute Reset Control Function Control Function Power Subtitle Mute Zoom (MHFW Audio Chapter / Track / Seek...

  • Page 9: Remote Preparation

    AXV820 Remote Preparation Remove battery insulation tape . Notes: 5HPRYH WKH EDWWHU\ LI WKH UHPRWH ZLOO QRW be used for a month or longer. 5HPRYH DQG GLVSRVH RI EDWWHU\ SURSHUO\ 'R QRW VWRUH EDWWHU\ ZLWK PHWDOOLF REMHFWV or materials. To insert or replace the battery, remove the battery holder.

  • Page 10: General Operation

    AXV820 General Operation Power On/Off Momentarily press the volume knob to turn the unit on. Hold for 2 seconds to turn the unit off. Mode Press MODE WR VWHS WKURXJK DOO DYDLODEOH LQSXW PRGHV 7XQHU 'LVF ZKLFK LQFOXGHV '9' DQG &' SOD\EDFN  6' 86% RSHUDWLRQ RI L3RG $9 $9 &DPHUD and Bluetooth.
  • Page 11 AXV820 General Operation Standby Mode 7R SXW WKH XQLW LQ IXOO VWDQGE\ PRGH EODFN VFUHHQ ZLWK QR WH[W GLVSOD\  FKRRVH Standby from the Menu screen. Reset To resolve abnormal operation or if the unit is inoperable, use the tip of a pen to press the RESET button located in the top right corner.
  • Page 12 AXV820 General Operation Setup Menu From the Main Menu screen, press Setup to enter the Setup menu. The first four setup options will be displayed on the screen. Press to scroll GRZQ RU EDFN XS WKURXJK WKH DGGLWLRQDO RSWLRQV Menu...

  • Page 13: General Operation

    AXV820 General Operation Setup Menu Menu Option Action Calibrate Calibrate Press YES to calibrate the touchscreen. Touchscreen Choose between Normal and Mirror settings for Camera camera images. System Select On to hear an audible beep each time a Beep button is pressed on the unit or touch screen.

  • Page 14: Am/Fm Tuner Operation

    AXV820 AM/FM Tuner Operation Select the Tuner icon from the Main Menu screen or the top icon display, or Tuner Operation press MODE until Tuner is selected. Displays current mode of operation. Press to return to the Main Menu Current Mode Indicator screen.
  • Page 15 AXV820 AM/FM Tuner Operation 3UHVV WR FKRRVH EHWZHHQ /RFDO /2& RU 'LVWDQFH '; WXQLQJ RSWLRQV 7KH Local / Distance Tuning local option tunes to nearby radio stations with sufficiently strong signals for good reception. In areas where reception is poor, switching to distance tuning enables the unit to tune in to more distant stations.

  • Page 16: Cd Operation

    AXV820 CD Operation With the label facing up, insert a standard size disc into the slot, and CD Operation playback will begin automatically. If a disc has previously been inserted and the unit has been operating in another mode, resume disc playback by selecting the DISC icon from the Main Menu screen or top icon display, or pressing MODE until DISC is selected.
  • Page 17 AXV820 CD Operation Scroll Down Press to scroll down to the next page in the track play list. Random Press to play all tracks on the CD in random order. Press again to end random playback. Repeat Press to rHSHDW FXUUHQW WUDFN 5HSHDW 2QH  3UHVV DJDLQ WR WXUQ RII WKH...

  • Page 18: Mp3/Wma/Jpg Operation

    MP3/WMA/JPG Operation MP3/WMA/JPG Playback The AXV820 can play MP3, WMA and JPG files from a disc, USB device or SD from card. Insert disc, connect USB device or insert SD card, and playback will begin Disc, USB Device or SD Card automatically.

  • Page 19: Mp3/Wma/Jpg Operation

    AXV820 MP3/WMA/JPG Operation Press to toggle between track navigation and folder navigation for the Track/Folder Selection Scroll Up and Scroll Down arrow buttons. Press to scroll up to the previous page in the play list. To scroll up to the...
  • Page 20 AXV820 Media Compatibility Media Compatibility 7KH IROORZLQJ W\SHV RI GLVFV DUH FRPSDWLEOH &''$ &'520 ,62  &'5 &'5: '9' 9LGHR '9'55: '9'55: The following types of discs/files are not FRPSDWLEOH :0$ ILOHV WKDW DUH SURWHFWHG E\ '50 'LJLWDO 5LJKWV 0DQDJHPHQW :0$ ORVVOHVV IRUPDW...
  • Page 21 AXV820 Media Compatibility - CD/DVD File Type Level 1, Level 2 ISO9660 Level 3 Playback ISO9660 JOLIET File System Extension Filename 32 bytes 32 bytes Playback ROMEO Other Filename Extensions Apple ISO .mp3/.MP3/.Mp3/.mP3 File .wma/.WMA Extension .rmp/.m4a MPEG 1 MPEG...
  • Page 22 AXV820 Media Compatibility USB/SD Card File Type FAT 12 File System FAT 16/FAT 32 .mp3/.MP3/.Mp3/.mP3 File .wma/.WMA Extension .rmp/.m4a MPEG 1 MPEG MPEG 2 Format MPEG 2.5 MPEG 1 32/44. 1 /48kHz MPEG 2 12/16/22.05/24kHz Sampling Frequency MPEG 2.5 8/11.025/12kHz 32/44.
  • Page 23 AXV820 WARNING Upon installation of this Monitor/DVD player (“unit”) into a vehicle, the driver of the vehicle must not operate this unit by watching videos or playing video games while driving. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle’s occupants or persons outside...

  • Page 24: Dvd Setup

    Some DVD discs can be played only in certain playback modes according to the intentions of the software. As the AXV820 plays discs according to their intentions, some functions may not work as intended. Please be sure to read the instructions provided with each disc. This player has been designed to play back DVD software that has been encoded for specific region areas.

  • Page 25: Safety Warning

    AXV820 DVD Setup SAFETY WARNING 7KH YLGHR GLVSOD\ RI WKH LQGDVK XQLW ZLOO QRW RSHUDWH ZKLOH WKH YHKLFOH LV PRYLQJ CAUTION !!! This is a safety feature to prevent driver distraction. In-dash video functions will ,7 6 81/$:)8/ 72 23(5$7( only operate when vehicle is in Park and the PARKING BRAKE is engaged. It is A VEHICLE WHILE VIDEO IS illegal in most states for the driver to view video while the vehicle is in motion.

  • Page 26: Dvd Operation

    AXV820 DVD Operation Inserting a Disc With the label facing up, insert a standard size disc into the slot, and playback will begin automatically. Sub-menus may have to be pressed to access the DVD content. Read the directions of your specific DVD disc for other features.
  • Page 27 AXV820 DVD Operation DVD Touch Screen During DVD playback, use the DVD touch screen controls to access various features. Controls The main DVD touch screen controls are accessed by touching Area E on the hidden touch screen controls. Stop 1 Press once to stop the chapter at current point of playback.
  • Page 28 Note: Some DVD discs can be played only in certain playback modes according to the intentions of the software. As the AXV820 plays discs according to their intentions, some functions may not work as intended. Please be sure to read the instructions provided with each disc.
  • Page 29 AXV820 DVD Operation Remote Control Many DVD features and functions can be accessed using the remote control. Stop, Fast Reverse, Pause, Fast Forward, Title, Audio, Subtitle and Repeat functions, are accessed by pressing the button on the remote control that corresponds to the...

  • Page 30: Operation Of Ipod

    AXV820 iPod Operation iPod Operation Connect an iPod to the AXV820 to enable audio and video playback from your iPod device. Note: $ VWDQGDUG L3RG FDEOH VROG VHSDUDWHO\ FDQ EH XVHG WR FRQQHFW all iPod devices for audio playback. To view video and photos from an L3RG GHYLFH WKH LQFOXGHG L3RG YLGHR FDEOH LV UHTXLUHG Displays current mode of operation.
  • Page 31 :KHQ WKH L3RG YLGHR FDEOH LV FRQQHFWHG VHH SDJH  DQG L3RG YLGHR SKRWR SOD\EDFN LV HQDEOHG LQ WKH VHWXS PHQX VHH SDJH  DQG 9LGHR Output is turned on in your iPod, the AXV820 supports video playback. Touch the Menu Mode EXWWRQ RQ WKH $;9 V WRXFK VFUHHQ GLVSOD\ then select Videos.

  • Page 32: Bluetooth

    AXV820 Bluetooth Operation Bluetooth Microphones Bluetooth features of the AXV820 function with either WKH XQLW V LQWHUQDO PLFURSKRQH RU WKH LQFOXGHG H[WHUQDO microphone, which is designed for mounting in a convenient location inside the vehicle. To use the external microphone, ensure the microphone is connected to the rear of the unit as illustrated in the Wiring Diagram on page 6.

  • Page 33: Bluetooth Operation

    Make sure that Bluetooth is activated on your device before you begin the pairing process. Pairing a New Device The AXV820 broadcasts the pairing signal constantly when no devices are currently connected. Complete the SDLULQJ VHTXHQFH IURP \RXU %OXHWRRWK GHYLFH 5HIHU WR WKH RZQHU V PDQXDO IRU \RXU GHYLFH IRU PRUH GHWDLOV The device name is "AXV820"...
  • Page 34 AXV820 Bluetooth Operation Bluetooth Operation Connect a Bluetooth device to the AXV820 as described on page 32. Current Mode Indicator Displays current mode of operation. Press to return to the Main Menu screen. Displays current information about the current contact.

  • Page 35: Bluetooth

    AXV820 Bluetooth Operation Press to return to keypad display during A2DP playback of streaming Display Key Pad audio. End Call Press to end a phone call. Connect Call After entering a phone number, press to connect the call. Pressing this button without entering a phone number will automatically connect to the last number dialed.

  • Page 36: Auxiliary Inputs/Rear Camera Operation

    AXV820 Auxiliary Inputs AV 1 & AV 2 Using AV1 Input &RQQHFW DQ RSWLRQDO DXGLRYLGHR VRXUFH LQWR WKH PP IURQW SDQHO LQSXW Select AV1 from the Main Menu to listen to audio. Engage parking brake as described on page 22 to watch video.

  • Page 37: Warranty

    AXV820 Limited One Year Warranty 7KLV ZDUUDQW\ JLYHV \RX VSHFLILF OHJDO ULJKWV <RX What to do? may also have other rights which vary from state to 1. Before you call for service, check the state. troubleshooting guide in your owner’s manual. A VOLJKW DGMXVWPHQW RI DQ\ FXVWRP FRQWUROV PD\ VDYH Dual Electronics Corp.

  • Page 38: Specifications

    AXV820 Specifications Disc )UHTXHQF\ UHVSRQVH 10Hz-20kHz &KDQQHO VHSDUDWLRQ # N+] >65dB '$ FRQYHUWHU 24 Bit FM Tuner 7XQLQJ UDQJH 87.5MHz-107.9MHz 8VDEOH VHQVLWLYLW\ 8.5dBf G% TXLHWLQJ VHQVLWLYLW\ 15dBf 6WHUHR VHSDUDWLRQ # N+] 35dB )UHTXHQF\ UHVSRQVH 30Hz-11kHz AM Tuner 7XQLQJ UDQJH 530kHz-1710kHz...

  • Page 39: Troubleshooting

    Please keep your original sales receipt and be prepared to provide this receipt in WKH HYHQW \RX UHTXLUH VHUYLFH DV \RXU RULJLQDO UHFHLSW LV FRQVLGHUHG WKH EHVW SURRI of purchase and indicates the date you purchased your Axxera product. Dealer Name...
  • Page 40 Dual Electronics Corp. 7ROO )UHH  www.axxeraaudio.com ©2013 Dual Electronics Corp. All rights reserved. NSA1112-V01 Printed in China...
