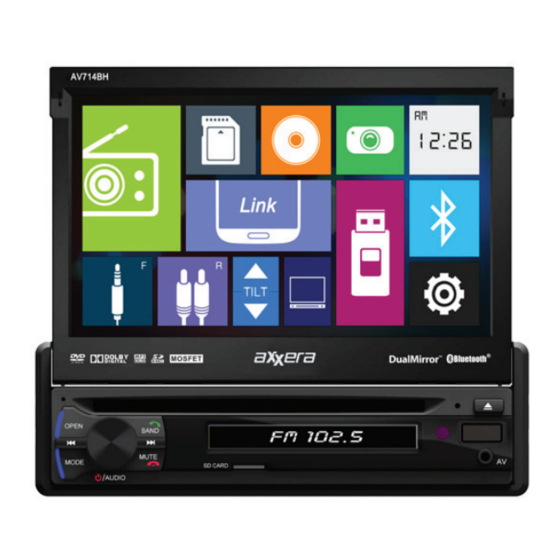

Axxera AV714BH Installation & Owner's Manual

Dvd multimedia receiver with bluetooth featuring a 7" touch screen display
Hide thumbs Also See for AV714BH:
Table of Contents

Advertisement

Quick Links

AV714BH
INSTALLATION/OWNER'S MANUAL
DVD Multimedia Receiver with Bluetooth
featuring a
7"
Touch Screen Display
Safety Notes:
The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature
to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in Park and the
parking brake is engaged. It is illegal in most states for the driver to view video while the vehicle is in motion.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV714BH and is the answer not in the manual?

Questions and answers

Related Manuals for Axxera AV714BH

Summary of Contents for Axxera AV714BH

  • Page 1 AV714BH INSTALLATION/OWNER’S MANUAL DVD Multimedia Receiver with Bluetooth featuring a 7" Touch Screen Display Safety Notes: The DVD video display of the in-dash unit will not operate while the vehicle is moving. This is a safety feature to prevent driver distraction. In-dash DVD video functions will only operate when vehicle is in Park and the...
  • Page 2 Copyright Notes This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.

  • Page 3: Table Of Contents

    AV714BH PREPARATION Table of Contents Page Warning Statement ..........
  • Page 4 AV714BH PREPARATION WARNING Upon installation of this Monitor/DVD player (“unit”) into a vehicle, the driver of the vehicle must not operate this unit by watching videos or playing video games while driving. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle’s occupants or persons outside...

  • Page 5: Safety Information/Precautions

    Please read all instructions carefully before attempting to install or operate. Due to its technical nature, it is highly recommended that your Axxera AV714BH is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only.

  • Page 6: Getting Started

    AV714BH INSTALLATION Preparation Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

  • Page 7: Wiring Diagram

    AV714BH INSTALLATION Wiring Diagram - Inputs/Outputs USB CONNECTOR (Charging only) RADIO ANTENNA POWER HARNESS DualMirror Input BT MIC RL OUT AUX IN L RR OUT AUX IN R FL OUT VIDEO IN FR OUT CAMERA SUB WOOFER YELLOW VIDEO OUT...

  • Page 8: Control Locations

    AV714BH OPERATION Control Locations 17 16 Tuner Icon Disc Icon Standby Tune / Track Up Front Auxiliary Icon DualMirror Icon Settings Mute / End Call Rear Auxiliary Icon Camera Icon Eject Power / Audio SD Card Icon Bluetooth Icon AV Input...

  • Page 9: Remote Preparation

    AV714BH OPERATION Remote Control Preparation Remove battery insulation tape . Notes: • The remote control uses one 3 volt Lithium CR2025 battery. Remove the battery if the remote will not be used for a month or longer. • Remove and dispose of battery properly.

  • Page 10: General Operation

    AV714BH OPERATION General Operation Installing the Monitor To install the monitor, align the pins on the back of the monitor with the pins on the front of the unit, and press until it clicks in place. To remove, press the release tab (next to the SD card slot) and pull the monitor away from the unit.
  • Page 11 AV714BH OPERATION General Operation Reset To resolve abnormal operation or if the unit is inoperable, use the tip of a pen to press the RESET button (located on the front panel to the left of the OPEN button). The unit will reset the main processor to the default settings.
  • Page 12 AV714BH OPERATION General Operation From the main menu screen or any operational mode (except when Setup Menu viewing video), press the icon in the bottom right corner of the screen to access the Setup menu. General • Language - Set the unit's language to English or Spanish.
  • Page 13 AV714BH OPERATION General Operation Setup Menu Bluetooth • Bluetooth - Turn Bluetooth signal on or off. • Auto Connect - Select "On" to program the unit to automatically connect to a Bluetooth device. Select "Off" to disable the auto connect feature.

  • Page 14: Am/Fm Tuner Operation

    AV714BH OPERATION AM/FM Tuner Operation Tuner Operation Select the Tuner icon from the Main Menu screen. Displays current mode of operation. Press to return to the Main Current Mode Indicator Menu screen. Information Display Displays current frequency, along with additional tuning information.
  • Page 15 AV714BH OPERATION AM/FM Tuner Operation Local / Distance Tuning Press to choose between Local (LOC) or Distance (DX) tuning options. The local option tunes to nearby radio stations with sufficiently strong signals for good reception. In areas where reception is poor, switching to distance tuning enables the unit to tune in to more distant stations.

  • Page 16: Cd/Usb/Sd Card Operation

    AV714BH OPERATION CD/USB/SD Card Operation CD/MP3/WMA To play audio files from a disc or MP3/WMA files from a disc, USB device or JPG Operation or SD card, insert disc or device and playback will begin automatically. To return to disc, USB or SD card playback from another mode of operation, select the corresponding icon from the Main Menu.

  • Page 17: Cd / Usb / Sd Card Operation

    AV714BH OPERATION CD/USB/SD Card Operation Previous Folder Press to navigate up to the previous folder. Press to play the first 10 seconds of each song in the playlist. Intro Press to display the keyboard for direct track/file access. Enter the...
  • Page 18 AV714BH OPERATION Media Compatibility - USB/SD Card File Type FAT 12 File System FAT 16/FAT 32   .mp3/.MP3/.Mp3/.mP3  File .wma/.WMA  Extension .rmp/.m4a MPEG 1  MPEG MPEG 2  Format MPEG 2.5  MPEG 1 32/44. 1 /48kHz MPEG 2 12/16/22.05/24kHz...

  • Page 19: Media Compatibility Cd/Dvd

    AV714BH OPERATION Media Compatibility - CD/DVD File Type Level 1, Level 2   ISO9660 Level 3 Playback   ISO9660 JOLIET File System Extension Filename 32 bytes 32 bytes Playback ROMEO Other Filename Extensions Apple ISO .mp3/.MP3/.Mp3/.mP3  File .wma/.WMA...
  • Page 20 AV714BH OPERATION Media Compatibility The following types of discs are compatible: Media Compatibility • CD-DA, CD-ROM (ISO), CD-R, CD-RW • DVD Video, DVD+R/RW, DVD-R/RW The following types of discs/files are not compatible: • WMA files that are protected by DRM (Digital Rights Management) •...

  • Page 21: Dvd Operation

    AV714BH OPERATION DVD Operation Inserting a Disc From the main menu screen, press TILT UP until the CD slot is exposed. Insert disc into the slot, and playback will begin automatically. Sub-menus may have to be pressed to access the DVD content. Read the directions of your specific DVD disc for other features.
  • Page 22 AV714BH OPERATION DVD Operation Press the standby icon (to the right of the TILT icon) to put the unit in standby Standby mode. Press any spot on the touch screen to exit standby mode. Press to enter the Setup menu (refer to page 11 for details).

  • Page 23: Dvd Operation

    AV714BH OPERATION DVD Operation Press the standby icon (to the right of the TILT icon) to put the unit in standby Play / Pause mode. Press any spot on the touch screen to exit standby mode. Volume Up Press to increase playback volume.

  • Page 24: Dual Mirror

    AV714BH OPERATION DualMirror™ Operation The DualMirror™ technology allows you to mirror the screen of select Android smartphones as well as iPhone, iPod and iPad devices onto the receiver's screen and to charge your mobile device through the rear USB port.

  • Page 25: Dual Mirror

    AV714BH OPERATION DualMirror™ Operation iPhone (Not Included) Digital AV Adaptor (Not Included) (charge only) (sold separately. Cable No : DL3i) The DualMirror™ technology requires the following cables which are sold separately. Cable Number Devices Product Description Wire Length DL55A For Android devices...

  • Page 26: Bluetooth Operation

    Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "Dual BT" Note: The AV714BH can be in any mode of operation when pairing is performed. Connecting a Most Bluetooth devices support the auto-connect feature and...

  • Page 27: Bluetooth Operation

    AV714BH OPERATION Bluetooth Operation Bluetooth Operation Connect a Bluetooth device to the AV714BH. Displays current mode of operation. Press to return to the Main Current Mode Indicator Menu screen. Phone Keypad Use the phone keypad to dial the desired phone number. Alternately, numbers can be dialed directly from the phone.
  • Page 28 AV714BH OPERATION Auxiliary Inputs - AV1 & AV2 Using AV1 Input Connect an optional audio/video source into the 3.5mm (front panel) input. Select AV1 from the Main Menu to listen to audio. Engage parking brake as described on page 26 to watch video.

  • Page 29: Warranty

    AV714BH OPERATION Limited One Year Warranty This warranty gives you specific legal rights. You What to do? may also have other rights which vary from state to 1. Before you call for service, check the state. troubleshooting guide in your owner’s manual. A slight adjustment of any custom controls may save Dual Electronics Corp.

  • Page 30: Specifications

    AV714BH OPERATION Specifications Disc Frequency response: 20Hz-20kHz Channel separation @ 1kHz: >50dB D/A converter: 24 Bit FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 20dBf Stereo separation @ 1kHz: 38dB Frequency response: 30Hz-13kHz AM Tuner Tuning range:...

  • Page 31: Troubleshooting

    Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your Axxera product. Dealer Name...
  • Page 32 Dual Electronics Corp. Toll Free: 1-866-382-5476 Monday-Friday, 9AM-5PM EST www.axxeraaudio.com ©2015 Dual Electronics Corp. All rights reserved. NSA0415-V01 Printed in China...
