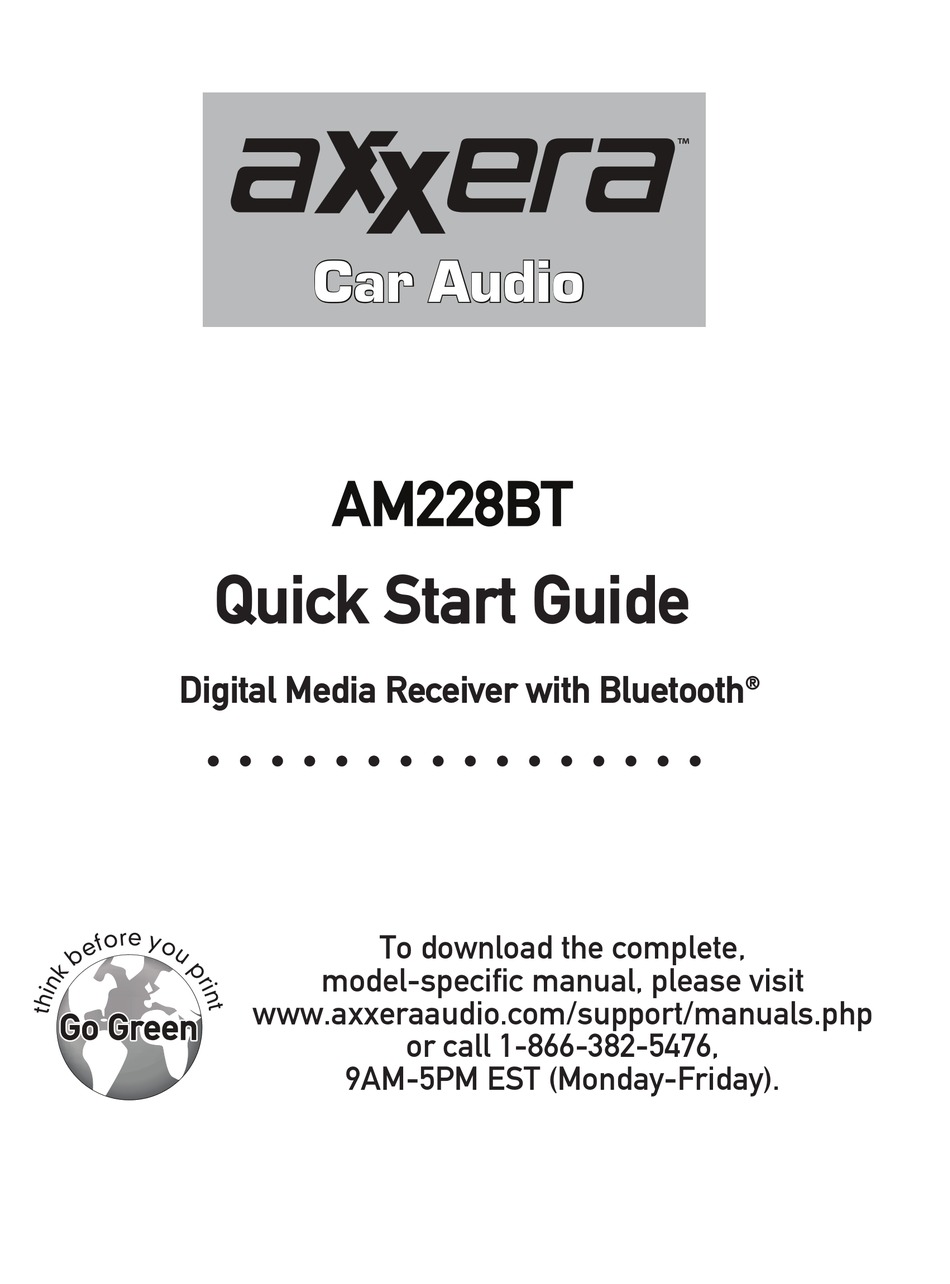

- Page 1 Car Audio AM228BT Quick Start Guide Digital Media Receiver with Bluetooth ® To download the complete, model-specific manual, please visit www.axxeraaudio.com/support/manuals.php or call 1-866-382-5476, 9AM-5PM EST (Monday-Friday).
-
Page 2: Installation
Installation Before You Start • Consult a qualified technician for instructions. Dual always recommends professional installation. • Disconnect negative battery terminal. • Remove trim ring from unit (if installed). Note: Most vehicles require an installation kit, wiring harness and/or antenna adapter (all sold separately) to properly install the head unit in the vehicle. - Page 3 Installation Mounting the Head Unit: Double DIN Dashboard or Installation Kit Typical DIN mounting Step 1: Insert the mounting sleeve into the installation kit or Mounting Sleeve (Not included) dashboard. Double DIN Step 2: Dashboard or Installation Kit Bend multiple mounting tabs around the mounting sleeve until the mounting...
-
Page 4: General Operation
General Operation Power On/Off Press the /MODE button to turn the unit on. Press and hold /MODE button to turn unit off. Changing Modes Press MODE to select between Radio, USB, AUX, Bluetooth. Modes of operation are shown in the display. Volume Adjust volume using volume knob. -
Page 5: Am/Fm Tuner Operation
AM/FM Tuner Operation Seek Tuning TUNE TUNE Press to seek to previous or next strong station. Manual Tuning TUNE TUNE Press and hold the to enter manual tuning mode. Then press TUNE TUNE momentarily to move radio frequency down or up one step at a time. TUNE TUNE Press and hold... -
Page 6: Usb Operation
USB Operation Playing MP3 Files To play MP3 files, insert a USB device containing MP3 files. Track Select Press TUNE to skip to the beginning of the next song. Press TUNE to skip to the beginning of the previous song. Fast Forward and Press and hold TUNE or TUNE... -
Page 7: Bluetooth Operation
Complete the pairing sequence from your Bluetooth device. Refer to the owner’s manual for your device for more details. The device name is “AM228BT” The Bluetooth passcode is "1234” Note: If passcode "1234" does not pair your device to the receiver, use passcode "0000". -
Page 8: Limited One-Year Warranty
Limited One-Year Warranty This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase. -
Page 9: Fcc Compliance
FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
