  • Page 1 AXM120 INSTALLATION/OWNER'S MANUAL AM/FM Receiver with Detachable Face...

  • Page 2: Installation

    AXM120 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

  • Page 3: Wiring Diagram

    Wiring Diagram Antenna Connector 10 AMP AGC Fuse FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The AXM120 uses one 10 amp AGC fuse located in-line.

  • Page 4: Operation

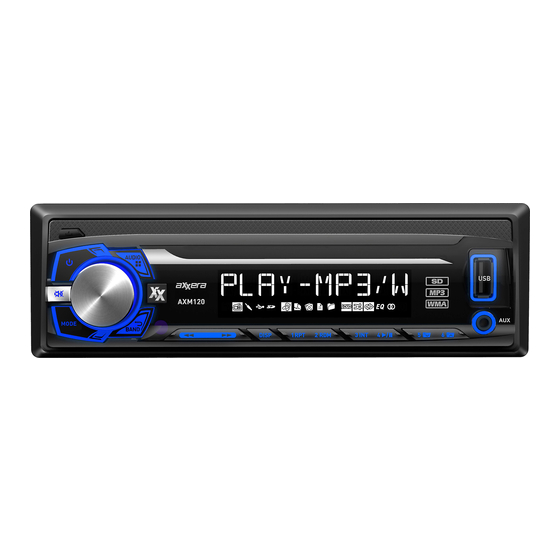

    AXM120 OPERATION Control Locations - Receiver Release Preset 3 / Intro Power Preset 2 / Random Volume Knob Preset 1 / Repeat Audio / Menu Display USB Port Tune Up Auxiliary Input Tune Down Preset 6 / Folder Up Band / Go Back...

  • Page 5: Control Locations - Remote

    AXM120 OPERATION Control Locations - Remote Power Preset 6 / Folder Up Volume Up Preset 5 / Folder Down Select Preset 4 / Play / Pause Tune Up Preset 1 / Repeat Volume Down Preset 2 / Random Audio / Menu...

  • Page 6: General Operation

    AXM120 OPERATION General Operation Faceplate Removal Press RELEASE and pull away from the left side to remove. To re-install, insert right side of faceplate first then push left side to secure. Power On/Off Press or any other button to turn the unit on. Press again to turn the unit off.
  • Page 7 AXM120 OPERATION General Operation Press the volume knob to select between Bass, Treble, Audio / Menu Balance, Fader, Loudness, Distance and Stereo. BASS TREBLE BALANCE FADER LOUDNESS DISTANCE STEREO Press the volume knob until BAS appears. Bass Rotate the volume knob left/right to adjust.

  • Page 8: Usb / Sd Card Operation

    AXM120 OPERATION AM/FM Tuner Operation Press TUNE or TUNE momentarily to seek to Seek Tuning the next strong station. Press and hold TUNE or TUNE until "MANUAL" Manual Tuning appears, then press TUNE or TUNE momentarily to change radio frequency up or down one step at a time.
  • Page 9 AXM120 OPERATION USB / SD Card Operation Repeat Press RPT to choose between: • Current Song - Continuously repeats selected track. • Current Folder - Continuously repeats all files in folder. Random Press RDM to choose between: • Off - Cancels RDM function.
  • Page 10 AXM120 OPERATION USB / SD Card Operation Playback Capacity • Maximum number of files: 1024 • Maximum number of folders: 512 • Maximum number of folder levels (sub folders): 8 Note: If the number of files/folders exceeds the maximum outlined above, the additional files/folders will be ignored.

  • Page 11: Troubleshooting

    AXM120 OPERATION Troubleshooting Problem Cause Action Yellow wire not connected or incorrect Check connections for proper voltage Red wire not connected or Unit will not turn on voltage (11~16VDC) incorrect voltage (no power) Black wire not connected Check connection to ground...

  • Page 12: Limited One Year Warranty

    AXM120 OPERATION Limited One Year Warranty This warranty gives you specific legal rights. What to do? You may also have other rights which vary 1. Before you call for service, check the from state to state. troubleshooting guide in your owner’s manual.

  • Page 13: Fcc Compliance

    AXM120 OPERATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 14: Specifications

    AXM120 OPERATION Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 25dbu Stereo separation @ 1kHz: >30dB Frequency response: 30Hz-13kHz Tuning range: 530kHz-1710kHz AM Tuner Usable sensitivity: <42dBu Frequency response: 30Hz-2.2kHz Speaker output impedance: 4~8 ohms General...
  • Page 15 AXM120 OPERATION Notes...
  • Page 16 Dual Electronics Corp. Toll Free: 1-866-382-5476 9AM-5PM EST, Monday-Friday www.axxeraaudio.com ©2015 Dual Electronics Corp. All rights reserved. Other trademarks and trade names are those of their respective owners. NSA0415-V01...
