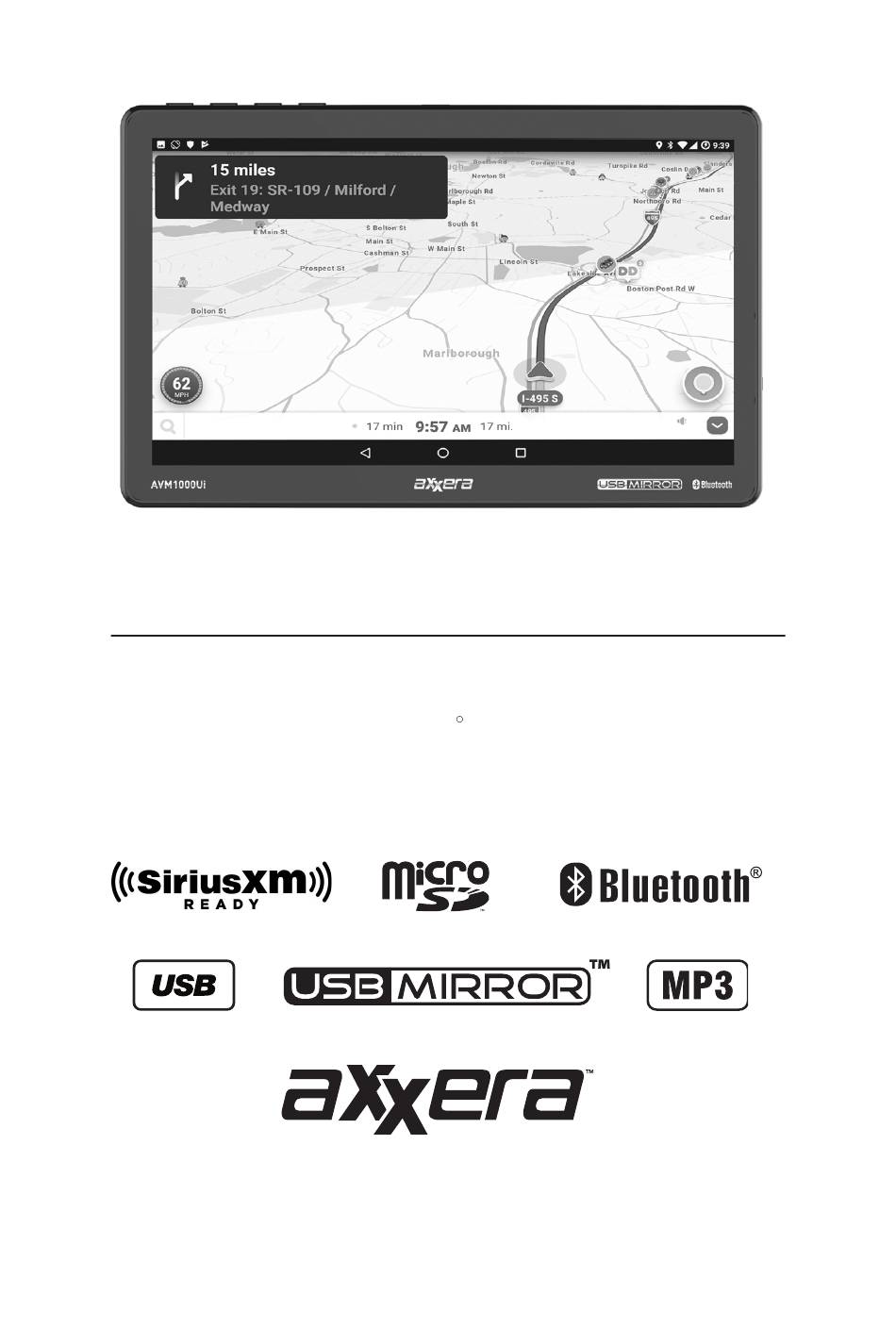

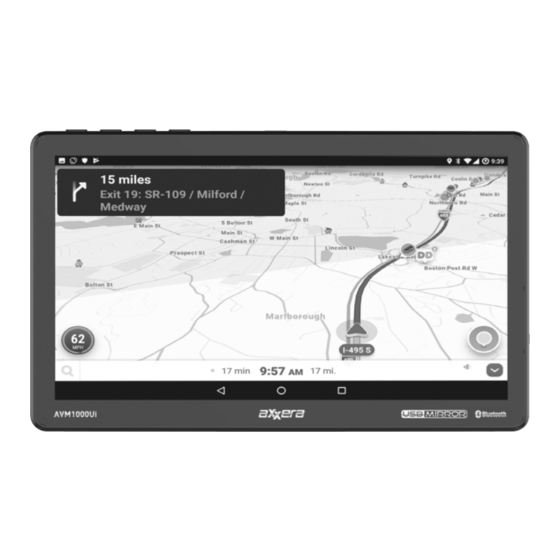

- Page 1 AVM1000Ui INSTALLATION/OWNER’S MANUAL Media Receiver with Bluetooth , USBMirror and SiriusXM-Ready featuring a 10.1" Touch Screen Display...
- Page 2 Copyright Notes SiriusXM and all related marks and logos are trademarks of Sirius XM Radio, Inc. All rights reserved. MicroSD logo is a trademark of SD-3C, LLC. Operating system updates from Apple and Android may cause your receiver not to function properly. This can usually be fixed by doing a software/firmware update to the receiver itself.
- Page 3 Please read all instructions carefully before attempting to install or operate. Due to its technical nature, it is highly recommended that your Axxera AVM1000Ui is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only.
- Page 4 AVM1000Ui INSTALLATION Preparation Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
- Page 5 AVM1000Ui INSTALLATION Wiring Diagram - Inputs/Outputs SiriusXM Tuner Connection (SiriusXM Connect Tuner and subscriptions sold separately) CAMERA AUDIO INPUT BT ANTENNA FOR SIM INTERFACE PARKING BRAKE (-) USB CHARGE TF T DIMMER IGNITION / ACC 12V(+) Note: When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage.
- Page 6 AVM1000Ui OPERATION Control Locations Microphone Reset Power/Mute Button microSD Card Slot Voice/Camera Button USB Port Volume Down 3.5mm AUX Input Jack Volume Up Button Preset 2 / Random Mode Volume Up Preset 6 Power Preset 5 Tune / Track Up...
- Page 7 AVM1000Ui OPERATION Remote Control Preparation Remove battery insulation tape . Notes: • The remote control uses one 3 volt Lithium CR2025 battery. Remove the battery if the remote will not be used for a month or longer. • Remove and dispose of battery properly.
- Page 8 AVM1000Ui OPERATION General Operation Power On/Off Press to turn the unit on. Press and hold to turn the unit off. Mode Press MODE to access available input modes: Radio, SiriusXM, USB Mirror, USB, SD Card, Bluetooth Phone, Bluetooth Music, Rear Camera, Auxiliary Input.
- Page 9 AVM1000Ui OPERATION General Operation From the Main Menu screen, press Settings in the bottom right corner to Setup Menu access the Setup Menu and select from the following categories: General, Audio, Video and Bluetooth. General: • OSD Language - Select English as the language for the on-screen display.
- Page 10 AVM1000Ui OPERATION AM/FM Tuner Operation Radio Operation Select the Radio icon from the Main Menu screen. Main Menu Press to return to Main Menu screen. Current Mode Indicator Displays current mode of operation. Tune Frequency Down Press momentarily to tune the unit down one step at a time. Press and hold to tune down by seeking the next strong station.
- Page 11 AVM1000Ui OPERATION AM/FM Tuner Operation AS/PS Press and hold to automatically store the six strongest stations in the current band as presets. Press briefly for a preset scan, which will scan all preset stations and play 10 seconds of each. Press again to cancel the scan and continue playing the current station.
- Page 12 AVM1000Ui OPERATION USB/SD Operation play MP3 files from a USB device or SD card, insert device and MP3 or JPG Operation playback will begin automatically. To return to USB or SD playback from another mode of operation, select the corresponding icon from the Main Menu.
- Page 13 AVM1000Ui OPERATION USB/SD Operation 9 10 Folder Search Press to access the directory of folders and files. Use the up/down arrows to scroll through the folder list, then press on the name of the desired folder to access it. Use the up/down arrows to scroll through the file list, then press on the name of the desired file to access it.
- Page 14 AVM1000Ui OPERATION Media Compatibility - USB/SD Card File Type FAT 12 File System FAT 16/FAT 32 .mp3/.MP3/.Mp3/.mP3 File Extension .rmp/.m4a MPEG 1 MPEG MPEG 2 Format MPEG 2.5 MPEG 1 32/44. 1 /48kHz Sampling MPEG 2 12/16/22.05/24kHz...
- Page 15 AVM1000Ui OPERATION Media Compatibility Media Compatibility The following types of discs/files are compatible: • AVI - Max video resolution: 720x480, Max video bit rate: 5000 kbps • Mpeg4: Max video resolution: 720x480, Max video bit rate: 5000 kbps • SD/USB format type: FAT32/FAT The following types of discs/files are not compatible: •...
- Page 16 The unit broadcasts the pairing signal constantly when no devices are currently connected. Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "Axxera AVM1000Ui". The Bluetooth passcode "0000".
- Page 17 AVM1000Ui OPERATION Bluetooth Operation Screen Press to adjust screen brightness or put the monitor into standby mode. Audio Press to access audio setting such as EQ, Surround Sound Settings and Field Settings (Balance). Settings Press to access the Settings Menu.
- Page 18 AVM1000Ui OPERATION SiriusXM Satellite Radio Operation ® SiriusXM Radio Only SiriusXM Satellite Radio brings you more of what you love ® ® to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment.
- Page 19 AVM1000Ui OPERATION SiriusXM Satellite Radio Operation ® Main Menu Press to return to the Main Menu screen. Band Touch to select a band of preset channels. Three bands are available: SXM1, SXM2, and SXM3. Each band can store up to six preset channels.
- Page 20 AVM1000Ui OPERATION SiriusXM Satellite Radio Operation ® Additional Options Additional Options Press to display/adjust the options Mode, Tune Scan and Go to Live: Mode - Press to access and adjust the following options: • Parental Code - When enabled, the Parental Control feature requires you to enter a passcode to tune to the locked channels.
- Page 21 AVM1000Ui OPERATION SiriusXM Satellite Radio Operation ® Preset Buttons Press and hold any preset button (1-6) to save the current station as a preset. Press the desired preset button to begin playback of the corresponding preset channel. Direct Press to display screen for direct channel access. Press the desired channel number, then press Enter.
- Page 22 AVM1000Ui OPERATION Front 3.5mm Aux Input & Rear RCA A/V Input Auxiliary Input Connect an optional audio source into the 3.5mm (front panel) input. Select auxiliary input from the Main Menu to listen to audio. Adjust volume on the external audio source as needed (if connected to the headphone output of the device).
- Page 23 Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your Axxera product. Dealer Name...
- Page 24 AVM1000Ui OPERATION SiriusXM Radio Advisory Messages ® Recommendation SiriusXM ® Advisory Message 1. The radio has detected a fault with the SiriusXM antenna. The antenna ® cable may be either disconnected or damaged. 2. Verify that the antenna cable is connected to the SiriusXM Connect ®...
- Page 25 AVM1000Ui OPERATION Limited One Year Warranty This warranty gives you specific legal rights. You What to do? may also have other rights which vary from state to 1. Before you call for service, check the state. troubleshooting guide in your owner’s manual. A slight adjustment of any custom controls may save Dual Electronics Corp.
- Page 26 AVM1000Ui OPERATION Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 20dBf Stereo separation @ 1kHz: 38dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 24uV Frequency response: 30Hz-2.3kHz Front USB Compatibility: High Speed USB 2.0...
- Page 27 Dual Electronics Corp. Toll Free: 1-866-382-5476 Monday-Friday, 9AM-5PM EST www.axxeraaudio.com ©2019 Dual Electronics Corp. All rights reserved. NSA1019-V01 Printed in China...
