ASC419N

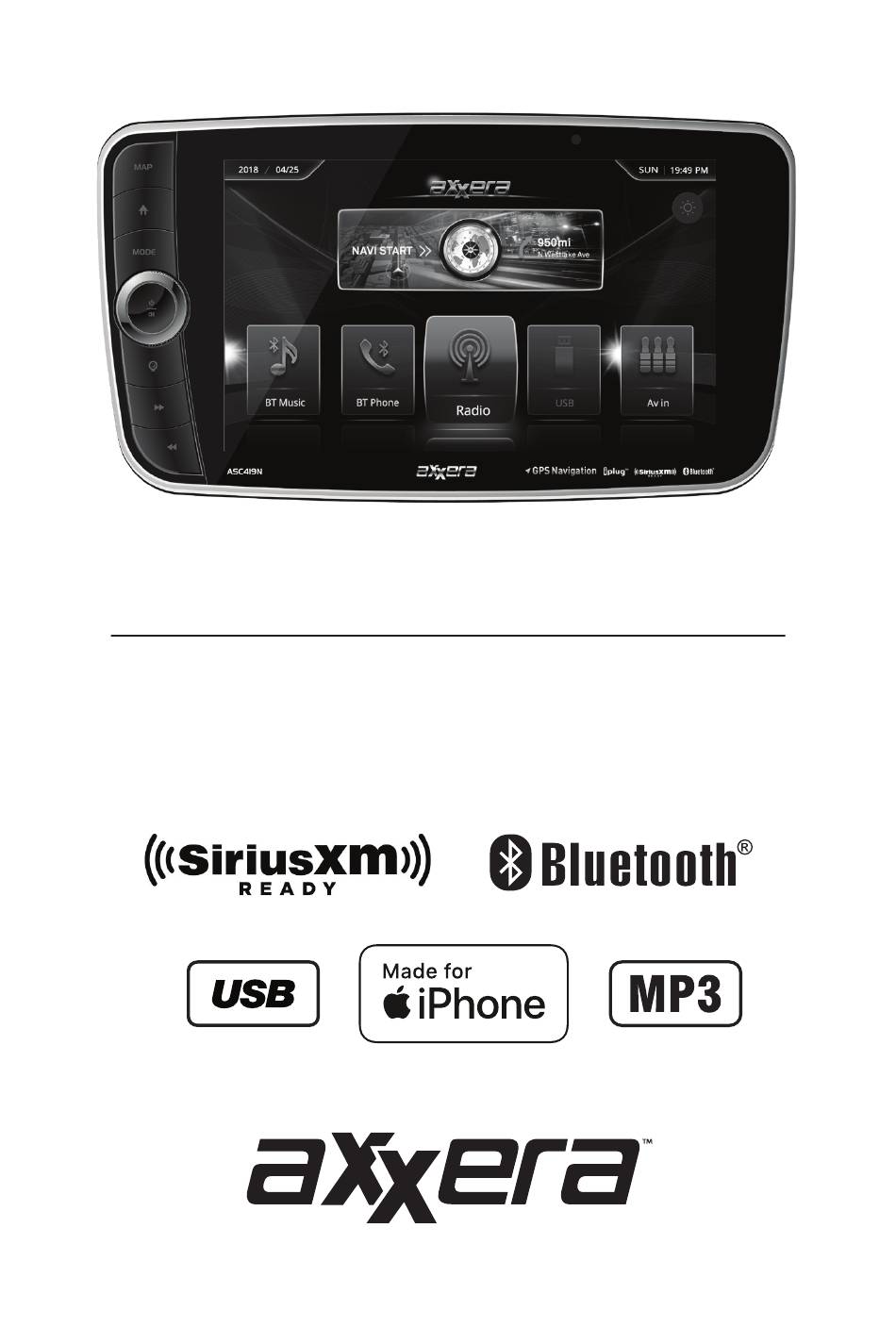

INSTALLATION/OWNER'S MANUAL
Multimedia Receiver with Bluetooth, Navigation and SiriusXM-Ready
featuring a 10.1" Touch Screen Display

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASC419N and is the answer not in the manual?

Questions and answers

Vera March
August 1, 2025

How o change click?

0

Related Manuals for Axxera ASC419N

Summary of Contents for Axxera ASC419N

  • Page 1 ASC419N INSTALLATION/OWNER’S MANUAL Multimedia Receiver with Bluetooth, Navigation and SiriusXM-Ready featuring a 10.1" Touch Screen Display...
  • Page 2 Copyright Notes SiriusXM and all related marks and logos are trademarks of Sirius XM Radio, Inc. All rights reserved. Other trademarks and trade names are those of their respective owners. Operating system updates from Apple and Android may cause your receiver not to function properly. This can usually be fixed by doing a software/firmware update to the receiver itself.

  • Page 3: Safety Information

    Please read all instructions carefully before attempting to install or operate. Due to its technical nature, it is highly recommended that your Axxera ASC419N is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only.
  • Page 4 ASC419N INSTALLATION Preparation Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
  • Page 5 Camera input Camera (not included) can be connected to the Left, Right, and Rear Camera Inputs on the rear side. Axxera RV Nav Navigation App Connect an APP-enabled iPhone or Android via the USB 1 slot to use navigation features.

  • Page 6: Control Locations

    ASC419N OPERATION Control Locations Reset Camera Tune / Track Up Home Tune / Track Down Mode Microphone Power / Mute Camera Preset 6/Folder Up Volume Up Preset 5/Folder Down Power/Mute Zone 2 Enter Zone 1 Tune/Track Up Talk Mode Preset 4/Play/Pause...
  • Page 7 ASC419N OPERATION Remote Control Preparation Remove battery insulation tape . Notes: • The remote control uses one 3 volt Lithium CR2025 battery. Remove the battery if the remote will not be used for a month or longer. • Remove and dispose of battery properly.

  • Page 8: General Operation

    ASC419N OPERATION General Operation Power On/Off Press to turn the unit on. Press and hold to turn the unit off. Mode Press MODE to access available input modes: Bluetooth Music, Bluetooth Phone, Radio, USB, AV In. Camera, SiriusXM, iPod, Settings Modes of operation are indicated on the display and/or the monitor.
  • Page 9 ASC419N OPERATION General Operation From the Main Menu screen, press Settings in the bottom right corner to Setup Menu access the Setup Menu and select from the following categories: General, Date Time, Wallpaper, Video, SWC, Sound Effect, Radio, Bluetooth and Camera.
  • Page 10 ASC419N OPERATION General Operation Sound Effect: Setup Menu • Speaker Zones - Press to turn each audio zone (1 and 2) On or Off. • Balance - Adjust audio balance left to right by dragging the red dot or by pressing the left and right arrows.
  • Page 11 ASC419N OPERATION AM/FM Tuner Operation Radio Operation Select the Radio icon from the Main Menu screen. Previous Screen Press to return to the previous screen. Main Menu Press to return to the Main Menu screen. Band Press to select between three FM and two AM bands.
  • Page 12 ASC419N OPERATION AM/FM Tuner Operation Press momentarily to tune the unit up one step at a time. Press and Tune Frequency Up hold to tune up by seeking the next strong station. Touching this icon will switch to Always On Camera Mode Camera nconditionally.
  • Page 13 ASC419N OPERATION USB & iPod Operation Press to return to the previous screen. Previous Screen Press to return to Main Menu screen. Main Menu Displays current mode of operation. Current Mode Indicator Press to adjust 10 Band Tone Control, Balance, Fader Preset Setting.

  • Page 14: Bluetooth Operation

    The unit broadcasts the pairing signal constantly when no devices are currently connected. Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "ASC419N". Bluetooth passcode "0000". The unit can be in any mode of operation when pairing is performed.
  • Page 15 ASC419N OPERATION Bluetooth Operation Dialing Press to display keypad to enter a phone number and make a call. Recent Calls Press to display a list of recently-called numbers, then press the desired phone number to call it. Phone Book Press to view a list of contacts stored in your phone, then press the desired phone number to call it.
  • Page 16 ASC419N OPERATION SiriusXM® Satellite Radio Operation SiriusXM® Radio Only SiriusXM® Satellite Radio brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment.
  • Page 17 ASC419N OPERATION SiriusXM® Satellite Radio Operation Main Menu Press to return to the Main Menu screen. Band Touch to select a band of preset channels. Three bands are available: SXM1, SXM2, and SXM3. Each band can store up to six preset channels.
  • Page 18 ASC419N OPERATION SiriusXM® Satellite Radio Operation Additional Options Additional Options Press to display/adjust the options Mode, Tune Scan and Go to Live: Mode - Press to access and adjust the following options: • Parental Code - When enabled, the Parental Control feature requires you to enter a passcode to tune to the locked channels.
  • Page 19 ASC419N OPERATION SiriusXM® Satellite Radio Operation Preset Buttons Press and hold any preset button (1-6) to save the current station as a preset. Press the desired preset button to begin playback of the corresponding preset channel. Direct Press to display screen for direct channel access. Press the desired channel number, then press Enter.

  • Page 20: Navigation Operation

    Download the Axxera RV Nav Navigation App from Apple Appstore Navigation App or Google Playstore, install it on a smartphone or tablet and connect your device to the ASC419N's USB port to display maps and navigation on the unit's display. App Setup The app will prompt you to Create a New Account (1), agree to Terms of Service (2), select a User Name/Password (3) and Verify Email (4).
  • Page 21 The Axxera RV Nav Navigation App is free for 30 days, but your purchase of the ASC419N includes use of the app for 3 years using the product code that was included with your receiver. Access Settings (1) / My Account (2) / Register My Head Unit (3) to complete the registration process.
  • Page 22 ASC419N OPERATION Navigation Operation Access the Settings menu to adjust Settings Menu the following options: • My Vehicle • Routing Options • Guidance Settings • Display Settings • Home Setting • Office Setting • My Account • Map Download •...
  • Page 23 ASC419N OPERATION Navigation Operation Home Press to toggle between the current mode and navigation. Mode Press to select and display three options for the navigation screen. Temperature Displays weather status icon and temperature for the current location. Mode Select Press MODE to access available input modes: Bluetooth Music, Radio, USB, SiriusXM, iPod.
  • Page 24 ASC419N OPERATION Navigation Operation Road Incline Displays the absolute heigth value of the current position. Press to toggle between the absolute heigth and rear camera screen. Press to set and search for map information and destinations. Press to set and search for map information and destinations and to Setting Menu simulate a driving route.
  • Page 25 ASC419N OPERATION Navigation Operation Zoom Out Route Line Destination Address Destination Pin Total Time/Expected Arrival Map Mode/Compass Status Routing Zoom In...
  • Page 26 After downloading and installing the iPlug N app on your device, pair your device to the ASC419N as stated above for Bluetooth paring. When the Axxera iPlug app is installed on an Apple/ Android device, close the app before Bluetooth pairing, otherwise there may be errors with the...
  • Page 27 ASC419N OPERATION Steering Wheel Interface (SWI) Operation Select SWC from the Settings menu to display and set up steering wheel control. Functions Save programmed functions Reset to factory default settings SWC Programming Before starting, press RESET to remove any previous settings.
  • Page 28 ASC419N OPERATION Front 3.5mm Aux Input & Rear RCA A/V Input Auxiliary Input Connect an optional audio source into the 3.5mm (front panel) input. Select auxiliary input from the Main Menu to listen to audio. Adjust volume on the external audio source as needed (if connected to the headphone output of the device).

  • Page 29: Troubleshooting

    Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your Axxera product. Dealer Name...
  • Page 30 ASC419N OPERATION SiriusXM Troubleshooting SiriusXM Recommendation Advisory Message 1. The radio has detected a fault with the SiriusXM antenna. The antenna cable may be either disconnected or damaged. 2. Verify that the antenna cable is connected to the SiriusXM Connect Vehicle Tuner.

  • Page 31: Limited One Year Warranty

    ASC419N OPERATION Limited One Year Warranty This warranty gives you specific legal rights. You What to do? may also have other rights which vary from state to 1. Before you call for service, check the state. troubleshooting guide in your owner’s manual. A slight adjustment of any custom controls may save Dual Electronics Corp.

  • Page 32: Specifications

    ASC419N OPERATION Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 20dBf Stereo separation @ 1kHz: 38dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 24uV Frequency response: 30Hz-2.3kHz Front USB Compatibility: High Speed USB 2.0...
  • Page 33 ASC419N OPERATION Notes...
  • Page 34 Dual Electronics Corp. Toll Free: 1-866-382-5476 Monday-Friday, 9AM-5PM EST www.axxeraaudio.com ©2019 Dual Electronics Corp. All rights reserved. NSA0519-V01 Printed in China...
