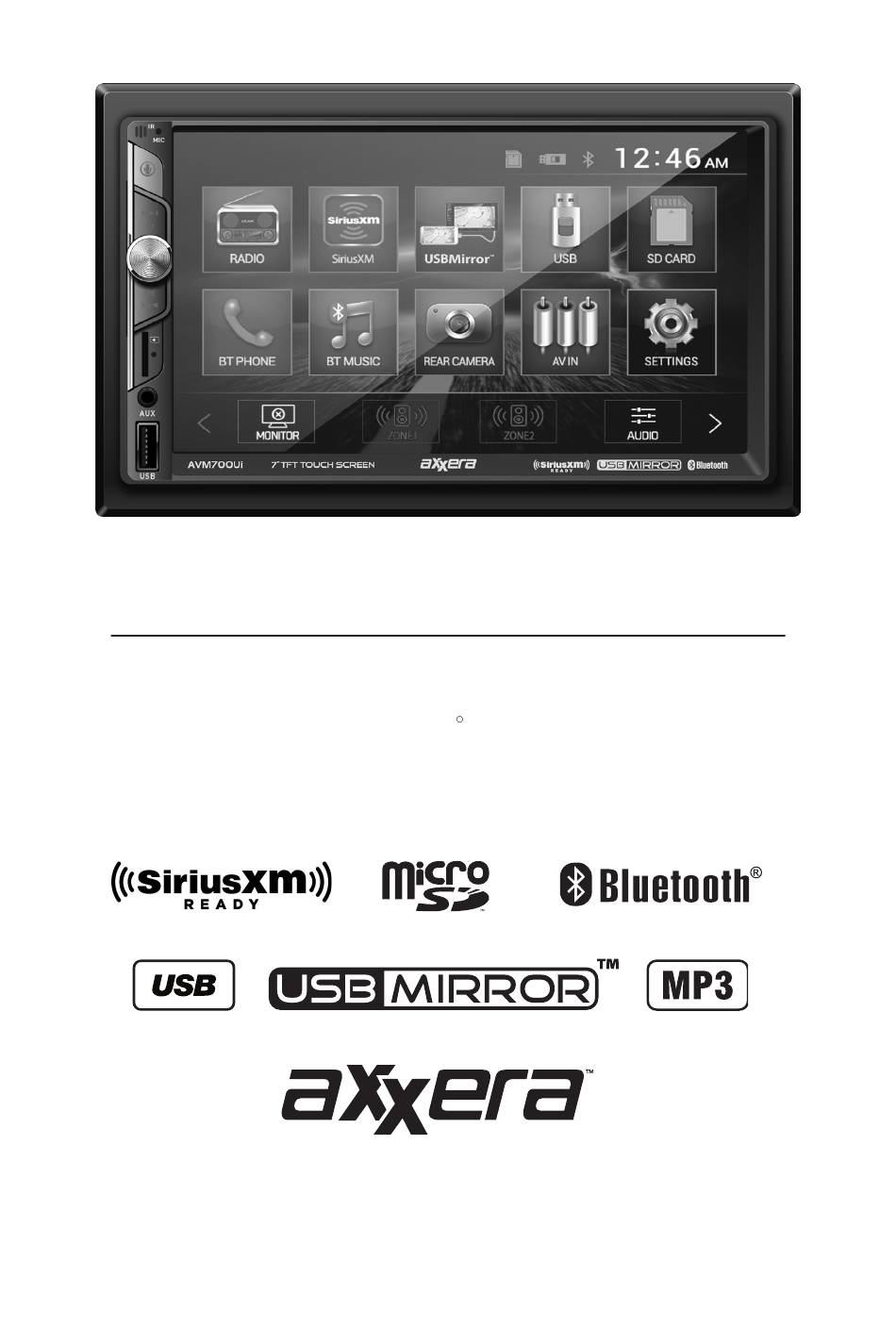

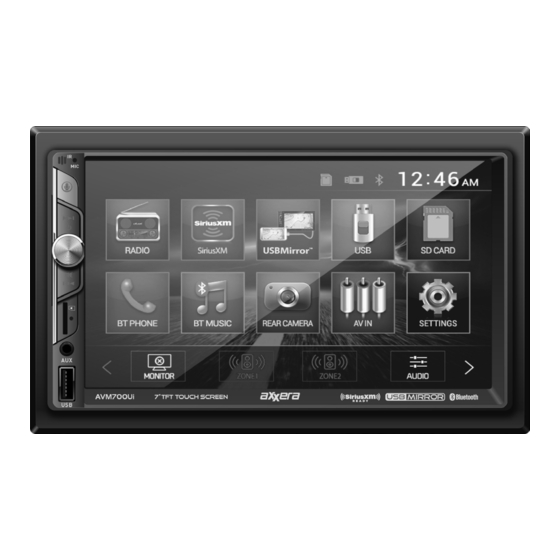

  • Page 1 AVM700Ui INSTALLATION/OWNER’S MANUAL Multimedia Receiver with Bluetooth , USBMirror and SiriusXM-Ready featuring a 7" Touch Screen Display...
  • Page 2 Copyright Notes Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio, Inc. All rights reserved. MicroSD logo is a trademark of SD-3C, LLC. Operating system updates from Apple and Android may cause your receiver not to function properly. This can usually be fixed by doing a software/firmware update to the receiver itself.
  • Page 3 Please read all instructions carefully before attempting to install or operate. Due to its technical nature, it is highly recommended that your Axxera AVM700Ui is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only.
  • Page 4 AVM700Ui OPERATION Preparation Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
  • Page 5 AVM700Ui OPERATION Wiring Diagram - Inputs/Outputs Note: When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage. The unit uses (1) 10 amp blade-type fuse located on the back of the unit.

  • Page 6: Table Of Contents

    AVM700Ui OPERATION Control Locations IR Remote Sensor Tune / Track Down Microphone microSD Card Slot Voice Activation Reset Tune/Track Up AUX Input Power/Volume/Mute USB Port Loudness Power Mode Number keys Play / Pause Root Mute OSD (On Screen Display) Local/Random...
  • Page 7 AVM700Ui OPERATION Remote Control Preparation Remove battery insulation tape . Notes: • The remote control uses one 3 volt Lithium CR2025 battery. Remove the battery if the remote will not be used for a month or longer. • Remove and dispose of battery properly.

  • Page 8: Power

    AVM700Ui OPERATION General Operation Power On/Off Press to turn the unit on. Press and hold to turn the unit off. Mode Press MODE to access available input modes: Radio, SiriusXM, DualMirror, USB, SD Card, Bluetooth Phone, Bluetooth Music, Rear Camera, Auxiliary Input and AV In. Modes of operation are indicated on the display and/or the monitor.
  • Page 9 AVM700Ui OPERATION General Operation From the Main Menu screen, press Settings in the bottom right corner to Setup Menu access the Setup Menu and select from the following categories: General, Audio, Video and Bluetooth. General: • OSD Language - Select English as the language for the on-screen display.

  • Page 10: Mode

    AVM700Ui OPERATION AM/FM Tuner Operation Radio Operation Select the Radio icon from the Main Menu screen. Main Menu Press to return to Main Menu screen. Current Mode Indicator Displays current mode of operation. Tune Frequency Down Press momentarily to tune the unit down one step at a time. Press and hold to tune down by seeking the next strong station.
  • Page 11 AVM700Ui OPERATION AM/FM Tuner Operation Press and hold to automatically store the six strongest stations in the AS/PS current band as presets. Press briefly for a preset scan, which will scan all preset stations and play 10 seconds of each. Press again to cancel the scan and continue playing the current station.

  • Page 12: Play / Pause

    AVM700Ui OPERATION USB/SD Operation play MP3 files from a USB device or SD card, insert device and CD/MP3 playback will begin automatically. To return to USB or SD playback or JPG Operation from another mode of operation, select the corresponding icon from the Main Menu.
  • Page 13 AVM700Ui OPERATION USB/SD Operation 9 10 Folder Search Press to access the directory of folders and files. Use the up/down arrows to scroll through the folder list, then press on the name of the desired folder to access it. Use the up/down arrows to scroll through the file list, then press on the name of the desired file to access it.
  • Page 14 AVM700Ui OPERATION Media Compatibility - USB/SD Card File Type FAT 12 File System FAT 16/FAT 32  .mp3/.MP3/.Mp3/.mP3  File Extension .rmp/.m4a MPEG 1  MPEG MPEG 2  Format MPEG 2.5  MPEG 1 32/44. 1 /48kHz Sampling MPEG 2 12/16/22.05/24kHz...
  • Page 15 AVM700Ui OPERATION Media Compatibility Media Compatibility The following types of discs/files are compatible: • AVI - Max video resolution: 720x480, Max video bit rate: 5000 kbps • Mpeg4: Max video resolution: 720x480, Max video bit rate: 5000 kbps • SD/USB format type: FAT32/FAT The following types of discs/files are not compatible: •...
  • Page 16 The unit broadcasts the pairing signal constantly when no devices are currently connected. Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "Axxera AVM700Ui". The Bluetooth passcode "0000".

  • Page 17: End Call

    AVM700Ui OPERATION Bluetooth Operation Screen Press to adjust screen brightness or put the monitor into standby mode. Audio Press to access audio setting such as EQ, Surround Sound Settings and Field Settings (Balance). Settings Press to access the Settings Menu.
  • Page 18 AVM700Ui OPERATION SiriusXM® Satellite Radio Operation SiriusXM® Radio Only SiriusXM® Satellite Radio brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment.
  • Page 19 AVM700Ui OPERATION SiriusXM® Satellite Radio Operation Main Menu Press to return to the Main Menu screen. Band Touch to select a band of preset channels. Three bands are available: SXM1, SXM2, and SXM3. Each band can store up to six preset channels.
  • Page 20 AVM700Ui OPERATION SiriusXM® Satellite Radio Operation Additional Options Additional Options Press to display/adjust the options Mode, Tune Scan and Go to Live: Mode - Press to access and adjust the following options: • Parental Code - When enabled, the Parental Control feature requires you to enter a passcode to tune to the locked channels.
  • Page 21 AVM700Ui OPERATION SiriusXM® Satellite Radio Operation Preset Buttons Press and hold any preset button (1-6) to save the current station as a preset. Press the desired preset button to begin playback of the corresponding preset channel. Direct Press to display screen for direct channel access. Press the desired channel number, then press Enter.
  • Page 22 AVM700Ui OPERATION Front 3.5mm Aux Input & Rear RCA A/V Input Auxiliary Input Connect an optional audio source into the 3.5mm (front panel) input. Select auxiliary input from the Main Menu to listen to audio. Adjust volume on the external audio source as needed (if connected to the headphone output of the device).
  • Page 23 Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your Axxera product. Dealer Name...
  • Page 24 AVM700Ui OPERATION SiriusXM Radio Advisory Messages SiriusXM Recommendation Advisory Message 1. The radio has detected a fault with the SiriusXM antenna. The antenna cable may be either disconnected or damaged. 2. Verify that the antenna cable is connected to the SiriusXM Connect...
  • Page 25 AVM700Ui OPERATION Limited One Year Warranty This warranty gives you specific legal rights. You What to do? may also have other rights which vary from state to 1. Before you call for service, check the state. troubleshooting guide in your owner’s manual. A slight adjustment of any custom controls may save Dual Electronics Corp.
  • Page 26 AVM700Ui OPERATION Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf -50dB quieting sensitivity: <26dBf Stereo separation @ 1kHz: >25dB Frequency response: 30Hz-15kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 24uV Frequency response: 30Hz-2.3kHz Front USB Compatibility: High Speed USB 2.0...
