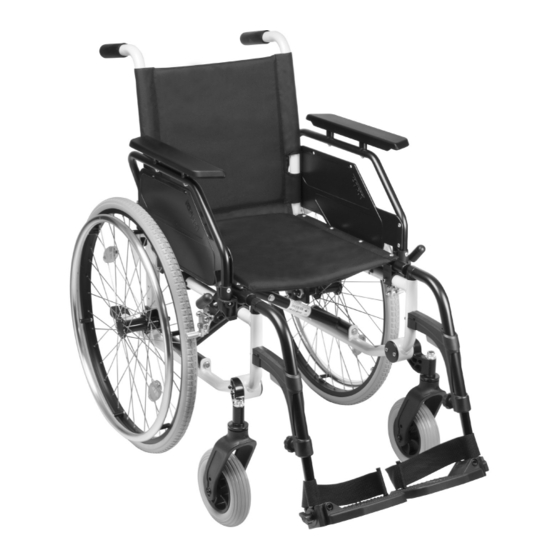

Dietz CANEO_E Operating Instructions Manual

Lightweight folding wheelchair
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Lightweight folding wheelchair
Operating instructions
Version 5.0.0
DE
EN
FR
IT
NL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CANEO_E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dietz CANEO_E

Summary of Contents for Dietz CANEO_E

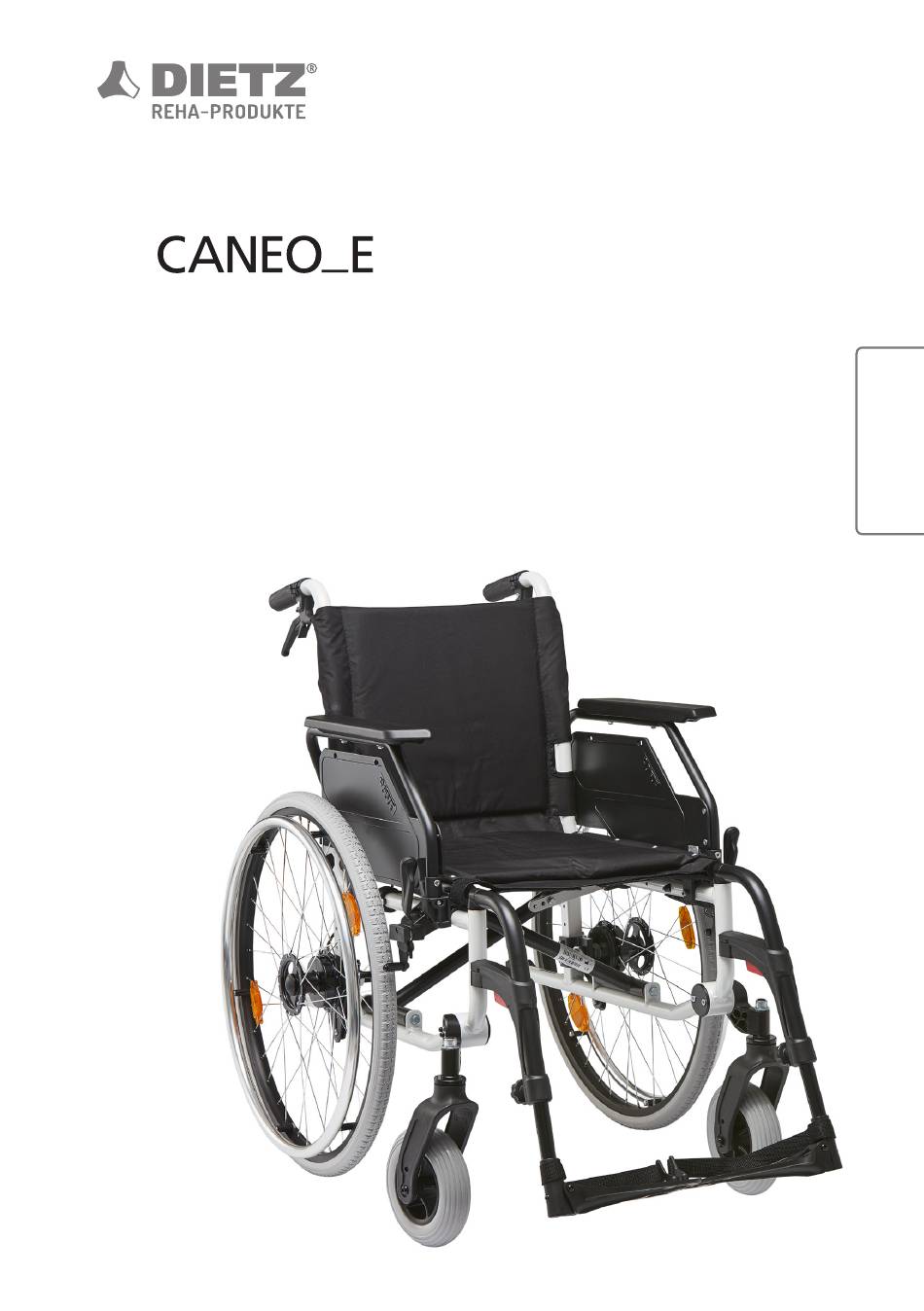

  • Page 1 Lightweight folding wheelchair Operating instructions Version 5.0.0...
  • Page 2 Fax: +49 7248.9186-86 info@dietz-reha.de www.dietz-reha.de Misprint, falsities, price and product changes reserved. © 2018 DIETZ GmbH Reha-Produkte, Karlsbad Reproduction, also extracts, by written permission from DIETZ GmbH, Karlsbad only. DIETZ GmbH / Operating instructions lightweight folding wheelchair CANEO_E / Version 5.0.0. EN...
  • Page 3 OPERATING INSTRUCTIONS CANEO_E Thank you for purchasing a CANEO_E wheelchair from DIETZ Reha Produkte. Please read these operating instructions carefully before first using the wheelchair. They contain important safety instructions and valuable tips on correctly using and caring for the wheelchair. If you have any ques- tions or require additional information, please contact the specialist re- tailer which supplied the wheelchair to you.

  • Page 4: Table Of Contents

    Wheelchair total width ....8 4.5 Angle-adjustable foot plates ..19 The CANEO_E equipment ....9 4.6 Propelling and slowing down the wheelchair with the push rims .
  • Page 5 Liability ......47 DIETZ measurement system ....36 Technical specifications .

  • Page 6: Information

    It can be self-propelled by the patient or used with an accompa- nying person to support. In two variants, the CANEO_E is designed for a maximum load of 125 kg or 130 kg. This specification can be checked on the serial number sticker placed on the crossbar / frame.

  • Page 7: Symbols

    01 INFORMATION WARNING SYMBOLS Warnings about potential Different symbols are used in this manual to give dangers with the risk of injury of you warnings about potential dangers and help- the user or accompanying person. ful advice for the daily use of your wheelchair. NOTE CAUTION Valuable tips and tricks to help...

  • Page 8: Product Description

    The CANEO_E is pre-assembled and very easy to set up. To get started you simply have to unfold the wheelchair and click the leg rests into place.

  • Page 9: The Caneo_E Equipment

    02 PRODUCT DESCRIPTION THE CANEO_E EQUIPMENT Basic components Backrest Push handles (adjustable) (height-adjustable) Armrest (height-adjustable) Sideguard Push rims (swing-away) Curb climber Leg rest Quick-release axle Park brake Foot plate Heel strap...

  • Page 10: Putting Into Operation

    03 PUTTING INTO OPERATION PREPARING THE WHEELCHAIR FOR USE The CANEO_E is pre-assembled and very easy to set up. To get started you simply have to unfold the wheelchair and click the leg rests into place. In this folowing chapter you can find some information about how to set up and use your wheelchair.

  • Page 11: Folding Apart

    03 PUTTING INTO OPERATION 3.1 Folding apart Position yourself next to the wheelchair and tilt it slightly towards you. Then press the crossbar apart with both your hands. Make sure that the crossbar engages properly in its sideframe brackets.

  • Page 12: Back Upholstery

    3.3 Leg rests Hook the leg supports in and swivel them for- wards. The leg rest will then click into place automatically. DIETZ GmbH / Operating instructions lightweight folding wheelchair CANEO_E / Version 5.0.0. EN...

  • Page 13: Foot Plates

    03 PUTTING INTO OPERATION 3.4 Foot plates Fold the foot plates down. 3.5 Removing and connecting the rear wheels In some situations it is helpful to remove the rear wheels. Press the button on the quick-release axle and hold the hub with four fingers. Then pull the rear wheel out of the axle mounting.

  • Page 14: Seat Depth

    Fold the extension beneath the seat and fasten the Velcro straps to secure it there. Carry the procedure out in the opposite se- quence to increase the seat depth. DIETZ GmbH / Operating instructions lightweight folding wheelchair CANEO_E / Version 5.0.0. EN...

  • Page 15: Lower Leg Length

    03 PUTTING INTO OPERATION 3.7 Lower leg length The setting is correct when your upper legs are horizontal with your feet positioned on the foot plates. To adjust, release the adjustment screw one quarter of a turn and pull the locking mecha- nism backwards.

  • Page 16: Using The Wheelchair

    NOTE To stop the wheelchair from rolling or sliding away while getting seated, it is helpful to place both rear wheels against a wall. DIETZ GmbH / Operating instructions lightweight folding wheelchair CANEO_E / Version 5.0.0. EN...
  • Page 17 04 USING THE WHEELCHAIR Getting into your wheelchair 1. Take off the leg rests (see chapter 4.4). 2. If possible, place the wheelchair’s rear wheels against a wall to avoid any roll-off. 3. Apply both locking brakes. 4. Place yourself in front of the wheelchair. Then carefully move back- wards until your legs touch the seat.

  • Page 18: Swivelling The Side Panels Back

    Fold the foot plates up to make entering and exiting easier. The foot plates must be folded up to save spa- ce when folding the wheelchair together. DIETZ GmbH / Operating instructions lightweight folding wheelchair CANEO_E / Version 5.0.0. EN...

  • Page 19: Swivelling Away And Detaching The Leg Rests

    When the leg support is swivelled forwards, it can be clearly heard to engage. 4.5 Angle-adjustable foot plates The CANEO_E is equipped with angle-adjusta- ble foot plates as standard. To adjust the ang- le, first loosen the lever bolt and pull the foot plate slightly inwards until the locking mecha- nism is released.

  • Page 20: Propelling And Slowing Down The Wheelchair With The Push Rims

    To turn on the spot one hand pushes forward the tyre casing with your thumb. and the other hand backwards at the same time. Risk of trapping between the tyre and sideguard / armrest! DIETZ GmbH / Operating instructions lightweight folding wheelchair CANEO_E / Version 5.0.0. EN...

  • Page 21: Park Brake

    04 USING THE WHEELCHAIR 4.7 Park brake The park brake enables the user to park the wheelchair securely. Actuate the locking brake (tyre brake) when stationary. To do this, push the lever forwards until it stops independently. The wheelchair is now standing securely;...

  • Page 22: Braking By An Accompanying Person (Optional)

    Using only wheelchair busing his own one side will make the chair very strength. The locking brake is hard to manoeuvre. then available as a parking brake. DIETZ GmbH / Operating instructions lightweight folding wheelchair CANEO_E / Version 5.0.0. EN...

  • Page 23: Anti-Tip Wheels (Optional)

    04 USING THE WHEELCHAIR 4.9 Anti-tip wheels (optional) The optional anti-tip wheels prevent the wheelchair from tipping backwards. They can also be used to help tilt the chair by an accom- panying person. The height of the wheels can be adjusted. To do this, pull the silver-coloured disks towards you and slide the tube upwards or downwards along the bracket.

  • Page 24: Safety Belt (Optional)

    The safety belt is secured to the backrest tube at the rear right and left. Subsequent installation should be carried out in a specialist workshop. DIETZ GmbH / Operating instructions lightweight folding wheelchair CANEO_E / Version 5.0.0. EN...

  • Page 25: Transport

    CANEO_E folded W/H/L = 31 / 92 / 105 Fold up the foot plates and leave the wheel- chair. Components that can easily be detached from the wheelchair when stowed should be removed and stored in a suitable, safe place.

  • Page 26: Using Wheelchairs As A Passenger Seat In A

    ISO 10542 or DIN 75078-2 (power knot system) and make sure they are used in accordance with the regu- lations. DIETZ GmbH / Operating instructions lightweight folding wheelchair CANEO_E / Version 5.0.0. EN...

  • Page 27: Securing The Wheelchair Restraint System

    (B) Rear attachment point on the wheelchair those specified (e.g. anti-tipper, armrests). Do not modify the transport strap attachment points on the wheelchair without DIETZ’s con- sent. The wheelchair restraint system must be fitted inside the vehicle as described in the restraint manufacturer’s installation manual.

  • Page 28: Wheelchair Occupant Restraint System

    ISO 7176-19 / ISO 10542 or DIN 75078 certified and are correspond- (D) Wrong way to attach the safety belts ingly marked by their manufacturer. DIETZ GmbH / Operating instructions lightweight folding wheelchair CANEO_E / Version 5.0.0. EN...
  • Page 29 The person having secured the restraint system must be trained or instructed in the use of the system. Wheelchairs that have been involved in an ac- cident must be checked by a DIETZ service technician before any further use.

  • Page 30: Individual Settings

    If the wheelbase is changed (chapter 5.5), it may be necessary to remove the bolt comple- tely and install the brake in a recess further forwards or to the rear. DIETZ GmbH / Operating instructions lightweight folding wheelchair CANEO_E / Version 5.0.0. EN...

  • Page 31: Drum Brake (Optional)

    05 INDIVIDUAL SETTINGS 5.2 Drum brake (optional) In order to achieve an optimal braking effect, the braking force is adjusted on the adjusting screw on the brake cable. The braking force is increased by loosening the adjusting screw. Loosen the lock nut and unscrew the adjusting screw until you hear grinding noises from the turning wheel.

  • Page 32: Armrest Height

    Loosen the two bolts securing the armrest to the sideguard. The armrests can then be mo- ved forwards or backwards. Then tighten the bolts securely again to the sideguard. DIETZ GmbH / Operating instructions lightweight folding wheelchair CANEO_E / Version 5.0.0. EN...

  • Page 33: Seat Height Adjustment

    05 INDIVIDUAL SETTINGS 5.5 Seat height adjustment The height of the wheelchair’s seat is adjusted in 4 stages of 30 mm (42, 45, 48, 51 cm). Two Castor upwards stages of 30 mm are achieved using 2 diffe- rent holes in the fork. A further stage of 60 mm is achieved by turning the castor.

  • Page 34: Seat Angle Adjustment

    3 steps (–3°, 0°, +3°). The actual angle is shown in the window of the castor housing. WARNING After changing the seat height, the handbrakes must be readjus- ted (see chapter 5.1). DIETZ GmbH / Operating instructions lightweight folding wheelchair CANEO_E / Version 5.0.0. EN...

  • Page 35: Wheelbase Extension

    05 INDIVIDUAL SETTINGS 5.7 Wheelbase extension Moving the rear wheels backwards increases the distance between wheels and therefore also the stability of the wheelchair. Moving the rear wheels forwards will increase the manoeuvrability of your wheelchair but make the chair less stable. To alter the wheelbase first remove the rear wheels.

  • Page 36: Technical Data

    All of the measurements listed in these instruc- tions are to be understood within the framework of the DIETZ system of measurement. Seat depth...
  • Page 37 06 TECHNICAL DATA NOTE All dimensions taken on textile parts (e.g. back upholstery) are to be understood with a toleran- ce of +/–1 cm. Lower leg length Front seat height Rear seat height Front seat height: Total height from ground to front upper edge of the seat tube Rear seat height: Total height from ground to rear upper edge of the seat tube Lower leg length:...

  • Page 38: Technical Specifications

    Tipping stability (degree) up to 10° Max. user weight (kg) Weight (kg) 16,2 – 17,1 17,8 – 18 Materials Non corrosive aluminum frame, high quality upholstery materials DIETZ GmbH / Operating instructions lightweight folding wheelchair CANEO_E / Version 5.0.0. EN...

  • Page 39: Maintenance Log

    06 TECHNICAL DATA MAINTENANCE LOG C = checked E = exchanged R = repaired Wann What Drum brake Locking brake lever Attendant brake lever Push handles Side panel, complete Seat upholstery Backrest upholstery Rear wheels Front wheels Tyre inflation pressure Tyre casing Push rims Frame...

  • Page 40: Safety Instructions

    Make sure that the tread depth of your and mental receptiveness. tyres is sufficient (>1 mm). DIETZ GmbH / Operating instructions lightweight folding wheelchair CANEO_E / Version 5.0.0. EN...
  • Page 41 07 SAFETY INSTRUCTIONS Before any movement, verify that the The CANEO_E is tested according to ISO brakes are functioning properly. standard 7176-19 and is therefore approved as a seat for transporting Observe the road traffic regulations people in a car. Please refer to chapter when moving in road traffic.

  • Page 42: Instructions For General Use

    That all moving parts run smoothly and function without noise. Squeaking noises indicate damage and should be checked by the specialist retailer. That all threaded and riveted connections are undamaged. DIETZ GmbH / Operating instructions lightweight folding wheelchair CANEO_E / Version 5.0.0. EN...

  • Page 43: Care Instructions For The User

    08 INSTRUCTIONS FOR GENERAL USE CARE INSTRUCTIONS FOR THE USER The wheelchair’s frame parts can be wiped down with a damp cloth. A mild cleaning agent can be used in the case of more severe soiling. The wheels can be cleaned using a damp brush with plastic bristles (do not use a wire brush!).
  • Page 44 Attention tipping danger! Please note safety instructions! Crash tested according to ISO 7176-19 / Marking of the securement points for a four-point strap-type tiedown at the ISO 7176-19 wheelchair DIETZ GmbH / Operating instructions lightweight folding wheelchair CANEO_E / Version 5.0.0. EN...

  • Page 45: Forwarding / Reusing

    08 INSTRUCTIONS FOR GENERAL USE FORWARDING / REUSING In the event that the wheelchair is forwarded / reused, please remember to hand over all technical documents required for safe handling to the new user. The wheelchair must be cleaned and disinfected, and must be checked for damage and approved by the specialist retailer.

  • Page 46: Manufacturer's Declarations

    - Requirements for resistance to ignition in accordance with EN 1021-2 - Reqiuirements for biocompatibility in accordance with ISO 10993 - Requirements for the wheelchair as a seat in the motor vehicle (ISO 7176-19) DIETZ GmbH / Operating instructions lightweight folding wheelchair CANEO_E / Version 5.0.0. EN...

  • Page 47: Responsibility

    LIABILITY DIETZ GmbH only bears liability if the products are used under the specified conditions and for the specified purposes. We recommend that the products be handled appropriately and cared for according to the instructions. DIETZ GmbH accepts no liability for damage caused by components and replace- ment parts which have not been approved by DIETZ GmbH.
  • Page 48 State 07/2018 (BL) DIETZ GmbH Reutäckerstraße 12 76307 Karlsbad Tel.: +49 7248.9186-0 Fax: +49 7248.9186-86 info@dietz-reha.de www.dietz-reha.de Misprint, falsities, price and product changes reserved. © 2018 DIETZ GmbH Reha-Produkte, Karlsbad Reproduction, also extracts, by written permission from DIETZ GmbH, Karlsbad only.
