Summary of Contents for Dietz tauron rsi XXL
-

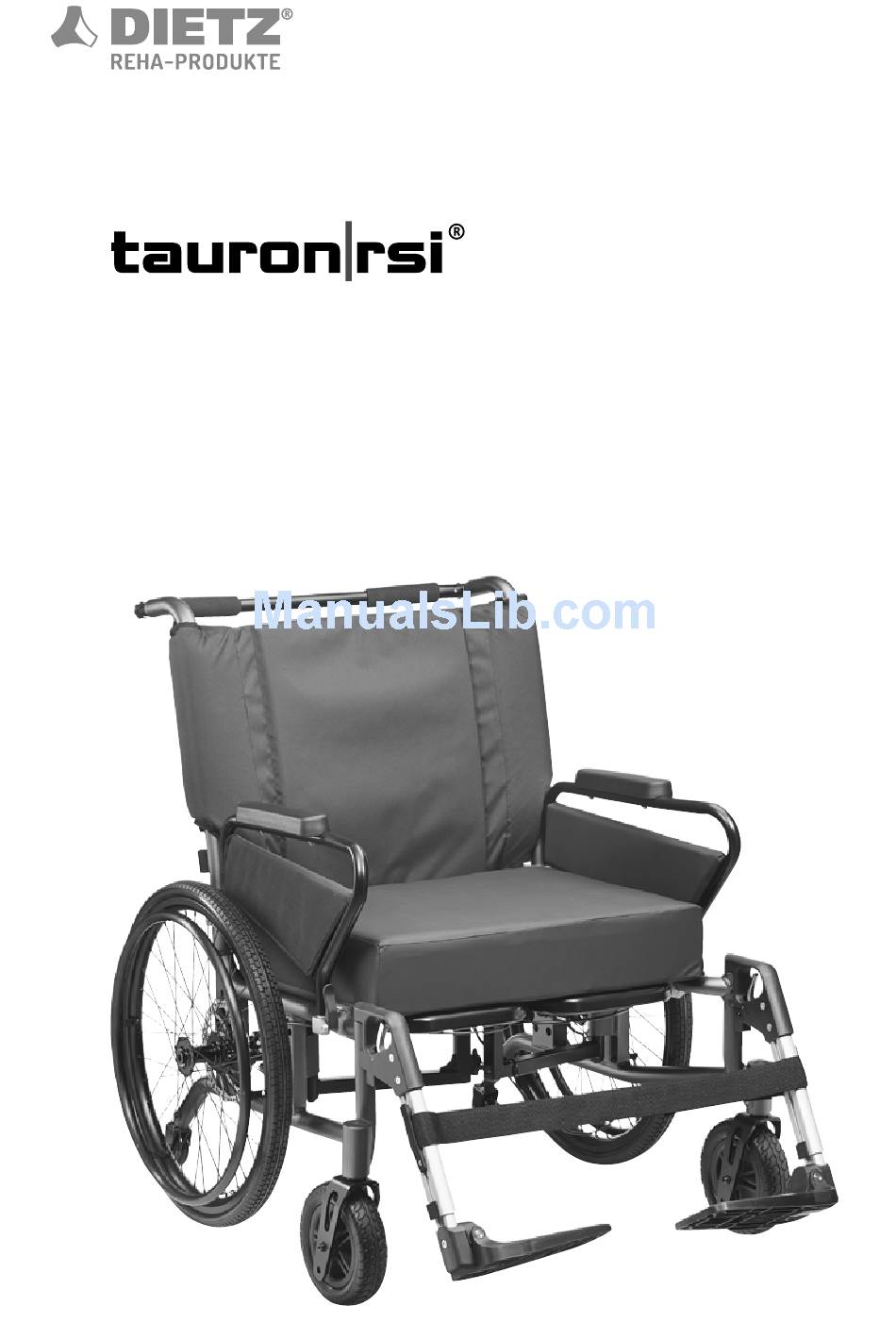

Page 1: Operating Instructions

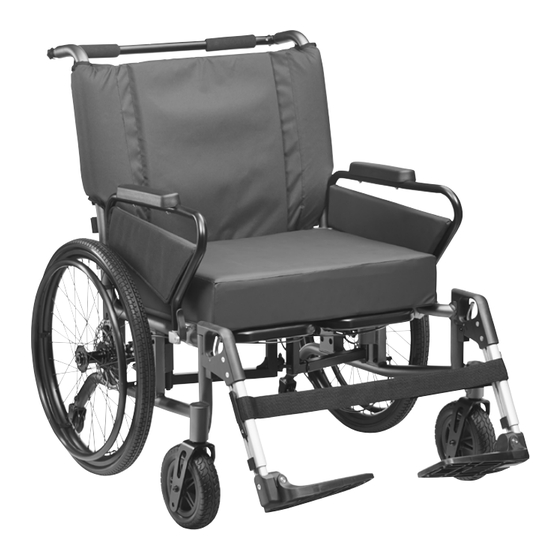

Operating instructions manual XXL wheelchair Version 1.0.0 EN... - Page 2 Fax: +49 7248.9186-86 info@dietz-reha.de www.dietz-reha.de Misprint, falsities, price and product changes reserved. © DIETZ GmbH Reha-Produkte, Karlsbad Reproduction, also extracts, by written permission from DIETZ GmbH, Karlsbad only. DIETZ GmbH / operating instructions manual XXL wheelchair tauron|rsi / Version 1.0.0 EN...
- Page 3 OPERATING INSTRUCTIONS tauron|rsi Thank you for purchasing the manual XXL wheelchair tauron|rsi from DIETZ. Read these operating instructions carefully before you begin to use your new tauron|rsi. They contain important instructions that will allow you to use the wheelchair‘s technical advantages to the fullest extent.
-
Page 4: Table Of Contents
3.6 Adjusting the back seat width ..14 3.7 Side abduction panels ....15 DIETZ GmbH / operating instructions manual XXL wheelchair tauron|rsi / Version 1.0.0 EN... - Page 5 Liability ......41 Dietz‘s measurement system ... . .32 10 INDEX Dimensions and weight .
-
Page 6: Information
Use of the wheelchair is unsuitable in the case of False sensations Severe disequilibrium Loss of limbs on both arms Joint contracture / joint damage on both arms Inability to sit Impaired or inadequate vision DIETZ GmbH / operating instructions manual XXL wheelchair tauron|rsi / Version 1.0.0 EN... -
Page 7: Warning Symbols
01 INFORMATION SYMBOLS CAUTION Different symbols are used in this manual to give Warnings about potential you warnings about potential dangers and help- dangers with the risk of injury ful advice for the daily use of your wheelchair. of the user or accompanying person. -
Page 8: Product Description
The contents consist of: 1 set of cardboard box and packaging 1 pre-assembled wheelchair 1 pair of leg rests 1 user’s manual Seat pad Accessories (if selected) DIETZ GmbH / operating instructions manual XXL wheelchair tauron|rsi / Version 1.0.0 EN... -
Page 9: Set-Up Of The Tauron|Rsi
02 PRODUCT DESCRIPTION SET-UP OF THE tauron|rsi Basic components Push bar 360° Backrest adjustable (Velco) Armrest pads (adjustable) Side abduction panels Push rims Seat plate Leg rest Anti-tip support Disc brake Side panel lock Foot plate (angle-adjustable) -
Page 10: Putting Into Operation
NOTE First operation should be carried out by trained personnel of the medical supplies shop. DIETZ GmbH / operating instructions manual XXL wheelchair tauron|rsi / Version 1.0.0 EN... -
Page 11: Unfolding The Wheelchair
03 PUTTING INTO OPERATION 3.1 Unfolding the wheelchair Stand in front of the wheelchair, hold on to the side tubes at the front and push them apart. Then press one of the seat plates down in the front with the palm of your hand until the wheelchair has completely unfolded. -
Page 12: Leg Rests
In order to ensure that both sides are at the same height, indexing has been added to the outsi- de for better orientation. DIETZ GmbH / operating instructions manual XXL wheelchair tauron|rsi / Version 1.0.0 EN... -
Page 13: Foot Plates / Footboard (Optional)
03 PUTTING INTO OPERATION 3.5 Foot plates / footboard (optional) Fold the foot plates down. The optional footboard connects the two foot plates together. Fit the footboard fully onto one of the foot plates and fold the footboard down until the opening on the opposite side completely covers the foot plate. -
Page 14: Adjusting The Back Seat Width
Support and guide the front clamp when sliding it on the side frame and push it slightly upwards. (3) Then secure the Allen screws in the back clamp. DIETZ GmbH / operating instructions manual XXL wheelchair tauron|rsi / Version 1.0.0 EN... -
Page 15: Side Abduction Panels
03 PUTTING INTO OPERATION Press the front clamp slightly upwards so that the pin of the side panel is flat. Finally, secure the two Allen screws in the front clamp. If you continue to position the clamps to the inside, the width of the back seat will be re- duced. -
Page 16: Drive Mode
NOTE To stop the wheelchair from rolling or sliding away while getting seated, it is helpful to place both rear wheels against a wall. DIETZ GmbH / operating instructions manual XXL wheelchair tauron|rsi / Version 1.0.0 EN... - Page 17 04 DRIVE MODE Getting into your wheelchair 1. Take off the leg rests (see chapter 4.4). 2. If possible, place the wheelchair’s rear wheels against a wall to avoid any roll-off. 3. Apply both locking brakes. 4. Place yourself in front of the wheelchair. Then carefully move back- wards until your legs touch the seat.
-
Page 18: Removing The Side Panels
(see chapter 4.8). CAUTION The user must not put weight on the foot plates when getting in and out of the wheelchair. DIETZ GmbH / operating instructions manual XXL wheelchair tauron|rsi / Version 1.0.0 EN... -
Page 19: Swivelling Away And Detaching
04 DRIVE MODE 4.4 Swivelling away and detaching the leg rests To detach the leg rests, first fold up the foot plates. Pull the locking lever and swivel the leg rests out. Now you can pull the leg rests up and out. To assemble them, carry out the steps in rever- se order. -
Page 20: Propelling And Slowing Down The Wheelchair With The Push Rims
To turn on the spot, push one hand forwards and the other hand backwards at the same Risk of trapping between the time. tyre and side panel / armrest! DIETZ GmbH / operating instructions manual XXL wheelchair tauron|rsi / Version 1.0.0 EN... -
Page 21: Locking Brake
04 DRIVE MODE 4.6 Locking brake The locking brake allows the user to securely park the wheelchair. Activate the locking brake when stationary. (1) Push the lever forwards into a horizontal posi- tion until it holds independently. (2) The wheelchair is now stable; you can transfer to another chair or park it. -
Page 22: Brake For Accompanying Person
The locking brake is then available as a parking brake. DIETZ GmbH / operating instructions manual XXL wheelchair tauron|rsi / Version 1.0.0 EN... -
Page 23: Locking And Unlocking The Push Bar
04 DRIVE MODE 4.8 Locking and unlocking the push The fixation for the push bar can be released on the left side. Unscrew the star grip screw until the plastic part protrudes out of the opening. Then you can swivel the push bar down and out to the side. -
Page 24: Transporting And Folding Together
»03 Putting into operation« from page 10. CAUTION The tauron|rsi wheelchair is not tested according to ISO 7176-19 and can not be used as a seat in a passenger car. DIETZ GmbH / operating instructions manual XXL wheelchair tauron|rsi / Version 1.0.0 EN... -
Page 25: Belt (Optional)
04 DRIVE MODE 4.10 Belt (optional) An optional belt can be installed. This secures and stabilises the person seated in the wheel- chair. It prevents the person from tipping for- wards out of the wheelchair. The belt is secured to the backrest tube on the left and right. -
Page 26: Adjustments For Individual Settings
It is only CAUTION used to finely adjust the braking force. Ensure that both sides of the wheelchair are adjusted evenly. DIETZ GmbH / operating instructions manual XXL wheelchair tauron|rsi / Version 1.0.0 EN... -
Page 27: Backrest
05 ADJUSTMENTS FOR INDIVIDUAL SETTINGS 5.2 Backrest You can adjust the backrest as you wish. To do so, remove the backpad of the back and undo the Velcro straps. Then you can Velcro the straps together in the desired position. Start with the lowest strap. -
Page 28: Turning The Seat Plate
Ensure that all four screws are tightened. CAUTION The described modification option for the seat plate may only be carried out by a specia- list retailer. DIETZ GmbH / operating instructions manual XXL wheelchair tauron|rsi / Version 1.0.0 EN... -
Page 29: Seat Height Adjustment
05 ADJUSTMENTS FOR INDIVIDUAL SETTINGS 5.6 Seat height adjustment The height of the wheelchair seat is adjusted in three 4 cm stages (39, 43, 47 cm). Two 4 cm stages are achieved using 2 different holes in the fork. The other 4 cm stage is created by using a 6“... -
Page 30: Extending The Wheelbase
To assemble it, carry out the steps in reverse order. Ensure that you tighten the screws. CAUTION Altering the wheelbase means the brakes will have to be readjusted (see chapter 5.1). DIETZ GmbH / operating instructions manual XXL wheelchair tauron|rsi / Version 1.0.0 EN... -
Page 31: Push Bar
05 ADJUSTMENTS FOR INDIVIDUAL SETTINGS 5.8 Push bar The push bar can be individually adjusted in 45° stages according to the accompanying person‘s requirements. To do so, loosen and completely remove the two Allen screws (left / right). Bring the push bar into the position that is comfortable for you. -
Page 32: Technical Data
All of the measurements listed in these instruc- tions are to be understood within the framework of the DIETZ system of measurement. Back height... - Page 33 06 TECHNICAL DATA NOTE All dimensions taken on textile parts (e.g. back upholstery) are to be understood with a tolerance of +/–1 cm. Seat depth Lower leg length Seat height Seat depth: Front corner of the seat plate to the back tube (see chapter 5.5) Seat height: Measured from the ground to the top corner of the seat plate Lower leg length:...
-
Page 34: Dimensions And Weight
Rear wheels (diameter in inches) Front wheels (diameter in cm / inches) 15 / 20 // 6 / 8 Max. user weight (kg) Weight (kg) Aluminium frame anodized: Lunagrey Materials DIETZ GmbH / operating instructions manual XXL wheelchair tauron|rsi / Version 1.0.0 EN... -
Page 35: Maintenance Log
06 TECHNICAL DATA MAINTENANCE LOG C = checked E = exchanged R = repaired When What Locking brake Accompanying person‘s brake lever Push bar Side panel, complete Foot rests Seat plates Cross strut Back upholstery Front wheels Rear wheels Tyres Push rims Frame ATTENTION... -
Page 36: Safety Instructions
Do not stand on the foot plates or It is intended to transport one person footboard while getting up or sitting only, who is seated on the seat provided. down. DIETZ GmbH / operating instructions manual XXL wheelchair tauron|rsi / Version 1.0.0 EN... - Page 37 07 SAFETY INSTRUCTIONS Make sure that the tread depth of your CAUTION tyres is sufficient (>1 mm). The tauron|rsi wheelchair is not Before any movement, verify that the tested according to ISO 7176-19 brakes are functioning properly. and can not be used as a seat in Observe the road traffic regulations a passenger car.
-
Page 38: Instructions For General Use
That all moving parts run smoothly and function without noise. Squeaking noises indicate damage and should be checked by the specialist retailer. That all threaded and riveted connections are undamaged. DIETZ GmbH / operating instructions manual XXL wheelchair tauron|rsi / Version 1.0.0 EN... -
Page 39: Care Instructions For The User
08 INSTRUCTIONS FOR GENERAL USE CARE INSTRUCTIONS FOR THE USER The wheelchair’s frame parts can be wiped down with a damp cloth. A mild cleaning agent can be used in the case of more severe soiling. The wheels can be cleaned using a damp brush with plastic bristles (do not use a wire brush!). -
Page 40: Forwarding / Reusing
In this intended purpose and case we recommend read all instructions first. to replace these parts. DIETZ GmbH / operating instructions manual XXL wheelchair tauron|rsi / Version 1.0.0 EN... -
Page 41: Guarantee
LIABILITY DIETZ GmbH only bears liability if the products are used under the specified conditions and for the specified purposes. We recommend that the products be handled appropriately and cared for according to the instructions. DIETZ GmbH accepts no liability for damage caused by components and replace- ment parts which have not been approved by DIETZ GmbH. -
Page 42: Index
DIETZ’s measurement system ....... Disc brake ........... Disposal ............Extending the wheelbase ......Folding the foot plates ......... Folding together .......... Foot plates / footboard .........13 Forwarding ..........40 DIETZ GmbH / operating instructions manual XXL wheelchair tauron|rsi / Version 1.0.0 EN... - Page 43 10 INDEX Getting in of your wheelchair ....Seat plate ........... 16 / 17 Getting out of your wheelchair ....Serial number ..........16 / 17 Set-up of the tauron|rsi ........Side abduction pads ........Indication ............Side panels ........... 15 / 18 Information ...........
- Page 44 State 02/2017 (LW/RP) DIETZ GmbH Reutäckerstraße 12 76307 Karlsbad Tel.: +49 7248.9186-0 Fax: +49 7248.9186-86 info@dietz-reha.de www.dietz-reha.de Misprint, falsities, price and product changes reserved. © DIETZ GmbH Reha-Produkte, Karlsbad Reproduction, also extracts, by written permission from DIETZ GmbH, Karlsbad only.
