Summary of Contents for Dietz CANEO B
-

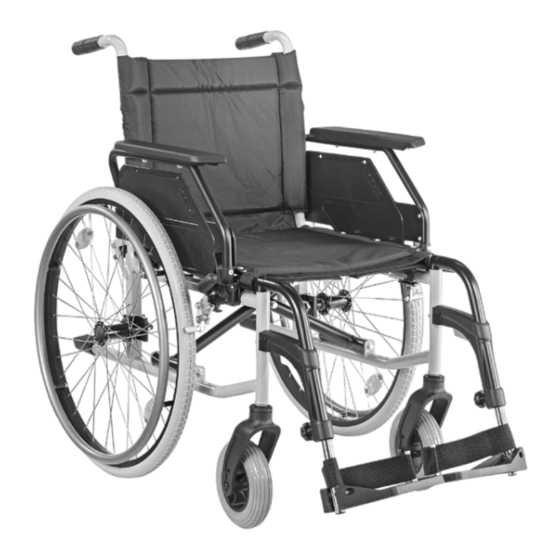

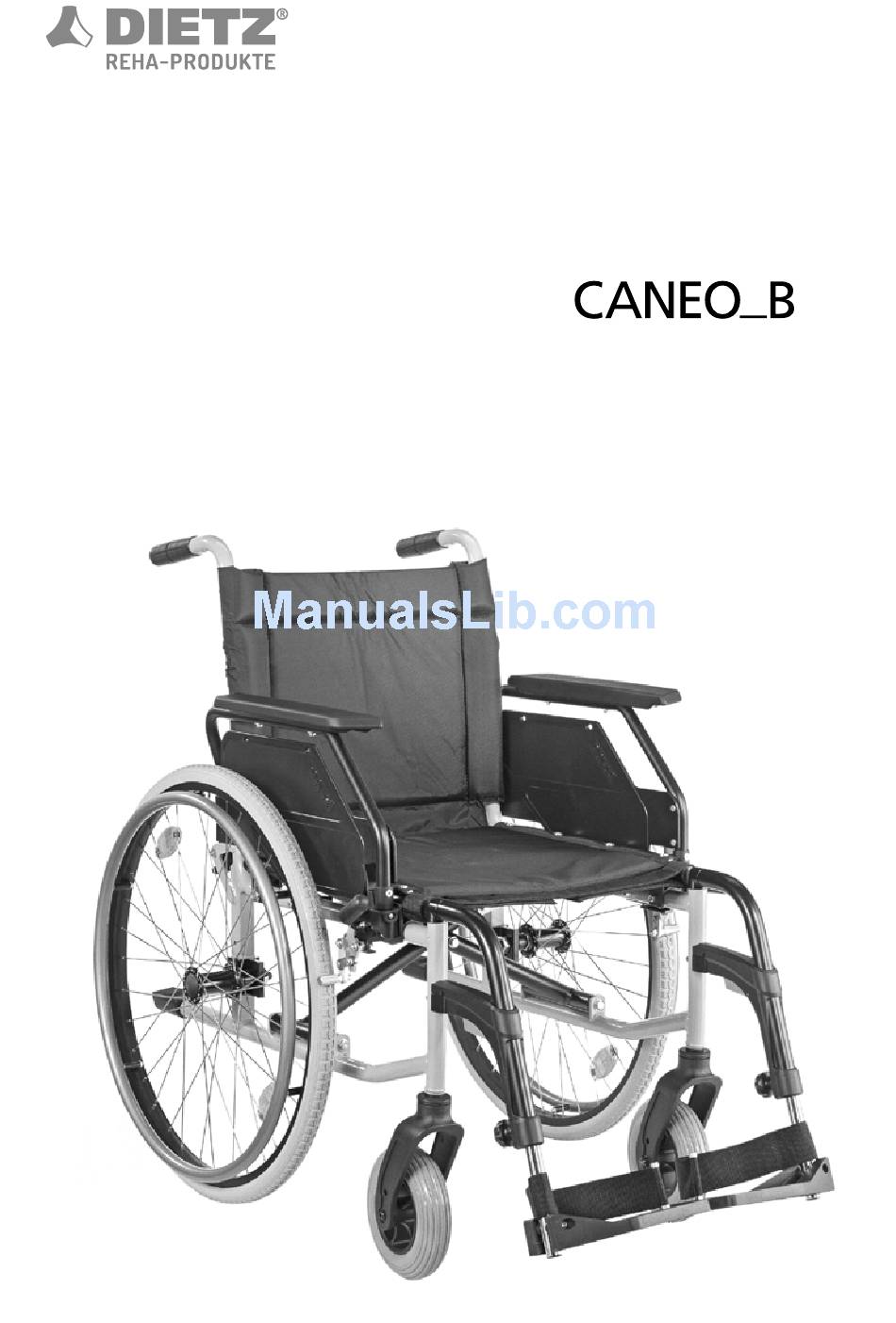

Page 1: Operating Instructions
Standard wheelchair Operating instructions Version 2.0.1. EN... - Page 2 Tel.: +49 7248.9186-0 ised by its high stability and diverse setting options. Fax: +49 7248.9186-86 info@dietz-reha.de www.dietz-reha.de Pictures and Illustrations in this user manual may differ from the actual product. DIETZ GmbH / Operating instructions standard wheelchair CANEO_B / Version 2.0.1. EN...
-
Page 3: Table Of Contents
(optional) ....24 Dietz‘s measurement system ... . .32 Warranty ......41 03 Putting into operation 4.8 Anti-tip wheels (optional) . -
Page 4: Information
Use of the wheelchair is unsuitable in the case of False sensations Severe disequilibrium Loss of limbs on both arms Joint contracture / joint damage on both arms Inability to sit Impaired or inadequate vision DIETZ GmbH / Operating instructions standard wheelchair CANEO_B / Version 2.0.1. EN... -
Page 5: Product Description
1 set of cardboard box and packaging 1 pre-assembled wheelchair 1 pair of leg rests 1 user’s manual Equipment (if selected) Quick-release axle Locking brake Foot plate Heel strap DIETZ GmbH / Operating instructions standard wheelchair CANEO_B / Version 2.0.1. EN... -
Page 6: Putting Into Operation
28. CAUTION Risk of trapping! When folding and unfolding your wheelchair, pay attention to your fingers and only grip the parts as seen in the illustrations. DIETZ GmbH / Operating instructions standard wheelchair CANEO_B / Version 2.0.1. EN... -
Page 7: Folding Apart
Hook the leg supports in and swivel them for- wards. The leg rest will then click into place Make sure that the crossbar engages properly automatically. in its sideframe brackets. DIETZ GmbH / Operating instructions standard wheelchair CANEO_B / Version 2.0.1. EN... -
Page 8: Foot Plates
Push the quick-release button while engaging the wheels. The axle / wheel will engage a lot easier. ATTENTION After connecting the wheels make sure that the quick-release axles are engaged properly. DIETZ GmbH / Operating instructions standard wheelchair CANEO_B / Version 2.0.1. EN... -
Page 9: Seat Depth
Then tighten Carry the procedure out in the opposite se- the adjustment screw securely again. quence to increase the seat depth. DIETZ GmbH / Operating instructions standard wheelchair CANEO_B / Version 2.0.1. EN... -
Page 10: Drive Mode
To transfer sidewards, you can swing away the side panels To stop the wheelchair from rolling (Chapter 4.2, page 20). or sliding away while getting seated, it is helpful to place both rear wheels against a wall. DIETZ GmbH / Operating instructions standard wheelchair CANEO_B / Version 2.0.1. EN... -
Page 11: Swivelling The Side Panels Back
4.3 Folding the foot plates up Fold the foot plates up to make entering and exiting easier. The foot plates must be folded up to save space when folding the wheelchair together. DIETZ GmbH / Operating instructions standard wheelchair CANEO_B / Version 2.0.1. EN... -
Page 12: Propelling And Slowing Down The Wheelchair With The Push Rims
When propelling your wheelchair, make sure that you do not touch the tyre casing with your thumb. Risk of trapping between the tyre and side panel / armrest! DIETZ GmbH / Operating instructions standard wheelchair CANEO_B / Version 2.0.1. EN... -
Page 13: Braking By An Accompanying Person (Optional)
Anti-tip supports can be optionally fitted in- hard to manoeuvre. then available as a parking brake. stead of the rubber buffers; these can be used as tilting aids and tipping protection to the rear. DIETZ GmbH / Operating instructions standard wheelchair CANEO_B / Version 2.0.1. EN... -
Page 14: Transporting And Folding Together
»05 Adjustments for individu- al settings« from page 28. NOTE The CANEO_B is tested according to ISO 7176-19 and can be used as a seat in a passenger car. DIETZ GmbH / Operating instructions standard wheelchair CANEO_B / Version 2.0.1. EN... -
Page 15: Adjustments For Individual Settings
The armrests can then be Incorrectly adjusted brakes may moved forwards or backwards. Then tighten have life-threatening consequences. the bolts securely again to the side panel. DIETZ GmbH / Operating instructions standard wheelchair CANEO_B / Version 2.0.1. EN... -
Page 16: Seat Height Adjustment
47 cm seat height. Front and rear seat heights must always be the same. CAUTION A change in the height of the seat necessitates readjustment of the brakes. DIETZ GmbH / Operating instructions standard wheelchair CANEO_B / Version 2.0.1. EN... -
Page 17: Technical Data
Total height from seat upholstery to upper edge of back upholstery Lower leg length: Total length from foot plate (centre) to upper edge of the leg rest acceptance DIETZ GmbH / Operating instructions standard wheelchair CANEO_B / Version 2.0.1. EN... -
Page 18: Maintenance Log
We suggest to have your wheelchair inspected by a specialist dealer at Weight (kg) 18.4 – 18.8 19.5 – 19.8 least once a year. Materials Steel frame, high-quality plastic covers DIETZ GmbH / Operating instructions standard wheelchair CANEO_B / Version 2.0.1. EN... -
Page 19: Safety Instructions
The wheelchair must not be misused to Never stand on the foot plates when transport multiple persons or loads. Use entering or exiting. it only for the intended purpose. DIETZ GmbH / Operating instructions standard wheelchair CANEO_B / Version 2.0.1. EN... -
Page 20: Instructions For General Use
That all threaded and riveted connections are undamaged. If your wheelchair is no longer used and is to be disposed of, please contact a local disposal company to enquire about the regulations. DIETZ GmbH / Operating instructions standard wheelchair CANEO_B / Version 2.0.1. EN... -
Page 21: Forwarding / Reusing
Dietz GmbH only bears liability if the products are used under the specified hygienic results. In intended purpose and conditions and for the specified purposes. We recommend that the products... -
Page 22: Index
Rear wheels ..........Responsiblity ..........Folding apart ..........Reusing ............Folding the foot plates up ......Folding together .......... Foot plates ..........Safety belt ........... Forwarding ..........Safety instructions ........DIETZ GmbH / Operating instructions standard wheelchair CANEO_B / Version 2.0.1. EN... - Page 23 76307 Karlsbad Tel.: +49 7248.9186-0 Fax: +49 7248.9186-86 info@dietz-reha.de www.dietz-reha.de Pictures and Illustrations in this user manual may differ from the actual product. QVH-Zertifizierung Die DIETZ GmbH wurde für den hohen Standard ihrer Beratungs- und Servicequalität mit dem QVH-Gütesiegel ausgezeichnet.
