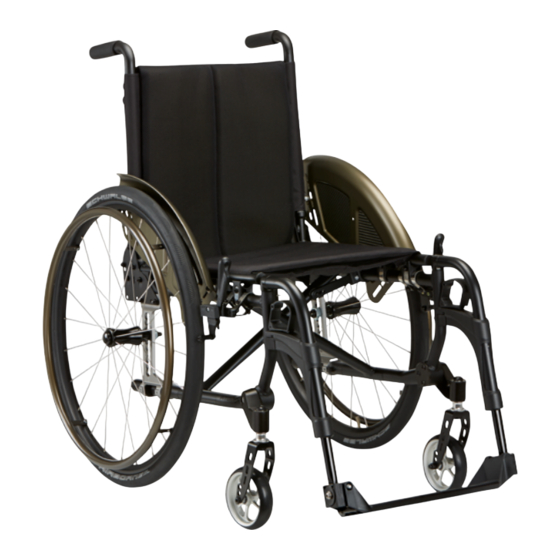

AS[01] adaptive wheelchair

Operating instructions

Version 1.1.3 EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS[01] and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dietz AS[01]

Summary of Contents for Dietz AS[01]

  • Page 1: Operating Instructions

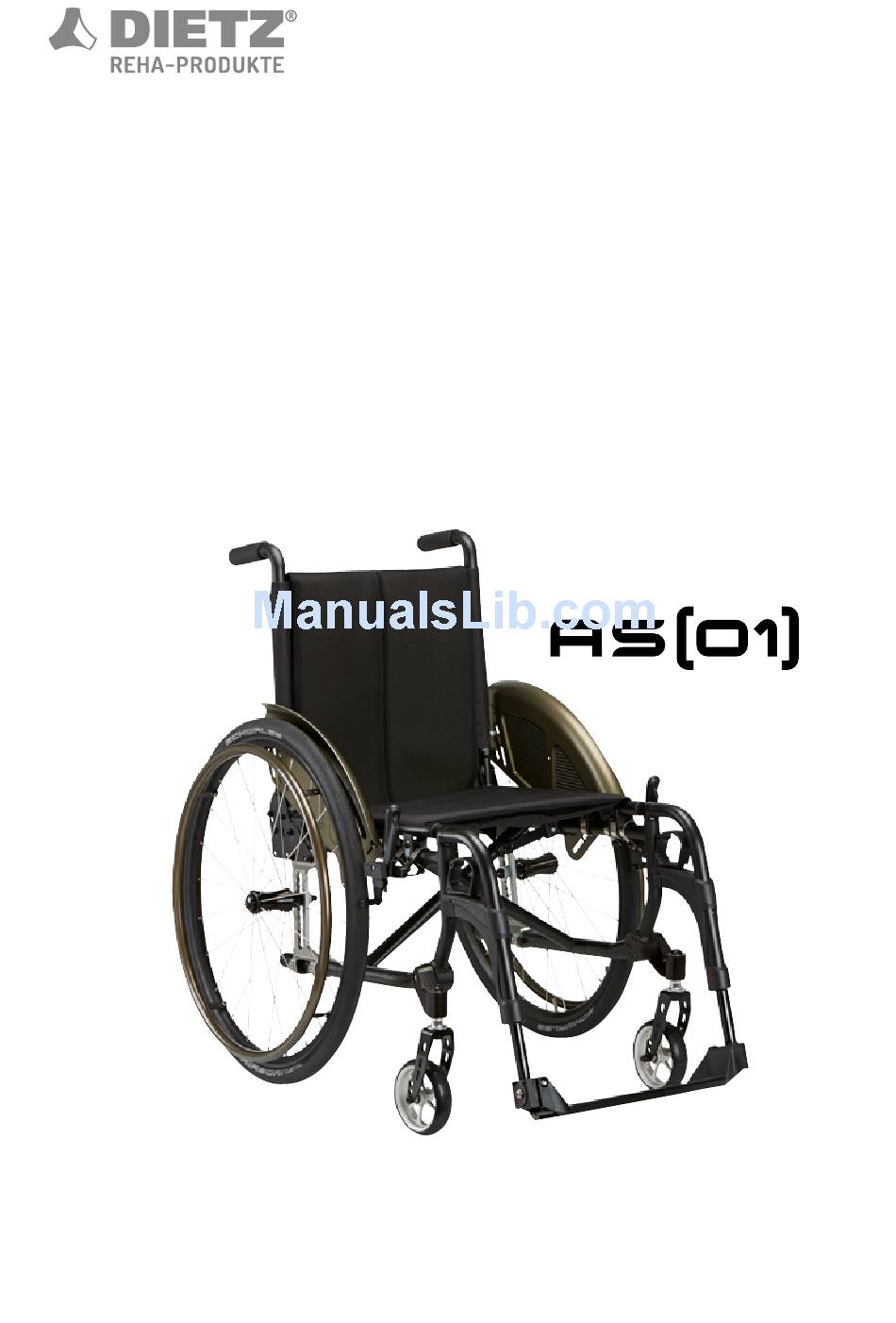

    AS[01] adaptive wheelchair Operating instructions Version 1.1.3 EN...
  • Page 3 Date 10/2016 (LA/RP) DIETZ GmbH Reutäckerstraße 12 76307 Karlsbad Tel.: +49 7248.9186-0 Fax. +49 7248.9186-86 info@dietz-reha.de www.dietz-reha.de © 2016 DIETZ GmbH · In certain circumstances, the images in these operating instructions may deviate from the product delivered. Date 10/2016 Version 1.1.3 EN...
  • Page 5 OPERATING INSTRUCTIONS AS[01] Thank you for deciding to purchase the AS[01] adaptive wheelchair from DIETZ. This wheelchair is a medical aid. In order to use it properly and avoid pos- sible risks due to unintended use, you must become thoroughly familiar with its operation.

  • Page 6: Table Of Contents

    CONTENTS 01 Important information 03 Commissioning the wheelchair Intended use ......8 3.1 Unfolding the wheelchair ...14 Indication .
  • Page 7 5.12 Setting the wheel lock ....46 06 Technical documentation How we at DIETZ take measurements ..48 Dimensions and weight ....50...

  • Page 8: Important Information

    This wheelchair may not be used in the event of Sensory disorders Severe vertigo Loss of limbs on both arms Joint contractures/joint damage on both arms Inability to sit Reduced or insufficient eyesight DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...

  • Page 9: Icons And Symbols

    01 IMPORTANT INFORMATION WARNING ICONS AND SYMBOLS You must observe all warnings. These symbols mark text passages that are hel- They draw your attention to the pful for the use and operation of the product in fact that there is a risk of injury daily life.

  • Page 10: Product Description

    Scope of delivery Wheelchair corresponding to the configuration selected Leg rests (pair) Operating instructions Accessories (if selected) DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...

  • Page 11: Structure Of The As

    02 PRODUCT DESCRIPTION STRUCTURE OF THE AS[01] The AS[01] can be configured in many variants, enabling it to be optimally adjusted to the user. Basic components Side piece with clothing guard and wheel cover Push handle, optionally with brake lever for accompanying person Leg rests Handrails...

  • Page 12: Commissioning The Wheelchair

    03 COMMISSIONING THE WHEELCHAIR DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...
  • Page 13 03 COMMISSIONING THE WHEELCHAIR COMMISSIONING THE WHEELCHAIR The AS[01] comes completely assembled from the factory. Before first use, you only have to unfold the wheelchair and attach the leg rests. In the follo- wing chapter, you will find notes on how to unfold the wheelchair and pre- pare it for use.

  • Page 14: Unfolding The Wheelchair

    Next, put the back pad in place and close the Velcro on the other side, at the lower end of the back. DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...

  • Page 15: Folding Up The Wheelchair

    03 COMMISSIONING THE WHEELCHAIR 3.2 Folding the wheelchair First undo the Velcro on the lower end of the back pad (beneath the seat). NOTE The back pad can remain on the wheelchair and must not be removed completely. Now grasp the centre of the seat pad at the front and back.

  • Page 16: Attaching The Leg Rests

    From above, insert the upper pin of the leg rest into its intended holder. Now swivel the leg rest to the front in the direc- tion of travel. You will hear and feel it snap into place. DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...

  • Page 17: Foot Rests / Foot Plate

    03 COMMISSIONING THE WHEELCHAIR 3.4 Foot rests / Foot plate Swivel the foot rests or foot plate (optional) downward to put them in the correct position. Depending on the installation side, the foot plate can be swivelled upward towards the left or the right.

  • Page 18: Adjusting The Back Straps

    Now you can push the strap to the rear under- neath the seat. This will raise the seat 3 cm. DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...

  • Page 19: Changing The Push Handle Height

    03 COMMISSIONING THE WHEELCHAIR 3.7 Changing the push handle height (optional) Turn the T-screws once or twice to loosen it. Now pull or push the push handle to the required height and re-tighten the T-screws.

  • Page 20: Swivelling The Side Pieces Upward

    / upward. You will hear and feel it automatically lock into place again if you push the side piece back downward into the starting position. DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...

  • Page 21: Removing And Attaching The Rear Wheels

    03 COMMISSIONING THE WHEELCHAIR 3.9 Removing and attaching the rear wheels By pressing the button at the centre of the wheel hub, you will release the rear wheel lock. Now you can easily pull the rear wheel to the outside and off. NOTE Press and hold the locking button when you attach the rear wheels...

  • Page 22: Using The Wheelchair

    NOTE Place the back of the wheelchair against a stable wall. This ensures that the wheelchair cannot slip away on smooth surfaces. DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...
  • Page 23 04 USING THE WHEELCHAIR Sitting down 1. Release the leg rests and swivel them to the outside. 2. If possible, place the wheelchair with the rear wheels against a stable wall. 3. Lock the wheelchair in place with the two wheel locks. 4.

  • Page 24: Using The Handrails To Propel And Stop The Wheelchair

    To stop, let the handrail glide through your hand in a controlled manner. WARNING The handrails can become very hot after longer braking manoeuvres. DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...

  • Page 25: Using The Wheel Lock To Stop

    04 USING THE WHEELCHAIR 4.3 Using the wheel lock to stop the wheelchair Press the level forward / backward to stop the wheel lock. The brake will automatically lock into this position. To release the brake, pull the lever upward. NOTE Always lock both brakes, since one side is not enough to keep the...

  • Page 26: The Wheelchair

    NOTE Always brake with the same strength on both sides, otherwise the wheelchair will pull towards one side and become difficult to manoeuvre. DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...

  • Page 27: Wheelchair Settings

    05 SETTINGS FOR INDIVIDUAL ADJUSTMENT WHEELCHAIR SETTINGS The AS[01] offers many setting options for optimally adjusting it to your needs Making the settings on a wheelchair is complicated work because some of them are technically sophisticated and require thorough knowledge of the needs of the individual user.

  • Page 28: Arm Rest Pads (Optional)

    To change your length selection (desk or long), completely remove the arm rest, turn it 180° and insert it on the opposite side. Insert screw A again and tighten it. DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...

  • Page 29: Changing The Lower Leg Length

    05 SETTINGS FOR INDIVIDUAL ADJUSTMENT 5.2 Changing the lower leg length Turn Allen screw B once or twice to loosen it. The foot rest tube is now free and can be pushed upward or downward. When you have found the correct height, tighten the screw again manually.

  • Page 30: Setting The Back Angle

    WARNING Please consider that a positive back angle (10° / 15°) signifi- cantly increases the risk of tipping. In this case, we strongly recom- mend tipping sleeves. DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...

  • Page 31: Setting The Back Height

    05 SETTINGS FOR INDIVIDUAL ADJUSTMENT 5.5 Setting the back height The height of the back pad can be set to one of two positions ( +/-3 cm). To do this, loosen Allen screw E at the top of the back tube (or the T-screw for changing the height of adjustable push handles).

  • Page 32: Setting The Rear Seat Height

    Avoid setting the rear seat height higher than the front seat height. If you do, this increases the risk that the wheelchair user will fall forward out of the wheelchair. DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...
  • Page 33 05 SETTINGS FOR INDIVIDUAL ADJUSTMENT NOTE Factors such as the seat angle, tyres, camber, etc. have an impact on the seat height. For this reason, the values listed are guidelines with a tolerance of approx. +/-1 cm.

  • Page 34: Setting The Rear Wheel Position Active < - > Passive

    180°. WARNING The position of the rear wheels has an enormous influence on the wheelchair‘s tipping stability. Tipping sleeves must be used for active rear wheel positions. DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...
  • Page 35 05 SETTINGS FOR INDIVIDUAL ADJUSTMENT +2 cm -8 cm NOTE +2 cm is equivalent to a wheelbase extension and is recommended for use with lower leg amputations or electric auxiliary drives for increased backward tipping stability. -8 cm for highly responsive handling for experienced wheelchair users.

  • Page 36: Setting The Rear Wheel Camber

    Remove the two plastic half moons. Now you can swivel the entire rear wheel adapter plate to the outside or the inside. Now insert the two half moons and screws F on the opposite side. DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...
  • Page 37 05 SETTINGS FOR INDIVIDUAL ADJUSTMENT Step 2 The connection plates to the back tube are bent CAUTION in accordance with the camber angle and now have to be mounted in the correct position. For It is important to mount the clear identification, the plates are marked with plates at the correct positions in the numbers I (2 x), II and III.

  • Page 38: Setting The Front Seat Height

    This enables the caster arm to be mounted in a higher or lower position. DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...
  • Page 39 05 SETTINGS FOR INDIVIDUAL ADJUSTMENT Wheel size 5“ / 12,5 cm Exchange caster arm top / bottom see no. 5.10 Caster arm, Caster arm, bottom NOTE Factors such as the seat angle, tyres, etc. have an impact on the seat height. For this reason, the values listed are guidelines with a tolerance of approx.
  • Page 40 Factors such as the seat angle, tyres, etc. have an impact on the seat height. For this reason, the values listed are guidelines with a tolerance of approx. +/-1 cm. DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...
  • Page 41 05 SETTINGS FOR INDIVIDUAL ADJUSTMENT Wheel size 7“ / 17,5 cm Exchange caster arm top / bottom see no. 5.10 Caster arm, Caster arm, bottom NOTE Factors such as the seat angle, tyres, etc. have an impact on the seat height. For this reason, the values listed are guidelines with a tolerance of approx.

  • Page 42: Assembling The Caster Arms At The Top Or Bottom (Setting The Front Seat Height)

    Do not lose the supporting plate in the process. Now remove the screw for setting the angle completely and re-insert it in the opposite direc- tion. DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...
  • Page 43 05 SETTINGS FOR INDIVIDUAL ADJUSTMENT Now you can re-insert the complete caster arm on the opposite side of the wheelchair. It will be pointing in the opposite direction (top / bottom). Please make sure that the supporting plate is correctly inserted. Now replace the cover and use the 3 screws provided ( 2 x long, 1 x short) to tighten it.

  • Page 44: Setting The Caster Angle

    Now you can put a 5 mm Allen spanner through the hole at the bottom of the caster housing and adjust the angle by turning. Next, tighten all 3 screws again. DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...
  • Page 45 05 SETTINGS FOR INDIVIDUAL ADJUSTMENT 90° NOTE For precision settings, we recommend using a 90° try square.

  • Page 46: Setting The Wheel Lock

    The tyre pressure has a strong effect on the brake function. If the pressure is too low, the brakes may not function. The recommended tyre pressure is indicated on the tyre sidewalls. DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...
  • Page 47 05 SETTINGS FOR INDIVIDUAL ADJUSTMENT You can adjust the brakes by moving the brake carrier plus the brake along the side frame. To do this, loosen the two screws on the clamps that connect the brake carriers to the side frame. You can now move the brake carrier until you have created the required distance.

  • Page 48: Technical Documentation

    Total width, outer edge to outer edge of the seat tube Back height: Total height, upper edge of the seat tube to the upper edge of the seat pad DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...
  • Page 49 06 TECHNICAL DOCUMENTATION NOTE The dimensions measured at textile components (e.g., back height) are guidelines with a tolerance of approx. +/-1 cm. Lower leg length Seat height, front Seat height, rear Seat height, front: Total height, floor to upper edge of seat tube, front Seat height, rear: Total height, floor to upper edge of seat tube, rear Lower leg length:...

  • Page 50: Dimensions And Weight

    12.5 / 15 / 17.5 // 5 / 6 / 7 Tipping stability (degrees) 10° Max. load (kg) 125 / 150 depending on the design Weight (kg) From 12.8 DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...

  • Page 51: Maintenance Log

    06 TECHNICAL DOCUMENTATION MAINTENANCE LOG G = checked E = replaced R = repaired When What Drum brake Wheel lock Accompaniment brake level Push handle Side piece, complete Seat material Back material Casters Drive wheels Tyre pressure Tyre casing Handrails Frame CAUTION We recommend that you have your wheelchair inspected by your specialist retailer...

  • Page 52: Safety Instructions

    If you cannot go around grooves, ruts, this reason, cover these parts or avoid tracks or similar impassable points, exposing the wheelchair to direct always cross them at a right angle (90°). sunlight. DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...
  • Page 53 07 SAFETY INSTRUCTIONS Do not propel your wheelchair forward Do not use a high-pressure cleaner, against kerbs, edges or other obstacles aggressive or caustic chemicals or without braking. scouring additives to clean the wheel- chair. Do not jump from obstacles (kerbs, edges, steps, etc.) while sitting in the Always remember that there is a risk of wheelchair.

  • Page 54: Notes On Use

    SERIAL NUMBER The serial number is the most important characteristic for unique product identification. It is located below the seat on the cross strut. DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...

  • Page 55: Disposal

    08 NOTES ON USE DISPOSAL If you no longer need the wheelchair, contact your specialist retailer, who will pick up the wheelchair and properly dispose of or re-use the wheelchair. Otherwise bring the wheelchair to your local disposal point. SHARING AND RE-USE Please give the new user or the specialist retailer all of the technical docu- ments required for safe use in the event that your wheelchair is to be shared or re-used.

  • Page 56: Warranties

    (see below) must be submitted with all comp- laints. DECLARATION OF CONFORMITY In sole responsibility, Dietz GmbH declares the conformity of the wheelchair AS[01] with the provision in EU Directive 93/42 for Medical Products. DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...

  • Page 57: Responsibility

    LIABILITY Dietz Reha - Produkte GmbH is liable only if the products have been used under the conditions specified and for the purposes specified. We recom- mend that you handle the products properly and care for them in accordan- ce with the instructions.

  • Page 58: Index

    42 / 43 Cross strut ............ Maintenance log ........... Maximum load ..........Declaration of conformity ......DIETZ system of measurement ....... Nameplates ........... Dimensions ........... Notes on care ..........DIETZ GmbH / AS[01] adaptive wheelchair operating instructions / Version 1.1.3 EN...
  • Page 59 10 INDEX Pneumatic tyres ..........Slowing down the wheelchair ......Propelling the wheelchair ......Structure of the AS[01]; ........ Push handle ..........Supporting plate ........... 11 / 19 Supporting plate, caster ......42 / 43 Swivelling the side pieces upward ....Rear wheel ..........
  • Page 60 Date 10/2016 (LA/RP) DIETZ GmbH Reutäckerstraße 12 76307 Karlsbad Tel.: +49 7248.9186-0 Fax. +49 7248.9186-86 info@dietz-reha.de www.dietz-reha.de © 2016 DIETZ GmbH · In certain circumstances, the images in these operating instructions may deviate from the product delivered. Date 10/2016 Version 1.1.3 EN...
