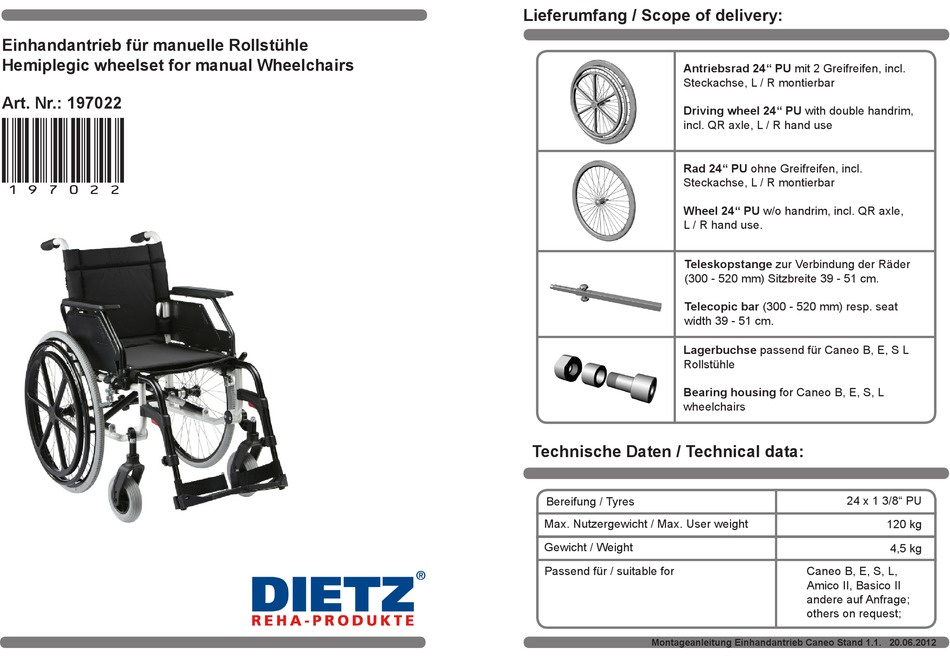

Einhandantrieb für manuelle Rollstühle

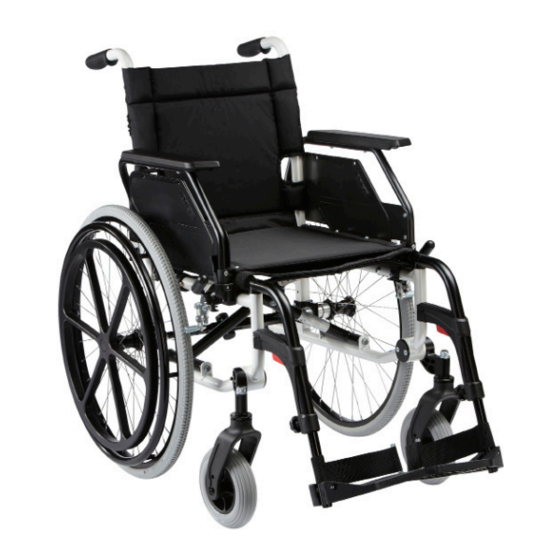

Hemiplegic wheelset for manual Wheelchairs
Art. Nr.: 197022
197022
Lieferumfang / Scope of delivery:
Antriebsrad 24" PU mit 2 Greifreifen, incl.
Steckachse, L / R montierbar
Driving wheel 24" PU with double handrim,
incl. QR axle, L / R hand use
Rad 24" PU ohne Greifreifen, incl.
Steckachse, L / R montierbar
Wheel 24" PU w/o handrim, incl. QR axle,
L / R hand use.
Teleskopstange zur Verbindung der Räder
(300 - 520 mm) Sitzbreite 39 - 51 cm.
Telecopic bar (300 - 520 mm) resp. seat
width 39 - 51 cm.
Lagerbuchse passend für Caneo B, E, S L
Rollstühle
Bearing housing for Caneo B, E, S, L
wheelchairs
Technische Daten / Technical data:
Bereifung / Tyres
Max. Nutzergewicht / Max. User weight
Gewicht / Weight
Passend für / suitable for
Montageanleitung Einhandantrieb Caneo Stand 1.1. 20.06.2012
24 x 1 3/8" PU
120 kg
4,5 kg
Caneo B, E, S, L,
Amico II, Basico II
andere auf Anfrage;
others on request;

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 197022 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dietz 197022

  • Page 1 Einhandantrieb für manuelle Rollstühle Hemiplegic wheelset for manual Wheelchairs Antriebsrad 24“ PU mit 2 Greifreifen, incl. Steckachse, L / R montierbar Art. Nr.: 197022 Driving wheel 24“ PU with double handrim, 197022 incl. QR axle, L / R hand use Rad 24“...
  • Page 2 Avoid sudden changes of direction and stops. • Do not expose the telescopic bar to severe blows or load changes by hard driving. Dietz Reha - Produkte Descostraße 10 76307 Karlsbad Ittersbach Tel: +49 (0) 7248 / 9186 - 0 Fax: +49 (0) 7248 / 9186 - 86 www.dietz-reha.com...
