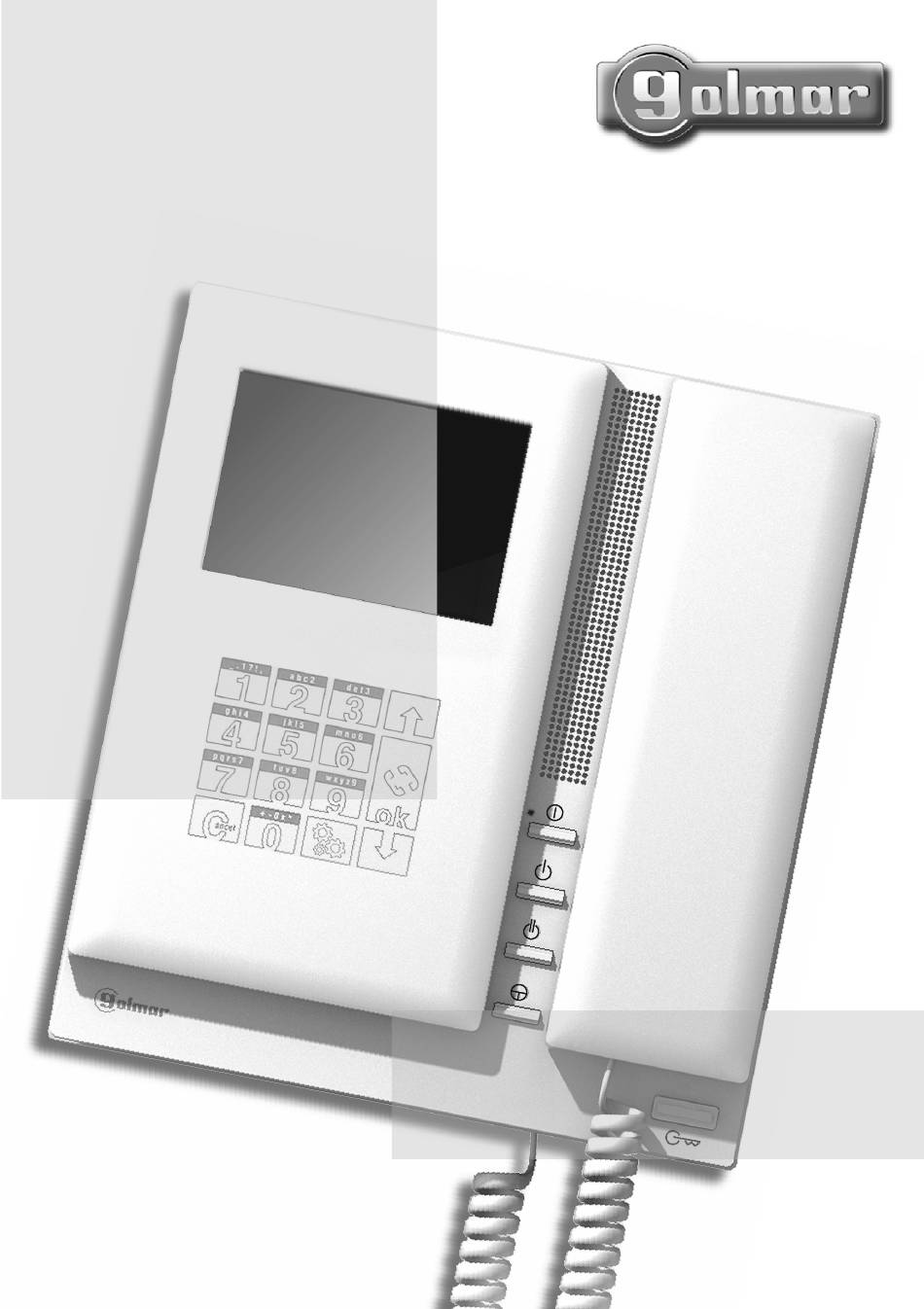

  • Page 1 Porter's exchange digital installation CETK-590 Plus Instructions manual...

  • Page 2: Table Of Contents

    Each time the power supply is restarted, or after a modification, the system will remain blocked during 45 seconds. Always use RG-59 B/U MIL C-17 or RG-11 coaxial cables, (see page 64). Never use coaxial In istallations no longers than 100m., cable can be used. antenna cable. Golmar RAP-5130...

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Install or modify the equipment without the power connected The installation and handling of these equipments must be performed by authorised personnel The entire installation must be at least . away from any 40 cm other installation With power supply: Do not use excessive force when tightening the connector screws.

  • Page 4: System Operation

    SYSTEM OPERATION Calling from the door panel to an apartment. This procedure is detailed on the instruction manual included with the door panel. If the "capture panel calls" function (page 48) has been activated, the call will be received on the porter's exchange: it will be possible to transfer the call to the corresponding apartment after tenant agreement.

  • Page 5: System Operation

    SYSTEM OPERATION Coming from previous page In systems combined with door panel(s), the door panel(s) will be automatically disconnected. In systems with general door panel(s), will be those who remain unconnected: if a visitor tries to call, an acoustic tone will be heard confirming the system is busy If the call is not answered in 45 seconds, the system will be freed.

  • Page 6: Porter's Exchanges

    PORTER'S EXCHANGE DESCRIPTION escription of the CETK-590 Plus porter's exchange. a bc 2 d ef 3 g hi 4 j k l 5 mno6 00000000000 pqrs7 t uv8 wxyz9 PRINCIPAL CAPTURA PLACA PÁNICO M. PROTEGIDO ATENCIÓN RETENCIONES 2ª TABLA Alta tensión. No abrir la tapa.
  • Page 7 PORTER'S EXCHANGE DESCRIPTION unction push buttons. On-Off push button. If the "Protected Mode" function is enabled (page 48), it shall be necessary to introduce the user code to switch on the porter's exchange. If the handset is on the craddle no function is activated. If not, allows to make an intercom call to the other porter's exchange (if exists).
  • Page 8 'enable clock battery' in the programming menu is activated (see page 49). If this is correct, it will be necessary to replace the battery. Replacement battery: Golmar code (50121403 battery CR1220). When replacing the battery, check the polarity, as it is shown on the drawing.

  • Page 9: El562 Module

    PORTER'S EXCHANGE DESCRIPTION escription of the memory banks. The porter's exchange has two memory banks to plug 256Kb memory modules in. Each module allows to record the custom text for a maximum of 1000 users. The system is delivered with one memory module placed in the bank number 0 (BK0), where the system configuration will be recorded.
  • Page 10 CONNECTOR DESCRIPTION escription of the RCTK-PLUS porter's exchange connector. CABLE Max. Max. pelado del cable. Max. câble dénudé. Max. peeled cable. Max. aanstrip lengte. 50mm. ( ) * Malla Malla Malla Shield Shield Shield 50mm. Malla Malla Malla ( ) * Shield Shield Shield...

  • Page 11: Fix The Porter's Exchange

    PORTER'S EXCHANGE INSTALLATION ix the porter's exchange connector to the wall. Avoid to place the porter's exchange near to heating sources, in dusty locations or smoky environments. To install the porter's exchange directly over the wall, drill two holes of Ø6mm. and use the supplied screws. The upper part of the porter's exchange connector must be placed at 1,60m.

  • Page 12: Porter's Exchange Programming

    PORTER'S EXCHANGE PROGRAMMING rogramming menu. It will be necessary to enter into the programming menu to configure the system properties. For a proper system operation, the menus marked with an must be configurated. asterisk Two different programming menues are available: , that allows to modifiy any of administrator system properties and...

  • Page 13: Programming Menues

    PORTER'S EXCHANGE PROGRAMMING Coming from previous page onfiguration menu. To enter into configuration menu, follow SYSTEM configuraTION the steps described on the previous page and press OK when the display shows the message SYSTEM CONFIGURAtION Allows to choose the language of the displayed ENGLISH messages and the programming menues.

  • Page 14: Porter's Exchange Programming

    PORTER'S EXCHANGE PROGRAMMING Coming from previous page onfiguration menu. Allows to receive the panic calls made from SHOW panic aLERTS a monitor or telephone, or when the access control panic code is keyed in on a coded door panel. Press OK to enable or disable this feature. Activates the retention of unattended panic or SHOW MISSED CALLS normal calls.

  • Page 15: Porter's Exchange Programming

    PORTER'S EXCHANGE PROGRAMMING Coming from previous page onfiguration menu. Allows to change the administrator PIN code to ADMINISTRATOR PINCODE enter into the administrator programming :1315 menu (page 47). Do not let know this code to untrained people; any change on the programming menu could produce a system failure.
  • Page 16 PORTER'S EXCHANGE PROGRAMMING esident list menu. To enter into resident list menu, follow the reSIDENT LIST steps described on page 47 press OK when the display shows the message reSIDENT LIST Allows to enter a new entry in the last resident list NEW RESIDENT position.

  • Page 17: Porter's Exchange Programming

    PORTER'S EXCHANGE PROGRAMMING Coming from previous page esident list menu. Allows to insert a new entry in a specific resident insert resident list position. This function allows to keep the resident list sorted. Press OK: the display will show the first resident list position: in case of no existing entries the display will show the message resident...

  • Page 18: Porter's Exchange Programming

    PORTER'S EXCHANGE PROGRAMMING Coming from previous page esident list menu. Allows to delete all residents list. delete residents list Press OK to start the deleted residents list. function is activated (page 49), keypad beep a tone will indicate us that residents list are being deleted.

  • Page 19: Porter's Exchange Programming

    PORTER'S EXCHANGE PROGRAMMING ext edit. To introduce or edit text during programming, use the keypad as described. The maximum number of characters in one text line is 16. Use the numeric keys to introduce text: press several times the corresponding key till the desired character appears on the display, according with the enclosed characters table.

  • Page 20: Power Supply Installation

    POWER SUPPLY INSTALLATION nstalling the FA-PLUS and FA-PLUS/C Rev.938072 power supplies. The power supply must be installed in a dry and 3,5 x 45 protected place. It's recommended to protect DIN-7971 the power supply by using a thermo-magnetic circuit breaker and to use a ground connection with FA-Plus power supply.

  • Page 21: Description

    TELEPHONE DESCRIPTION escription of the T-940 Plus telephone. Telephone handset. Speaker grille. Microphone hole. Subjection hole. Telephone cord connectors. Function push buttons. On-Off light indicator. Call reception volume control. Hook switch. The telephone has a three positions switch placed on the bottom part of the telephone (closest to the telephone cord connector) that allows to control the call reception level volume.

  • Page 22: Telephone Installation

    TELEPHONE DESCRIPTION erminal connector description. – positive, ground. A , D : audio, digital communication. INT : intercom. SA : auxiliary calling device output. HZ- : door bell push button input. TELEPHONE INSTALLATION ix the telephone. It will be necessary to open the telephone for wiring and fixing purposes.

  • Page 23: Programming

    TELEPHONES PROGRAMMING rogramming the telephones. On systems with door panels, telephones and monitors programming must be done from the door panels, as described on the corresponding instruction manual. Once the programming has been finished, make a call from each apartment to the porter's exchange: the display will show the corresponding assigned codes.

  • Page 24: Optional Connections

    OPTIONAL CONNECTIONS ntercom function. T-940 Plus telephone have intercom facility between two units of the same apartment To enable this function check the following conditions: - One of the units has been configurated as master and the other unit as slave with intercom, as described on page - Link the INT terminal of the units, as it is shown on the enclosed diagram.
  • Page 25 This function requires an internal modification in the monitor, as it is described on the door panel instructions manual. CETK-590 Plus porter's exchanges have intercom facility between two porter's exchanges . To enable this function, link the INT terminal of the units, as it is shown on the enclosed diagram.
  • Page 26 T-940 Plus T-940 Plus CETK-590 Plus T-940 Plus a bc 2 d ef 3 g hi 4 j k l 5 mno6 pqrs7 t uv8 wxyz9 + - 0x * ancel Malla M =Master. S =Slave. Access door panel *Place this power supply as closest as possible to the first telephone.

  • Page 27: Installation Diagrams

    INSTALLATION DIAGRAMS udio installation. The installation diagram shows the connection of an audio system with one or several door panels for the same building and one porter's exchange. If the system has no door panels or only one, override the corresponding wiring. If the system has more than one door panel, wire the second panel as shown on the diagram.
  • Page 28 Tekna Plus D4L-PLUS Tekna Plus Malla Malla FA-Plus/C rev.938072 CETK-590 Plus a bc 2 d ef 3 g hi 4 j k l 5 mno6 pqrs7 t uv8 wxyz9 + - 0x *...

  • Page 29: Video Installation With Coaxial

    INSTALLATION DIAGRAMS ideo installation with coaxial cable. The installation diagram shows the connection of a video system with one or several door panels for the same building and one porter's exchange. If the system has no door panels or only one, override the corresponding wiring. If the system has more than one door panel, wire the second panel as shown on the diagram.
  • Page 30 Tekna Plus Tekna Plus EL562 EL562 * Take off JP1 jumper of all the distributors except in the last one. D6L-Plus/2H CETK-590 Plus Tekna Plus EL562 EL562 a bc 2 d ef 3 g hi 4 j k l 5...
  • Page 31 INSTALLATION DIAGRAMS ideo installation without coaxial cable. The installation diagram shows the connection of a video system with one or several door panels for the same building and one porter's exchange. If the system has no door panels or only one, override the corresponding wiring. If the system has more than one door panel, wire the second panel as shown on the diagram.
  • Page 32 Lock release Main Vdc. D4L-PLUS BACKBONE 0 M =Master. S =Slave. FA-Plus/C rev.938072 CETK-590 Plus a bc 2 d ef 3 g hi 4 j k l 5 mno6 pqrs7 t uv8 wxyz9 + - 0x * ancel...
  • Page 33 INSTALLATION DIAGRAMS BACKBONE 2 Inner door panel To the monitors EL500 mode FA-Plus or FA-Plus/C Malla out+ out- Lock release Main Vd.c. D4L-PLUS BACKBONE 0 General door panel EL501 mode FA-Plus/C rev.938072 Malla 230 110 0 out+ out- Lock release Main Vd.c.
  • Page 34 BACKBONE 126 Inner door panel To the monitors EL500 mode FA-Plus or FA-Plus/C Malla out+ out- Lock release Main Vd.c. D4L-PLUS ideo installation with general entrance door panel for residential complexes. IMPORTANT NOTES: To wire and configure the system properly, use this instruction manual and the ones enclosed in the internal building door panels and in the general door panels.
  • Page 35 INSTALLATION DIAGRAMS BACKBONE 127 Inner door panel To the monitors EL500 mode FA-Plus or FA-Plus/C Malla out+ out- Lock release Main Vd.c. ideo installation with general entrance door panel for residential complexes. SECTIONS CHART Distance Terminal 100m. 300m. +, , CV1, CV2 –...
  • Page 36 1141 Budapest, Fogarasi út 77. 1095 Budapest, Mester utca 34. Tel.: *220-7940, 220-7814, 220-7959, Tel.: *218-5542, 215-9771, 215-7550, 220-8881, 364-3428 Fax: 220-7940 216-7017, 216-7018 Fax: 218-5542 Mobil: 30 531-5454, 30 939-9989 Mobil: 30 940-1970, 30 959-0930 www.golmar.hu E-mail: info@delton.hu Web: www.delton.hu...
