Calibration
A similar method is used to calibrate the analog output components (PCI-DAS6035 only). A
trim DAC is used to adjust the gain of the DAC. A separate DAC is used to adjust offset on
the final output amplifier. The calibration circuits are duplicated for both analog outputs. See
Figure 5-2.

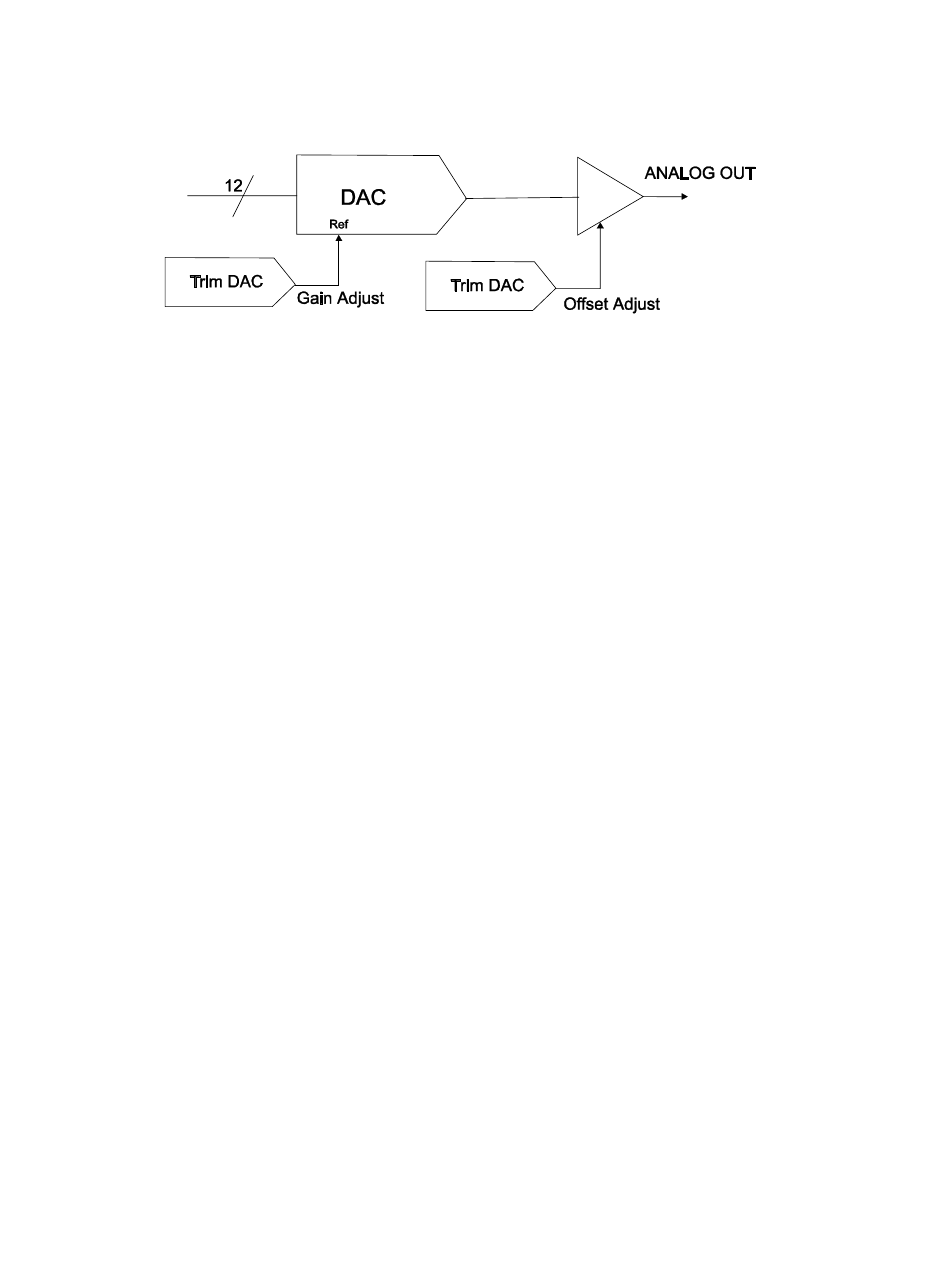

Figure 5-2. Analog Output Calibration Elements
5–2
