Summary of Contents for Hay AAT15

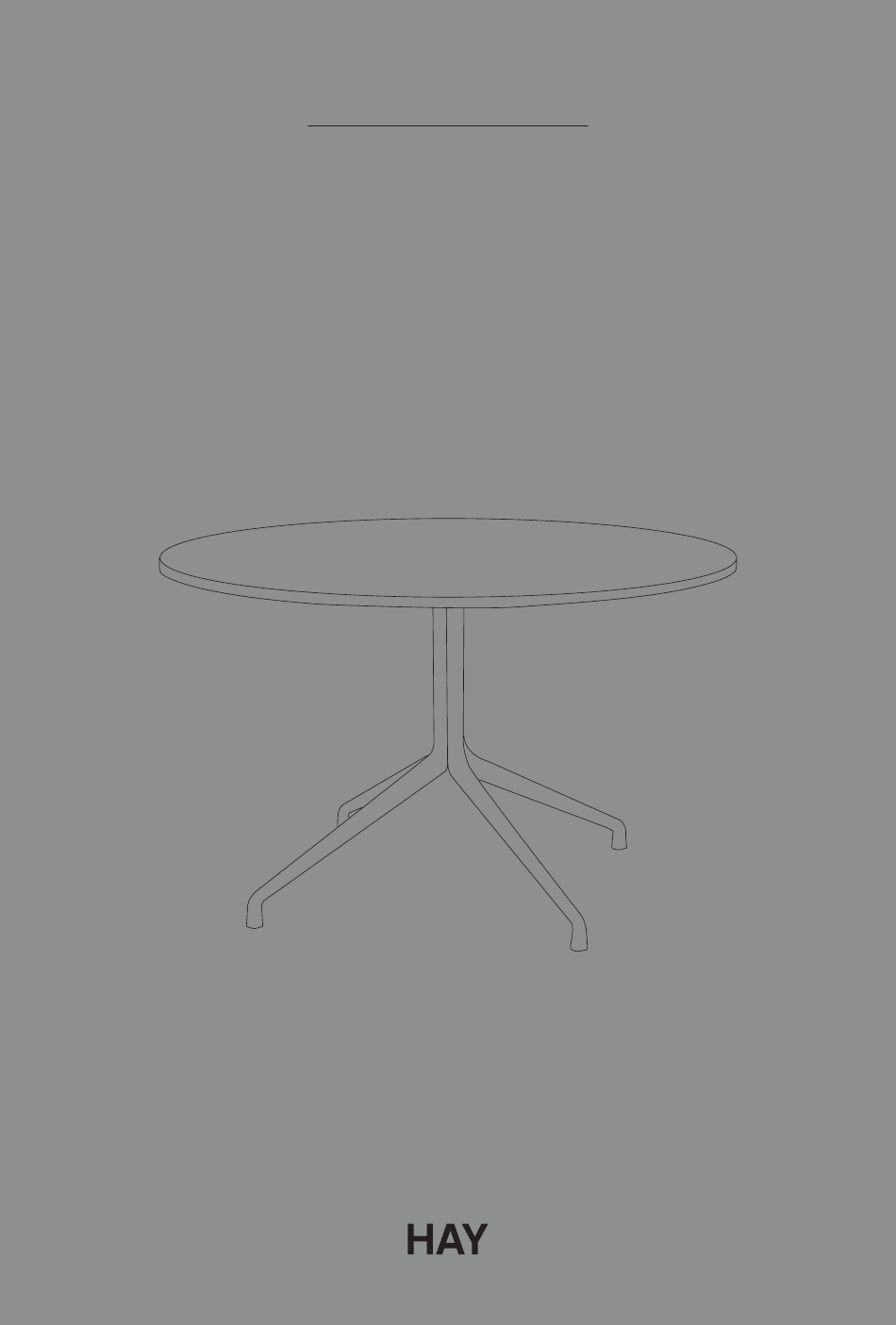

- Page 1 I NST RUCTION M A N UA L A B OU T A TA B L E A AT 15/A AT 2 0 4 L E G S B y H e e W e l l i n g & H AY...
- Page 2 I N T RODUCTION The About A Table shares the general versatility and design language as the rest of the About A Chair family. The table features the same powder coated frame as many of the chairs in the series, and the organic curves and raised feet convey a similar light expression.
-
Page 3: Care And Maintenance
C A R E A N D M A I N T ENA NCE C A R E A N D M A I N T ENA NCE CAUTION LINOLEUM POWDER COATED OR POLISHED ALUMINIUM With a little care you can prolong the life of your •... - Page 4 PA RTS CAUTION While assembling, keep the tabletop inside the cardboard box with foam edge in order to protect the tabletop from scratches etc. Make sure that all parts are included. A x 1 B x 1 C x 4 D x 4 E x 2 F x 12...
- Page 5 Slide the I part into the D part and press it down gently. Place the E part in the shown holes of the D parts. Repeat this step on all 4 x D parts. Place the D part into the B part. Screw 4 x J parts in the shown holes of the E part, using the Allen key (L): Repeat this step on all 4 x D parts.
- Page 6 Screw 1 x K part in the shown hole of the E part, using the Allen key (L). Place the C part in the shown holes of the B part. Repeat this step on all 4 x C parts. Place the I part into the C part and press it down gently. Place the E part in the shown holes of the C parts.
- Page 7 Screw 4 x J parts into the shown holes of the E part using the Allen key (L). Place the H part over the hole of the C part. Screw the G part in the shown holes of the H part using the Allen key (M).
- Page 9 Havnen 1 8700 Horsens Denmark +45 4282 0282 / hay@hay.dk ITEM NO. 706356 5 710441 246565 12092017...
