- Page 1 I NST RUCTION M A N UA L A B OU T A TA B L E A AT 10 B y H e e W e l l i n g & H AY...

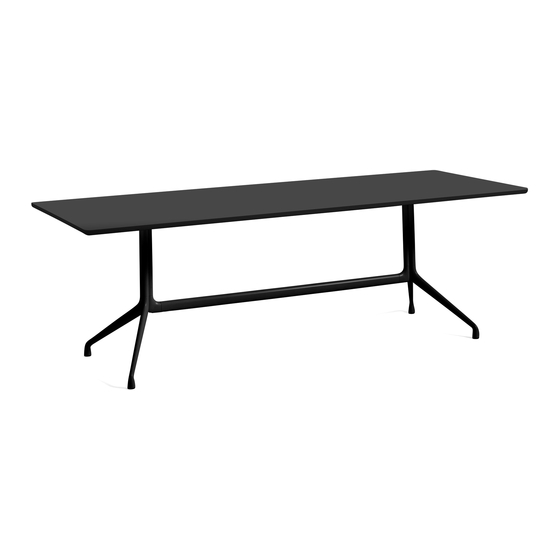

- Page 2 I N T RODUCTION The About A Table shares the general versatility and design language as the rest of the About A Chair family. The table features the same powder coated frame as many of the chairs in the series, and the organic curves and raised feet convey a similar light expression.
-
Page 3: Care And Maintenance
C A R E A N D M A I N T ENA NCE C A R E A N D M A I N T ENA NCE CAUTION LINOLEUM POWDER COATED OR POLISHED ALUMINIUM With a little care you can prolong the life of your •... - Page 4 PA RTS CAUTION While assembling, keep the tabletop inside the cardboard box with foam edge in order to protect the tabletop from scratches etc. Make sure that all parts are included. A x 1 B x 2 C x 4 D x 6 E x 2 F X 1...
- Page 5 Slide the K part into the D part and press it down gently. Place the G part in the shown holes of the D parts. Repeat this step for all 6 x C parts. Repeat this step on both B parts. Place 3 x D parts into the B part.
- Page 6 Screw the M parts in the shown holes of the G part, using the Allen key (N). Place the C part in the shown holes of the B part. Repeat this step on both G parts. Repeat this step on all 4 x C parts. Place the K part into the C part and press it down gently.
- Page 7 Place the G part in the shown holes of the C parts. Screw the M parts in the shown holes of the G part using the Allen key (N). Make sure that the tapered holes are pointing upwards. Repeat this step on both G parts. 1 1.
- Page 8 Secure the I parts into the C part. Turn the table over (2 persons recommended). Place the J part over the hole of the C part. Screw the I part in the shown holes of Screw the D parts to the tabletop using the H parts. the J part using the Allen key (O).
- Page 11 Havnen 1 8700 Horsens Denmark +45 4282 0282 / hay@hay.dk ITEM NO. 706355 710441 245872 12092017...
