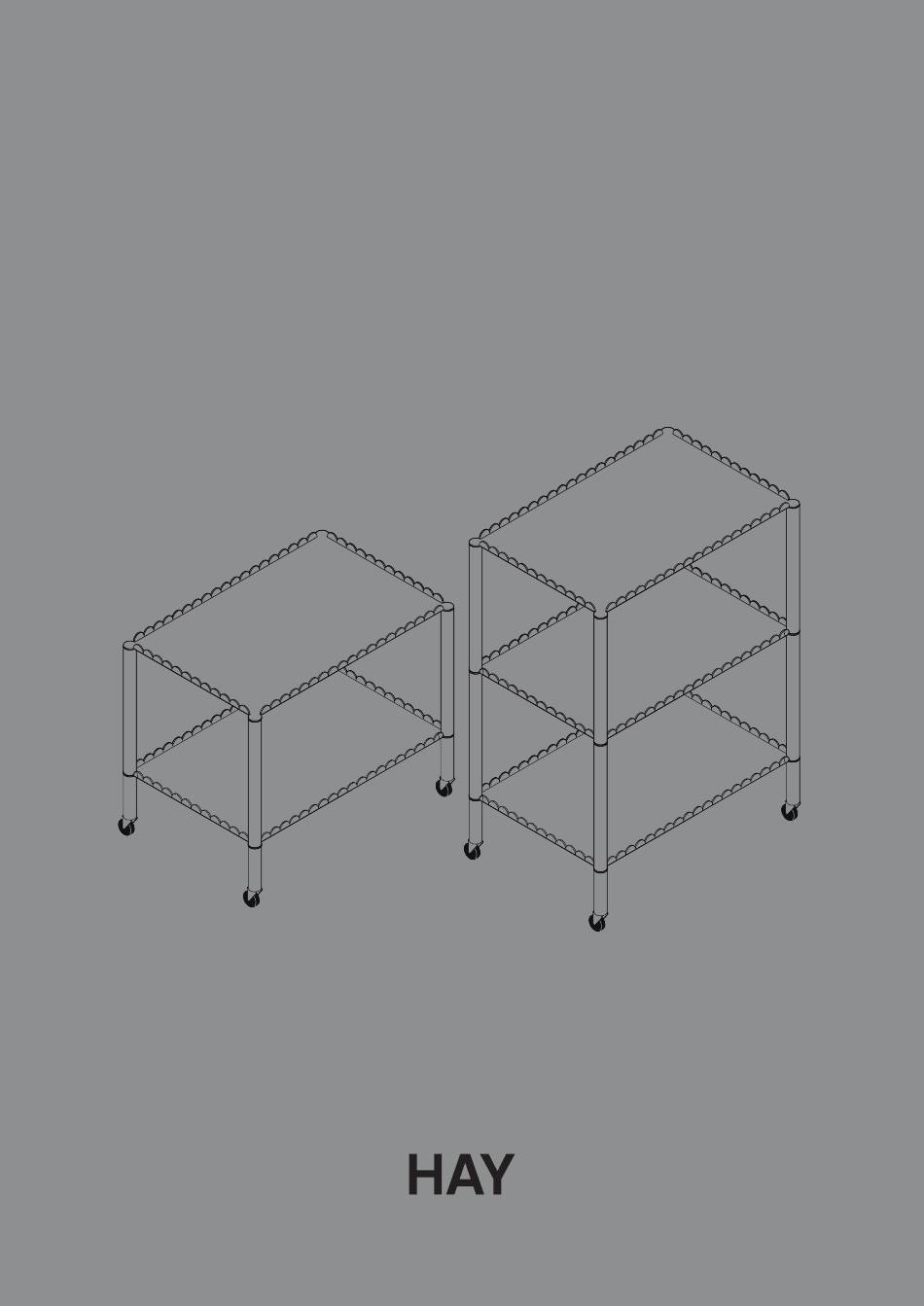

- Page 1 – INSTRUCTION MANUAL – ARCS TROLLEY DESIGN BY MULLER VAN SEVEREN...
- Page 3 – PARTS – Top shelf x1 Middle shelf x1 for two-tier trolley x2 for three-tier trolley Legs Feet x4 x4 for two-tier trolley x8 for three-tier trolley...
- Page 4 Protect the product from scratches and other damage while assembling. Max weight on each shelf is 10 kg / 22 lbs...
- Page 5 Screw the legs onto the top shelf Do not tighten them fully, but leave a 2 mm gap between the shelf, as illustrated below. To ease assembly, do not fully tighten the legs yet.
- Page 6 Lower the middle shelf onto the screws.
- Page 7 Fully tighten the legs. Do not overtighten. Do not overtighten the legs.
- Page 8 Screw on the feet For the three-tier trolley, continue to step 5. Do not overtighten the feet.
- Page 9 Screw the legs onto the middle shelf Do not fully tighten them, but leave a 2 mm gap between the shelf, as illustrated below. For the two-tier trolley, continue to step 8.
- Page 10 Lower the second middle shelf onto the screws.
- Page 11 Fully tighten the legs. Do not overtighten. Do not overtighten the legs.
- Page 12 Screw on the feet . Do not overtighten the feet. Do not overtighten the feet.
- Page 13 Turn the trolley over onto its feet.
-
Page 14: Care And Maintenance
– CARE & MAINTENANCE – Our Care & Maintenance offers guidance for optimal maintenance of your HAY product. It includes advice and instructions on cleaning and caring for specific materials to prolong the life of your furniture. Please find our Care & Maintenance... - Page 16 Havnen 3 8700 Horsens Denmark +45 3164 6000 / hay@hay.com 28/06/2023...
