6.3 R100 remote control

The pumps are designed for wireless communication with the
Grundfos R100 remote control.

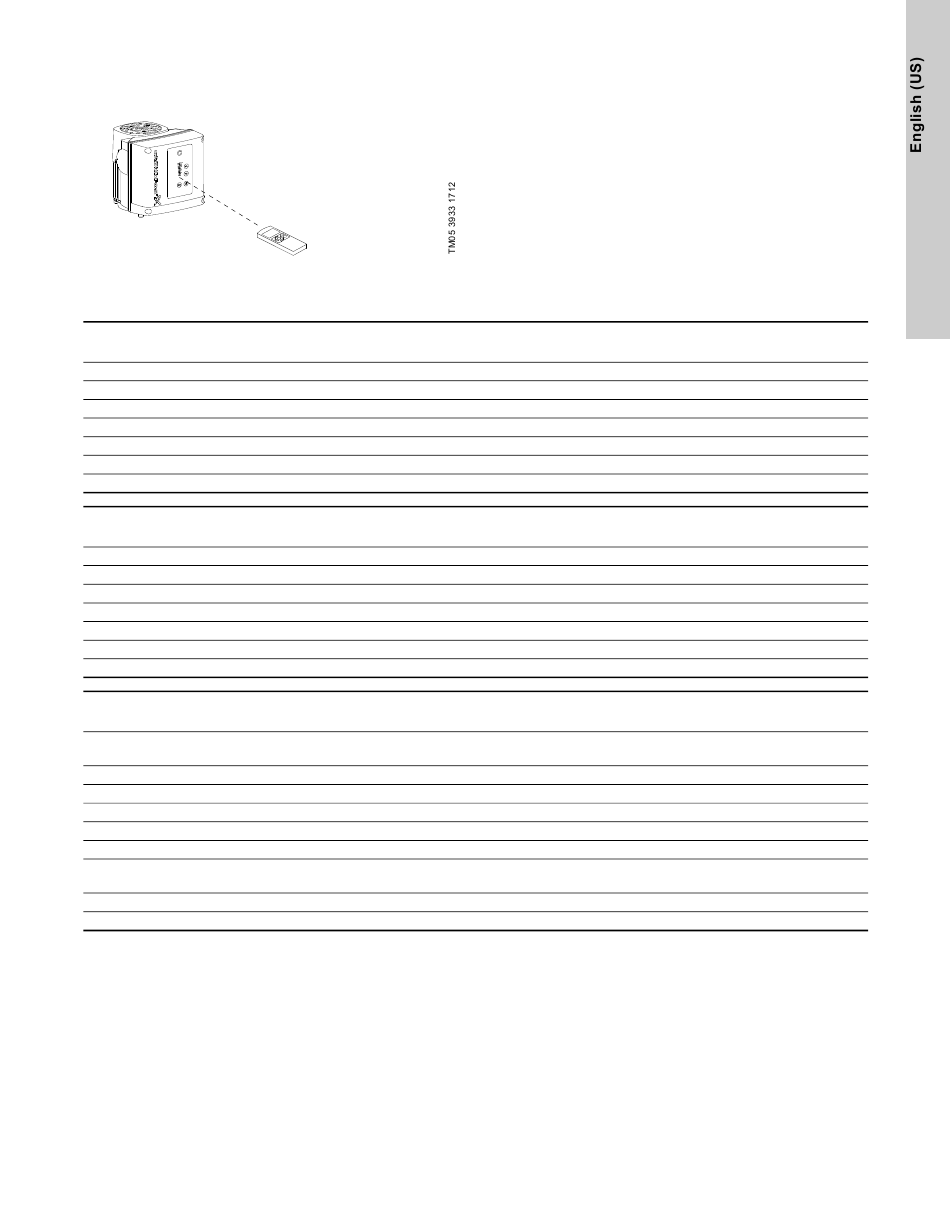

Fig. 33 R100 communicating with the pump via infrared light
6.3.1 Menu overview for R100
"General"
"Switch off R100"
"Return to start"
"Delete all changes"
"Store settings"
"Call up settings"
"Store status data"
"Call up status data"
"Operation"
"Setpoint"
"Operating mode"
"Manual speed"
"Alarm"
"Warning"
"Alarm log 1 to 5"
"Warning log 1 to 5"
"Status"
"Actual setpoint and external
setpoint"
"Operating mode"
"Actual controlled value"
"Analog input 1, 2 and 3"
"Pt100/1000 input 1 and 2"
"Speed"
"Power input and power
consumption"
"Operating hours"
"Replace motor bearings"
During communication, point R100 at the control panel. When
R100 communicates with the pump, the indicator light in the
middle of the Grundfos Eye flashes green. See page 18.
R100 offers additional possibilities of setting and status displays
for the pump.
The displays are divided into four parallel menus:
"0. GENERAL" (see operating instructions for the R100)
"1. OPERATION"
"2. STATUS"
"3. INSTALLATION."
See section
It may be necessary to update R100 to access the new menus.
Multipump
VLSE LCSE
system
● ●
● ●
● ●
● ●
● ●
● ●
● ●
Multipump
VLSE LCSE
system
● ●
● ●
● ●
● ●
● ●
● ●
● ●
Multipump
VLSE LCSE
system
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
● ●
6.3.1 Menu overview for R100.
Section
Setpoint"
7.1 "
Operating mode"
7.2 "
Set manual speed"
7.3 "
Alarm log"
7.38 "
Warning log"
7.39 "
Page
31
31
31
54
55
29
