7.5 "Analog inputs"

Available inputs depend on the functional module fitted in the
pump:
Function (terminal)
"Analog input 1, setup" (4)
"Analog input 2, setup" (7)
"Analog input 3, setup" (14)
* See section
5.2.1 Identification of functional
If you want to set the analog input for a feedback sensor, we
recommend that you do this via the "Assisted pump setup" menu.
See section
7.41 "Assisted pump
If you want to set an analog input for other purposes, you can do
this manually.
You can set the analog inputs via the "Setup, analog input" menu.
See section
7.42 "Setup, analog
If you make the manual setting via Grundfos GO, you need to
enter the menu for the analog input under the "Settings" menu.
Function
The analog inputs can be set to these functions:
"Not active"
"Feedback sensor"
The sensor is used for the selected control mode.
"Ext. setpoint infl."
See section
7.13 "External setpoint
"Other function".
Measured parameter
Select one of the parameters listed below, i.e. the parameter to
be measured in the system by the sensor connected to the actual
analog input. See fig. 50.
5
11
1
3
13
DPT
PT
PT
TT
2
4
DPT
DPT
9
LT

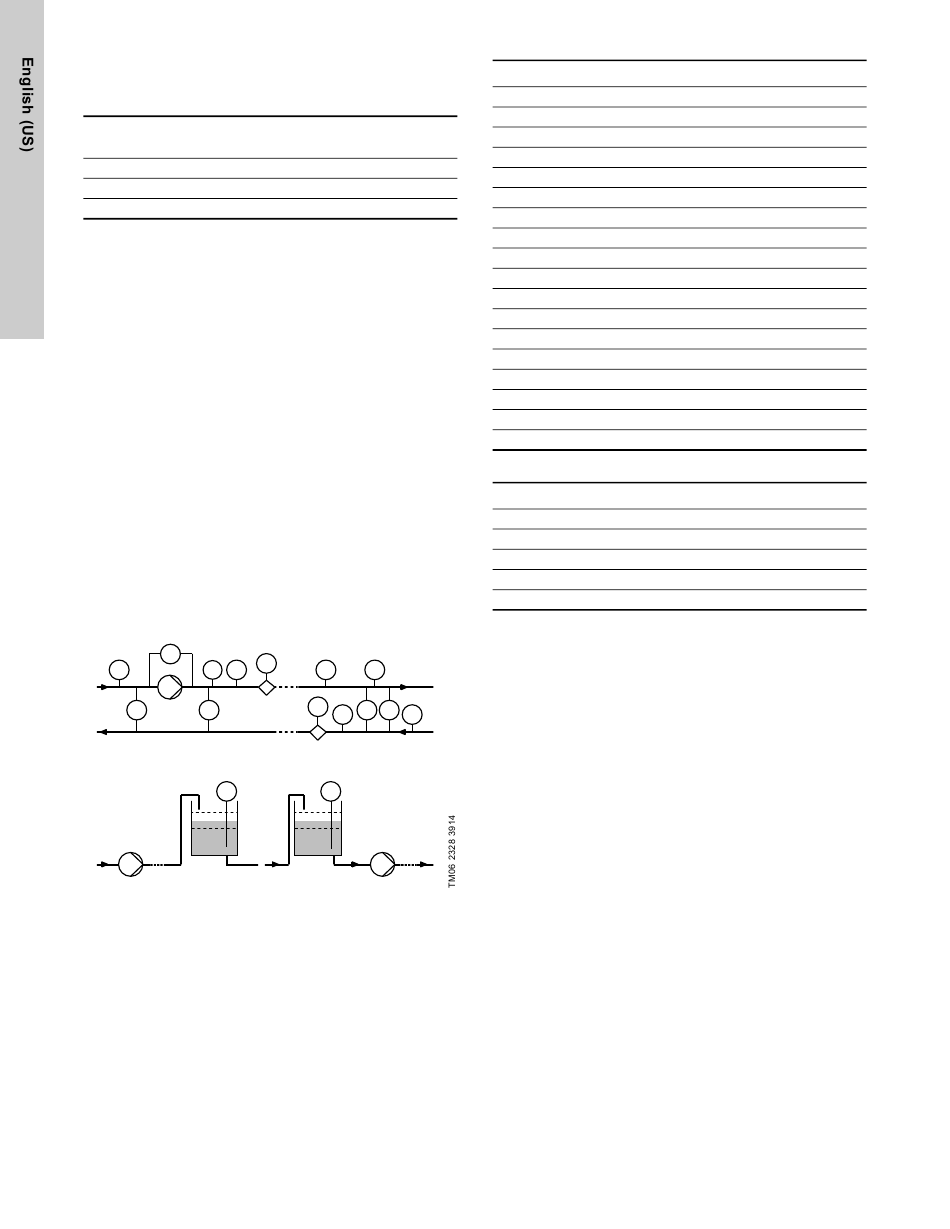

Fig. 50 Overview of sensor locations
36
FM 300*
(advanced)
module.
setup".
input".
function".
6
14
Q
PT
TT
12
8 16
15
7
Q
DPT DTT
PT
TT
10
LT
Sensor function/measured parameter
"Inlet pressure"
"Diff. press., inlet"
"Discharge press."
"Diff. press.,outlet"
"Diff. press, pump"
"Press. 1, external"
"Press. 2, external"
"Diff. press., ext."
"Storage tank level"
"Feed tank level"
"Pump flow"
"Flow, external"
"Liquid temp."
"Temperature 1"
"Temperature 2"
"Diff. temp., ext."
"Ambient temp."
"Other parameter"
"Unit"
Parameter
Possible units
Pressure
"bar", "m", "kPa", "psi", "ft"
Level
"m", "ft", "in"
Pump flow
"m³/h", "l/s", "yd³/h", "gpm"
Liquid temperature
"°C", "°F"
Other parameter
"%"
"Electrical signal"
Select signal type:
"0.5-3.5 V"
"0-5 V"
"0-10 V"
"0-20 mA"
"4-20 mA".
Sensor range, minimum value
Set the minimum value of the connected sensor.
Sensor range, maximum value
Set the maximum value of the connected sensor.
Factory setting
data. "Limit 2 exceeded"
See section
10. Technical
Pos.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Not shown
Not shown
