Grundfos LCSE Installation And Operating Instructions Manual page 44

• "Inverse with Stop" and "Inverse with Min.".
– "Inverse with Stop"
In the input signal range from 0 to 80 %, the setpoint is
influenced inversely.
If the input signal is above 90 %, the pump changes to
operating mode "Stop".
If the input signal is reduced below 85 %, the operating
mode is changed back to "Normal".
See fig. 61.
– "Inverse with Min.".
In the input signal range from 0 to 80 %, the setpoint is
influenced inversely.
If the input signal is above 90 %, the pump changes to
operating mode "Min.".
If the input signal is reduced below 85 %, the operating
mode is changed back to "Normal".
See fig. 61.
"Setpoint influence" [%]
100
0
0
0.5
0
0
0
4
-50
"Normal"
"Min." or
"Stop"

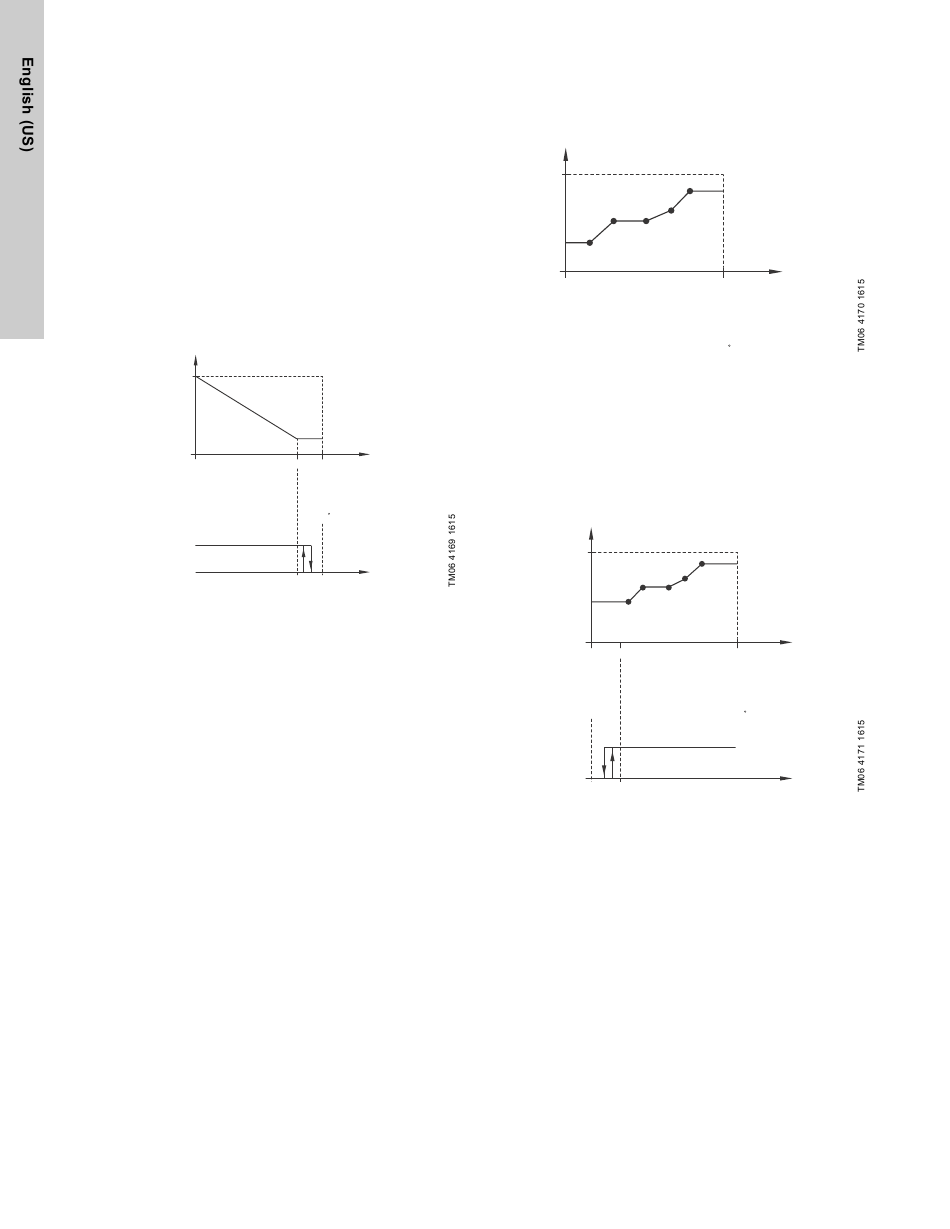

Fig. 61 "Inverse with Stop" and "Inverse with Min."
44
External
80 100 %
3.5 V
input
5 V
10 V
20 mA
20 mA
204 C
• "Influence table".
The setpoint is influenced by a curve made out of two to eight
points. There is a straight line between the points and a
horizontal line before the first point and after the last point.
"Setpoint influence" [%]
100
0
0
0.5
0
0
0
4
-50
Fig. 62 "Influence table" (example with five points)
• "Influence table with Stop at Min.".
The setpoint is influenced by a curve made out of two to eight
points. There is straight line between the points and a
horizontal line before the first point and after the last point. If
the input signal is below 10 %, the pump changes to operating
mode "Stop". If the input signal is increased above 15 %, the
operating mode is changed back to "Normal". See fig. 63.
"Setpoint influence" [%]
100
0
0
20
0.5
0
0
0
4
-50
"Normal"
"Min." or
"Stop"
Fig. 63 "Influence table with Stop at Min." (example with five
points)
External
100 %
input
3.5 V
5 V
10 V
20 mA
20 mA
204 C
External
100 %
3.5 V
input
5 V
10 V
20 mA
20 mA
204 C
